高压阀门、接头和钢管

Since 2007




















Autoclave Engineers Tools, Installation,Operation, Maintenance工具
Low Pressure “Speedbite”, Cone & Thread: Manual and Machine, Quick Set (QSS) Tooling




任何产品的安全、高效运行本质上取决于其正确安装。本节说明了低压、中压和高压接头的准备和组装。还包括中高压锥螺纹连接和防振夹头压盖组件的组装程序。Safe, efficient operation of any product is inherently dependent upon its proper installation. In this section the preparation and assembly of low, medium and high pressure connections is explained. Also covered is the assembly procedure for medium and high pressure Cone & Thread Connections as well as anti-vibration collet gland assemblies.

Correct installation procedures are further promoted by providing dimensional information associated with a variety of Parker Autoclave Engineers tube connections as well as the torque required to properly seat numerous Parker Autoclave Engineers components. Several tools developed by Parker Autoclave Engineers are presented to help accomplish proper valve, fitting and tubing installation and maintenance. Video tutorials are available on our website (www.Autoclave.com) and a Setup & Operational DVD is sent with every Cone and Thread Machine.

When installing or maintaining any pressure component, common practice dictates the use of proper safety equipment at all times.

Inside you will find:
- Installation Instructions for Low Pressure "Speedbite" Single Ferrule Bite-Type Compression Fittings
- Part numbers and Installation Instructions for both Medium and High Pressure Manual Cone & Thread Kits and Accessories
- Assembly and Installation Instructions for Anti-Vibration Gland Assemblies
- Part numbers and Specification detail for Cone & Thread Machine (required for all tubing sizes above 9/16")
- Connection Torque Values (for both Standard and Special Materials)
- Connection and Packing Gland Nut Sizes, Torque Wrenches and Crows Foot Wrench Adapters
- Reamer Part Numbers for cleaning up Connection Sealing Surfaces
- Valve Packing, Running and Seating Torque Values
- Male and Female Connection reference drawings with dimensions with connection names
- Manual Make-up and Installation instructions for Quick Set System (QSS) - only 1/4" and 3/8" tube sizes
- Hydraulic Set Up Tool for Quick Set System (HST) - All Sizes
- Part Numbers and Specifications for the Hydraulic Tube Bender (HTB)
- Maintenance and Lubrication site locations for various Parker Autoclave Engineers valves with recommended Lubricants


Tools, Installation,Operation, Maintenance Autoclave Engineers Tools工具产品技术资料下载
Low Pressure “Speedbite”, Cone & Thread: Manual and Machine, Quick Set (QSS) Tooling


- Autoclave Engineers Tools, Installation, Operation & Maintenance

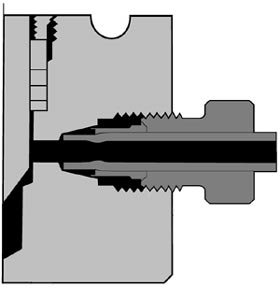

Speed-Bite Connections
快速咬合连接

快速咬入压缩连接件的安装
Installation of Speed Bite compression connections

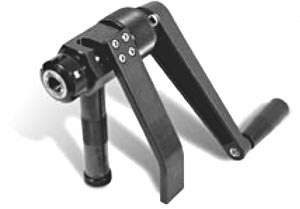

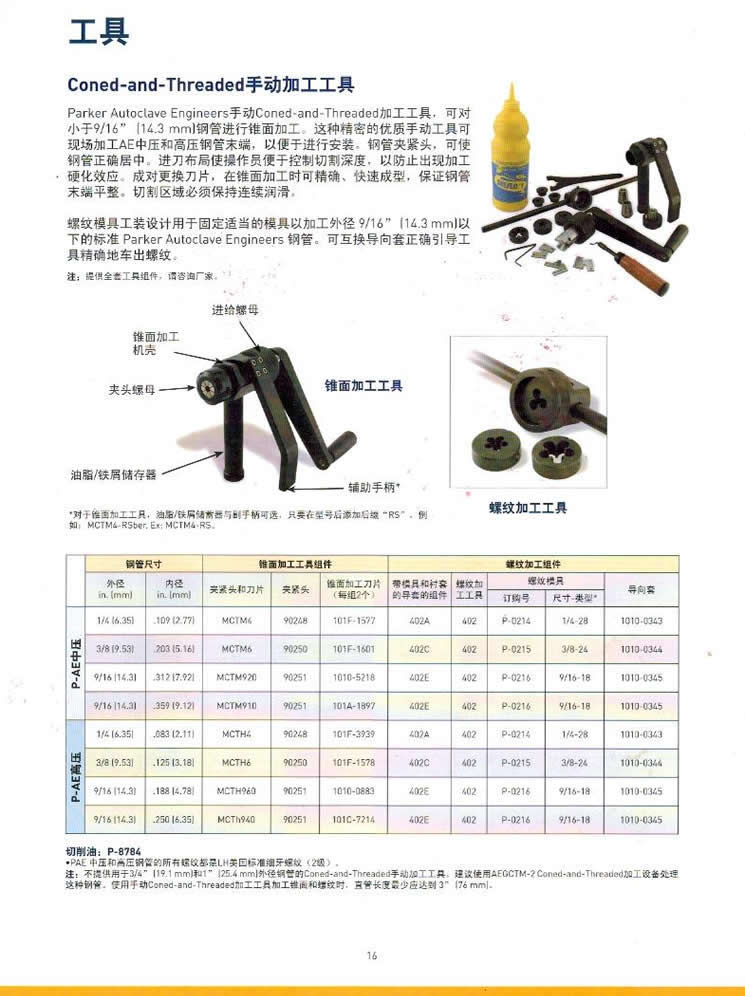

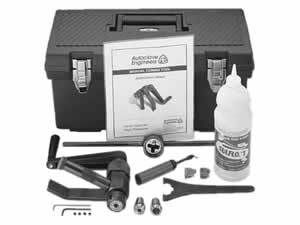

Manual Coning and Threading Tools
手动锥螺纹加工工具

尺寸小于等于9/16“油管的手动锥形和螺纹工具
Manual coning and threading tools for sizes up to 9/16" tubing

Quick Set System (QSS) Connection
快速设置系统(QSS)

Installation of QSS Compression Connections
连接QSS压缩连接件的安装

Hydraulic Sleeve Set Tool
液压套筒定位工具

Hydraulically compress sleeves up to 3/4",设计用于QS系列压盖和套筒。该工具可快速方便地将套管压缩到油管上。

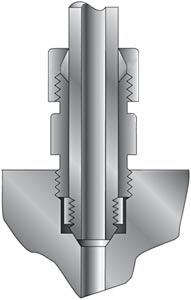

Anti-Vibration Collet Gland Assembly
防振夹头压盖总成

Anti-Vibration Collet Gland Assembly Procedure防振夹头压盖装配程序

Re-Seating Tool
重新安装工具

High and medium pressure female connection re-seating tool. 高压和中压阴螺纹连接重新固定工具。

Electric Coning and Threading Machine
电动加工工具

订购型号:AEGCTM-2 and
符合CE认证型号: AEGCTM-2E-CE coning and threading machine. 用于Coned-and Threaded锥面和螺纹加工的切屑刀具

Torque Wrench, Wrench Adapters and Torque Values
扭矩扳手、扳手适配器和扭矩值
微调力矩扳手

Adjustable torque wrench with adapters for valves and tubing connections. Tables of torque values required for repair and installation of valves and tubing.阀门和管道连接用带适配器的可调扭矩扳手。阀门和管道修理和安装所需扭矩值表。
Tubing Connections 管连接

Tube connection details for low, medium, and high pressure connections. . 管连接细节,用于低、中、高压连接

Hydraulic Tube Bender 液压弯管机

Hydraulic tube bender for Autoclave Engineer's tubing. 高压釜工程师用液压弯管机。

Autoclave Engineers Hydraulic Tube Bender with Single-stage Hydraulic Hand Pump - HTB
液压弯管机

用于高压管道的弯曲。弯管机配有泵、油缸、机架和弯管工装,以上部件全部可装在带锁的便携箱中。
订购型号HTB。
UOM: EA
Tube O.D: 1/4 to 1 Inch (6.35 to 25.4mm)
Tool Type: Tube bender
Tool Sub-type: Tool

Autoclave Engineers Hydraulic Tube Bender with Single-stage Hydraulic Hand Pump - HTB
液压弯管机

用于高压管道的弯曲。弯管机配有泵、油缸、机架和弯管工装,以上部件全部可装在带锁的便携箱中。
订购型号HTB。
UOM: EA
Tube O.D: 1/4 to 1 Inch (6.35 to 25.4mm)
Tool Type: Tube bender
Tool Sub-type: Tool

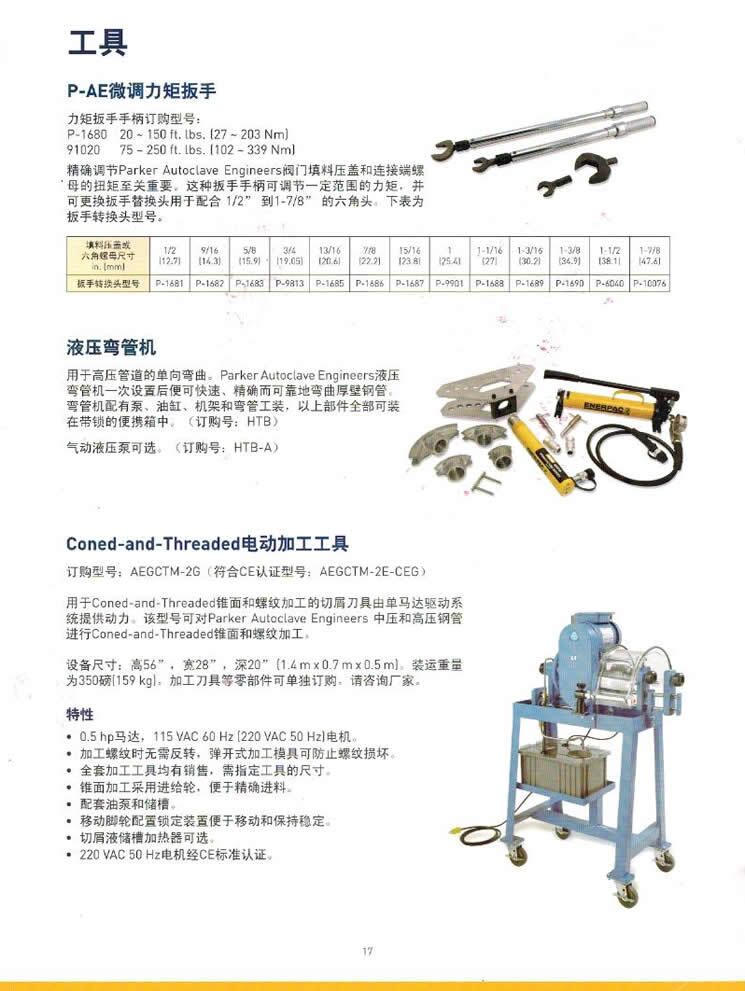

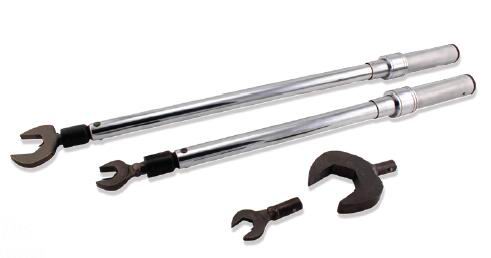

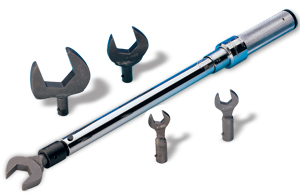

P-AE微调力矩扳手

力矩扳手手柄订购型号:P-1680 20-150 ft.lbs.(27~203Nm);91020 75-250 ft.lbs.(102-339Nm)

精确调节 Parker Autoclave Engineers阀门填料压盖和连接端螺」母的扭矩至关重要。这种扳手手柄可调节一定范围的力矩,并可更换扳手替换头用于配合1/2”到1-7/8”的六角头。下表为扳手转换头型号。Accurate tightening for all Parker Autoclave Engineers valve packing glands and tube nuts is essential. The wrench can be adjusted to the ranges shown and is used with interchangeable wrench adapters for hex sizes from 1/2” through 1-7/8”. Part numbers for wrench adapters are listed on chart.

填料压盖或

六角螺母尺寸

扳手转换头型号P-1681 ,P-1682P ,P-1683 ,P-9813 ,P-1685 ,P-1686 ,P-1687P ,P-9901 ,
P-1688 ,P-1689 ,P-1690 ,P-6040 ,P-0076

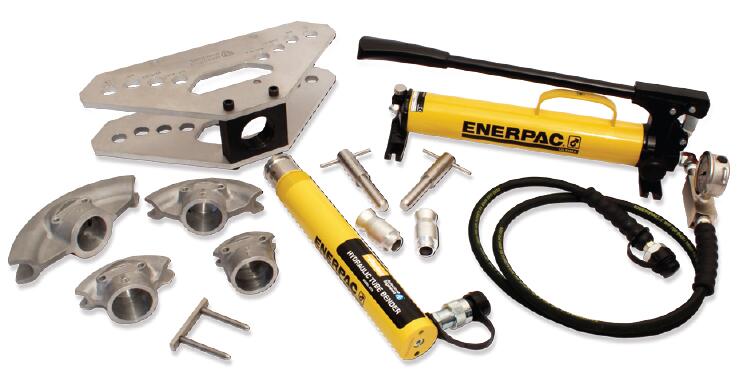

液压弯管机 Hydraulic Tube Bender

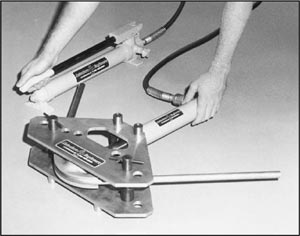

用于高压管道的单向弯曲。 Parker Autoclave Engineers液压弯管机一次设置后便可快速、精确而可靠地弯曲厚壁钢管。弯管机配有泵、油缸、机架和弯管工装,以上部件全部可装在带锁的便携箱中。(订购号:HTB)气动液压泵可选。(订购号:HTBA) For single pass bending of high pressure tubing. The Parker Autoclave Engineers hydraulic tube bender is designed to bend heavy wall tubing quickly, accurately and reliably with only one setup. The tube bender is complete with pump, cylinder, frame and bending shoes which are self-contained in a portable, lockable case.

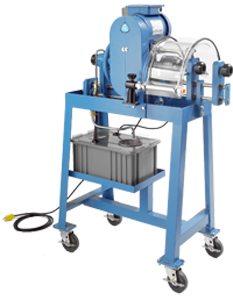

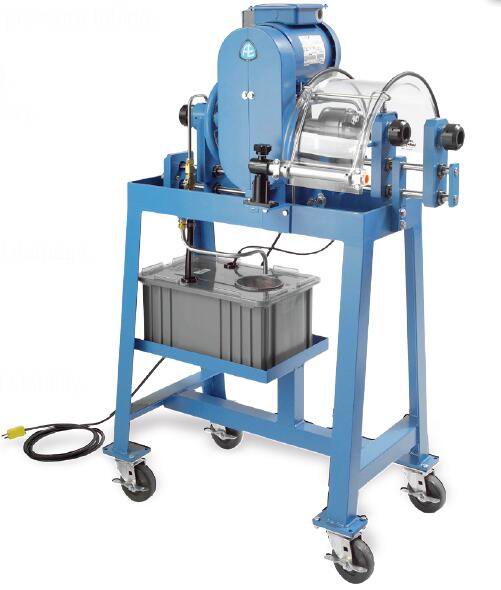

Coned-and- Threaded电动加工工具 Coning and Threading Machine

订购型号: AEGCTM-2G (符合CE认证型号: AEGCTM-2ECEG)

用于 Coned-and- Threaded锥面和螺纹加工的切屑刀具由单马达驱动系统提供动力。该型号可对 Parker Autoclave Engineers中压和高压钢管进行 Coned-and- Threaded锥面和螺纹加工。Ordering Procedure: Model # AEGCTM-2 (CE Version: Model #AEGCTM-2E-CE) Separate heads for coning and threading are powered by a single motor and drive system.Available models cone and thread Parker Autoclave Engineers medium and high pressure tubing.Approximate dimensions: 56” high, 28” wide and 20” deep (1.4 m x .7 m x .5 m).Shipping weight is 350 pounds (159 kg). Tooling ordered separately. Consult factory.

设备尺寸:高56″”,宽28”,深20”(1.4mx0.7mx0.5m。装运重量为350磅(159kg)。加工刀具等零部件可单独订购。请咨询我们。
AEGCTM-2
AEGCTM-2G
AEGCTM-2E-CE
AEGCTM-2E-CEG
AEGCTM-2WOH
AEGCTM-2EWOH-CE

特性

- 0.5hp马达,115AC 60Hz ( 220AC, 50Hz) 电机。

- 加工螺纹时无需反转,弹开式加工模具可防止螺纹损坏。

- 全套加工工具均有销售,需指定工具的尺寸。

- 锥面加工采用进给轮,便于精确进料。

- 配套油泵和储槽。

- 移动脚轮配置锁定装置便于移动和保持稳定。

- 切屑液储槽加热器可选。

- 220VAC 50Hz电机经CE标准认证
