Ashcroft SC Subsea Pressure Gauge深海压力表

Ashcroft SB & SC 316不锈钢压力表专为海底环境应用设计，具有IP68防护等级和耐盐水腐蚀性能，深度可达2,500米（SC）和6,000米（SB），是安全压力测量的选择。The Ashcroft? SC subsea pressure gauge provides reliability and performance for undersea application. The compensated case balances internal case pressure with external ambient pressure, providing an ideal solution for deep ocean installation.

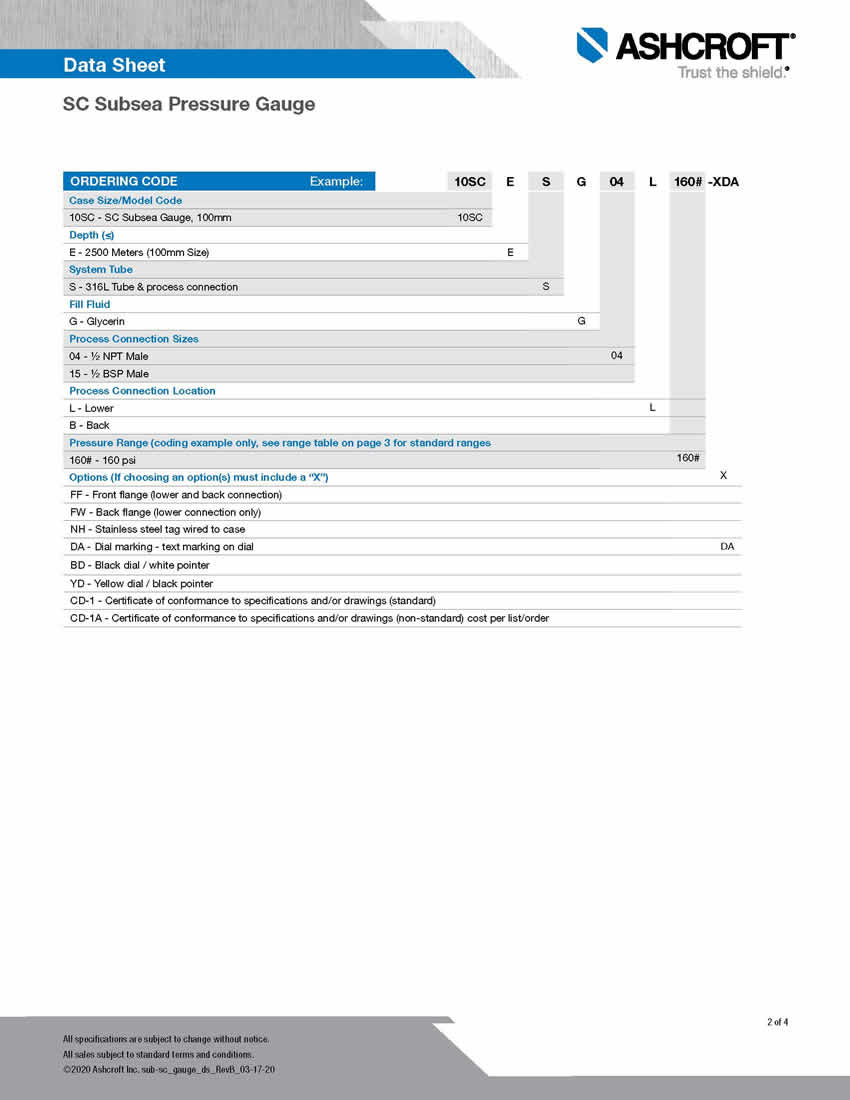

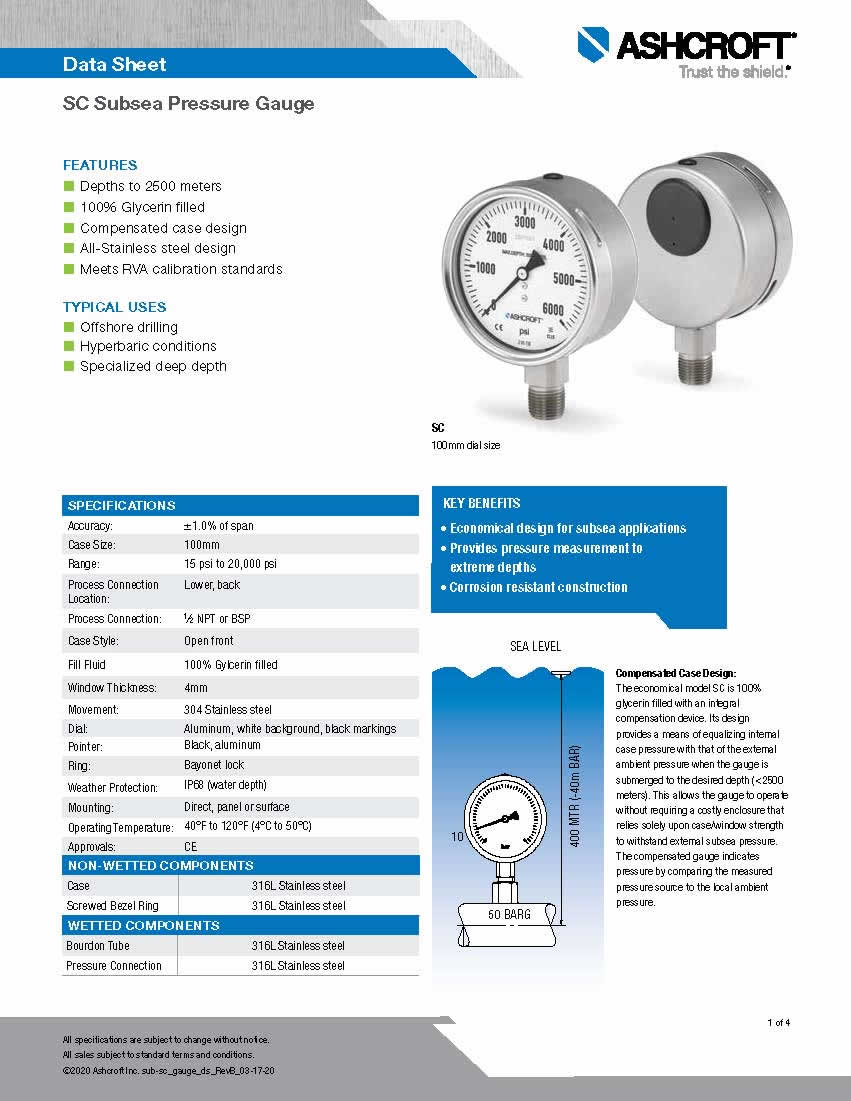

Ashcroft SC subsea pressure gauge Datasheet

Key Features:
Depths to 2,500 meters
100% Liquid Filled (Glycerine)
Compensated Case
Bayonet Lock Ring
316L stainless steel case and wetted material
Corrosion resistant construction
Specifications:
Accuracy: ±1.0% of span
Pressure Ranges: 15 psi to 20,000 psi
Case Size: 100mm
Process Connections: 1/4, 1/2 NPT or BSP
Mounting Options: stem, panel or wall

The SC subsea pressure gauge is ideal where safe and reliable pressure measurement is essential:

Process Markets:
Offshore
Specialized Deep Depth Equipment
Hyperbaric Conditions

CE

SC Subsea Pressure Gauge
