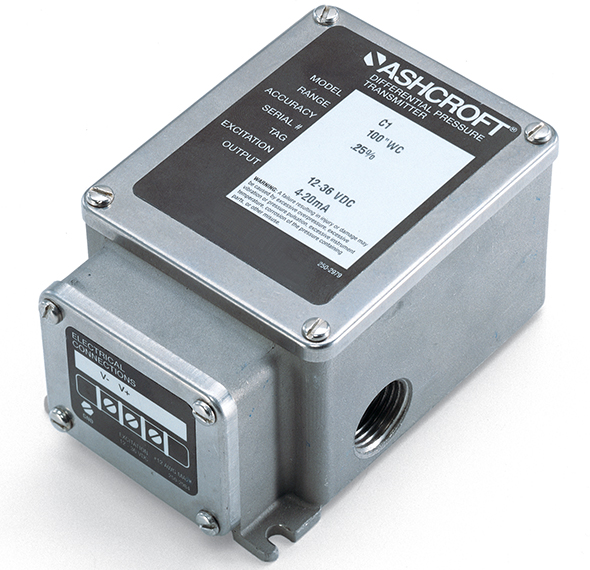

Ashcroft IXLdp 工业型微差压变送器
Ashcroft Model IXLdp Ultra-Low Differential Pressure Transmitter

Ashcroft IXLdp微差压变送器使用我们专利的Si-Glas 可变电容传感元件, 确保对极低差压监测的精确性和稳定性。Ashcroft Industrial IXLdp was designed for the measurement and control of very low pressure and flow in industrial and process plant environments. The Industrial IXLdp transmitter features a rugged NEMA 4X enclosure, built-in electrical terminal box isolated from the electronics and threaded process connections.The Ashcroft IXLdp transmitter utilizes a state-of-the-art variable capacitance sensor with a glass-clad silicon chip. The Si-GlasTM technology combines the high sensitivity of a variable capacitance transducer with the repeatability of a micromachined, single-crystal silicon diaphragm.The Si-Glas sensor is composed of sputtered metals and glass molecularly bonded to silicon. There are no epoxies or other organics in the sensor to contribute to drift or mechanical degradation over time. APPLICATIONS: HVAC, fume hood control, lab/clean room pressurization, laminar flow,furnace/stack draft, leak detection,or pollution monitoring, medical equipment, fan tracking, filter monitoring and velocity measurements.

Ashcroft IXLdp 工业型微差压变送器
Ashcroft Model IXLdp Ultra-Low Differential Pressure Transmitter

主要特点：

• 坚固的外壳

• 宽泛差压范围,输出信号

• 内置电气接线端子

• 可选 FM 认证

规格详述：

• 精度: ±0.25% 和 ±0.50% 满量程

• 差压范围: 单向: 0.10" IWD 至 200.00" IWD 双向: ±0.05" IWD 至 ±100.00" IWD

• NEMA 4X IP65; 300 系列不锈钢外壳

• 安装: 面板安装

• 输出信号:电流/电压

IXLdp 是一款在压力测量控制应用过程中提供可靠性和一致性的产品。

流程应用

• HVAC/R

• 楼宇自控

• 通风柜控制

• 实验室/洁净室/医院加压病房

• 锅炉烟道

• 污染监测

• 过滤器监测

• 泄漏检测

• 层流净化罩

• 医疗设备

• 流速测量

• 风机控制
