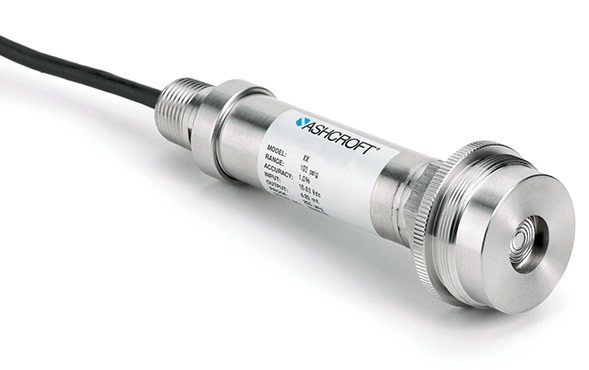

Ashcroft KX 平膜型压力传感器
Ashcroft Model KX Flush Mount Pressure Transducer

Ashcroft KX 压力变送器应用了高性能的传感元件技术，具有平膜型过程接口，适用于易堵塞的介质。隔膜的小膜片和很低的内部排量确保组装后的精度。 Ashcroft KX transmitter combines the proven benefits of poly-silicon thin film performance with the utility of a flushmounting sensing diaphragm. Modern lowpressure chemical vapor deposition methods provide simple, stable molecular bonds between the metal diaphragm and a polysilicon strain gage bridge. There are no epoxies or bonding agents to contribute to signal instability or drift.The flush sensing element is provided by an integral, silicone filled stainless steel diaphragm seal. The small sensing area and low internal volume ensure accurate measurement under severe conditions.The polysilicon strain resistors combine very low noise levels with very high signal output. The integral metal diaphragm and polysilicon bridge are virtually unaffected by shock, vibration or mounting position. These transmitters are offered in many standard pressure ranges with either current or voltage output signals. Transmitter performance is directly traceable to the National Institute of Standards and Technology. Pulp/paper, waste water, spray booths and all heavy medium and pumping processes.

Ashcroft KX 平膜型压力传感器
Ashcroft Model KX Flush Mount Pressure Transducer

主要特点：

• 平膜型316 SS隔膜

• PMC适配器

规格详述：

• 精度: ± 1.0 % 满量程

• 压力范围: 100- 5,000 psi

• 壳体: NEMA 4X IP65; 300系列不锈钢

• 接液材质: 全焊接不锈钢

• 输出信号:电流/电压

KX 是一款在压力测量控制应用过程中提供可靠性和一致性的产品。

工业和OEM运用

• 喷涂设备

流程应用

• 纸浆和造纸

• 水处理

• 粘稠介质的泵
