Parker Plug Valves
派克旋塞阀

派克的旋塞阀结构紧凑,内部有丁腈阀座和一体式挤压黄铜阀体。派克旋塞阀具有挤压的黄铜阀体和一件式乙缩醛共聚物手柄和阀杆。为了确保密封性和可靠的性能,必须安装阀,使流动介质沿阀手柄上的箭头方向行进。旋塞阀开或关四分之一转。主体中的不锈钢止动销提供了完全停止的强制停止作用。阀杆上的四重丁腈O形圈提供可靠的密封。
所有旋塞阀均经过100%泄漏测试,并经认证可在一台SCCM上实现无泄漏。

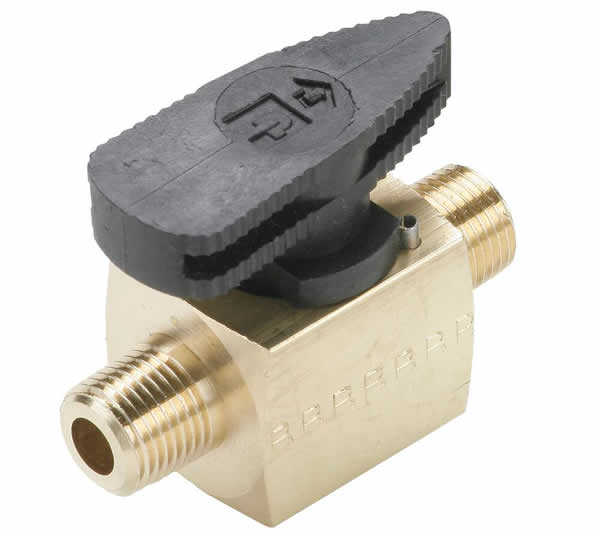

Parker's plug valve compact design has internal nitrile seats and a one-piece extruded brass body.Parker's Plug Valves have an extruded brass body and a one piece Acetal copolymer handle and stem. To assure sealability and reliable performance, the valve must be installed so that the flow media travels in the direction of the arrow on the valve handle. Plug valves are a quarter turn, on or off. A stainless steel stopping pin in the body provides a positive stop action for full shutoff. Quadruple Nitrile o-rings on the stem provides positive sealing.
All plug valves are 100% leak tested and are certified to be leak free to one SCCM.

Parker's plug valves are available in the following styles.
- Female Pipe x Female Pipe
- Female Pipe x Male Pipe
- Male Pipe x Male Pipe

市场:
- 工业
- 气动
- 工厂/过程自动化的

功能/优点:
- 一件式阀杆/手柄
- 挤压黄铜主体
- 经过100%泄漏测试
- 丁腈密封
- 季度开启/关闭

应用:
- 空气管线
- 冷却管线
- 机床
- 流体输送

Markets:
- Industrial
- Pneumatic
- Factory/Process Automation

Features/Benefits:
- One Piece Stem/Handle
- Extruded Brass Body
- 100% Leak Tested
- Nitrile Seals
- Quarter Turn On – Off

Applications:
- Air Lines
- Cooling Lines
- Machine Tool
- Fluid Transfer



Showing 1 to 6 of 6 entries Edit Columns

Part Shape Style Connection 1 Thread Size (inch) Connection 1 Style Connection 2 Thread Size (inch) Connection 2 Style
PV607-2
In Line
Pipe to Pipe
1/8
Male Pipe
1/8
Male Pipe
PV607-4
In Line
Pipe to Pipe
1/4
Male Pipe
1/4
Male Pipe
PV608-2
In Line
Female Pipe to Male Pipe
1/8
Female Pipe
1/8
Male Pipe
PV608-4
In Line
Female Pipe to Male Pipe
1/4
Female Pipe
1/4
Male Pipe
PV609-2
In Line
Female Pipe to Female Pipe
1/8
Female Pipe
1/8
Female Pipe
PV609-4
In Line
Female Pipe to Female Pipe
1/4
Female Pipe
1/4
Female Pipe

PERFORMANCE CHARACTERISTICS

MINIMUM OPERATING TEMPERATURE-40 °F
-40 °C
MAXIMUM OPERATING TEMPERATURE175 °F
79 °C
MAXIMUM OPERATING PRESSURE250 psi
17 bar
BODY MATERIALBrass
STEM MATERIALAcetal
SEAL MATERIALNitrile
O-RING MATERIALNitrile

LITERATURE AND REFERENCE MATERIALS
Brass, Composite and Thermoplastic Fittings and Valves - CAT. 3501E
PV Series Plug Valve Maintenance Instructions - MI-128
Pressure-Core Seal - PGI-PCS
Quick Reference Guide - 3500-QRG
COMPLIANCE, CERTIFICATIONS, & SAFETY
Parker ASME N Stamp Documentation
Certificate of Registration for Albion, IN facility
Certificate of Registration for Lakeview, MI facility
Certificate of Registration for Otsego, MI facility
Conflict Minerals Statement Parker Fluid System Connectors Division
FSC REACH Product Declaration
Management System Certificate for Otsego, MI
RoHS Product Declaration
Brass Composition
Certificate of Insurance
Safe Drinking Water Act
