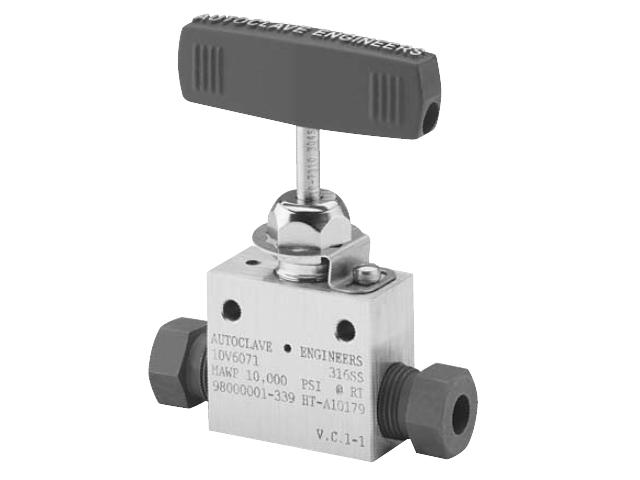

10V Series Low Pressure Needle Valves on Autoclave Engineers, Fluid Components Div. Of Snap-tite Inc.

Low Pressure Valve Features:

  • 10V Series valve design provides in-line tube connections for 1/4" to 1/2" tube sizes.
  • Tubing sizes from 1/8" to 1/2".
  • Rising stem/barstock body design.
  • Non-rotating stem prevents stem/seat galling.
  • Metal-to-metal seating achieves bubble-tight shut- off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
  • PTFE (Teflon) encapsulated packing provides dependable stem and body sealing.
  • Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
  • Choice of Vee or Regulating stem tips.
  • Available in five body patterns.

Autoclave valves are complemented by a complete line of low pressure fittings, tubing, check valves and line filters. The 10V and SW series use Autoclave's SpeedBite connection. This single-ferrule compression sleeve connection delivers fast, easy make-up and reliable bubble-tight performance in liquid or gas service.

10V Series valves are furnished complete with connection components, unless otherwise specified.

Panel mounting drill size: 0.22" all valves.
All dimensions for reference only and subject to change.
For prompt service, Autoclave stocks select products. Consult factory.
All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.

Item # Pressure Rating at Room Temperature Outside Diameter Tube Stem Type Valve Pattern Connection Type Orifice Diameter
10V2071 15000 psi
1034 bar 		1/8 Inch
3.18 mm 		VEE 2-Way Straight W125 0.094 Inch
2.39 mm
10V2081 15000 psi
1034 bar 		1/8 Inch
3.18 mm 		REG 2-Way Straight W125 0.094 Inch
2.39 mm
10V4071 15000 psi
1034 bar 		1/4 Inch
6.35 mm 		VEE 2-Way Straight SW250 0.125 Inch
3.18 mm
10V4081 15000 psi
1034 bar 		1/4 Inch
6.35 mm 		REG 2-Way Straight SW250 0.125 Inch
3.18 mm
10V6071 15000 psi
1034 bar 		3/8 Inch
9.53 mm 		VEE 2-Way Straight SW375 0.125 Inch
3.18 mm
10V6081 15000 psi
1034 bar 		3/8 Inch
9.53 mm 		REG 2-Way Straight SW375 0.125 Inch
3.18 mm
10V8071 10000 psi
690 bar 		1/2 Inch
12.70 mm 		VEE 2-Way Straight SW500 0.250 Inch
6.35 mm
10V8081 10000 psi
690 bar 		1/2 Inch
12.70 mm 		REG 2-Way Straight SW500 0.250 Inch
6.35 mm
10V2072 15000 psi
1034 bar 		1/8 Inch
3.18 mm 		VEE 2-Way Angle W125 0.094 Inch
2.39 mm
10V2082 15000 psi
1034 bar 		1/8 Inch
3.18 mm 		REG 2-Way Angle W125 0.094 Inch
2.39 mm
10V4072 15000 psi
1034 bar 		1/4 Inch
6.35 mm 		VEE 2-Way Angle SW250 0.125 Inch
3.18 mm
10V4082 15000 psi
1034 bar 		1/4 Inch
6.35 mm 		REG 2-Way Angle SW250 0.125 Inch
3.18 mm
10V6072 15000 psi
1034 bar 		3/8 Inch
9.53 mm 		VEE 2-Way Angle SW375 0.125 Inch
3.18 mm
10V6082 15000 psi
1034 bar 		3/8 Inch
9.53 mm 		REG 2-Way Angle SW375 0.125 Inch
3.18 mm
10V8072 10000 psi
690 bar 		1/2 Inch
12.70 mm 		VEE 2-Way Angle SW500 0.250 Inch
6.35 mm
10V8082 10000 psi
690 bar 		1/2 Inch
12.70 mm 		REG 2-Way Angle SW500 0.250 Inch
6.35 mm
10V2073 15000 psi
1034 bar 		1/8 Inch
3.18 mm 		VEE 3-Way / 2 on Pressure W125 0.094 Inch
2.39 mm
10V2083 15000 psi
1034 bar 		1/8 Inch
3.18 mm 		REG 3-Way / 2 on Pressure W125 0.094 Inch
2.39 mm
10V4073 15000 psi
1034 bar 		1/4 Inch
6.35 mm 		VEE 3-Way / 2 on Pressure SW250 0.125 Inch
3.18 mm
10V4083 15000 psi
1034 bar 		1/4 Inch
6.35 mm 		REG 3-Way / 2 on Pressure SW250 0.125 Inch
3.18 mm
10V6073 15000 psi
1034 bar 		3/8 Inch
9.53 mm 		VEE 3-Way / 2 on Pressure SW375 0.125 Inch
3.18 mm
10V6083 15000 psi
1034 bar 		3/8 Inch
9.53 mm 		REG 3-Way / 2 on Pressure SW375 0.125 Inch
3.18 mm
10V8073 10000 psi
690 bar 		/2 Inch
12.70 mm 		VEE 3-Way / 2 on Pressure SW500 0.250 Inch
6.35 mm
10V8083 10000 psi
690 bar 		1/2 Inch
12.70 mm 		REG 3-Way / 2 on Pressure SW500 0.250 Inch
6.35 mm
10V2074 15000 psi
1034 bar 		1/8 Inch
3.18 mm 		VEE 3-Way / 1 on Pressure W125 0.094 Inch
2.39 mm
10V2084 15000 psi
1034 bar 		1/8 Inch
3.18 mm 		REG 3-Way / 1 on Pressure W125 0.094 Inch
2.39 mm
10V4074 15000 psi
1034 bar 		1/4 Inch
6.35 mm 		VEE 3-Way / 1 on Pressure SW250 0.125 Inch
3.18 mm
10V4084 15000 psi
1034 bar 		1/4 Inch
6.35 mm 		REG 3-Way / 1 on Pressure SW250 0.125 Inch
3.18 mm
10V6074 15000 psi
1034 bar 		3/8 Inch
9.53 mm 		VEE 3-Way / 1 on Pressure SW375 0.125 Inch
3.18 mm
10V6084 15000 psi
1034 bar 		3/8 Inch
9.53 mm 		REG 3-Way / 1 on Pressure SW375 0.125 Inch
3.18 mm
10V8074 10000 psi
690 bar 		1/2 Inch
12.70 mm 		VEE 3-Way / 1 on Pressure SW500 0.250 Inch
6.35 mm
10V8084 10000 psi
690 bar 		1/2 Inch
12.70 mm 		REG 3-Way / 1 on Pressure SW500 0.250 Inch
6.35 mm
10V2872 15000 psi
1034 bar 		1/8 Inch
3.18 mm 		VEE 2-Way Angle / Replaceable Seat W125 0.094 Inch
2.39 mm
10V2882 15000 psi
1034 bar 		1/8 Inch
3.18 mm 		REG 2-Way Angle / Replaceable Seat W125 0.094 Inch
2.39 mm
10V4872 15000 psi
1034 bar 		1/4 Inch
6.35 mm 		VEE 2-Way Angle / Replaceable Seat SW250 0.125 Inch
3.18 mm
10V4882 15000 psi
1034 bar 		1/4 Inch
6.35 mm 		REG 2-Way Angle / Replaceable Seat SW250 0.125 Inch
3.18 mm
10V6872 15000 psi
1034 bar 		3/8 Inch
9.53 mm 		VEE 2-Way Angle / Replaceable Seat SW375 0.125 Inch
3.18 mm
10V6882 15000 psi
1034 bar 		3/8 Inch
9.53 mm 		REG 2-Way Angle / Replaceable Seat SW375 0.125 Inch
3.18 mm
10V8872 10000 psi
690 bar 		1/2 Inch
12.70 mm 		VEE 2-Way Angle / Replaceable Seat SW500 0.250 Inch
6.35 mm
10V8882 10000 psi
690 bar 		1/2 Inch
12.70 mm 		REG 2-Way Angle / Replaceable Seat SW500 0.250 Inch
6.35 mm
10V2075 15000 psi
1034 bar 		1/8 Inch
3.18 mm 		VEE 3-Way / 2-Stem Manifold W125 0.094 Inch
2.39 mm
10V2085 15000 psi
1034 bar 		1/8 Inch
3.18 mm 		REG 3-Way / 2-Stem Manifold W125 0.094 Inch
2.39 mm
10V4075 15000 psi
1034 bar 		1/4 Inch
6.35 mm 		VEE 3-Way / 2-Stem Manifold SW250 0.125 Inch
3.18 mm
10V4085 15000 psi
1034 bar 		1/4 Inch
6.35 mm 		REG 3-Way / 2-Stem Manifold SW250 0.125 Inch
3.18 mm
10V6075 15000 psi
1034 bar 		3/8 Inch
9.53 mm 		VEE 3-Way / 2-Stem Manifold SW375 0.125 Inch
3.18 mm
10V6085 15000 psi
1034 bar 		3/8 Inch
9.53 mm 		REG 3-Way / 2-Stem Manifold SW375 0.125 Inch
3.18 mm
10V8075 10000 psi
690 bar 		1/2 Inch
12.70 mm 		VEE 3-Way / 2-Stem Manifold SW500 0.250 Inch
6.35 mm
10V8085 10000 psi
690 bar 		1/2 Inch
12.70 mm 		REG 3-Way / 2-Stem Manifold SW500 0.250 Inch
6.35 mm
