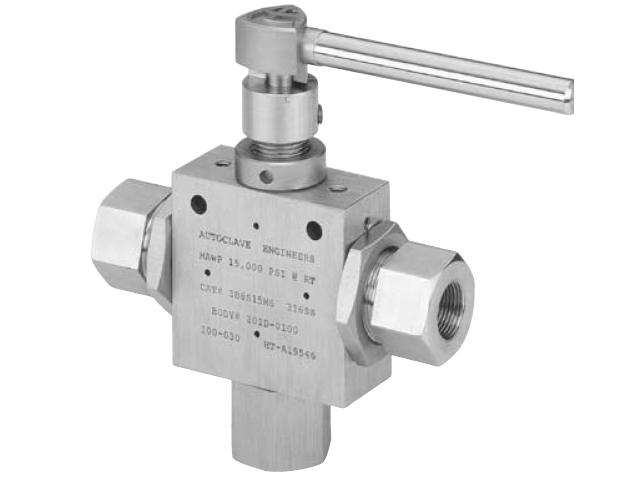

3-Way Series Ball Valves on Autoclave Engineers, Fluid Components Div. Of Snap-tite Inc.

Autoclave Engineers high-pressure ball valves have been designed to provide superior quality for maximum performance within a variety of valve styles, sizes, and process connections. Some of the more unique design innovations include an integral one-piece trunion mounted style ball and stem that eliminates the shear failure common in two piece designs, re-torqueable seat glands that result in longer seat life, and a low friction stem seal that reduces actuation torque and enhances cycle life.

These ball valves can also be modified to incorporate the use of special materials, seals for high temperature applications, subsea models, and valve actuators.

When it comes to high-pressure applications, these ball valves with the associated high-pressure components, provide the critical performance demanded by the high pressure market.

AE Ball Valve Features:

  • One-piece, trunion mounted style, stem design eliminates shear failure found in two piece designs and reduces effects of side loading.
  • Re-torqueable seat glands for longer seat life.
  • Carbon filled PEEK seats offer excellent resistance to chemicals, heat, and wear/abrasion.
  • Full-port flow path minimizes pressure drop.
  • 316 cold worked stainless steel construction.
  • Low friction pressure assisted graphite filled Teflon stem seal increases cycle life and reduces operating torque.
  • Available in 90° turn diverter and 80° turn switching models.
  • Viton o-rings for operation from 0°F (-17.8°C) to 400°F (204°C).
  • Optional o-rings available for high-temperature applications.
  • Optional wetted materials.
  • Wide selection of tube and pipe and fittings available.
  • Electric and pneumatic actuator options.
Applications:

  • Laboratories
  • Test Stands
  • Control Panels
  • Chemical Research
  • Pilot Plants
  • Water Blast Pumping Units
  • High volume chemical injection skids.
See ball valve option/detail section for end connection details, material, and high temperature options.
All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.


Item # Orifice End Connection Number Connection Type MAWP at Room Temperature Minimum Orifice HEX
3B3S15L2 3/16 Inch L2 W125 15000 psi
1034 bar
0.094 Inch
2.39 mm
1.00 Inch
25.40 mm
3BD3S15L2 3/16 Inch L2 W125 15000 psi
1034 bar
0.094 Inch
2.39 mm
1.00 Inch
25.40 mm
3B3S15L4 3/16 Inch L4 SW250 15000 psi
1034 bar
0.128 Inch
3.25 mm
1.00 Inch
25.40 mm
3BD3S15L4 3/16 Inch L4 SW250 15000 psi
1034 bar
0.128 Inch
3.25 mm
1.00 Inch
25.40 mm
3B3S15L6 3/16 Inch L6 SW375 15000 psi
1034 bar
0.188 Inch
4.77 mm
1.00 Inch
25.40 mm
3BD3S15L6 3/16 Inch L6 SW375 15000 psi
1034 bar
0.188 Inch
4.77 mm
1.00 Inch
25.40 mm
3B3S10L8 3/16 Inch L8 SW500 10000 psi
690 bar
0.188 Inch
4.77 mm
1.00 Inch
25.40 mm
3BD3S10L8 3/16 Inch L8 SW500 10000 psi
690 bar
0.188 Inch
4.77 mm
1.00 Inch
25.40 mm
3B3S20M4 3/16 Inch M4 SF250CX20 20000 psi
1379 bar
0.109 Inch
2.77 mm
1.00 Inch
25.40 mm
3BD3S20M4 3/16 Inch M4 SF250CX20 20000 psi
1379 bar
0.109 Inch
2.77 mm
1.00 Inch
25.40 mm
3B3S20M6 3/16 Inch M6 SF375CX20 20000 psi
1379 bar
0.188 Inch
4.77 mm
1.00 Inch
25.40 mm
3BD3S20M6 3/16 Inch M6 SF375CX20 20000 psi
1379 bar
0.188 Inch
4.77 mm
1.00 Inch
25.40 mm
3B3S20M9 3/16 Inch M9 SF562CX20 20000 psi
1379 bar
0.188 Inch
4.77 mm
1.00 Inch
25.40 mm
3BD3S20M9 3/16 Inch M9 SF562CX20 20000 psi
1379 bar
0.188 Inch
4.77 mm
1.00 Inch
25.40 mm
3B3S20H4 3/16 Inch H4 F250C 20000 psi
1379 bar
0.094 Inch
2.39 mm
1.00 Inch
25.40 mm
3BD3S20H4 3/16 Inch H4 F250C 20000 psi
1379 bar
0.094 Inch
2.39 mm
1.00 Inch
25.40 mm
3B3S20H6 3/16 Inch H6 F375C 20000 psi
1379 bar
0.125 Inch
3.17 mm
1.00 Inch
25.40 mm
3BD3S20H6 3/16 Inch H6 F375C 20000 psi
1379 bar
0.125 Inch
3.17 mm
1.00 Inch
25.40 mm
3B3S20H9 3/16 Inch H9 F562C 20000 psi
1379 bar
0.188 Inch
4.77 mm
1.38 Inch
35.05 mm
3BD3S20H9 3/16 Inch H9 F562C 20000 psi
1379 bar
0.188 Inch
4.77 mm
1.38 Inch
35.05 mm
3B3S15P2 3/16 Inch P2 1/8 NPT 15000 psi
1034 bar
0.188 Inch
4.77 mm
1.00 Inch
25.40 mm
3BD3S15P2 3/16 Inch P2 1/8 NPT 15000 psi
1034 bar
0.188 Inch
4.77 mm
1.00 Inch
25.40 mm
3B3S15P4 3/16 Inch P4 1/4 NPT 15000 psi
1034 bar
0.188 Inch
4.77 mm
1.00 Inch
25.40 mm
3BD3S15P4 3/16 Inch P4 1/4 NPT 15000 psi
1034 bar
0.188 Inch
4.77 mm
1.00 Inch
25.40 mm
3B3S15P6 3/16 Inch P6 3/8 NPT 15000 psi
1034 bar
0.188 Inch
4.77 mm
1.00 Inch
25.40 mm
3BD3S15P6 3/16 Inch P6 3/8 NPT 15000 psi
1034 bar
0.188 Inch
4.77 mm
1.00 Inch
25.40 mm
3B3S15P8 3/16 Inch P8 1/2 NPT 15000 psi
1034 bar
0.188 Inch
4.77 mm
1.38 Inch
35.05 mm
3BD3S15P8 3/16 Inch P8 1/2 NPT 15000 psi
1034 bar
0.188 Inch
4.77 mm
1.38 Inch
35.05 mm
3B6S10L8 3/8 Inch L8 SW500 10000 psi
690 bar
0.328 Inch
8.33 mm
1.38 Inch
35.05 mm
3BD6S10L8 3/8 Inch L8 SW500 10000 psi
690 bar
0.328 Inch
8.33 mm
1.38 Inch
35.05 mm
3B6S15M6 3/8 Inch M6 SF375CX20 15000 psi
1034 bar
0.203 Inch
5.16 mm
1.38 Inch
35.05 mm
3BD6S15M6 3/8 Inch M6 SF375CX20 15000 psi
1034 bar
0.203 Inch
5.16 mm
1.38 Inch
35.05 mm
3B6S15M9 3/8 Inch M9 SF562CX20 15000 psi
1034 bar
0.312 Inch
7.92 mm
1.38 Inch
35.05 mm
3BD6S15M9 3/8 Inch M9 SF562CX20 15000 psi
1034 bar
0.312 Inch
7.92 mm
1.38 Inch
35.05 mm
3B6S15M12 3/8 Inch M12 SF750CX20 15000 psi
1034 bar
0.328 Inch
8.33 mm
1.38 Inch
35.05 mm
3BD6S15M12 3/8 Inch M12 SF750CX20 15000 psi
1034 bar
0.328 Inch
8.33 mm
1.38 Inch
35.05 mm
3B6S15P4 3/8 Inch P4 1/4 NPT 15000 psi
1034 bar
0.328 Inch
8.33 mm
1.38 Inch
35.05 mm
3BD6S15P4 3/8 Inch P4 1/4 NPT 15000 psi
1034 bar
0.328 Inch
8.33 mm
1.38 Inch
35.05 mm
3B6S15P6 3/8 Inch P6 3/8 NPT 15000 psi
1034 bar
0.328 Inch
8.33 mm
1.38 Inch
35.05 mm
3BD6S15P6 3/8 Inch P6 3/8 NPT 15000 psi
1034 bar
0.328 Inch
8.33 mm
1.38 Inch
35.05 mm
3B6S15P8 3/8 Inch P8 1/2 NPT 15000 psi
1034 bar
0.328 Inch
8.33 mm
1.38 Inch
35.05 mm
3BD6S15P8 3/8 Inch P8 1/2 NPT 15000 psi
1034 bar
0.328 Inch
8.33 mm
1.38 Inch
35.05 mm
3B8S10M12 1/2 Inch M12 SF750CX20 10000 psi
690 bar
0.500 Inch
12.70 mm
1.75 Inch
44.5 mm
3BD8S10M12 1/2 Inch M12 SF750CX20 10000 psi
690 bar
0.500 Inch
12.70 mm
1.75 Inch
44.5 mm
3B8S10M16 1/2 Inch M16 SF1000CX20 10000 psi
690 bar
0.500 Inch
12.70 mm
1.75 Inch
44.5 mm
3BD8S10M16 1/2 Inch M16 SF1000CX20 10000 psi
690 bar
0.500 Inch
12.70 mm
1.75 Inch
44.5 mm
3B8S10P12 1/2 Inch P12 3/4 NPT 10000 psi
690 bar
0.500 Inch
12.70 mm
1.75 Inch
44.5 mm
3BD8S10P12 1/2 Inch P12 3/4 NPT 10000 psi
690 bar
0.500 Inch
12.70 mm
1.75 Inch
44.5 mm
3B8S10P16 1/2 Inch P16 1 NPT 10000 psi
690 bar
0.500 Inch
12.70 mm
1.75 Inch
44.5 mm
3BD8S10P16 1/2 Inch P16 1 NPT 10000 psi
690 bar
0.500 Inch
12.70 mm
1.75 Inch
44.5 mm
