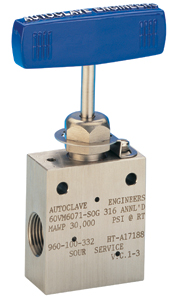

Autoclave Engineers 60VM-SOGWO Series High Pressure Sour Service Valves
60VM-SOGWO Series防酸耐腐蚀产品


Autoclave阀门配有一整套高压配件、管道和止回阀。所有高压阀门和配件均采用奥特克莱夫公司的高压锥形和螺纹连接,在各种条件下均能获得可靠的性能。除非另有规定,否则60VM-SOGWO系列阀门不带压盖和套环。Autoclave valves are complemented by a complete line of high pressure fittings, tubing and check valves. All high pressure valves and fittings use Autclave's high pressure coned-andthreaded connections for dependable performance under widely varying conditions. The 60VM-SOGWO Series valves are furnished without glands and collars, unless otherwise specified.

面板安装钻孔尺寸:0.22“所有阀门。Panel mounting drill size: 0.22" all valves.

所有尺寸仅供参考,如有更改。All dimensions for reference only and subject to change.

如需“Autoclave库存选择产品”的及时服务,请咨询工厂。For prompt service 'Autoclave stocks select products' Consult factory.

所有一般销售条款和条件,包括我们的责任限制,适用于所有销售的产品和服务。All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.



高压阀特点 High Pressure Valve Features:

  • 升杆/杆体设计。Rising stem/barstock body design.
  • 金属对金属阀座实现了气密关闭,在磨料流中延长阀杆/阀座的使用寿命,在重复的开/关循环中具有更高的耐用性和优异的耐腐蚀性。Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
  • 聚四氟乙烯密封填料提供可靠的阀杆和阀体密封。PTFE encapsulated packing provides dependable stem and body sealing.
  • 坚固的一体式阀杆为SOG服务提供了一种经济的阀门。Solid, one-piece stem provides an economical valve for SOG service.
  • 可选非旋转阀杆组件。Optional non-rotating stem assembly available.
  • 选择阀杆和填料压盖材料以优化螺纹循环寿命。Stem and packing gland materials have been selected to optimize thread cycle life.
  • 60VM-SOGWO系列额定值为30000(2068巴)60VM-SOGWO Series rated to 30,000 (2068 bar)




Autoclave Engineers Sour Service Products
PDF技术资料下载



Item # Outside Diameter Tube Stem Type Valve Pattern Connection Type
60VM4071-SOGWO 1/4 Inch
6.35 mm
VEE 2-Way Straight F250C
60VM4081-SOGWO 1/4 Inch
6.35 mm
REG 2-Way Straight F250C
60VM6071-SOGWO 3/8 Inch
9.53 mm
VEE 2-Way Straight F375C
60VM6081-SOGWO 3/8 Inch
9.53 mm
REG 2-Way Straight F375C
60VM9071-SOGWO 9/16 Inch
14.29 mm
VEE 2-Way Straight F562C
60VM9081-SOGWO 9/16 Inch
14.29 mm
REG 2-Way Straight F562C
60VM4072-SOGWO 1/4 Inch
6.35 mm
VEE 2-Way Angle F250C
60VM4082-SOGWO 1/4 Inch
6.35 mm
REG 2-Way Angle F250C
60VM6072-SOGWO 3/8 Inch
9.53 mm
VEE 2-Way Angle F375C
60VM6082-SOGWO 3/8 Inch
9.53 mm
REG 2-Way Angle F375C
60VM9072-SOGWO 9/16 Inch
14.29 mm
VEE 2-Way Angle F562C
60VM9082-SOGWO 9/16 Inch
14.29 mm
REG 2-Way Angle F562C
60VM4073-SOGWO 1/4 Inch
6.35 mm
VEE 3-Way / 2 on Pressure F250C
60VM4083-SOGWO 1/4 Inch
6.35 mm
REG 3-Way / 2 on Pressure F250C
60VM6073-SOGWO 3/8 Inch
9.53 mm
VEE 3-Way / 2 on Pressure F375C
60VM6083-SOGWO 3/8 Inch
9.53 mm
REG 3-Way / 2 on Pressure F375C
60VM9073-SOGWO 9/16 Inch
14.29 mm
VEE 3-Way / 2 on Pressure F562C
60VM9083-SOGWO 9/16 Inch
14.29 mm
REG 3-Way / 2 on Pressure F562C
60VM4074-SOGWO 1/4 Inch
6.35 mm
VEE 3-Way / 1 on Pressure F250C
60VM4084-SOGWO 1/4 Inch
6.35 mm
REG 3-Way / 1 on Pressure F250C
60VM6074-SOGWO 3/8 Inch
9.53 mm
VEE 3-Way / 1 on Pressure F375C
60VM6084-SOGWO 3/8 Inch
9.53 mm
REG 3-Way / 1 on Pressure F375C
60VM9074-SOGWO 9/16 Inch
14.29 mm
VEE 3-Way / 1 on Pressure F562C
60VM9084-SOGWO 9/16 Inch
14.29 mm
REG 3-Way / 1 on Pressure F562C
60VM4872-SOGWO 1/4 Inch
6.35 mm
VEE 2-Way Angle / Replaceable Seat F250C
60VM4882-SOGWO 1/4 Inch
6.35 mm
REG 2-Way Angle / Replaceable Seat F250C
60VM6872-SOGWO 3/8 Inch
9.53 mm
VEE 2-Way Angle / Replaceable Seat F375C
60VM6882-SOGWO 3/8 Inch
9.53 mm
REG 2-Way Angle / Replaceable Seat F375C
60VM9872-SOGWO 9/16 Inch
14.29 mm
VEE 2-Way Angle / Replaceable Seat F562C
60VM9882-SOGWO 9/16 Inch
14.29 mm
REG 2-Way Angle / Replaceable Seat F562C
60VM4075-SOGWO 1/4 Inch
6.35 mm
VEE 3-Way / 2-Stem Manifold F250C
60VM4085-SOGWO 1/4 Inch
6.35 mm
REG 3-Way / 2-Stem Manifold F250C
60VM6075-SOGWO 3/8 Inch
9.53 mm
VEE 3-Way / 2-Stem Manifold F375C
60VM6085-SOGWO 3/8 Inch
9.53 mm
REG 3-Way / 2-Stem Manifold F375C
60VM9075-SOGWO 9/16 Inch
14.29 mm
VEE 3-Way / 2-Stem Manifold F562C
60VM9085-SOGWO 9/16 Inch
14.29 mm
REG 3-Way / 2-Stem Manifold F562C
