Autoclave Engineers High Pressure Fittings and Tubing
高压钢管
Parker Autoclave Engineers提供全系列奥氏体冷拔不锈钢钢管，以适应 Parker Autoclave Engineers阀门和接头的标准。 Parker Autoclave Engineers钢管专为高压工况设计，并严格满足强度和抗腐蚀能力的要求钢管的订货长度为20到26.5英尺(6.1到8.0米)随机不等。
检查和测试
Parker Autoclave Engineers 钢管经过检查，以确保没有缝隙、刮痕、裂纹或其他缺陷以及渗碳或晶界碳化物析出。锅管的外径和内径经特殊检查并控制在极小的公差带内，以确保正确配合。每批钢管进行抽样测试以此确认其机械性能。另外，还以统计学方法在钢管的工作压力下进行流体静力学测试，如有需求， ParkerAutoclave Engineers 将额外付费进行 100% 流体静力学测试。
规格参数：
- 可提供尺寸 1/4", 5/16", 3/8", 9/16", and 1".
- 材质：316SS不锈钢 Fittings manufactured from cold worked 316 stainless steel.
- 操作温度：零下252度到649度；Operating temperatures from -423oF (-252oC ) to 1200oF (649oC).
- 可根据客户要求提供特殊定做材质。Available in special materials.
|
|

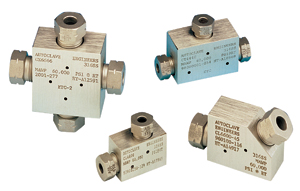

High Pressure Fittings:High Pressure to 150,000 psi (10342 bar) Elbows, Tees, Crosses, Straight and Bulkhead Couplings |

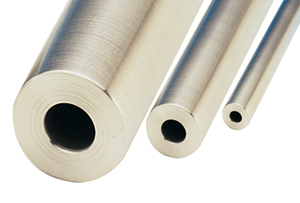

High Pressure Tubing:High Pressure to 150,000 psi (10342 bar) Seamless Stainless Tubing;
Tubing sizes are 1/4", 5/16", 3/8", 9/16", and 1". |
|
|

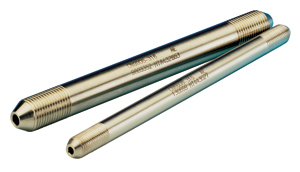

High Pressure Nipples:High Pressure to 150,000 psi (10342 bar) Coned and Threaded Nipples |
Check and Excess Flow Valves:High Pressure to 60,000 psi (4137 bar) Ball and O-ring Check Valves |
|
|

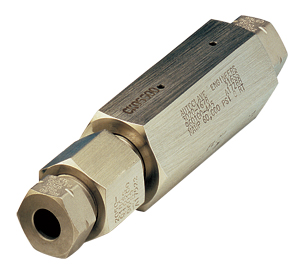

High Pressure Line Filters:High Pressure to 60,000 psi (4137 bar) Disc and Cup Filter |
Anti-Vibration Collet Gland Assembly:High Pressure to 150,000 psi (10342 bar) Anti-Vibration Collet and Gland KCGL, KCBGLX, and KCBGL Series |
|
 |
|
规程参数：

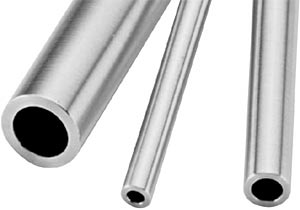

Tubing sizes are 1/16, 1/8", 1/4", 3/8", and 1/2".
Tubing is manufactured from annealed stainless steel.
Operating temperatures from 0°F (-17.8°C ) to 650°F (343°C).
Stock tubing lengths from 20 to 26.5 foot (6 to 8 meters).
Special material and special length tubing available. |
Tubing, Autoclave Series - 30,000 PSI Sour Gas Service
Pressure Rating: 30,000 psi, 2068.39 bar
Outside Diameter: 1/2 to 3/4 inch, 1/4 to 1/2 inch
Application: Hydraulic, Instrumentation, Media Transfer, Suction / Vacuum |
Autoclave Engineers Medium Pressure Fittings and Tubing
|
|

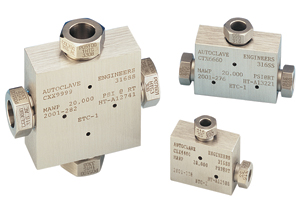

Medium Pressure Fittings
Medium Pressure to 20,000 psi (1379 bar) Elbows, Tees, Crosses, Straight and Bulkhead Couplings |
Medium Pressure to 20,000 psi (1379 bar) Elbows, Tees, Crosses, Straight and Bulkhead Couplings
|
|
|
| Medium Pressure to 20,000 psi (1379 bar) Coned and Threaded Nipples |

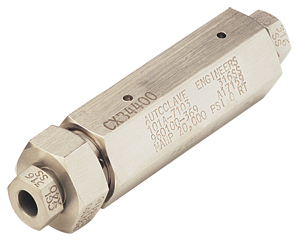

Medium Pressure Check and Excess Check Valves
Medium Pressure to 20,000 psi (1379 bar) Ball and O-ring Valves |
|
|
Medium Pressure Line Filters
Medium Pressure to 20,000 psi (1379 bar) Disc and Cup Filters |
Anti-Vibration Collet Gland Assembly
Medium Pressure to 20,000 psi (1379 bar) Anti-Vibration Collet and Gland KCBGLX Series |
|
|

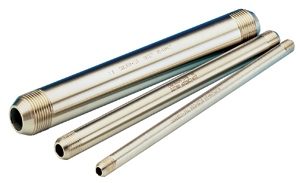

Cone and Thread Tube Nipples, Medium Pressure, 20,000 PSI
Parker Autoclave’s pre-cut, coned-and-threaded tube nipples are provided in various sizes and lengths for rapid make-up. These are to be used with Parker Autoclave medium pressure valves and fittings for a secure connection. |
|
|
