Autoclave Engineers Fittings and Tubing超高压不锈钢管子

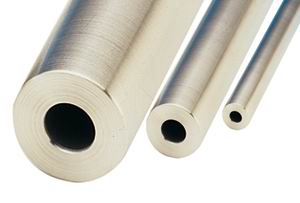

Autoclave Engineers HIGH PRESSURE TUBING
Parker Autoclave Engineers提供全系列奥氏体冷拔不锈钢钢管，以适应 Parker Autoclave Engineers阀门和接头的标准。 Parker Autoclave Engineers钢管专为高压工况设计，并严格满足强度和抗腐蚀能力的要求钢管的订货长度为20到26.5英尺(6.1到8.0米)随机不等。
检查和测试
Parker Autoclave Engineers 钢管经过检查，以确保没有缝隙、刮痕、裂纹或其他缺陷以及渗碳或晶界碳化物析出。锅管的外径和内径经特殊检查并控制在极小的公差带内，以确保正确配合。每批钢管进行抽样测试以此确认其机械性能。另外，还以统计学方法在钢管的工作压力下进行流体静力学测试，如有需求， ParkerAutoclave Engineers 将额外付费进行 100% 流体静力学测试。
压力：最大到150,000 psi (10342 bar)
温度：-423°F (-252°C) 到1200°F (649°C)
管外径：1/16”（1.59mm）到1”（25.4mm）
管子长度：20英尺（6米）到27英尺（8.2米）/ 根
材质：304SS，316SS及一些特殊材质（如Monel，Inconel，Titanium，Nickel，Hastelloy）.
Since 1945 Autoclave Engineers has designed and built premium quality valves, fittings and tubing. Autoclave's high-pressure tubing is capable of operating to 150,000 psi (10342 bar) and range in size from 1/4" to 1" tube size. Standard tubing is available in 316 and 304 stainless steel tubing.
Autoclave Low Pressure Tubing 15,000 psi
Autoclave Medium Pressure Tubing 20,000 psi
Autoclave High Pressure Tubing 150,000 psi

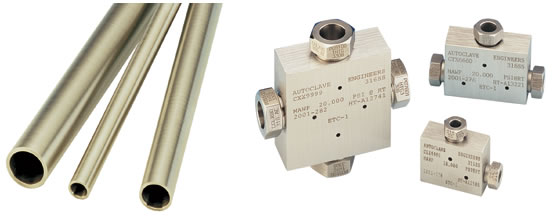

High Pressure Fittings and Tubing on Autoclave Engineers, Fluid Components Div. Of Snap-tite Inc.High Pressure Fittings and Tubing
 Low Pressure Fittings and TubingLow Pressure Fittings and Tubing Features:
Pressures up to 15,000 psi (1034 bar)
Single-ferrule compression sleeve.
Fast easy make-up of connection.
Available sizes are 1/16”, 1/8”, 1/4”, 3/8”, &
1/2”.
Fittings manufactured from cold worked 316
stainless steel.
Tubing is manufactured from annealed stainless
steel.
All items available in special materials.
Operating temperatures from 0°F (-17.8°C) to
650°F (343°C).
Molybdenum disulfide-coated gland nuts to
prevent galling.
The Low Pressure Series uses Autoclave’s
SpeedBite connection. This single-ferrule
compression sleeve connection delivers fast,
easy make-up and reliable bubble-tight
performance, in liquid or gas service.Autoclave Engineers Low Pressure Fittings are
designed for use with low pressure valves and
tubing. These fittings feature improved
SpeedBite compression connections with larger
orifices for excellent flow capabilities.
Autoclave fittings and components are
manufactured of cold-worked type 316 stainless
steel. Optional materials are available upon
request.
Medium Pressure Fittings and Tubing
Medium Pressure Fittings, Tubing and Nipples
Feature:
Pressures to 20,000 psi (1379 bar)
Coned-and-Threaded Connection Design
Available sizes are 1/4", 3/8", 9/16", 3/4", 1"
and 1-1/2"
Fittings and tubing manufactured from cold
worked 316 stainless steel.
Operating Temperatures from -423°F (-252°C) to
1200°F (649°C).
Anti-vibration connection components available.
All items available in special material.
The medium pressure series uses Autoclave’s
medium pressure connection. This
coned-and-threaded connection features orifice
sizes to match the high flow characteristics of
this series.Autoclave Engineers medium pressure fittings,
Series SF, are designed for use with Series 20SM
medium pressure valves and Autoclave medium
pressure tubing. They incorporate medium
pressure coned-and-threaded connections with
orifices sized to match the high-flow Series
20SC valves. QS Series Fittings and TubingQS Medium Pressure Fittings and Tubing:
Pressures to 15,000 psi (1034 bar)
Unique Single-Ferrule Compression Sleeve Design
Fittings and tubing manufactured from cold
worked 316 stainless steel.
Molybdenum disulfide-coated gland nuts to
prevent galling.
Gland nut positioning mark for assembly.
Available in sizes 1/4, 3/8, 9/16 and 3/4"
Connection weep holes for safety and leak
detection.
Fast easy make-up of connection.
Operating Temperatures from 0°F (-17.8°C) to
650°F (343°C).
The Medium Pressure QS Series uses Autoclave’s
unique Quick Set compression sleeve design. This
single-ferrule compression sleeve connection
delivers fast, easy make-up and reliable
bubble-tight performance in liquid or gas
service for line sizes up to 3/4".Autoclave Engineers Medium Pressure QS Fittings
are designed for use with QS Series valves and
medium pressure tubing. These fittings feature
improved compression connections with larger
orifices for excellent flow capabilities.
Autoclave fittings and components are
manufactured of coldworked type 316 stainless
steel.
High Pressure Fittings and Tubing
High Pressure Fittings, Tubing and Nipples
Feature:
Pressures to 150,000 psi (10,342 bar)
Coned-and-Threaded Connection Design
Available sizes are 1/4, 5/16, 3/8, 9/16, and
1”.
Fittings and tubing manufactured from 316 cold
worked or high strength stainless steel.
Operating Temperatures from -423°F (-252°C) to
1200°F (649°C).
Anti-vibration connection components available.
Ultra-high pressure components.
Autofrettaged tubing.
High pressure high cycle tubing.
The high and ulta-high pressure series uses
Autoclave’s high pressure connector. This
coned-and- threaded connection provides
dependable performance in gas or liquid service.Autoclave Engineers high pressure fittings
Series F and SF are the industry standard for
pressures to 150000 psi (10342 bar). Utilizing
Autoclave Engineers high pressure
coned-and-threaded connections, these fittings
are correlated with Series 30SC, 43SC, 30VM,
40VM, 60VM, 100VM, and 150V valves and Autoclave
Engineers high pressure tubing.
P Series Pipe Fittings
Pipe Fittings, Tubing and Nipples Features:
Available sizes are 1/4", 3/8", 1/2", 3/4" and
1"
Fittings and tubing manufactured from cold
worked 316 stainless steel.
Operating Temperatures from 0°F (-17.8°C) to
400°F (204°C).
Autoclave Low Pressure Tubing 15,000 psi
| Catalog |
Tube |
Fits |
Tube Size Inches (mm)
|
Flow |
Working Pressure psi (bar)*
|
| Number |
Materials |
Connection
Type
|
Outside
Diameter
|
Inside
Diameter
|
Wall
Thickness
|
Area
in.2(mm2)
|
0-100F
-17.8 to 37.8C
|
200F
93C
|
400F
204C
|
600F
316C
|
640F
343C
|
| MS15-070 |
316SS |
W062 |
1/16
(1.59)
|
0.026
(0.66)
|
0.018
(0.46)
|
0.0005
(0.32)
|
15,000
(1034.20)
|
15,000
(1034.20)
|
14,400
(992.83)
|
13,600
(937.67)
|
12,600
(868.73)
|
MS15-200
|
316SS |
|
|
0.052
(1.32)
|
0.050
(1.27)
|
0.002
(1.29)
|
15,000
(1034.20) |
15,000
(1034.20)
|
14,400
(992.83) |
13,600
(937.67)
|
12,600
(868.73) |
| MS15-151 |
304SS |
|
|
0.062
(1.57)
|
0.032
(1.94)
|
0.003
(1.94)
|
11,650
(803.23)
|
11,650
(803.23) |
11,250
(775.65)
|
10,600
(730.83)
|
9,850
(679.12)
|
| MS15-051 |
316SS
|
W125
|
1/8
(3.18)
|
0.062
(1.57) |
0.032
(1.94) |
0.003
(1.94) |
11,650
(803.23) |
11,650
(803.23) |
11,250
(775.65) |
10,600
(730.83) |
9,850
(679.12) |
| MS15-166 |
304SS |
|
|
0.069
(1.75)
|
0.028
(0.71)
|
0.004
(2.58)
|
9,950
(686.02)
|
9,400
(648.10)
|
8,550
(648.10)
|
8,450
(582.60)
|
8,000
(551.57)
|
| MS15-150 |
304SS |
|
|
0.085
(2.16)
|
0.020
(0.51)
|
0.006
(3.87)
|
6,850
(472.28)
|
6,500
(448.15)
|
5,900
(406.78)
|
5,800
(399.89)
|
5,500
(379.21)
|
| MS15-154 |
304SS |
|
|
0.125
(3.18)
|
0.062
(1.57)
|
0.012
(7.74)
|
11,650
(803.23)
|
11,650
(803.23) |
10,050
(692.91) |
9,900
(682.57)
|
9,400
(648.10)
|
| MS15-055 |
316SS |
|
|
0.125
(3.18) |
0.062
(1.57)
|
0.012
(7.74)
|
11,650
(803.23) |
11,650
(803.23) |
11,250
(775.65)
|
10,600
(730.83)
|
9,850
(679.12)
|
| MS15-161 |
304SS |
W250
or
|
1/4
(6.35)
|
0.180
(4.57)
|
0.035
(0.89)
|
0.026
(16.77)
|
5,450
(375.76)
|
5,150
(355.07)
|
4,700
(324.05)
|
4,600
(317.15)
|
4,400
(303.36)
|
| MS15-069 |
316SS |
SW250
|
|
0.180
(4.57)
|
0.035
(0.89)
|
0.026
(16.77)
|
5,450
(375.76) |
5,450
(375.76)
|
5,250
(361.97)
|
4,950
(341.29)
|
4,600
(317.15)
|
| MS15-158 |
304SS |
|
|
0.194
(4.93)
|
0.028
(0.71)
|
0.029
(18.71)
|
4,600
(317.15)
|
4,350
(299.92
|
3,950
(272.34)
|
3,900
(268.89)
|
3,700
(255.10)
|
| MS15-084 |
316SS |
|
|
0.195
(4.95)
|
0.090
(2.29)
|
0.030
(19.35)
|
10,000
(689.46)
|
10,000
(689.46)
|
9,650
(665.46)
|
9,000
(620.52)
|
8,400
(579.15)
|
| MS15-184 |
304SS |
|
|
0.195
(4.95)
|
0.090
(2.29) |
0.030
(19.35) |
10,000
(689.46)
|
9,400
(648.10)
|
8,600
(592.94)
|
8,500
(586.05)
|
8,450
(582.60)
|
| MS15-155 |
304SS |
W375
or
|
3/8
(9.53)
|
0.250
(6.35)
|
0.062
(1.57)
|
0.049
(31.61)
|
7,500
(489.52)
|
7,100
(489.52)
|
6,450
(444.70)
|
6,350
(437.81)
|
6,050
(417.13)
|
| MS15-062 |
316SS |
SW375 |
|
0.250
(6.35)
|
0.062
(1.57) |
0.049
(31.61) |
7,500
(489.52)
|
7,500
(489.52) |
7,200
(496.41)
|
6,800
(468.84)
|
6,300
434.36)
|
| MS15-164 |
304SS |
|
|
0.277
(7.04)
|
0.049
(1.24)
|
0.060
(38.71)
|
5,450
(375.76)
|
5,150
(355.07)
|
4,700
(324.05)
|
4,600
(317.15)
|
4,400
(303.36)
|
| MS15-162 |
304SS |
|
|
0.305
(7.75)
|
0.035
(0.89)
|
0.073
(47.10)
|
3,800
(262.00)
|
3,550
(244.76)
|
3,250
(224.08)
|
3,200
(220.63)
|
3,050
(210.29)
|
| MS15-157 |
304SS |
|
|
0.375
(9.53)
|
0.062
(1.57)
|
0.110
(70.97)
|
5,500
(379.21)
|
5,150
(355.07)
|
4,700
(3240.05)
|
4,600
(317.15)
|
4,400
(303.36)
|
| MS15-065 |
316SS |
W500
or
|
1/2
(12.70)
|
0.375
(9.53) |
0.062
(1.57) |
0.110
(70.97)
|
5,500
(379.21) |
5,500
(379.21)
|
5,250
(361.97)
|
4,950
(341.29
|
4,600
(317.15)
|
| MS15-165 |
304SS |
SW500
|
|
0.402
(10.21)
|
0.048
(1.22)
|
0.127
(81.94)
|
4,000
(275.79)
|
3,750
(258.55)
|
3,400
(234.42)
|
3,400
(234.42)
|
3,200
(220.63)
|
*Maximum pressure rating is based on the lowest rating of any component.
Actual working pressure may be determined by tubing pressure rating, if lower.All dimensions for reference only and subject to change.
For prompt service, Autoclave stocks select products. Consult your local representative.
Autoclave Medium Pressure Tubing 20,000#
Catalog
Number
|
Tube
Material
|
Fits
Connection
Type
|
Tube Size Inches (mm)
|
Working Pressure psi (bar)*
|
Outside
Diameter
|
Inside
Diameter
|
Wall
Thickness
|
-325 to 100F
-198 to -37.8C
|
200F
93C
|
400F
204C
|
600F
316C
|
800F
427C
|
| MS15-092 |
316SS |
SF250CX
|
1/4
(6.35)
|
20,000
(1378.93)
|
20,000
(1378.93)
|
19,250
(1327.22)
|
18,050
(1244.48)
|
16,800
(1158.30)
|
| MS15-192 |
304SS
|
20,000
(1378.93)
|
18,950
(1306.54)
|
17,200
(1185.88)
|
17,000
(1172.09)
|
16,150
(1113.49)
|
| MS15-093 |
316SS |
SF375CX |
3/8
(9.53)
|
20,000
(1378.93)
|
20,000
(1378.93) |
19,250
(1327.22) |
18,050
(1244.48) |
16,800
(1158.30) |
| MS15-193 |
304SS |
20,000
(1378.93) |
20,000
(1378.93) |
19,250
(1327.22) |
18,050
(1244.48) |
16,800
(1158.30) |
| MS15-085 |
316SS |
SF562CX
|
9/16
(14.29)
|
20,000
(1378.93) |
20,000
(1378.93) |
19,250
(1327.22) |
18,050
(1244.48) |
16,800
(1158.30) |
| MS15-187 |
304SS |
20,000
(1378.93) |
20,000
(1378.93) |
19,250
(1327.22) |
18,050
(1244.48) |
16,800
(1158.30) |
MS15-097
|
316SS
|
SF562CX
|
9/16
(14.29)
|
10,000
(689.46)
|
10,000
(689.46)
|
9,600
(661.89)
|
9,100
(627.41)
|
8,450
(582.60)
|
MS15-194
|
304SS
|
10,000
(689.46)
|
9,450
(651.54)
|
8,600
(592.94)
|
8,500
(586.05)
|
8,050
(555.02)
|
MS15-095
|
316SS
|
SF750CX
|
3/4
(19.05)
|
20,000
(1378.93) |
20,000
(1378.93) |
19,250
(1327.22) |
18,050
(1244.48) |
16,800
(1158.30) |
MS15-098
|
316SS
|
10,000
(689.46) |
10,000
(689.46) |
9,600
(661.89)
|
9,100
(627.41)
|
8,450
(582.60) |
MS15-096
|
316SS
|
SF1000CX
|
1
(25.40)
|
20,000
(1378.93)
|
20,000
(1378.93)
|
19,250
(1327.22) |
18,050
(1244.48) |
16,800
(1158.30)
|
MS15-099
|
316SS |
10,000
(689.46) |
10,000
(689.46)
|
9,600
(661.89)
|
9,100
(627.41)
|
8,450
(582.60)
|
Note: Caution should be exercised in proper selection of Medium Pressure Tubing based on actual operating
conditions. Two series available: 10,000 psi (690 bar) and 20,000 psi (1379 bar).
*Maximum pressure rating is based on the lowest rating of any component.
Actual working pressure may be determined by tubing pressure rating, if lower.
All dimensions for reference only and subject to change.
For prompt service, Autoclave stocks select products. Consult your local representative.
Autoclave High Pressure Tubing 150,000#
Catalog
Number
|
Tube
Material
|
Fits
Connection
Type
|
Tube Size Inches (mm)
|
Flow
Area
in.2 (mm2)
|
Working Pressure psi (bar)*
|
Outside
Diameter
|
Inside
Diameter
|
Wall
Thickness
|
-325 to 100F
-198 to 37.8C
|
200F
93C
|
400F
204C
|
600F
316C
|
800F
427C
|
| MS15-081 |
316SS |
F250C |
60,000
(4136.79)
|
60,000
(4136.79) |
57,750
(3981.66)
|
54,250
(3740.35)
|
50,700
(3495.59)
|
| MS15-182 |
304SS |
60,000
(4136.79)
|
56,800
(3916.16)
|
51,650
(3561.09)
|
50,700
(3495.59)
|
48,450
(3340.46)
|
MS15-202
|
Stainless |
95,000
(6549.92)
|
95,000
(6549.92)
|
91,400
(6301.71)
|
85,850
(5919.06)
|
80,200
(5529.51)
|
MS15-082
|
316SS
|
F312C150 |
150,000
(10341.97)
|
150,000
(10341.97)
|
144,400
(9955.87)
|
136,350
(9955.87)
|
126,750
(8738.97)
|
MS15-087
|
316SS
|
F375C
|
60,000
(4136.79)
|
60,000
(4136.79)
|
57,750
(3981.66)
|
54,250
(3740.35
|
50,700
(3495.59) |
| MS15-183 |
304SS
|
60,000
(4136.79) |
56,800
(3916.16)
|
51,650
(3561.09)
|
50,700
(3495.59)
|
48,450
(3340.46)
|
| MS15-201 |
Stainless
|
95,000
(6549.92)
|
95,000
(6549.92) |
91,400
(6301.71)
|
85,850
(5919.06)
|
80,200
(5529.51)
|
| MS15-083 |
316SS
|
F562C |
60,000
(4136.79)
|
60,000
(4136.79)
|
57,750
(3981.66) |
54,250
(3740.35)
|
50,700
(3495.59) |
| MS15-185 |
304SS
|
60,000
(4136.79)
|
56,800
(3916.16)
|
51,650
(3561.09)
|
50,700
(3495.59)
|
48,450
(3340.46)
|
MS15-203
|
Stainless |
95,000
(6549.92)
|
95,000
(6549.92)
|
91,400
(6301.71)
|
85,850
(5919.06) |
80,200
(5529.51)
|
MS15-090
|
316SS
|
F56C40
|
40,000
(2757.86)
|
40,000
(2757.86)
|
38,500
(2654.44)
|
36,100
(2488.96)
|
33,800
(2330.39)
|
MS15-189
|
304SS |
40,000
(2757.86)
|
36,800
(2537.23)
|
31,650
(2182.16)
|
30,700
(2116.66)
|
28,450
(1961.53)
|
| MS15-204 |
Stainless
|
F562C40-312 |
40,000
(2757.86)
|
40,000
(2757.86)
|
38,500
(2654.44)
|
36,100
(2488.96)
|
33,800
(2330.39)
|
| MS15-199 |
304SS
|
SF1000CX43 |
43,000
(2964.70)
|
40,600
(2799.23)
|
36,900
(2544.13)
|
36,300
(2502.76)
|
34,700
(2392.44)
|
Note:
1. Autofrettaged tubing available (see technical information section: Pressure
Cycling for Autofrettaged information.
2. For High Pressure, High Cycle (HPHC) tubing, MS15-201, MS15-202, MS15-203, and MS15-204 available.
(See Technical information section: Pressure Cycling for additional information.)
*Maximum pressure rating is based on the lowest rating of any component.
Actual working pressure may be determined by tubing pressure rating, if lower.
All dimensions for reference only and subject to change.
For prompt service, Autoclave stocks select products. Consult your local representative.
|
fcg.cnmec@parkerdistribution.com.cn
