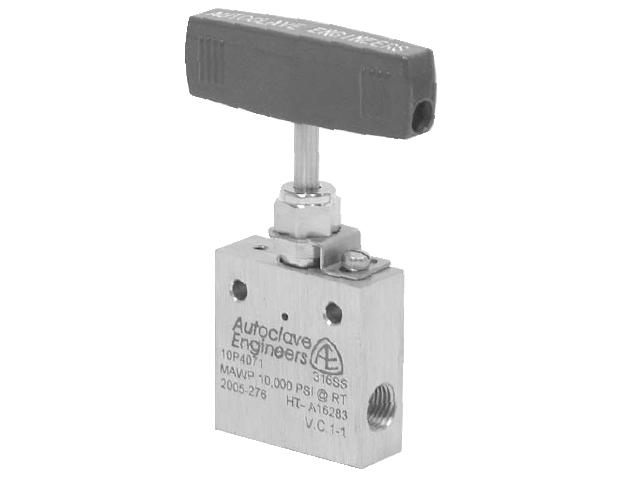

     P Series Pipe Low Pressure Needle Valves
P Series Pipe Low Pressure Needle Valves on Autoclave Engineers, Fluid Components Div. Of Snap-tite Inc.



P 系列 （15000psi）


　　 无旋转设计，避免阀杆和阀座磨损和咬合；
　　 规格型号：1/4″— 1″；
　　 工作温度：-17°C — 204°C；
　　 材质：316不锈钢。

Pipe Valve Features:

  • P Series valve design provides in-line pipe connections for 1/4” to 1” pipe sizes.1/8 connections offset.
  • Rising stem/barstock body design.
  • Non-rotating stem prevents stem/seat galling (1/8" NPT rotating stem design).
  • Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
  • PTFE (Teflon) encapsulated packing provides dependable stem and body sealing.
  • Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
  • Choice of Vee or Regulating stem tips.
  • Operating temperature range from 0°F (-17°C) to 400°F (204°C).
Autoclave valves are complemented by a complete line of fittings, tubing, check valves and line filters.

Panel mounting drill size: 0.22" all valves.
All dimensions for reference only and subject to change.
For prompt service, Autoclave stocks select products. Consult factory.
All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.



Item # Pressure Rating at Room Temperature Pipe Size Stem Type Valve Pattern Connection Type Orifice Diameter
15P2001 15000 psi
1034 bar 		1/8 in
3.18 mm 		VEE 2-Way Straight Pipe 0.078 in
1.98 mm
15P2011 15000 psi
1034 bar 		1/8 in
3.18 mm 		REG 2-Way Straight Pipe 0.078 in
1.98 mm
15P4071 15000 psi
1034 bar 		1/4 in
6.35 mm 		VEE 2-Way Straight Pipe 0.203 in
5.16 mm
15P4081 15000 psi
1034 bar 		1/4 in
6.35 mm 		REG 2-Way Straight Pipe 0.203 in
5.16 mm
15P6071 15000 psi
1034 bar 		3/8 in
9.53 mm 		VEE 2-Way Straight Pipe 0.219 in
5.56 mm
15P6081 15000 psi
1034 bar 		3/8 in
9.53 mm 		REG 2-Way Straight Pipe 0.219 in
5.56 mm
15P8071 15000 psi
1034 bar 		1/2 in
12.70 mm 		VEE 2-Way Straight Pipe 0.312 in
7.92 mm
15P8081 15000 psi
1034 bar 		1/2 in
12.70 mm 		REG 2-Way Straight Pipe 0.312 in
7.92 mm
10P12071 10000 psi
690 bar 		3/4 in
19.05 mm 		VEE 2-Way Straight Pipe 0.438 in
11.13 mm
10P12081 10000 psi
690 bar 		3/4 in
19.05 mm 		REG 2-Way Straight Pipe 0.438 in
11.13 mm
10P16071 10000 psi
690 bar 		1 in
25.4 mm 		VEE 2-Way Straight Pipe 0.562 in
14.27 mm
10P16081 10000 psi
690 bar 		1 in
25.4 mm 		REG 2-Way Straight Pipe 0.562 in
14.27 mm
15P2002 15000 psi
1034 bar 		1/8 in
3.18 mm 		VEE 2-Way Angle Pipe 0.078 in
1.98 mm
15P2012 15000 psi
1034 bar 		1/8 in
3.18 mm 		REG 2-Way Angle Pipe 0.078 in
1.98 mm
15P4072 15000 psi
1034 bar 		1/4 in
6.35 mm 		VEE 2-Way Angle Pipe 0.203 in
5.16 mm
15P4082 15000 psi
1034 bar 		1/4 in
6.35 mm 		REG 2-Way Angle Pipe 0.203 in
5.16 mm
15P6072 15000 psi
1034 bar 		3/8 in
9.53 mm 		VEE 2-Way Angle Pipe 0.219 in
5.56 mm
15P6082 15000 psi
1034 bar 		3/8 in
9.53 mm 		REG 2-Way Angle Pipe 0.219 in
5.56 mm
15P8072 15000 psi
1034 bar 		1/2 in
12.70 mm 		VEE 2-Way Angle Pipe 0.312 in
7.92 mm
15P8082 15000 psi
1034 bar 		1/2 in
12.70 mm 		REG 2-Way Angle Pipe 0.312 in
7.92 mm
10P12072 10000 psi
690 bar 		3/4 in
19.05 mm 		VEE 2-Way Angle Pipe 0.438 in
11.13 mm
10P12082 10000 psi
690 bar 		3/4 in
19.05 mm 		REG 2-Way Angle Pipe 0.438 in
11.13 mm
10P16072 10000 psi
690 bar 		1 in
25.4 mm 		VEE 2-Way Angle Pipe 0.562 in
14.27 mm
10P16082 10000 psi
690bar 		1 in
25.4 mm 		REG 2-Way Angle Pipe 0.562 in
14.27 mm
15P4073 15000 psi
1034 bar 		1/4 in
6.35 mm 		VEE 3-Way / 2 on Pressure Pipe 0.203 in
5.16 mm
15P4083 15000 psi
1034 bar 		1/4 in
6.35 mm 		REG 3-Way / 2 on Pressure Pipe 0.203 in
5.16 mm
15P6073 15000 psi
1034 bar 		3/8 in
9.53 mm 		VEE 3-Way / 2 on Pressure Pipe 0.219 in
5.56 mm
15P6083 15000 psi
1034 bar 		3/8 in
9.53 mm 		REG 3-Way / 2 on Pressure Pipe 0.219 in
5.56 mm
15P8073 15000 psi
1034 bar 		1/2 in
12.70 mm 		VEE 3-Way / 2 on Pressure Pipe 0.312 in
7.92 mm
15P8083 15000 psi
1034 bar 		1/2 in
12.70 mm 		REG 3-Way / 2 on Pressure Pipe 0.312 in
7.92 mm
10P12073 10000 psi
690 bar 		3/4 in
19.05 mm 		VEE 3-Way / 2 on Pressure Pipe 0.438 in
11.13 mm
10P12083 10000 psi
690 bar 		3/4 in
19.05 mm 		REG 3-Way / 2 on Pressure Pipe 0.438 in
11.13 mm
10P16073 10000 psi
690 bar 		1 in
25.4 mm 		VEE 3-Way / 2 on Pressure Pipe 0.562 in
14.27 mm
10P16083 10000 psi
690 bar 		1 in
25.4 mm 		REG 3-Way / 2 on Pressure Pipe 0.562 in
14.27 mm
15P4074 15000 psi
1034 bar 		1/4 in
6.35 mm 		VEE 3-Way / 1 on Pressure Pipe 0.203 in
5.16 mm
15P4084 15000 psi
1034 bar 		1/4 in
6.35 mm 		REG 3-Way / 1 on Pressure Pipe 0.203 in
5.16 mm
15P6074 15000 psi
1034 bar 		3/8 in
9.53 mm 		VEE 3-Way / 1 on Pressure Pipe 0.219 in
5.56 mm
15P6084 15000 psi
1034 bar 		3/8 in
9.53 mm 		REG 3-Way / 1 on Pressure Pipe 0.219 in
5.56 mm
15P8074 15000 psi
1034 bar 		1/2 in
12.70 mm 		VEE 3-Way / 1 on Pressure Pipe 0.312 in
7.92 mm
15P8084 15000 psi
1034 bar 		1/2 in
12.70 mm 		REG 3-Way / 1 on Pressure Pipe 0.312 in
7.92 mm
10P12074 10000 psi
690 bar 		3/4 in
19.05 mm 		VEE 3-Way / 1 on Pressure Pipe 0.438 in
11.13 mm
10P12084 10000 psi
690 bar 		3/4 in
19.05 mm 		REG 3-Way / 1 on Pressure Pipe 0.438 in
11.13 mm
10P16074 10000 psi
690 bar 		1 in
25.4 mm 		VEE 3-Way / 1 on Pressure Pipe 0.562 in
14.27 mm
10P16084 10000 psi
690 bar 		1 in
25.4 mm 		REG 3-Way / 1 on Pressure Pipe 0.562 in
14.27 mm
15P4075 15000 psi
1034 bar 		1/4 in
6.35 mm 		VEE 3-Way/2-Stem Manifold Pipe 0.203 in
5.16 mm
15P4085 15000 psi
1034 bar 		1/4 in
6.35 mm 		REG 3-Way/2-Stem Manifold Pipe 0.203 in
5.16 mm
15P6075 15000 psi
1034 bar 		3/8 in
9.53 mm 		VEE 3-Way/2-Stem Manifold Pipe 0.219 in
5.56 mm
15P6085 15000 psi
1034 bar 		3/8 in
9.53 mm 		REG 3-Way/2-Stem Manifold Pipe 0.219 in
5.56 mm
15P8075 15000 psi
1034 bar 		1/2 in
12.70 mm 		VEE 3-Way/2-Stem Manifold Pipe 0.312 in
7.92 mm
15P8085 15000 psi
1034 bar 		1/2 in
12.70 mm 		REG 3-Way/2-Stem Manifold Pipe 0.312 in
7.92 mm
10P12075 10000 psi
690 bar 		3/4 in
19.05 mm 		VEE 3-Way/2-Stem Manifold Pipe 0.438 in
11.13 mm
10P12085 10000 psi
690 bar 		3/4 in
19.05 mm 		REG 3-Way/2-Stem Manifold Pipe 0.438 in
11.13 mm
10P16075 10000 psi
690 bar 		1 in
25.4 mm 		VEE 3-Way/2-Stem Manifold Pipe 0.562 in
14.27 mm
10P16085 10000 psi
690 bar 		1 in
25.4 mm 		REG 3-Way/2-Stem Manifold Pipe 0.562 in
14.27 mm
