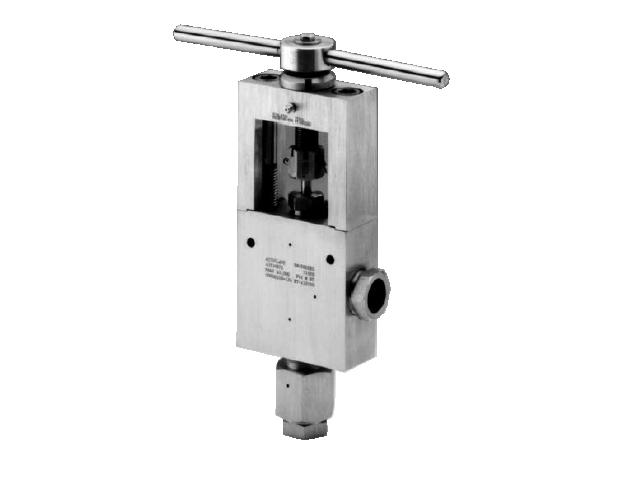

Y Series Yoke Needle Valves | Y Series Yoke Needle Valves on Autoclave Engineers, Fluid Components Div. Of Snap-tite Inc.
Autoclave Engineers' yoke valves are extra heavy-duty,plant grade instrument valves for industrial and severe service applications. Yoke valves feature low closing torque for ease of operation and are designed for use with Autoclave medium and high pressure tubing and fittings.
Yoke Valve Features:
- Tubing sizes from 9/16” to 1”.
- Rising stem/barstock body design.
- Non-rotating stem prevents stem/seat galling.
- Metal-to-metal seating achieves bubble-tight shutoff,longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE (Teflon) encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.
- Available in two body patterns.
- Optional materials for cryogenic and other applications.
Autoclave valves are complemented by a complete line of fittings, tubing, and accessories.
The Y Series valves are furnished complete with connection components, unless otherwise specified.
All dimensions for reference only and subject to change.
For prompt service 'Autoclave stocks select products' Consult factory.
All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.
| Item # |
Pressure Rating at Room Temperature |
Outside Diameter Tube |
Stem Type |
Valve Pattern |
Connection Type |
Orifice Diameter |
| 15Y12071 |
15000 psi
1034 bar |
3/4 Inch
19.05 mm |
VEE |
2-Way Straight |
SF750CX |
0.438 Inch
11.13 mm |
| 15Y12081 |
15000 psi
1034 bar |
3/4 Inch
19.05 mm |
REG |
2-Way Straight |
SF750CX |
0.438 Inch
11.13 mm |
| 15Y16071 |
15000 psi
1034 bar |
1 Inch
25.4 mm |
VEE |
2-Way Straight |
SF1000CX |
0.562 Inch
14.27 mm |
| 15Y16081 |
15000 psi
1034 bar |
1 Inch
25.4 mm |
REG |
2-Way Straight |
SF1000CX |
0.562 Inch
14.27 mm |
| 43Y16071 |
43000 psi
2965 bar |
1 Inch
25.4 mm |
VEE |
2-Way Straight |
F1000C43 |
0.375 Inch
9.53 mm |
| 43Y16081 |
43000 psi
2965 bar |
1 Inch
25.4 mm |
REG |
2-Way Straight |
F1000C43 |
0.375 Inch
9.53 mm |
| 50Y9071 |
50000 psi
3447 bar |
9/16 Inch
14.27 mm |
VEE |
2-Way Straight |
F562C |
0.188 Inch
4.78 mm |
| 50Y9081 |
50000 psi
3447 bar |
9/16 Inch
14.27 mm |
REG |
2-Way Straight |
F562C |
0.188 Inch
4.78 mm |
| 15Y12072 |
15000 psi
1034 bar |
3/4 Inch
19.05 mm |
VEE |
2-Way Angle |
SF750CX |
0.438 Inch
11.13 mm |
| 15Y12082 |
15000 psi
1034 bar |
3/4 Inch
19.05 mm |
REG |
2-Way Angle |
SF750CX |
0.438 Inch
11.13 mm |
| 15Y16072 |
15000 psi
1034 bar |
1 Inch
25.4 mm |
VEE |
2-Way Angle |
SF1000CX |
0.562 Inch
14.27 mm |
| 15Y16082 |
15000 psi
1034 bar |
1 Inch
25.4 mm |
REG |
2-Way Angle |
SF1000CX |
0.562 Inch
14.27 mm |
| 43Y16072 |
43000 psi
2965 bar |
1 Inch
25.4 mm |
VEE |
2-Way Angle |
F1000C43 |
0.375 Inch
9.53 mm |
| 43Y16082 |
43000 psi
2965 bar |
1 Inch
25.4 mm |
REG |
2-Way Angle |
F1000C43 |
0.375 Inch
9.53 mm |
| 50Y9072 |
50000 psi
3447 bar |
9/16 Inch
14.27 mm |
VEE |
2-Way Angle |
F562C |
0.188 Inch
4.78 mm |
| 50Y9082 |
50000 psi
3447 bar |
9/16 Inch
14.27 mm |
REG |
2-Way Angle |
F562C |
0.188 Inch
4.78 mm |
| 15Y12872 |
15000 psi
1034 bar |
3/4 Inch
19.05 mm |
VEE |
2-Way Angle / Replaceable Seat |
SF750CX |
0.438 Inch
11.13 mm |
| 15Y12882 |
15000 psi
1034 bar |
3/4 Inch
19.05 mm |
REG |
2-Way Angle / Replaceable Seat |
SF750CX |
0.438 Inch
11.13 mm |
| 15Y16872 |
15000 psi
1034 bar |
1 Inch
25.4 mm |
VEE |
2-Way Angle / Replaceable Seat |
SF1000CX |
0.562 Inch
14.27 mm |
| 15Y16882 |
15000 psi
1034 bar |
1 Inch
25.4 mm |
REG |
2-Way Angle / Replaceable Seat |
SF1000CX |
0.562 Inch
14.27 mm |
| 43Y16872 |
43000 psi
2965 bar |
1 Inch
25.4 mm |
VEE |
2-Way Angle / Replaceable Seat |
F1000C43 |
0.375 Inch
9.53 mm |
| 43Y16882 |
43000 psi
2965 bar |
1 Inch
25.4 mm |
REG |
2-Way Angle / Replaceable Seat |
F1000C43 |
0.375 Inch
9.53 mm |
| 50Y9872 |
50000 psi
3447 bar |
9/16 Inch
14.27 mm |
VEE |
2-Way Angle / Replaceable Seat |
F562C |
0.188 Inch
4.78 mm |
| 50Y9882 |
50000 psi
3447 bar |
9/16 Inch
14.27 mm |
REG |
2-Way Angle / Replaceable Seat |
F562C |
0.188 Inch
4.78 mm |
|
