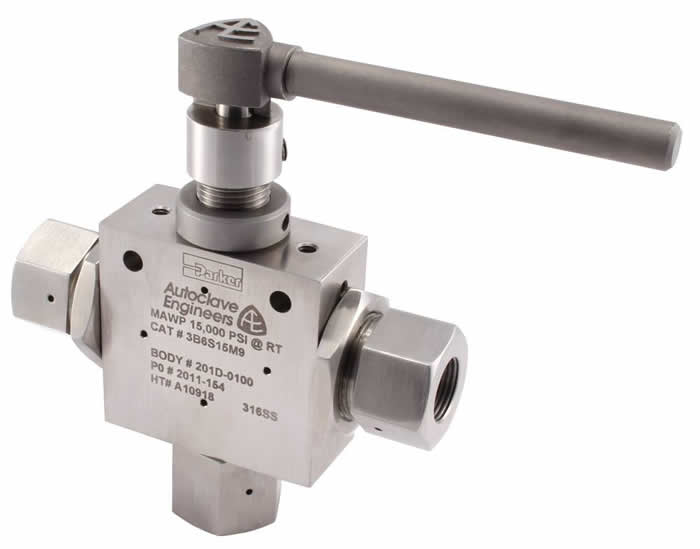

派克 Autoclave 20,000 PSI 3B 系列三通球阀
Parker Autoclave 3 Way 3B Series 20,000 PSI Ball Valve 三通球阀



派克 Autoclave 的 3B 系列球阀旨在提供卓越的质量,以在各种阀门类型、尺寸和过程连接中实现最佳性能。这些三通球阀具有一体式耳轴安装球和阀杆,可消除两件式设计常见的剪切故障。阀座压盖可重新拧紧以延长阀座寿命,低摩擦压力辅助石墨填充 PTFE 阀杆密封可降低驱动扭矩并增加循环寿命。这些阀门具有全端口流路,可最大限度地减少压降,并配有 PEEK 阀座,以确保出色的耐化学性、耐热性和耐磨性。

作为标准配置,这些三通高压球阀由冷加工 316 不锈钢制成,能够在高达 20,000 PSI (1,379 bar) 的压力下运行。接液部件也有其他材料。阀门配有 Viton O 型圈,额定工作温度范围为 -17.8 至 204°C(0 至 400°F)。可选择使用其他 O 形圈材料,以将上限扩展至 260?C (500?F)。


市场:
- 石油和天然气
- 石化
- 化工
- 研究

特点/优点:
- 一体式、耳轴安装式、阀杆设计消除了剪切破坏并减少了侧向载荷的影响。
- 可重新拧紧的阀座密封套,延长阀座使用寿命。
- 填充碳的 PEEK 阀座具有出色的耐化学性、耐热性和耐磨性。
- 全端口流路将压降降至最低。
- 316 冷加工不锈钢结构。
- 低摩擦压力辅助石墨填充聚四氟乙烯阀杆密封可延长循环寿命并降低操作扭矩。
- 从打开到关闭的四分之一圈,带正止挡。
- Viton O 型圈,可在 0°F (-17.8°C) 至 400°F (204°C) 的温度范围内运行。
- 可选的O 形圈可用于高温应用。
- 可选的接液材料。
- 有多种管子和管端配件可供选择。
- 电动和气动执行器选项。

应用:
- 高压滑板
- 化学品注入
- 特种高压气体系统
- 研究系统
- 高压测试面板



Parker Autoclave's 3B Series Ball Valves are manual 3 way valves. These ball valves operate up to 20,000 psi (1,379 bar) with a variety of end connections. These valves feature a trunnion mounted stem with ball orifices from 3/16" to 1/2".

Parker Autoclave's 3B Series ball valves have been designed to provide superior quality for maximum performance within a variety of valve styles, sizes, and process connections. These 3 way ball valves feature an integral one-piece trunnion mounted ball and stem that eliminates the shear failure common to two-piece designs. The seat glands are re-torqueable for longer seat life, and the low friction pressure-assisted graphite filled PTFE stem seal reduces actuation torque and increases cycle life. The valves have a full port flow path that minimizes pressure drop, and are fitted with PEEK seats to ensure excellent chemical, heat and wear resistance.

As standard, these 3 way high pressure ball valves are manufactured from cold worked 316 stainless steel and are capable of operating at up to 20,000 PSI (1,379 bar). The wetted parts are also available in other materials. The valves are fitted with Viton O-rings, rated for operation over a temperature range of -17.8 to 204?C (0 to 400?F). Other O-ring materials are optionally available to extend the upper limit to 260?C (500?F).







Technical Specifications

Materials of Construction: 316 Stainless Steel, for other options contact factory
Options: High Temperature, Air to Open, Air to Close, Air to Open/Close, Electric 120VAC, 220VAC, 240VAC
Maximum Operating Pressure: 10000, 15000, 20000 psi, 689, 1034, 1379 bar
Orifice Size: 3/16, 3/8, 1/2 inch
Product Series: 3 Way
Connection Type: Low Pressure, Medium Pressure, High Pressure, NPT, Flared Cone
Connection Size: 1/8, 1/4, 3/8, 1/2, 9/16, 3/4, 1 inch
Seat Material: PEEK as standard


Markets:
- Oil and Gas
- Petrochemical
- Chemical
- Research

Features/Benefits:
- One-piece, trunnion mounted style, stem design eliminates shear failure and reduces the effects of side loading.
- Re-torqueable seat glands for longer seat life.
- Carbon filled PEEK seats offer excellent resistance to chemicals, heat, and wear/abrasion.
- Full-port flow path minimizes pressure drop.
- 316 cold worked stainless steel construction.
- Low friction pressure assisted graphite filled Teflon stem seal increases cycle life and reduces operating torque.
- Quarter turn from open to close with positive stop.
- Viton o-rings for operation from 0°F (-17.8°C) to 400°F (204°C).
- Optional o-rings available for high-temperature applications.
- Optional wetted materials.
- Wide selection of tube and pipe end fittings available.
- Electric and pneumatic actuator options.

Applications:
- High Pressure Skid Panels
- Chemical Injection
- Specialty High Pressure Gas Systems
- Research Systems
- High Pressure Test Panels




Part

Orifice Size (inch)

Connection Size (inch)

Connection Type

Series

Maximum Working Pressure (psi)

3B3S10L8

3/16"

1/2"

Low Pressure

3 Way Switching

10000

3B3S15L2

3/16"

1/8"

Low Pressure

3 Way Switching

15000

3B3S15L4

3/16"

1/4"

Low Pressure

3 Way Switching

15000

3B3S15L6

3/16"

3/8"

Low Pressure

3 Way Switching

15000

3B3S15P2

3/16"

1/8"

NPT

3 Way Switching

15000

3B3S15P4

3/16"

1/4"

NPT

3 Way Switching

15000

3B3S15P6

3/16"

3/8"

NPT

3 Way Switching

15000

3B3S15P8

3/16"

1/2"

NPT

3 Way Switching

15000

3B3S20FC4

3/16"

1/4"

Flared Cone

3 Way Switching

20000

3B3S20FC6

3/16"

3/8"

Flared Cone

3 Way Switching

20000

3B3S20H4

3/16"

1/4"

High Pressure

3 Way Switching

20000

3B3S20H6

3/16"

3/8"

High Pressure

3 Way Switching

20000

3B3S20H9

3/16"

9/16"

High Pressure

3 Way Switching

20000

3B3S20M4

3/16"

1/4"

Medium Pressure

3 Way Switching

20000

3B3S20M6

3/16"

3/8"

Medium Pressure

3 Way Switching

20000

3B3S20M9

3/16"

9/16"

Medium Pressure

3 Way Switching

20000

3B6S10L8

3/8"

1/2"

Low Pressure

3 Way Switching

10000

3B6S15FC6

3/8"

3/8"

Flared Cone

3 Way Switching

20000

3B6S15FC9

3/8"

9/16"

Flared Cone

3 Way Switching

20000

3B6S15P4

3/8"

1/4"

NPT

3 Way Switching

15000

3B6S15P6

3/8"

3/8"

NPT

3 Way Switching

15000

3B6S15P8

3/8"

1/2"

NPT

3 Way Switching

15000

3B6S20H6

3/8"

3/8"

High Pressure

3 Way Switching

20000

3B6S20H9

3/8"

9/16"

High Pressure

3 Way Switching

20000

3B6S20M6

3/8"

3/8"

Medium Pressure

3 Way Switching

20000

3B6S20M9

3/8"

9/16"

Medium Pressure

3 Way Switching

20000

3B8S10FC12

1/2"

3/4"

Flared Cone

3 Way Switching

20000

3B8S10FC16

1/2"

1"

Flared Cone

3 Way Switching

20000

3B8S10M12

1/2"

3/4"

Medium Pressure

3 Way Switching

10000

3B8S10M16

1/2"

1"

Medium Pressure

3 Way Switching

10000

3B8S10P12

1/2"

3/4"

NPT

3 Way Switching

10000

3B8S10P16

1/2"

1"

NPT

3 Way Switching

10000

3BD3S10L8

3/16"

1/2"

Low Pressure

3 Way Diverting

10000

3BD3S15L2

3/16"

1/8"

Low Pressure

3 Way Diverting

15000

3BD3S15L4

3/16"

1/4"

Low Pressure

3 Way Diverting

15000

3BD3S15L6

3/16"

3/8"

Low Pressure

3 Way Diverting

15000

3BD3S15P2

3/16"

1/8"

NPT

3 Way Diverting

15000

3BD3S15P4

3/16"

1/4"

NPT

3 Way Diverting

15000

3BD3S15P6

3/16"

3/8"

NPT

3 Way Diverting

15000

3BD3S15P8

3/16"

1/2"

NPT

3 Way Diverting

15000

3BD3S20FC4

3/16"

1/4"

Flared Cone

3 Way Diverting

20000

3BD3S20FC6

3/16"

3/8"

Flared Cone

3 Way Diverting

20000

3BD3S20H4

3/16"

1/4"

High Pressure

3 Way Diverting

20000

3BD3S20H6

3/16"

3/8"

High Pressure

3 Way Diverting

20000

3BD3S20H9

3/16"

9/16"

High Pressure

3 Way Diverting

20000

3BD3S20M4

3/16"

1/4"

Medium Pressure

3 Way Diverting

20000

3BD3S20M6

3/16"

3/8"

Medium Pressure

3 Way Diverting

20000

3BD3S20M9

3/16"

9/16"

Medium Pressure

3 Way Diverting

20000

3BD6S10L8

3/8"

1/2"

Low Pressure

3 Way Diverting

10000

3BD6S15FC6

3/8"

3/8"

Flared Cone

3 Way Diverting

20000



Part

Orifice Size (inch)

Connection Size (inch)

Connection Type

Series

Maximum Working Pressure (psi)

3BD6S15FC9

3/8"

9/16"

Flared Cone

3 Way Diverting

20000

3BD6S15P4

3/8"

1/4"

NPT

3 Way Diverting

15000

3BD6S15P6

3/8"

3/8"

NPT

3 Way Diverting

15000

3BD6S15P8

3/8"

1/2"

NPT

3 Way Diverting

15000

3BD6S20H6

3/8"

3/8"

High Pressure

3 Way Diverting

20000

3BD6S20H9

3/8"

9/16"

High Pressure

3 Way Diverting

20000

3BD6S20M16

1/2"

1"

Medium Pressure

3 Way Diverting

10000

3BD6S20M6

3/8"

3/8"

Medium Pressure

3 Way Diverting

20000

3BD6S20M9

3/8"

9/16"

Medium Pressure

3 Way Diverting

20000

3BD8S10FC12

1/2"

3/4"

Flared Cone

3 Way Diverting

20000

3BD8S10FC16

1/2"

1"

Flared Cone

3 Way Diverting

20000

3BD8S10M12

1/2"

3/4"

Medium Pressure

3 Way Diverting

10000

3BD8S10P12

1/2"

3/4"

NPT

3 Way Diverting

10000

3BD8S10P16

1/2"

1"

NPT

3 Way Diverting

10000
