海底高压球阀20,000 PSI

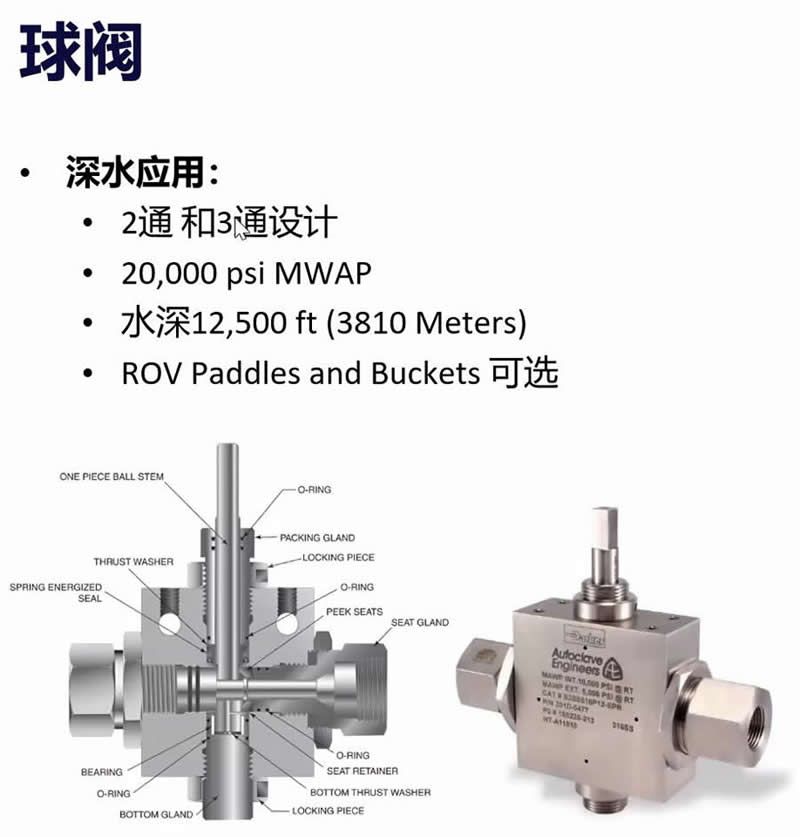

用于海底作业的高压球阀。压力达 20,000 psi (1379 bar)，水深达 12,500 英尺（3810 米）

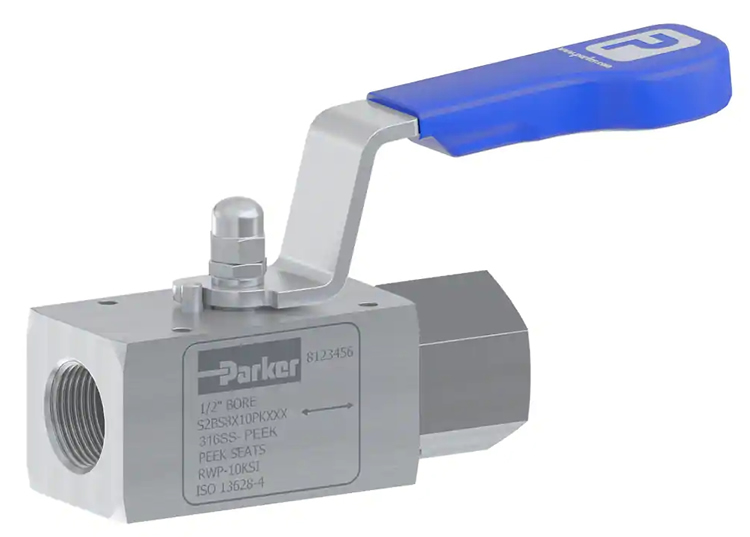

派克 Autoclave 的高压海底球阀能够在 20,000 psi (1379 bar) 和 12,500 英尺（3810 米）的深度下工作，尺寸有 3/16"、1/4"、3/8" 和 1/2" . 标准球阀采用 316 不锈钢制成，并提供特殊材料。我们独特的设计创新包括一体式耳轴安装球体和阀杆，消除了两件式设计中常见的剪切故障，可重新拧紧的阀座压盖可延长阀座寿命，以及低摩擦阀杆密封，可降低驱动扭矩并提高循环生活。派克的 2 通海底球阀采用软阀座和浮球设计，适用于高达 10,000 PSI 的操作和低至 3050m 的深度。根据 API 17D PSL 3（包括 API 6A PR2F）设计和测试，在海底应用中具有安全可靠的性能。派克的 2 通海底球阀采用软阀座和浮球设计，适用于高达 10,000 PSI 的操作和低至 3050m 的深度。根据 API 17D PSL 3（包括 API 6A PR2F）设计和测试，在海底应用中具有安全可靠的性能。
派克软密封角行程球阀用于流体隔离，专为在海底应用中提供平稳、低扭矩的性能而设计。采用与标准派克 Hi-Pro 系列球阀相同的设计技术，海底设计结合了必要的设计变更，为海底工业提供可靠的外部加压阀。这种海底球阀采用 PEEK 自减压阀座和 PTFE 填料，采用额外的 O 形圈密封件，可防止海水进入阀门，从而对阀门的操作产生不利影响并污染工艺液体。双向阀有多种耐腐蚀合金可供选择，适用于深度低至 3,050m 的设备。这些阀门旨在促进手动或遥控车辆 (ROV) 的操作。派克的海底球阀的设计符合或超过 API 17D PSL 3 的严格资格测试要求。结构完整性和性能已由见证 API 17D 阀门设计验证协议的劳埃德检验员确认。这是在基本 316SS 模型上进行的，包括 API 6A PR2F PSL3 双向测试协议以及 API 17D 高压测试协议。
Parker Autoclave's high pressure subsea ball valves - High Pressure Subsea Ball Valves
3/16", 1/4", 3/8" and 1/2" to 20,000 psi (1379 bar) and operational in water depths to 12,500 feet (3810 meters)
市场：
- 上游石油和天然气（液体介质）
特点/优势：
- 两件式、浮球式、侧入式结构
- 双向液体流动
- PEEK 阀座具有出色的耐化学性、耐热性和耐磨性
- 无阻碍的 10 毫米流动路径
- 低摩擦、压力辅助 PTFE 轴密封增加循环寿命并降低操作扭矩
- 额外的密封件旨在防止水和淤泥进入任何螺纹或旋转部件
- 设计用于接受多种类型的管子和管道端部连接
- 可提供多种耐腐蚀材料
- 设计和测试API 17D/API 6A 标准
应用（液体介质）：
- 海底液压歧管
- 海底控制脐带
- 海底井口和控制包
- 化学品注入
- DBB、放气、通风口、测试管线。
特点
一件式，耳轴安装的阀杆设计。
全端口流路最大限度地减少压降。
PEEK 阀座具有出色的耐化学性、耐热性和耐磨性。
适用于 NACE MR-01-75
由冷加工不锈钢制造。
提供可选的 O 形圈材料。
适用于遥控车辆 (ROV) 操作。
可选接液材料。
管道和管道端部连接的多种选择。
Parts |
Bore Diameter (mm) |
Additional Options |
Options |
Connection Size |
Connection Type |
Seat Material |
Body Material |
S2BS8E10PK6B-H |
10 |
N/A |
Handle |
3/8" |
Butt Weld |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK6B-HN |
10 |
NACE certification |
Handle |
3/8" |
Butt Weld |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK6B-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
Butt Weld |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK6B-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
Butt Weld |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK6N-H |
10 |
N/A |
Handle |
3/8" |
NPT |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK6N-HN |
10 |
NACE certification |
Handle |
3/8" |
NPT |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK6N-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
NPT |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK6N-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
NPT |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK8B-H |
10 |
N/A |
Handle |
1/2" |
Butt Weld |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK8B-HN |
10 |
NACE certification |
Handle |
1/2" |
Butt Weld |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK8B-P |
10 |
N/A |
ROV Low Torque Paddle |
1/2" |
Butt Weld |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK8B-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
1/2" |
Butt Weld |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK8N-H |
10 |
N/A |
Handle |
1/2" |
NPT |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK8N-HN |
10 |
NACE certification |
Handle |
1/2" |
NPT |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK8N-P |
10 |
N/A |
ROV Low Torque Paddle |
1/2" |
NPT |
PEEK |
Duplex Stainless Steel |
S2BS8E10PK8N-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
1/2" |
NPT |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM12-H |
10 |
N/A |
Handle |
3/4" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM12-HN |
10 |
NACE certification |
Handle |
3/4" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM12-P |
10 |
N/A |
ROV Low Torque Paddle |
3/4" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM12-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/4" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM6-H |
10 |
N/A |
Handle |
3/8" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM6-HN |
10 |
NACE certification |
Handle |
3/8" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM6-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM6-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM9-H |
10 |
N/A |
Handle |
9/16" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
Parts |
Bore Diameter (mm) |
Additional Options |
Options |
Connection Size |
Connection Type |
Seat Material |
Body Material |
S2BS8E10PKM9-HN |
10 |
NACE certification |
Handle |
9/16" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM9-P |
10 |
N/A |
ROV Low Torque Paddle |
9/16" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8E10PKM9-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
9/16" |
Cone and Thread |
PEEK |
Duplex Stainless Steel |
S2BS8F10PK6B-H |
10 |
N/A |
Handle |
3/8" |
Butt Weld |
PEEK |
Super Duplex |
S2BS8F10PK6B-HN |
10 |
NACE certification |
Handle |
3/8" |
Butt Weld |
PEEK |
Super Duplex |
S2BS8F10PK6B-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
Butt Weld |
PEEK |
Super Duplex |
S2BS8F10PK6B-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
Butt Weld |
PEEK |
Super Duplex |
S2BS8F10PK6N-H |
10 |
N/A |
Handle |
3/8" |
NPT |
PEEK |
Super Duplex |
S2BS8F10PK6N-HN |
10 |
NACE certification |
Handle |
3/8" |
NPT |
PEEK |
Super Duplex |
S2BS8F10PK6N-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
NPT |
PEEK |
Super Duplex |
S2BS8F10PK6N-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
NPT |
PEEK |
Super Duplex |
S2BS8F10PK8B-H |
10 |
N/A |
Handle |
1/2" |
Butt Weld |
PEEK |
Super Duplex |
S2BS8F10PK8B-HN |
10 |
NACE certification |
Handle |
1/2" |
Butt Weld |
PEEK |
Super Duplex |
S2BS8F10PK8B-P |
10 |
N/A |
ROV Low Torque Paddle |
1/2" |
Butt Weld |
PEEK |
Super Duplex |
S2BS8F10PK8B-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
1/2" |
Butt Weld |
PEEK |
Super Duplex |
S2BS8F10PK8N-H |
10 |
N/A |
Handle |
1/2" |
NPT |
PEEK |
Super Duplex |
S2BS8F10PK8N-HN |
10 |
NACE certification |
Handle |
1/2" |
NPT |
PEEK |
Super Duplex |
S2BS8F10PK8N-P |
10 |
N/A |
ROV Low Torque Paddle |
1/2" |
NPT |
PEEK |
Super Duplex |
S2BS8F10PK8N-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
1/2" |
NPT |
PEEK |
Super Duplex |
S2BS8F10PKM12-H |
10 |
N/A |
Handle |
3/4" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM12-HN |
10 |
NACE certification |
Handle |
3/4" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM12-P |
10 |
N/A |
ROV Low Torque Paddle |
3/4" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM12-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/4" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM6-H |
10 |
N/A |
Handle |
3/8" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM6-HN |
10 |
NACE certification |
Handle |
3/8" |
Cone and Thread |
PEEK |
|
Parts |
Bore Diameter (mm) |
Additional Options |
Options |
Connection Size |
Connection Type |
Seat Material |
Body Material |
S2BS8F10PKM6-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM6-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM9-H |
10 |
N/A |
Handle |
9/16" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM9-HN |
10 |
NACE certification |
Handle |
9/16" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM9-P |
10 |
N/A |
ROV Low Torque Paddle |
9/16" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8F10PKM9-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
9/16" |
Cone and Thread |
PEEK |
Super Duplex |
S2BS8M10PK6B-H |
10 |
N/A |
Handle |
3/8" |
Butt Weld |
PEEK |
Inconel 625 |
S2BS8M10PK6B-HN |
10 |
NACE certification |
Handle |
3/8" |
Butt Weld |
PEEK |
Inconel 625 |
S2BS8M10PK6B-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
Butt Weld |
PEEK |
Inconel 625 |
S2BS8M10PK6B-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
Butt Weld |
PEEK |
Inconel 625 |
S2BS8M10PK6N-H |
10 |
N/A |
Handle |
3/8" |
NPT |
PEEK |
Inconel 625 |
S2BS8M10PK6N-HN |
10 |
NACE certification |
Handle |
3/8" |
NPT |
PEEK |
Inconel 625 |
S2BS8M10PK6N-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
NPT |
PEEK |
Inconel 625 |
S2BS8M10PK6N-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
NPT |
PEEK |
Inconel 625 |
S2BS8M10PK8B-H |
10 |
N/A |
Handle |
1/2" |
Butt Weld |
PEEK |
Inconel 625 |
S2BS8M10PK8B-HN |
10 |
NACE certification |
Handle |
1/2" |
Butt Weld |
PEEK |
Inconel 625 |
S2BS8M10PK8B-P |
10 |
N/A |
ROV Low Torque Paddle |
1/2" |
Butt Weld |
PEEK |
Inconel 625 |
S2BS8M10PK8B-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
1/2" |
Butt Weld |
PEEK |
Inconel 625 |
S2BS8M10PK8N-H |
10 |
N/A |
Handle |
1/2" |
NPT |
PEEK |
Inconel 625 |
S2BS8M10PK8N-HN |
10 |
NACE certification |
Handle |
1/2" |
NPT |
PEEK |
Inconel 625 |
S2BS8M10PK8N-P |
10 |
N/A |
ROV Low Torque Paddle |
1/2" |
NPT |
PEEK |
Inconel 625 |
S2BS8M10PK8N-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
1/2" |
NPT |
PEEK |
Inconel 625 |
S2BS8M10PKM12-H |
10 |
N/A |
Handle |
3/4" |
Cone and Thread |
PEEK |
Inconel 625 |
S2BS8M10PKM12-HN |
10 |
NACE certification |
Handle |
3/4" |
Cone and Thread |
PEEK |
Inconel 625 |
S2BS8M10PKM12-P |
10 |
N/A |
ROV Low Torque Paddle |
3/4" |
Cone and Thread |
PEEK |
Inconel 625 |
Parts |
Bore Diameter (mm) |
Additional Options |
Options |
Connection Size |
Connection Type |
Seat Material |
Body Material |
S2BS8S10PKM12-H |
10 |
N/A |
Handle |
3/4" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM12-HN |
10 |
NACE certification |
Handle |
3/4" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM12-P |
10 |
N/A |
ROV Low Torque Paddle |
3/4" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM12-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/4" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM6-H |
10 |
N/A |
Handle |
3/8" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM6-HN |
10 |
NACE certification |
Handle |
3/8" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM6-P |
10 |
N/A |
ROV Low Torque Paddle |
3/8" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM6-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
3/8" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM9-H |
10 |
N/A |
Handle |
9/16" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM9-HN |
10 |
NACE certification |
Handle |
9/16" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM9-P |
10 |
N/A |
ROV Low Torque Paddle |
9/16" |
Cone and Thread |
PEEK |
316 Stainless Steel |
S2BS8S10PKM9-PN |
10 |
NACE certification |
ROV Low Torque Paddle |
9/16" |
Cone and Thread |
PEEK |
316 Stainless Steel |
|
fcg.cnmec@parkerdistribution.com.cn
