Dynalco Instruments & Controls for Rotating Equipment in Demanding Applications
Dynalco Engine Controls & Emissions Controls
发动机控制和排放控制仪表

Dynalco于1968年开始，有三种产品，以及为石油和天然气工业生产工程解决方案的目标。自那以后的47年里，Dynalco因其在石油和天然气、化学、电力、海洋和建筑行业使用的高质量的仪器和控制而得到认可。美国Dynalco 公司长期从事往复发动机、压缩机的状态监测与故障诊断，有50余年历史。其产品在国内油田也有10余年的成功应用经验。如果需要技术咨询、产品询价、下单和索要产品技术资料，请与我们联络010-84282935。

Our 6 and 24 channel products are ideal for shutdown protection on engines. Our Air/Fuel ratio controls and catalyst monitor provide the latest in emissions controls and monitoring. CSA approvals are standard.

AF-900PC Air/Fuel Ratio Controller控制器 AF900PC Air/Fuel Ratio Controller uses an advanced microprocessor controller to precisely maintain the air/fuel ratio of naturally aspirated and turbocharged carbureted gaseous fueled engines without the use of pneumatic converters	Catalyst Monitor监控器 Catalyst Monitor meets the RICE NESHAP Continuous Parameter Monitoring requirements. It is a low cost solution that comes pre-configured and is quick and easy to install and get running. CSA approved
SC-2124 Scanner/Monitor监控器 SC2124 scanner/controller is a microprocessor based controller that has 24 channels of Analog input, offers Class A, B or C alarms and shutdowns and 4 relay outputs for controls. CSA approved，Model SC-2124 has a large 4x20 character display and accepts up to 24 0-5 V inputs and has 8 onboard resistors for up to 8 4-20 mA inputs. The keypad lets you access and configure J or K type thermocouples as well as RTD's and linear inputs	SC-2124M Scanner/Monitor监控器 SC-2000 series microprocessor-based scanners continuously samples temperature, pressure, and other analog signals. The large multi-informational display indicates both the value of each channel and any alarm conditions. Model SC-2124M has a large 4x20 character display and uses Modbus? RTU communication for remote monitoring. It accepts up to 24 0-5 V inputs and has 8 onboard resistors for up to 8 4-20 mA inputs. The keypad lets you access and configure J or K type thermocouples as well as RTD's and linear inputs
D-100 CANbus Monitor监控器 D-100 CANbus Monitor offers J1939 compatibility for displaying engine performance parameters for Tier 4 emission standards. Equipped with a high resolution, 3.5" color display that can be viewed in full sunlight, D-100 is built in a rugged enclosure with a compact footprint to meet your application needs. An intuitive, user-friendly software design helps you quickly set up the unit to monitor J1939 parameters which can be viewed in user-configurable single and quad screens. Seven analog inputs, two digital inputs, four digital outputs and one magnetic pickup input allow multiple functionality and I/O capabilities	UM-600 Universal Monitor监控器 UM-600 monitors up to 6 channels of any analog signal plus engine speed and hours and provides an alarm and two different shutdown signal upon user-defined set-points being exceeded. These alarms and shutdown parameters can be set based on absolute or differential values. It offers a user customizable graphic display that has 3 different display modes. It also offers on board data logging that can be accessed via a Modbus connection or a USB interface

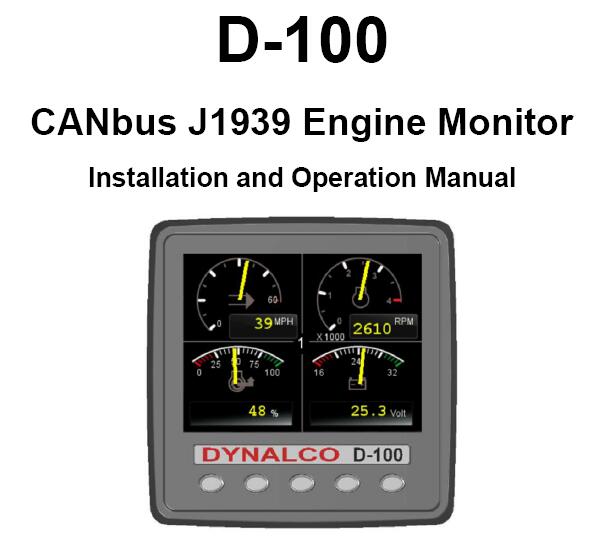

DYNALCO D-100 CANbus Monitor显示器

DYNALCO D-100 CANbus显示器提供J1939兼容性，用于显示Tier 4排放标准的发动机性能参数。 D-100配备了高分辨率的3.5“彩色显示屏，可以在各种阳光条件下观看，外壳坚固，占位空间小，适合您的应用。直观的，用户友好的软件设计可帮助您快速设置单元监视J1939参数，并可以在用户可配置的单屏和四屏上查看。七个模拟输入，两个数字输入，四个数字输出和一个磁性探头输入，允许多种功能和I / O功能。

DYNALCO特征：

高分辨率320 x 240彩色液晶屏（LCD），清晰的高对比度
7个模拟量输入、2个数字量输入和4个信号输入
4个继电器输出
全天候可读，亮度750 NIT（cd / m2）
用户可配置单屏或四屏
5个软键提供简单、完整的本地配置
选择数字值，模拟量或同时选择两者以满足您的个性化需求
显示TIER 4引擎信息
提供即时的可视和听觉指示警报
IP66防护等级
密码保护，以避免未经授权的更改

AF-900PC Air/Fuel Ratio Controller
The AF900PC Air/Fuel Ratio Controller uses an advanced microprocessor controller to precisely mai..
Catalyst Monitor
Catalyst Monitor
Our Catalyst Monitor meets the RICE NESHAP Continuous Parameter Monitoring requirements. It is a ..
SC-2124 Scanner/Monitor
SC-2124 Scanner/Monitor
Our SC2124 scanner/controller is a microprocessor based controller that has 24 channe..
SC-2124M Scanner/Monitor
SC-2124M Scanner/Monitor
The SC-2000 series microprocessor-based scanners continuously samples temperature, pressure, and ..
D-100 CANbus Monitor
D-100 CANbus Monitor
D-100 CANbus Monitor offers J1939 compatibility for displaying engine performance parameters for Tie..
UM-600 Universal Monitor
UM-600 Universal Monitor
The UM-600 monitors up to 6 channels of any analog signal plus engine speed and hours and provide..

美国Dynalco控制仪表公司简介

Dynalco设计和制造高度工程坚固，可靠的，第三方的监测，控制和往复式发动机，蒸汽涡轮机，燃气涡轮机，泵和输送系统的保护认证仪表。我们为一个在石油和天然气，化工/过程，建筑业及越野设备，交通运输，发电，船舶，采矿，水和废水市场的客户和工厂自动化等。Dynalco designs and manufactures highly engineered rugged, reliable, 3rd party certified instumentation for monitoring, control and protection of reciprocating engines, steam turbines, gas turbines, pumps and conveying systems. We serve a variety of customers in the Oil and Gas, Chemical/Process, Contruction and off-road equipment, Transportation, Power Generation, Marine, Mining, Water and Waste Water and Factory Automation Markets.

如果需要技术咨询、产品询价、下单和索要产品技术资料，请与我们联络010-84282935。
