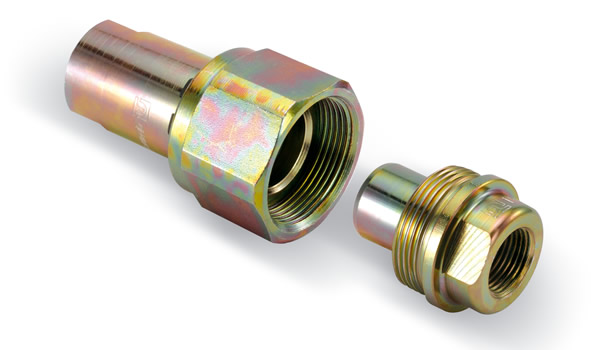

EATON Gromelle W6000 Series高强度快速接头
W6000 SERIES SCREW-TO-CONNECT SELF-SEALING COUPLINGS

Screw to Connect W6000 Series
W6000 Series Couplings

Gromelle W6000 Series高强度快速接头

EATON W6000 系列快速接头用在由于胶管弯曲、震动及液压波动等使得工作压力产生剧烈脉动的场合。规格从1/4”到2”的高强度的快速接头，其材质为钢、F15NM and AISI 316L 不锈钢。对于钢和F15NM 不锈钢材质的快速接头，其工作压力为300 至1100 bar/4,400 至16,000psi，而对于AISI 316L 不锈钢材质的快速接头，其工作压力则为180 至500 bar/2,600 至 7,300psi。连接时能抵抗残余压力。

法国Gromelle格鲁梅尔快速接头成立于1954年,也是欧洲老牌的快速接头生产企业。 广泛系列欧洲风格的连接器使泰悉尔连接器集团拥有在工业上广泛系列的产品线。美国HANSEN(汉森)　GROMELLE（格鲁梅尔）快速接头，规格从1/8"—2"；材质有合金钢、铜、不锈钢；有直通式、单关断、双关断等各种形式；有气动接头、液压接头、供水接头；压力10bar、100bar、300bar、700bar至1000bar，可广泛应用于石油机械、工程机械、钢铁冶金、矿山机械、机器制造、电力、食品、船舶、医疗等各行各业。欢迎订货并备有部分现货可供使用。

The screw to connect W6000 series has a rugged construction and is "the" series users refer to when dealing with severe hydraulic applications such as shock loads, severe pulsating pressures etc. Its design and materials of construction give the coupling resistance to heavy mechanical loads and make them ideal for useage either on or off shore. Both steel and stainless steel versions have working pressures up to 15950 psi depending on coupling size. Couplings can be connected under residual pressure. Hansen W6000 series screw-to-connect couplings give exceptional resistance to severe hydraulic loads. They are available in plated steel and in stainless steel.

EATON Gromelle W6000 Series高强度快速接头
PDF技术资料下载
W6000 (Steel) Series: Heavy Duty Couplings
W6000 (Stainless Steel) Series: Heavy Duty Couplings

由于石油和燃气的使用条件较为恶劣，为此泰悉尔开发了一些特制的W6000 快速接头以满足要求。

1/4” coupling in AISI 316Ti stainless steel for sea seismology exploration,
1/4”AISI 316Ti 不锈钢快速接头可 用于海洋勘探的。
1/4” coupling in F15NM stainless steel, with Autoclave end-connection for subsea tree test application up
具有高压连接端的1/4” F15NM 不锈钢快速接头可 用于海底树探测。

1/4”, 3/8” & 1/2” couplings in Sanicro, panel-mounted plug, for underwater well-head application,
由SANICRO 合金制造、装在面板上的1/4”、3/8” 和 1/2” 快速接头可 用于水下。

3” coupling in AISI 316L for Off-Shore equipment (150 bar / 2,200 psi working pressure).
AISI 316L 不锈钢快速接头可用于近海设备（工作压力为150bar/2,200psi）。

Rugged, one-piece body
Automatic shut-off in both halves on disconnection
Pressure ratings up to 1100 bar
Can be connected against residual pressure*
Size range 1/4" to 2"

DUST PLUGS AND CAPS
Size PLUGS CAPS
1/4 WD0611700 WD0611400
3/8 WD0612700 WD0612400
1/2 WD0613700 WD0613400
3/4 WD0614700 WD0614400
1 WD0615700 WD0615400
1.1/4 WD0616700 WD0616400
1.1/2 WD0617700 WD0617400
2 WD0619700 WD0619400

socKets
steel stainless steel o/l sleeve max o/d a/f
1/4 BSP 1/4 NPT WA0601700 WA0621700 WV06017V0 WV06217V0 53 35 19
3/8 BSP 3/8 NPT WA0602700 WA0622700 WV06027V0 WV06227V0 65 38 23
1/2 BSP 1/2 NPT WA0603700 WA0623700 WV06037V0 WV06237V0 74 45 27
3/4 BSP 3/4 NPT WA0604700 WA0624700 WV06047V0 WV06247V0 91 55 35
1 1 BSP NPT WA0605700 WA0625700 WV06057V0 WV06257V0 103 69 41
1.1/4 BSP 1.1/4 NPT WA0606700 WA0626700 WV06067V0 WV06267V0 145 89 55
1.1/2 BSP 1.1/2 NPT WA0607700 WA0627700 WV06077V0 WV06277V0 173 100 63
2 2 BSP NPT WA0609700 WA0629700 WV06097V0 WV06297V0 205 117 71

WA0601700 WA0601400 WV06017V0 WV06014V0 1/4" 5,7 G 1/4
WA0621700 WA0621400 WV06217V0 WV06214V0 1/4 NPT
WA0602700 WA0602400 WV06027V0 WV06024V0 3/8" 7,6 G 3/8
WA0622700 WA0622400 WV06227V0 WV06224V0 3/8 NPT
WA0603700 WA0603400 WV06037V0 WV06034V0 1/2" 10,3 G 1/2
WA0623700 WA0623400 WV06237V0 WV06234V0 1/2 NPT
WA0633700 WA0633400 WV06337V0 WV06334V0 M22 x 150
WA0604700 WA0604400 WV06047V0 WV06044V0 3/4" 14,2 G 3/4
WA0624700 WA0624400 WV06247V0 WV06244V0 3/4 NPT
WA0605700 WV06057V0 WV0605400 WV06054V0 1" 16,5 G 1
WA0625700 WA0625400 WV06257V0 WV06254V0 1 NPT
WA0635700 WA0635400 WV06357V0 WV06354V0 M33 x 150
WA0606700 WA0606400 WV06067V0 WV06064V0 1" 1/4 20,5 G 1 1/4
WA0626700 WA0626400 WV06267V0 WV06264V0 1 1/4 NPT
WA0607700 WA0607400 WV06077V0 WV06074V0 1" 1/2 25,8 G 1 1/2
WA0627700 WA0627400 WV06277V0 WV06274V0 1 1/2 NPT
WA0609700 WA0609400 WV06097V0 WV06094V0 2" 34,7 G 2
WA0629700 WA0629400 WV06297V0 WV06294V0 2 NPT

W6000 Series (Steel)
Eaton W6000 Series steel quick disconnect coupling Thread-to-Connect

EATON Exclusive Selection of QD Couplings E-MEQD-MC007-E November 2012
W6000 Series (Steel)

WA0602700 WA06027V0 WA06027E0
WA0603700 WA06037V0 WA06037E0 . 10.3 -.-14 -1 2.91 1.77 1.14 1.06 1.61 74 45 29 27 41 0.71 320
WA0633700 WA06337V0 WA06337E0 . 10.3 --M22x1.5 1 2.91 1.77 1.14 1.06 1.61 74 45 29 27 41 0.71 320
WA0624700 WA06247V0 WA06247E0 . 14.2 .-14 --1 3.58 2.16 1.50 1.38 1.97 91 55 38 35 50 1.32 600
WA0601400 WA06014V0 WA06014E0 . 5.7 -.-19 -2 1.38 0.59 0.90 0.45 0.75 35 15 23 11.5 19 0.16 71

WA0602400 WA06024V0 WA06024E0
WA0603400 WA06034V0 WA06034E0 . 10.3 -.-14 -2 1.97 0.87 1.26 0.77 1.06 50 22 32 19.5 27 0.36 165
WA0633400 WA06334V0 WA06334E0 . 10.3 --M22x1.5 2 1.97 0.87 1.26 0.77 1.06 50 22 32 19.5 27 0.36 165
WA0624400 WA06244V0 WA06244E0 . 14.2 .-14 --2 2.48 1.14 1.65 1.02 1.38 63 29 42 26 35 0.84 382
EATON Exclusive Selection of QD Couplings E-MEQD-MC007-E November 2012
WA0601700 WA06017V0 WA06017E0 5.7 - -19 - 1 2.09 1.38 0.83 0.75 1.26 53 35 21 19 32 0.32 144
WA0621700 WA06217V0 WA06217E0 5.7 -18 - - 1 2.09 1.38 0.83 0.75 1.26 53 35 21 19 32 0.32 144
WA0602700 WA06027V0 WA06027E0 7.6 - -19 - 1 2.56 1.50 0.98 0.90 1.38 65 38 25 23 35 0.48 217
WA0622700 WA06227V0 WA06227E0 7.6 -18 - - 1 2.56 1.50 0.98 0.90 1.38 65 38 25 23 35 0.48 217
WA0603700 WA06037V0 WA06037E0 10.3 - -14 - 1 2.91 1.77 1.14 1.06 1.61 74 45 29 27 41 0.71 320
WA0623700 WA06237V0 WA06237E0 10.3 -14 - - 1 2.91 1.77 1.14 1.06 1.61 74 45 29 27 41 0.71 320
WA0633700 WA06337V0 WA06337E0 10.3 - - M22x1.5 1 2.91 1.77 1.14 1.06 1.61 74 45 29 27 41 0.71 320
WA0604700 WA06047V0 WA06047E0 14.2 - -14 - 1 3.58 2.16 1.50 1.38 1.97 91 55 38 35 50 1.32 600
WA0624700 WA06247V0 WA06247E0 14.2 -14 - - 1 3.58 2.16 1.50 1.38 1.97 91 55 38 35 50 1.32 600
WA0605700 WA06057V0 WA06057E0 1 16.5 - 1-11 - 1 4.05 2.72 1.81 1.61 2.56 103 69 46 41 65 2.41 1092
WA0625700 WA06257V0 WA06257E0 1 16.5 1-11 - - 1 4.05 2.72 1.81 1.61 2.56 103 69 46 41 65 2.41 1092
WA0635700 WA06357V0 WA06357E0 1 16.5 - - M33x1.5 1 4.05 2.72 1.81 1.61 2.56 103 69 46 41 65 2.41 1092
WA0606700 WA06067V0 WA06067E0 1 20.5 - 1-11 - 1 5.71 3.50 2.36 2.16 3.03 145 89 60 55 77 6.13 2780
WA0626700 WA06267V0 WA06267E0 1 20.5 1-11 - - 1 5.71 3.50 2.36 2.16 3.03 145 89 60 55 77 6.13 2780
WA0607700 WA06077V0 WA06077E0 1 25.8 - 1-11 - 1 6.81 3.94 2.64 2.48 3.46 173 100 67 63 88 9.26 4200
WA0627700 WA06277V0 WA06277E0 1 25.8 1-11 - - 1 6.81 3.94 2.64 2.48 3.46 173 100 67 63 88 9.26 4200
WA0609700 WA06097V0 WA06097E0 2 34.7 - 2-11 - 1 8.07 4.60 3.07 2.80 4.13 205 117 78 71 105 14.64 6640
WA0629700 WA06297V0 WA06297E0 2
WA0601400 WA06014V0 WA06014E0 5.7 - -19 - 2 1.38 0.59 0.90 0.45 0.75 35 15 23 11.5 19 0.16 71
WA0621400 WA06214V0 WA06214E0 5.7 -18 - - 2 1.38 0.59 0.90 0.45 0.75 35 15 23 11.5 19 0.16 71
WA0602400 WA06024V0 WA06024E0 7.6 - -19 - 2 1.65 0.75 1.02 0.52 0.90 42 19 26 13 23 0.23 104
WA0622400 WA06224V0 WA06224E0 7.6 -18 - - 2 1.65 0.75 1.02 0.52 0.90 42 19 26 13 23 0.23 104
WA0603400 WA06034V0 WA06034E0 10.3 - -14 - 2 1.97 0.87 1.26 0.77 1.06 50 22 32 19.5 27 0.36 165
WA0623400 WA06234V0 WA06234E0 10.3 -14 - - 2 1.97 0.87 1.26 0.77 1.06 50 22 32 19.5 27 0.36 165
WA0633400 WA06334V0 WA06334E0 10.3 - - M22x1.5 2 1.97 0.87 1.26 0.77 1.06 50 22 32 19.5 27 0.36 165
WA0604400 WA06044V0 WA06044E0 14.2 - -14 - 2 2.48 1.14 1.65 1.02 1.38 63 29 42 26 35 0.84 382
WA0624400 WA06244V0 WA06244E0 14.2 -14 - - 2 2.48 1.14 1.65 1.02 1.38 63 29 42 26 35 0.84 382
WA0605400 WA06054V0 WA06054E0 1 16.5 - 1-11 - 2 2.80 1.42 1.89 1.14 1.61 71 36 48 29 41 1.29 585
WA0625400 WA06254V0 WA06254E0 1 16.5 1-11 - - 2 2.80 1.42 1.89 1.14 1.61 71 36 48 29 41 1.29 585
WA0635400 WA06354V0 WA06354E0 1 16.5 - - M33x1.5 2 2.80 1.42 1.89 1.14 1.61 71 36 48 29 41 1.29 585
WA0606400 WA06064V0 WA06064E0 1 20.5 - 1-11 - 2 3.82 2.00 2.36 1.45 2.16 97 50.9 60 37 55 3.22 1460
WA0626400 WA06264V0 WA06264E0 1 20.5 1-11 - - 2 3.82 2.00 2.36 1.45 2.16 97 50.9 60 37 55 3.22 1460
WA0607400 WA06074V0 WA06074E0 1 25.8 - 1-11 - 2 4.29 2.24 2.64 1.22 2.48 109 56.9 67 31 63 4.50 2040
WA0627400 WA06274V0 WA06274E0 1 25.8 1-11 - - 2 4.29 2.24 2.64 1.22 2.48 109 56.9 67 31 63 4.50 2040
WA0609400 WA06094V0 WA06094E0 2 34.7 - 2-11 - 2 5.08 2.73 3.07 1.32 2.80 129 69.4 78 33 71 7.05 3200
WA0629400 WA06294V0 WA06294E0 2 34.7 2
W6000 Series (Steel)
Dust Plugs and Dust Caps
Body Size Socket Dust Plug Part Number Plug Dust Cap Part Number
(in) Anodized Aluminium Anodized Aluminium
WD0611700 WD0611400
WD0612700 WD0612400
WD0613700 WD0613400
WD0614700 WD0614400
1 WD0615700 WD0615400
1 WD0616700 WD0616400
1 WD0617700 WD0617400
2 WD0619700 WD0619400
WV06017V0 WV06017E0 5.7 - -19 1 2.09 1.38 0.83 0.75 1.26 53 35 21 19 32 0.32 144
WV06217V0 WV06217E0 5.7 -18 - 1 2.09 1.38 0.83 0.75 1.26 53 35 21 19 32 0.32 144
WV06027V0 WV06027E0 7.6 - -19 1 2.56 1.50 0.98 0.90 1.38 65 38 25 23 35 0.48 217
WV06227V0 WV06227E0 7.6 -18 - 1 2.56 1.50 0.98 0.90 1.38 65 38 25 23 35 0.48 217
WV06037V0 WV06037E0 10.3 - -14 1 2.91 1.77 1.14 1.06 1.61 74 45 29 27 41 0.71 320
WV06237V0 WV06237E0 10.3 -14 - 1 2.91 1.77 1.14 1.06 1.61 74 45 29 27 41 0.71 320
WV06047V0 WV06047E0 14.2 - -14 1 3.58 2.16 1.50 1.38 1.97 91 55 38 35 50 1.32 600
WV06247V0 WV06247E0 14.2 -14 - 1 3.58 2.16 1.50 1.38 1.97 91 55 38 35 50 1.32 600
WV06057V0 WV06057E0 1 16.5 - 1-11 1 4.05 2.72 1.81 1.61 2.56 103 69 46 41 65 2.41 1092
WV06257V0 WV06257E0 1 16.5 1-11 - 1 4.05 2.72 1.81 1.61 2.56 103 69 46 41 65 2.41 1092
WV06067V0 WV06067E0 1 20.5 - 1-11 1 5.71 3.50 2.36 2.16 3.03 145 89 60 55 77 6.13 2780
WV06267V0 WV06267E0 1 20.5 1-11 - 1 5.71 3.50 2.36 2.16 3.03 145 89 60 55 77 6.13 2780
WV06077V0 WV06077E0 1 25.8 - 1-11 1 6.81 3.94 2.64 2.48 3.46 173 100 67 63 88 9.26 4200
WV06277V0 WV06277E0 1 25.8 1-11 - 1 6.81 3.94 2.64 2.48 3.46 173 100 67 63 88 9.26 4200
WV06097V0 WV06097E0 2 34.7 - 2-11 1 8.07 4.60 3.07 2.80 4.13 205 117 78 71 105 14.64 6640
WV06297V0 WV06297E0
WV06014V0 WV06014E0 5.7 - -19 2 1.38 0.59 0.90 0.45 0.75 35 15 23 11.5 19 0.16 71
WV06214V0 WV06214E0 5.7 -18 - 2 1.38 0.59 0.90 0.45 0.75 35 15 23 11.5 19 0.16 71
WV06024V0 WV06024E0 7.6 - -19 2 1.65 0.75 1.02 0.52 0.90 42 19 26 13 23 0.23 104
WV06224V0 WV06224E0 7.6 -18 - 2 1.65 0.75 1.02 0.52 0.90 42 19 26 13 23 0.23 104
WV06034V0 WV06034E0 10.3 - -14 2 1.97 0.87 1.26 0.77 1.06 50 22 32 19.5 27 0.36 165
WV06234V0 WV06234E0 10.3 -14 - 2 1.97 0.87 1.26 0.77 1.06 50 22 32 19.5 27 0.36 165
WV06044V0 WV06044E0 14.2 - -14 2 2.48 1.14 1.65 1.02 1.38 63 29 42 26 35 0.84 382
WV06244V0 WV06244E0 14.2 -14 - 2 2.48 1.14 1.65 1.02 1.38 63 29 42 26 35 0.84 382
WV06054V0 WV06054E0 1 16.5 - 1-11 2 2.80 1.42 1.89 1.14 1.61 71 36 48 29 41 1.29 585
WV06254V0 WV06254E0 1 16.5 1-11 - 2 2.80 1.42 1.89 1.14 1.61 71 36 48 29 41 1.29 585
WV06064V0 WV06064E0 1 20.5 - 1-11 2 3.82 2.00 2.36 1.45 2.16 97 50.9 60 37 55 3.22 1460
WV06264V0 WV06264E0 1 20.5 1-11 - 2 3.82 2.00 2.36 1.45 2.16 97 50.9 60 37 55 3.22 1460
WV06074V0 WV06074E0 1 25.8 - 1-11 2 4.29 2.24 2.64 1.22 2.48 109 56.9 67 31 63 4.50 2040
WV06274V0 WV06274E0 1 25.8 1-11 - 2 4.29 2.24 2.64 1.22 2.48 109 56.9 67 31 63 4.50 2040
WV06094V0 WV06094E0 2 34.7 - 2-11 2 5.08 2.73 3.07 1.32 2.80 129 69.4 78 33.5 71 7.05 3200
WV06294V0 WV06294E0
Dust Plugs and Dust Caps
Body Size Socket Dust Plug Part Number Plug Dust Cap Part Number
(in) Anodized Aluminium Anodized Aluminium
WD0611700 WD0611400
WD0612700 WD0612400
WD0613700 WD0613400
WD0614700 WD0614400
1 WD0615700 WD0615400
1 WD0616700 WD0616400
1 WD0617700 WD0617400
2 WD0619700 WD0619400
Thread-to-Connect
Socket dust plug
Dust Plugs and Dust Caps
Body Size Socket Dust Plug Part Number Plug Dust Cap Part Number (in) Anodized Aluminium Anodized Aluminium
. WD0611700 WD0611400
EATON Exclusive Selection of QD Couplings E-MEQD-MC007-E November 2012
