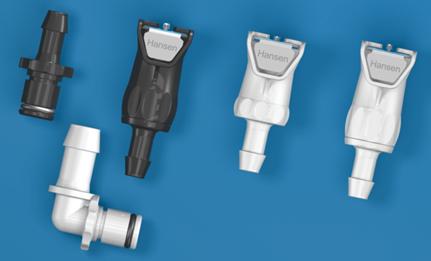

Eaton Launches New Hansen EP Series Plastic Coupling
EP系列塑料快速接头



EATON伊顿的EP系列是一种快速连接塑料材质的快插拔接头。具有优越的流体流动性与操作性,适合许多塑料管材应用的场合Eaton’s EP Series is a quick connect plastic coupling that provides superior flow performance with an ease and resiliency suitable for many plastic tubing applications.

Eaton is proud to introduce EP Series plastic quick connect coupling, our latest innovation focused on the medical and food and beverage market. Leveraging our long history of innovation and quick connect coupling development, Eaton has developed a plastic quick connect coupling that is easy to use and dependable.


特点和优势:

- Single mold barb design eliminates leak points单模具倒钩设计消除了漏气点
- Ergonomic design allows for easier grip while connecting人体工学设计允许更容易连接
- Barb design provides greater resistance to tubing pull off倒钩的设计提供了更大的阻力防止意外断开
- 尺寸:1/4 (6.4 mm) & 3/8 (9.5 mm)
- 材质: plastic material options that include Acetal or Polypropylene塑料材料的选项包括缩醛、聚丙烯
- 温度范围:temperature range is -40°C +82°C (-40°F +180°F)
- 密封:EPDM seals


Potential applications include产品应用:

- Chemical/Inkjet 化学/喷墨
- Medical Equipment医疗器械
- Material Handling材料处理
- Food and Beverage, and Fluid食品饮料,液体


The EP Series is currently available in hose barb sizes ranging from 1/4″ (6.4 mm) up to 3/8″ (9.5 mm) and are available in both black and white color options. This product line comes with plastic material options that include Acetal or Polypropylene.

The EP Series quick connect couplings are offered in package quantities of ten (10). A sample kit is also available that provides a selection of the different sizes and couplings that are available.



The EP Series is currently available in 1/4 (6.4 mm) & 3/8 (9.5 mm) hose barb sizes and is available in black or natural Acetal and white Polypropylene with EPDM seals. Working pressure is 8 bar (120 psi) and temperature range is -40°C +82°C (-40°F +180°F).

The EP Series quick connect couplings are offered in both 10 pack quantities and in a full sample kit with a selection of all the different sizes and connections.

For detailed product information related to EP Series quick connect couplings, including specific part numbers, please see Eaton leaflet attached (link below) and also available on the product literature library website.

If you have any questions regarding the new EP Series product, please contact your local Eaton Area Sales Manager, Eaton Hansen-Gromelle inside sales representative, or myself.



Part umber
螺纹
尺寸
颜色
4EPS4HNV Female Open Flow Straight 1/4 “ Natural
4EPS4H Female Valved Straight 1/4 “ Natural
P4EPS4H192 Female Valved Straight 1/4 “ White EPDM
4EPS6H Female Valved Straight 3/8″ Natural
4EPS4HNVP Female Open Panel Mt 1/4″ Natural
4EPS6HP Female Valved Panel Mt 3/8 “ Natural
4EPP4HNV Male Open Flow Straight 1/4 “ Natural
4EPP4H Male Valved Straight 1/4″ Natural
P4EPP4H192 Male Valved Straight 1/4 “ White EPDM
4EPP6H Male Valved Connector 3/8 “ Natural
4EPP4HNVP Male Open Flow Panel Mt 1/4 “ Natural
4EPP6HNVP Male Open Flow Panel Mt 3/8″ Natural
4EPP4HP Male Valved Panel Mt 1/4 “ Natural
4EPP6HP Male Valved Panel Mt 3/8″ Natural
4EPP4HNVRA Male Open Flow Elbow Connector 1/4″ Natural
4EPP4HRA Male Valved Elbow 1/4″ Natural
4EPS4HBLK Female Valved Straight 1/4 “ Black
4EPP6HNV Male Open Flow Straight 3/8 “ Natural
4EPS6HNVP Female Open Flow Straight 3/8″ Natural
4EPP4HNVBLK Male Open Flow Straight 1/4 “ Black
4EPP5HBLK Male Valved Straight 5/16″ Black
4EPP6HBLK Male Valved Straight 3/8 “ Black
P4EPP6H192 Male Valved Straight 3/8 “ White EPDM
4EPP6HNVRA Male Open Flow Elbow Connector 3/8 “ Natural
4EPS6HBLK Female Valved Straight 3/8 “ Black
P4EPS6H192 Female Valved Straight 3/8 “ White EPDM
4EPS6HPNV Female Open Flow Straight, Panel Mt 3/8″ Natural
4EPS4HP Female Valved Straight, Panel Mt 1/4″ Natural
4EPP6HRA Male Valved Elbow 3/8″ Natural
4EPKIT 4RH Display Kit
