NUFLO Gas Turbine Flow Meter
Accurate Gas Flow Measurement
Nuflow Gas Turbine Flow Meter
- Single gas turbine flowmeter handles wide range of flow rates
- Rugged carbide bearing design eliminates need for lubrication and withstands difficult service conditions
- Low inertia rotor design provides quick response to flow rate changes
- Two-bladed rotor offers large unobstructed flow area
- Electrical output signal adapts readily to a variety of readout devices
- Easily serviced – low cost precalibrated replacement turbine cartridge available
Download NUFLO Gas Turbine Flow Meter Specifications (PDF)

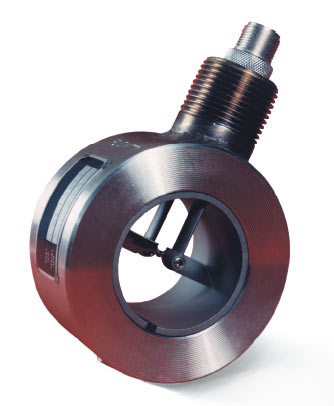

The NuFlo? gas turbine flow meter introduces a new concept in accurate gas flow measurement. It features a transducer that utilizes a lightweight, low inertia rotor to sense gas velocity. It offers an output frequency that has a linear relationship to gas velocity over a wide flow range.
The meter tracks the flow rate continuously, offers little resistance to flow and has a unique cartridge design that
allows removal of all internal parts as one assembly.
The gas turbine flow meter exhibits little sensitivity to gas density above two atmospheres pressure. The low inertia of the rotor and vee bearings allows overranging of the meter to twice its rated capacity without damage for intermittent flow variations.

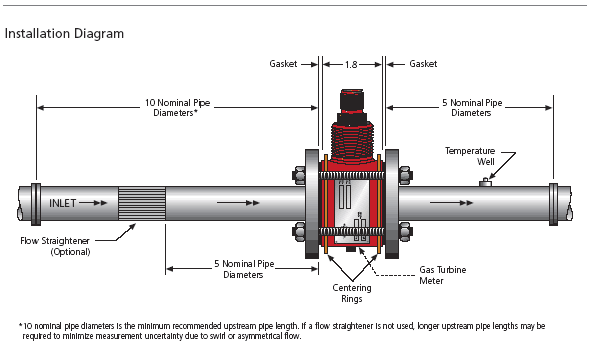

Designed for maximum life, carbide rotor shaft and bearings require no lubrication. The cartridge assembly makes replacement and inspection of parts easy. The meter is designed for installation between two flanges. The digital pulse output generated by the Gas Turbine Flowmeter can be fed to companion readout devices capable of providing direct measurement of flow rate and accumulated throughput.
These measurements can be automatically pressure-and/or temperature-compensated to obtain volumetric measurements in standard units.
Nuflow Gas Turbine Flow Meter
Specifications
- Size 2-in. (50.8 mm)

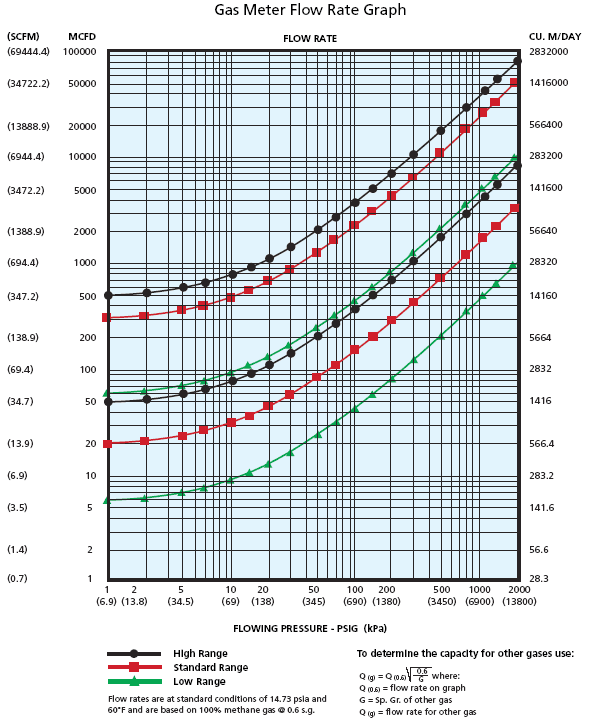

- Flow Range See graph above
- Working Pressure 0 to 2220 psig (15,306 kPa)
Nominal Calibration
- Low Range 325 p/ACF (16600 p/m3)
- Standard Range 125 p/ACF (4415 p/m3)
- High Range 70 p/ACF (2472 p/m3)
- Output Frequency 5 to 320 Hz over rated range
- Output Voltage 30 mV peak to peak at 5 Hz, 900 mV peak to peak at 320 Hz
- Pressure Drop Less than 1-in. (24.5 mm) water column at maximum rated flow
- Linearity +/- 2% of reading
- Repeatability +/- 0.5% of reading
- Temperature 0o to 225oF (-18o to 107oC)
- Pickup Connector Mates with AN3106A-10SL-4P
- Conduit Connection 1-in. (25.4 mm)
- Pressure Tap 1/8-in. NPT (3.2 mm)
- Compliances CSA Certified Hazardous locations Class I, Group A, B, C, D, Div. 1, ANSI 12.27.01-2003 Single Seal
Materials Of Construction
- Body and Cartridge Grade 316L stainless steel*
- Bearing Mounts Grade 304 stainless steel
- Bearings Tungsten carbide
- Rotor Grade 455 stainless steel
- Rotor Shaft Tungsten carbide
- Set Screws Grade 304 stainless steel
- Pressure Port Plug Grade 304 stainless steel
* Pre-qualified per NACE MR0175/ISO 15156 and MR0103
Gas Turbine Flow Meter
- Size 2-in. (50.8mm)
- Rotor Two bladed
- Bearings Tungsten carbide, vee type
Accessories (optional)
A) Installation hardware kit (bolts, nuts and gaskets; specify flange rating when ordering)
B) Flow straightener tube bundle
