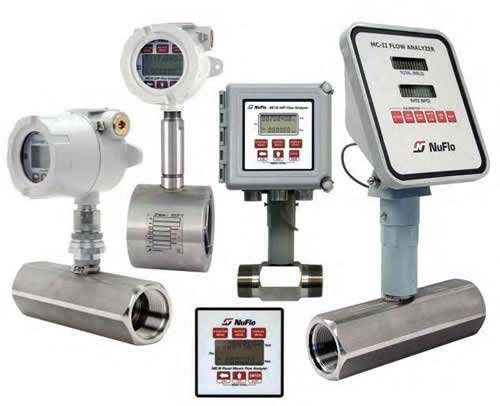

Nuflo Liquid Turbine Flow Meter NuFlo液体涡轮流量计
Accurate Flow Measurement
早在1957年，NuFlo公司就成功开发并推出了针对油田开发和生产的涡轮流量计，此款流量计使用了碳化钨硬质合金的轴承和支撑件，以满足油田生产的苛刻要求。经过几十年的现场使用和考验，NuFlo公司的涡轮流量计在耐用性和测量精度等诸多方面的出色表现已获得业界的广泛认可，目前NuFlo涡轮流量计广泛应用于各地。In 1957, the Nuflo liquid turbine flow meter was developed with a tungsten-carbide shaft and bearing to withstand the rugged conditions of the oil field. Over the years, it has earned an unsurpassed reputation for withstanding severe punishment while maintaining operational and measurement integrity. Today, it remains a bestseller among Cameron's NuFlo liquid measurement products.
NuFlo液体涡轮流量精度
根据流量计的线性特征，NuFlo 涡轮流量计的精度有“标准级”和“工业级”两个精度等级。标准精度流量计应可为测量精度要求不太高的场合提供更具性价比的解决方案；高精度等级的流量计应用于等级要求相对较高的场合。在一定流量范围内，还可提供更高精度等级（高于0.5% ）的涡轮流量计。
精度等级 精度 重复性
标准级 ± 1% ± 0.5%
工业级 ± 0.05% ± 0.02%
NuFlo 公司可以提供各种联结方式和各种不同精度的涡轮流量计，典型应用在：
油田注水的流量计量
蒸汽机组的燃料和给水的流量测量 加热处理器流量计量
化工装车和卸载的流量计量
测试或生产用分离器的流量计量
液态丙烷的流量测量
污水井的流量计量
现场采矿和浸取的流量测量
二氧化碳注井的流量计量 等等…
REPAIR CALIBRATED – 1 x 2 IN.DF EZ-IN FLOW METER STANDARD GRADE - 9A-100005123
232°C.Magnetic Pickup Meter Bore Size 7/8 through 8 in., Temperature Range -55 ... 232°C, Part No. 9A-100002076
NUFLO? MC-II Plus EXP 3.6В, P/N: 9A-100005111, Cameron
9A-100005099
9A-100002076
9A-100005123
9A-100005111
Description
METER, TURBINE FLOW 1-1/2IN EZ 1500M, 515 TO 6000 BPD ACCURACY 1%, EZ IN BF SERIES, WITHOUT ANALYSER, PREV. MFG. HALLIBURTON P/N 991.40628 /
MFG Name: NUFLO MEASUREMENT SYSTEMS
MFG PN: 100005095
KIT, ROTOR AND VANE, FOR 2 IN 900LB RTJ, TURBINE FLOW METER 10000PSI, FLOW RANGE 40-400GPM +0-0.5%, OVER RATED FLOW RANGE, AL-SHURA, PREV.
MFG. HALLIBURTON P/N 458.00025. SUITABLE FOR LPG LOADING FLOW MTR MDL: 100062648 S/N. 2SF47727 /
MFG Name: NUFLO MEASUREMENT SYSTEMS
MFG PN: 100003383
KIT, ROTOR/BEARING TURBINE EZ IN 2 IN, EZ-IN SERIES BF TURBINEFOR FLOW METER HALLIBURTON TURBINE, FLOW RANGE 40-TO-400 GPM, PREV. MFG. HALLIBURTON P/N
458.99306 /
MFG Name: NUFLO MEASUREMENT SYSTEMS
MFG PN: 100003553
KIT, SUPPORT, ROTOR AND BEARING, FOR FLOW METER, 2IN X 1-1/2IN EZ IN SERIES BF, PRECALIBRATED REPLACEMENT KIT /
MFG Name: NUFLO MEASUREMENT SYSTEMS
MFG PN: 1000005099
CABLE, ASSEMBLY, 10 FEET LONGFOR FLOW ANALYZER, PREVIOUS MFG. HALLIBURTON P/N 991.43394 /
MFG Name: NUFLO MEASUREMENT SYSTEMS
MFG PN: 100005117
KIT, ROTOR/BEARING TURBINE EZ-IN 1IN, EZ-IN SERIES BF TURBINE, FOR FLOW METER, PREV.
MFG. HALLIBURTON P/N 991.43496 /
MFG Name: NUFLO MEASUREMENT SYSTEMS
MFG PN: 100005123
METER, TURBINE 2IN X 2IN EZ-IN SERIES STANDARD, MAX PRESS 3600PSI, DIRECT MOUNT FLOW METER, PREV.
MFG. HALLIBURTON P/N 458.99101 /
MFG Name: NUFLO MEASUREMENT SYSTEMS
MFG PN: 100003551
METER, TURBINE 1/2IN X 2IN, STANDARD GRADE EZ-IN SERIES BF, MAX WORKING PRESS 3600PSI,, FLOW RANGE .75 TO 7.5 GPM
ACC +1.0% ORFR, PREV.
MFG. HALLIBURTON P/N 991.43380
2-inch ROTOR Kit repair for Flow meter? 9A-100003474
Magnetic PICK UP NUFLO 7/8 Thru 8 inch?9A-100002077
MFG Name: NUFLO MEASUREMENT SYSTEMS
MFG PN: 100079661
METER, TURBINE, EZ-IN SERIES, 1IN X 2IN, REF
WHSE. ONLY, PICKUPPREVIOUS MFG.
HALLIBURTON P/N 991.43382 /
MFG Name: NUFLO MEASUREMENT SYSTEMS
MFG PN: 100005115
TURBINE FLOW METER SIZE 2INSH MFG:
CAMERON, 7000 SERIES MODEL 7200 WITH
FLANGE CONNECTION CL300 RF, FOR LPG
LOADING STATION (Expense item #
EXP086100022) /
MFG Name: NUFLO MEASUREMENT SYSTEMS
MFG PN: 9A-50179032
PICKUP MAGNETIC FOR NUFLO TURBINE FLOW
METER 7000 SERIES FOR LPG LOADING STATION /
MFG Name: NUFLO MEASUREMENT SYSTEMS
MFG PN: 9A-2112-0001A-02
Repair Kit,EZ-IN,PN 9A-100005123
Repair Kit,EZ-IN,PN 9A-100003553
Repair Kit,EZ-IN,PN 9A-100005099
Repair Kit,EZ-IN,PN 9A-100003540
Repair Kit,EZ-IN,PN 9A-100062985
Repair Kit,EZ-IN,PN 9A-100003527
Repair Kit,EZ-IN,PN 9A-100079811
Repair kit for turbine flanged flow meters EZ-IN series BF, 1.5 " Manufacturer Cameron / NUFLO Calibrated impeller NUFLO EZ-IN series BF 1.5 ", K-factor, mounting kit for impeller mounting KIT REPAIR CALIBRATED - 1.5 x 2 IN.DF EZ-IN FLOW METER STANDARD GRADE - 9A-100005099
Repair kit for EZ-IN series BF, 1 " turbine flowmeters. Manufacturer Cameron / NUFLO Calibrated impeller NUFLO EZ-IN series BF 1 x 2 ", K-factor, mounting kit for mounting the impeller KIT REPAIR CALIBRATED - 1 x 2 IN.DF EZ-IN FLOW METER STANDARD GRADE - 9A-100005123
Magnetic sensor Cameron for turbine meters NuFlo, temperature range -55 ... + 232 ° C. Magnetic sensor Cameron, temperature range Medium -55 ... 232 ° C. Magnetic Pickup Meter Bore Size 7/8 through 8 in., Temperature Range -55 ... 232 ° C, Part No. 9A-100002076
Lithium battery for NUFLO ? MC-II Plus EXP 3.6V, P / N: 9A-100005111, Cameron NUFLO ? Lithium Battery
Repair Kit for Turbine Flowmeters
NUFLO- Cameron EZ-IN series BF, 1.5" KIT REPAIR CALIBRATED – 1,5 x 2 IN.DF EZ-IN FLOW METER STANDARD GRADE - 9A-100005099
Repair Kit for Turbine Flowmeters
NUFLO- Cameron EZ-IN series BF, 1" KIT REPAIR CALIBRATED – 1 x 2 IN.DF EZ-IN FLOW METER STANDARD GRADE - 9A-100005123
Magnetic Sensor for Nuflow Turbine Flowmeters Magnetic Pickup Meter Bore Size 7/8 through 8 in.,
Temperature Range -55 ... 232°C,
Part No. 9A-100002076
Cameron NUFLO ? Lithium Battery Lithium battery for NUFLO ? MC-II Plus EXP 3.6V,
Part No. 9A-100005111,
