NuFlo计量系统公司是休斯顿的一家测量和流体测量设备提供商。从基础的测量传感应器到先进的电子测量系统,卡麦隆测量系统的产品和方案广泛应用于石油,天然气,石化,化工,工业气体,核电和军事等诸多领域内,以优异的性能完成客户对测量,监控,分析等诸多控制要求。
NuFlo Flowmeter Repair Kits-3/8 in. to 3 in.
On 3/8-in.,1/2-in.,and 3/4-in. flanged meters,the retainer ring is replaced with a threaded in insert.
Meter Kit Size(in.) |
Stardard Grade |
Industrial Grande |
3/8 |
9A-100003521 |
9A-100003378 |
1/2 |
9A-100003531 |
9A-100003379 |
3/4 |
9A-100003449 |
9A-100003380 |
7/8 |
9A-100005124 |
9A-100061059 |
1 |
9A-100003527 |
9A-100003381 |
1 1/2 |
9A-100003469 |
9A-100003382 |
2 |
9A-100003474 |
9A-100003383 |
3 |
9A-100003470 |
9A-100061056 |
NuFlo Flowmeter Repair Kits-4 in.to 8 in.
|
Stardard Grade |
Industrial Grande |
4 |
9A-100003473 |
9A-100003384 |
6 |
9A-100003471 |
9A-100061057 |
8 |
9A-100003472 |
9A-100061058 |

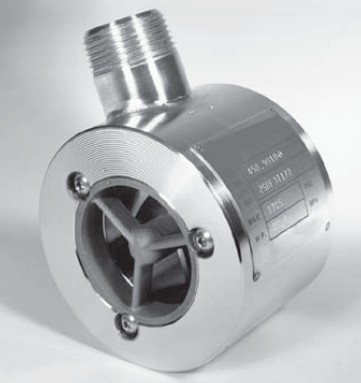

NuFlo EZ-IN Flowmeter Repair Kits-All Sizes
Meter Kit Size(in.) |
Stardard Grade |
Industrial Grande |
3/8×2 |
9A-100079691 |
9A-101209535 |
1/2×2 |
9A-100005122 |
9A-100062982 |
3/4×2 |
9A-100079674 |
9A-100062983 |
7/8×2 |
9A-100079811 |
9A-101209539 |
1×2 |
9A-100005123 |
9A-100062984 |
1 1/2×2 |
9A-100005099 |
9A-100062985 |
2 |
9A-100003553 |
9A-100003549 |
3 |
9A-100003540 |
9A-100012104 |
4 |
9A-100003554 |
9A-100062986 |
6 |
9A-100012091 |
9A-100062987 |
8 |
9A-100063004 |
9A-100062988 |
Hardware Kits and Centering Rings (Raised Face Flanges)
Hardware Kits (see Note A)
End Connection
Size (in.) CL 150 CL 300 CL 600 CL 900 CL 1500
1 9A-100014135 9A-100009578 9A-100009578 9A-100079754 9A-100079754
2 9A-100003555 9A-100003556 9A-100003556 9A-100003557 9A-100003557
3 9A-100003558 9A-100007860 9A-100007860 9A-100003559 9A-100012105
4 9A-100003560 9A-100003561 9A-100003562 9A-100063005 9A-100063006
6 9A-100063007 9A-100063008 9A-100012106 9A-100063009 9A-100063010
8 9A-100063011 9A-100063012 9A-100063013 9A-101209537 9A-101209536
Note A: Includes studs, nuts, gaskets, spreader nuts, a pickup adapter extension, and centering rings.
(Kit does not include flanges.)
Centering Rings Only (see Note B)
End Connection
Size (in.) CL 150 CL 300 CL 600 CL 900 CL 1500
1 9A-100079753 9A-100079752 9A-100079752 9A-100079751 9A-100079751
2 9A-100007974 9A-100007973 9A-100007973 9A-100014124 9A-100014124
3 9A-100079569 9A-100014122 9A-100014122 9A-100079568 9A-100014120
4 9A-100014123 9A-100014122 9A-100014121 9A-100014120 9A-100079567
6 9A-100079566 9A-100079565 9A-100079564 9A-100079563 9A-100079562
8 9A-100079561 9A-100079560 9A-100079559 9A-101209538 9A-100079558
Note B: Four centering rings are required for installation.
EZ-IN? Series Turbine Flowmeter Manual
30
Hardware Kits (Ring Joint Flanges)
End Connection
Size (in.) CL 900 CL 1500 CL 2500
2 9A-100014145 9A-100014145 9A-100080024
3 9A-101213513 9A-100079971 9A-101203294
4 9A-100079986 9A-100079960 9A-101209541
6 9A-100080034 9A-100080023 N/A
8 9A-101215223 2295272-01 N/A
a Hardware kit includes studs, nuts, seal rings, spreader nuts, and a pickup adapter extension.
(Kit does not include flanges).
Magnetic Pickups and Replacement Lock Nuts
Meter Bore
Size
Temperature Range
(°F)
Magnetic Pickup
Part No.
3/8 through 3/4 in.a -67 to 250 2295367-01
-67 to 450 2296313-01
7/8 through 8 in.a -67 to 250 9A-100002077
-67 to 450 9A-100002076
Replacement lock nut 9A-100028944
a Each magnetic pickup is shipped with a lock nut.
Meter Bore Size
in.
End Connection Size
in.
Retainer Ring
Part Number
3/8
1/2 1 9A-100003414
3/4
7/8
1 9A-100003415
Installation
