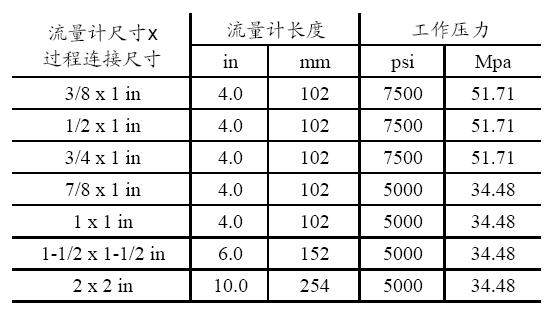

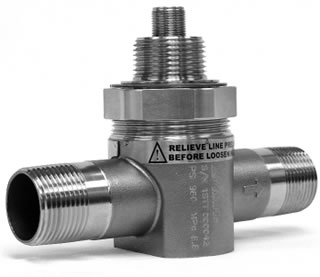

NUFLO 1000 Series TIM Liquid Turbine Meter 螺纹 NPT连接 ? 螺纹连接的流量计尺寸为 3/8” 到 2” ? ，3/8 ” 到 1” 管线的流量计均有 1” NPT 过程连接以简化流量计尺寸的变化 ? ，除 2” 流量计之外，其他尺寸流量计使用母螺纹 。The unique replaceable rotor kit design of the NUFLO? Series 1000 Top Insertion Meter makes this flowmeter one of the most user-friendly solutions on the market for liquid measurement. Replaceable rotor insert kits allow users to perform routine maintenance quickly and easily 1000 TIM is durable and well-suited to a wide range of applications, including measurement of contaminated liquids.
The meter features 1 inch NPT threaded end connections and is designed for low pressure drop and a broad viscosity range. The Series 1000 TIM is an electromechanical volumetric measurement instrument. Flow causes the muliti-blade rotor to spin at an angular velocity directly proportional to the rotor's angular velocity and the cross-sectional area of the meter is fixed, the frequency is directly proportional to flow rate. The sinusoidal signal generated is easily transmitted to a NUFLO MC?-series totalizer or other electronic instrumentation.
NUFLO? turbine flowmeters indicate flow rate and measure total throughput of a liquid line. As liquid flows through the meter and over the rotor, the rotor turns at a speed that is directly proportional to the flow rate. The meter offers all stainless steel precision machined components with CD4MCu and/or 416 stainless steel rotors in line sizes from 3/8" through 10.0". End connection is NPT threaded standard, however other ends like victaulic, flanged, or sanitary are available on special request. Magnetic pickup sold separately. NUFLO Cameron Liquid Threaded Turbine Flow Meter
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
