Tuthill容积泵技术的领导者 Tuthill齿轮泵 Pump Tuthill齿轮泵系统
Lubrication Pumps 、Magnetically Coupled Pumps、Powered By ORBIS Technology and Process Pumps



泰悉尔泵业集团是拥有80多年历史的正位移齿轮泵产品开发及生产的行业领导者,位于美国芝加哥、旧金山和英国莱克斯顿工厂具有ISO9001认证,作为在工业化工、石油化工和润滑油行业中用于介质输送的首选工业供应商,泰悉尔泵业集团拥有一系列国际知名品牌,包括润滑油泵、HD旋转活塞泵、GG泵和微型磁力驱动齿轮泵。 泰悉尔泵可提供不同的材料选择,例如铸铁、铸钢、不锈钢、PPS工程塑料等。他们适合于在最恶劣的条件下长周期连续运行,包括含颗粒高黏度和高温的工况。 TPG的产品通过世界范围的代理商网络销售或作为原装的设备组件销售,所有泰悉尔泵业集团的客户都可以享受到最高质量的售后服务。



Process pump
流程泵
Lubrication Pumps
润滑泵



Tuthill Gear pump齿轮泵产品介绍

Global Gear齿轮泵
Concord系列微型磁力齿轮泵
MD系列磁力驱动内齿轮啮合泵
HD系列旋转活塞泵
L&C系列润滑油泵
Tuthill耐腐蚀性金属泵,进口泵,磁力泵
Tuthill磁力驱动泵,进口磁力驱动泵,磁力驱动泵
Tuthill工程塑料泵,进口塑料泵,磁力泵
Tuthill微型齿轮计量泵

GG齿轮泵、HD流程泵、磁力驱动齿轮泵、L&C驱动齿轮泵



Lubrication Pumps

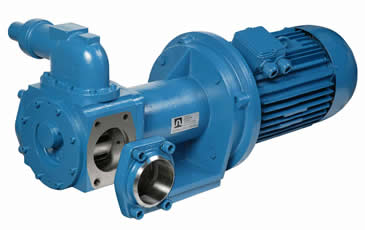

1000 Series Lubrication Pumps
1000系列润滑油泵 - 灵活的接口设计,可选择采用机械密封或脣形密封。流量可达484 lpm
应用:润滑油,燃油输送,过滤
The 1000 Series is based on the proven internal gear principal and is enhanced in response from our OEM customers for a pump that offers advanced features which make installation easier. These side-ported pumps have the option to bolt SAE/DIN flanges onto them ensuring maximum flexibility on the porting arrangements. Our pump meets your technical requirements and is easily fitted into your system. Our manufacturing expertise and knowledge of applications enable us to provide you with an engineered solution and ensure satisfaction with post-sales service. We pride ourselves on properly servicing you with specification, installation, operation, and troubleshooting. The pump was originally designed to meet and exceed the exacting requirements of the refrigeration compressor market. The design has so many inherent features and benefits that our traditional customers are also seeing the advantages. The 1000 series with great performance is solving problems in many industries and applications.

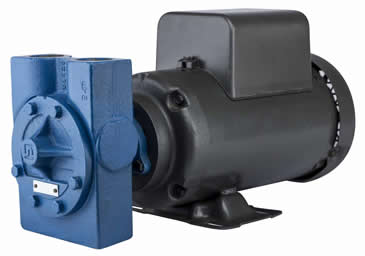

4000 Series 4000 系列流程泵是基于L&C 系列泵发展的流程泵。具有L&C 系列泵相同的工作原理和结构、性能优点。它主要输送非润滑油、燃料油类的粘性,无腐蚀介质。例如油漆、油墨、涂料、树脂、人造大理石浆液等……针对各种磨损性比较大的介质,4000 系列产品还可以提供耐磨损的结构配置。
最高温度2700C
黏度范围4100:1~10000cst;4200、4300:1~25000cst
当转速超过1800rpm 或黏度超过25000cst
4000 Series PROCESS PUMPS run quiet and provide reliable performance with minimal downtime and maintenance, a positive displacement internal gear construction, and accurate repeatable flow. Special materials of construction permit handling applications in the chemical, food, and petroleum process industries and a wide variety of fluids without solids, as well as a wide variety of fluids including abrasive fluids. Some examples are- (adhesives, alcohol, asphalt, barium sulfate slurry, benzene, coatings, creosote, crude oil, diatomaceous earth, enamel, ethylene glycol, fats, fuel oils, fuller’s earth, gasoline, glue, iron oxide slurry, kerosene, lacquer, lard, linseed oil, liquid feed, molasses mineral oil, paint, paper coating, petrolatum, printing ink, soap liquors, solvents, tall oil, transformer oil, varnish, vegetable oils, and wax)
C Series Circulation Pumps

C系列循环泵 -流量可达318 lpm。可以选择采用唇封,机械或填料密封。应用:润滑油,燃油输送,液压,高温介质。The L & C Series cast iron positive displacement pumps have been the industry standard for Lubrication & Circulation for over 75 years. They were originally designed under James B. Tuthill, the company’s founder, in the 1920s. For eight decades, Tuthill has worked to improve these pumps to fit an ever-growing range of lubrication applications. The result is a family of reliable internal gear pumps that are ideal for custom OEM lubricating, lowpressure hydraulic, transfer, circulating, burner oil and many other industrial pump applications.

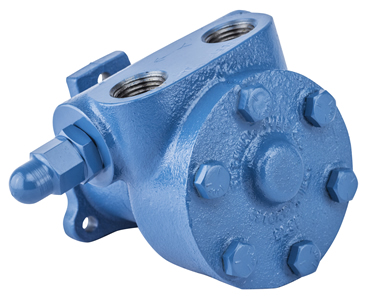

L Series Lubrication Pumps

L系列润滑油泵 - 结构紧凑的机械密封润滑油泵,流量51.9 lpm,压力34.5 bar
应用:润滑油,燃油输送,燃油灌注,过滤。The L Series is an internal gear pump design with compact and flexible drive options. This pump series is available with Tuthill's Reversing Feature, comes standard with a single mechanical seal and cast iron construction

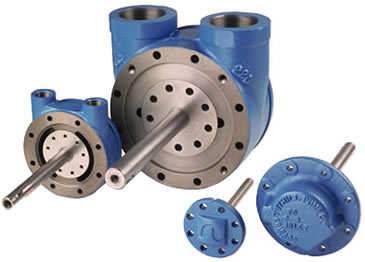

Stripped Lubrication Pumps
Flow rates to 84 usgpm. (19.3 m3/hr)
Pressures to 150 psi. (10.3 bar)
Model #'s- 2C, 3C, 4C, 5C, 6C

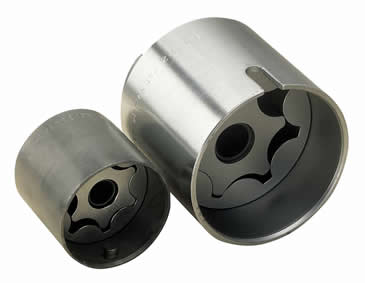

TR Series Lubrication Pumps
TR系列润滑油泵 - 结构紧凑的机械密封润滑油泵,流量51.9 lpm,压力34.5 bar
应用:润滑油
Strictly OEM applications. Directly mounted on rotating equipment where the pump is built onto the end of a shaft in the equipment. Pump consists of six parts which the customer assembles on his equipment. Lubrication duty only. Unique, compact, gerotor pump design. Pump is reversible and has inherent pressure relief capability.

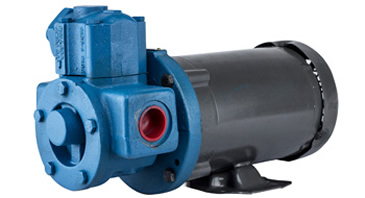

CC Series Close Coupled Pumps
CC系列循环泵 - 采用机械密封的泵结构紧凑并直接连接在标准的NEMA 或 IEC电机上。

应用:润滑油,燃油输送,过滤
With lots of pump performance in a relatively small space, the CC Series is ideal for package pumping skids or applications where space is limited. By eliminating the need for adapters, reducers, couplings, bases and guards the CC Series saves on cost and eliminates the need for maintenance of these components down the road.





Magnetically Coupled

D Series Pumps D系列微型磁力驱动泵

- 316不锈钢外加镍合金或钛合金外壳;流量可达458 L/hr,压力差为17.2 bar,系统压力34.5 bar,温度可达176°C,黏度可达2000 cps以上
应用:实验室,水净化系统,加热系统,润滑油,燃油输送,循环输送系统,化学试剂计量,取样,温度控制,医药,输送添加剂,超纯水,激光技术,过滤,调色颜料混合以及各种常规用途

P Series Pumps P系列微型磁力驱动泵

- 工程塑料外壳;流量可达238 L/hr,压力差为9 bar,系统压力20 bar,温度可达65°C,黏度可达1000 cps以上
应用:实验室,水净化系统,润滑油,燃油输送,循环输送系统,化学试剂计量,取样,温度控制,医药,输送添加剂,自动控制,过滤以及各种常规用途

T Series PumpsT系列微型磁力驱动泵

- 316不锈钢外加镍合金或钛合金外壳;流量可达2460 L/hr,压力差为17.2 bar,系统压力34.5 bar,温度可达176°C,黏度可达2000 cps以上
应用:实验室,水净化系统,润滑油,燃油输送,循环输送系统,化学试剂计量,取样,温度控制,医药,输送添加剂,激光技术,过滤以及各种常规用途
316 Stainless Steel or Hastelloy
Flow rates to 650gph(2460L/hr)
Differential Pressures to 250psi(17.2bar)
System Pressures to 500psi(34.5bar)
Temperatures to 350°F(176°C)
Viscosities to 2000cps+.




W Series Pumps W系列微型磁力驱动泵

- 水处理及化学废水计量泵;流量1 ml/min到38 LPM,压力差为17.2 bar,精确度高于1%
应用:水处理及化学废水计量:次氯酸钠,氯化铁,Hydrofluorosilicic Acid,甲醇,混合液 体,亚硫酸氢钠,氢氧化钠,硫磺酸,反转特性 - 计量,定量和分配
应用:工业流程,实验室,水处理,废水处理,化学试剂计量,取样,介质输送
Tuthill's W-Series magnetically coupled external gear chemical metering pumps are designed specifically for the harsh environment associated with water





Process Pumps








Positive Displacement Pumps
Lubrication Pumps
Magnetically Coupled Pumps
Process Pumps
L Series Lubrication Pumps
Lubrication Pumps
TR Series Lubrication Pumps
1000 Series Lubrication Pumps
Cartridge Lubrication Pumps
C Series Circulation Pumps
CC Series Close Coupled Pumps
Stripped Lubrication Pumps
Magnetically Coupled Pumps
D Series Pumps
P Series Pumps
T Series Pumps
W Series Pumps
Variable Flow Drive
0V1V Analog Remote Pump Drive
2V3V Analog Remote Pump Drive
4V5V Analog Remote Pump Drive
8V9V Digital Remote Pump Drive
Process Pumps
Global Gear Process Pumps
Heavy Duty Process Pumps
Magnetically Coupled MagDrive Process Pumps
4000 Series Lubrication Pumps
Concord磁力驱动齿轮泵
L&C驱动齿轮泵
HD旋转活塞泵
Global Gear齿轮泵
GlobalGear齿轮泵
Global Gear内啮合齿轮泵
Global Gear PUMP
Tuthill lubrication pumps
Tuthill miniature magnetically coupled pumps
Tuthill Process Pumps
GlobalGear? internal gear pumps
Tuthill lubrication and circulation pumps
Magnetically Coupled Leak-free external-gear pumps
1000 Series Lubrication Pumps 4000 Series
C Series Circulation Pumps
CC Series Close Coupled Pumps
Cartridge Lubrication Pumps
L Series Lubrication Pumps
Stripped Lubrication Pumps
TR Series Lubrication Pumps
GlobalGear Process Pumps
Heavy Duty (HD) Process Pumps

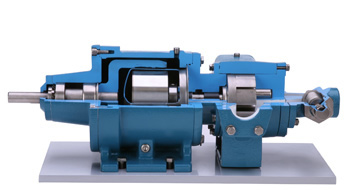

Magnetically Coupled MagDrive Process Pumps

tuthill泰悉尔泵业集团 : tuthill泰悉尔泵业集团生产的正位移齿轮泵广泛应用于各行各业。

1892年,为了满足城市规模扩张的需要芝加哥的建筑商们正在寻找大量的建筑材料。一个名叫詹姆斯Btuthill泰悉尔的年轻商人意识到这一切将会带来巨大的商机,所以他购买了芝加哥的一家矿石厂和一座窑炉开始向当地建筑公司供应砖块。 作为一个用心经营的企业家,tuthill泰悉尔先生很快找到了一种高效的粘土挖掘并把烧制完成的砖块运到建筑工地的方法。在二十世纪二十年代初期,他的这种方法演变成一种全新的运输工具--蒸汽动力引擎。虽然说这项发明并没有成功,但是tuthill泰悉尔先生依然把引擎中的一部分设计保留下来:一个小小的,内齿轮泵,依靠它我们可以把燃油直接灌注到卡车油罐中。 tuthill泰悉尔先生优化了泵的设计并把它出售给那些为生活和工业加热生产燃油的企业。马上tuthill泰悉尔内齿轮泵被广泛的接受和使用,tuthill泰悉尔集团也随即成立。 为了能更好的集中力量发展泵的事业,tuthill泰悉尔泵业集团于1927年成立了。现在对于tuthill泰悉尔销售部门所售出的泵,仍然可以追诉到19世纪20年代的设计,而且我们可以在世界各个角落发现这种泵的踪影。

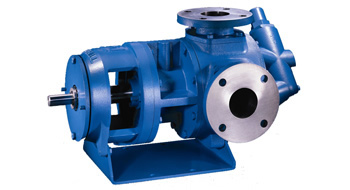

globalgear®是新一代强劲的内部齿轮泵,它的的设计,符合泵和密封的可靠性与低维护成本的要求。为了减少挠度和增加强度→依次增长轴承和密封的寿命,轴和轴承的直径以及施工材料是早已选定的。推力轴承在自身结构上是没有润滑油维护的。其标准结构包括高强度的转子和空转轮材料,轴承的转子头部和空转轮都是用不锈钢材料做成的。

选择无渗漏解决方案中的集装和组件式机械密封-其中包括tuffseall? 集装唇封技术是没有问题的。API plan 13内通式吸入旁通管可作为一个标准型。API plan 13 旁通管降低了填料箱的压力,并为密封冷却提供了再循环,这有助于延长密封寿命。

GlobalGear® 泵高度的可定制性符合具体应用的要求。例如为API 676活塞式带压旋转泵配置回拉切断功能;对有腐蚀性的液体工作,配置硬化潮湿零部件材料;对温度要求高达600 oF的,配置特殊的建筑材料;对吸气压力要求高达600 psig设计和高侧面载荷构造,采用皮带驱动配置。

Modular porting能够快捷方便的把泵的接口和用户相对应的管道系统(包括公制和高压法兰)连接起来。我们可以提供各种配件如热外壳和救济阀门的特征。潮湿零部件构造可以是铸铁、铸钢和不锈钢。



润滑油泵
用于泵送润滑油。通常提供给OEM客户(原始设备生产商)安装在回转部件上润滑齿轮,轴承或密封。也用来向加热火炉泵送燃油。铸铁结构
流程泵
在工业流程中,正位移齿轮泵的应用相当广泛。它们被用来输送黏度高、温度高、具有研磨性的介质,也或是具备以上多种特征的介质。这种介质往往是用于生产铸铁或是不锈钢的。可以选择采用填料密封或是机械密封,也可以选择磁力驱动的。
Concord微型磁力驱动泵
  • D 系列
  • P 系列
  • T 系列
  • W 系列
  • 反转特性
0泄漏的齿轮外啮合设计可以精确的提供从1 ml/min 到 38 lpm的无脉动流量,压力差为17.2 bar,系统压力34.5 bar,温度可达176°C,黏度可达2000 cps以上

应用

风力发电
原料输送
石油化工
空调机组
