丹佛斯汉森LL4HKP26食品和饮料应用流体输送和液压应用快速接头
Danfoss hansen LL4HKP26 Fluid transfer & Hydraulic application
Danfoss Hansen LL4HKP26 series for food and beverage applications

丹佛斯汉森LL4HKP26系列是专为食品和饮料应用而设计的特殊HK系列。它是基于不锈钢HK系列设计的。除了1/4“的2HKGL系列和1/2”版本的快速接头之间的尺寸差异外：LL4HKP26具有相同的插头配置。插头有一个平面，插座有一个长的阀鼻。此外，它主要安装在不锈钢罐上，以防止阀门意外打开。

丹佛斯汉森LL4HKP26食品和饮料应用流体输送和液压应用快速接头
Danfoss hansen LL4HKP26 Fluid transfer & Hydraulic application
Danfoss Hansen LL4HKP26 series for food and beverage applications

产品特点

-不锈钢结构
-尺寸1/2英寸
-防止旋塞阀意外开启

应用

-食品和饮料应用
-具体应用

插座零件号#LL4HP26S13
插头零件号#LL4KP26S10
端接（内螺纹）：G1/2

防尘塞和防尘盖
快速接头系列
插头防尘盖零件号插座防尘塞零件号。
金属乙烯基金属乙烯基
4HK XPDC4HK**XPPDC4HK（R

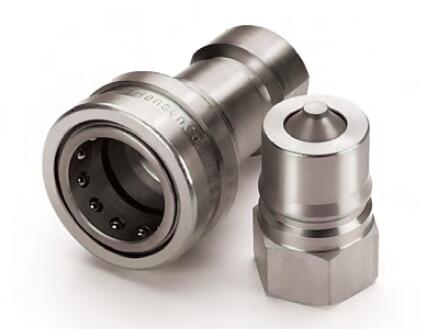

The Danfoss Hansen LL4HKP26 series is a special HK series designed for food and beverage applications. It was designed based on the HK series in stainless steel. Besides the size difference between the 2HKGL series in 1/4" and this coupling made in 1/2" version: the LL4HKP26 has the same plug configuration. The plug has a flat face, and the socket has a long valve nose. It is additionally, mainly mounted on stainless steel tanks to prevent accidental opening of the valves.

Product features
- Stainless steel construction
- Size 1/2''
- Prevention of accidental opening of the plug valve

Application
- Food and beverage application
- Specific application

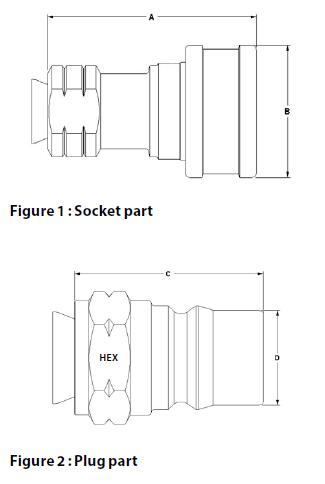

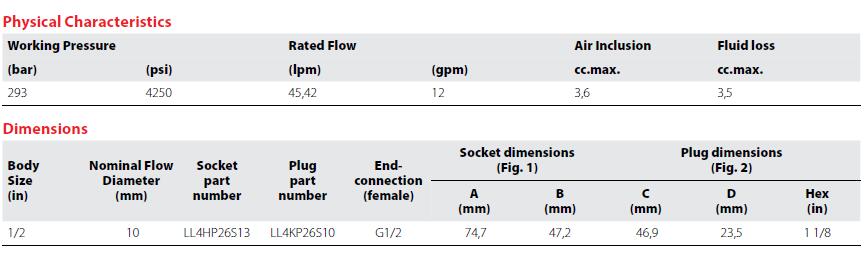

Socket part number # LL4HP26S13
Plug part number # LL4KP26S10
End connection (female): G1/2

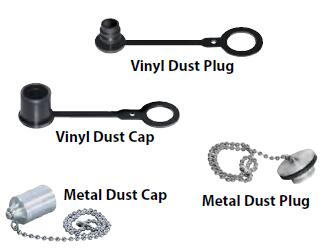

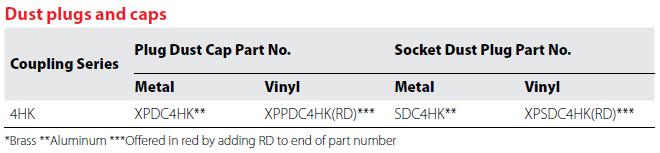

Dust plugs and caps
Coupling Series
Plug Dust Cap Part No. Socket Dust Plug Part No.
Metal Vinyl Metal Vinyl
4HK XPDC4HK** XPPDC4HK(RD)*** SDC4HK** XPSDC4HK(RD)***
*Brass **Aluminum ***Offered in red by adding RD to end of part number
