Hansen Series AUTO-FLO 23 & 24压缩空气快速接头
Hansen Auto-Flo light-weight air line couplings
PDF下载

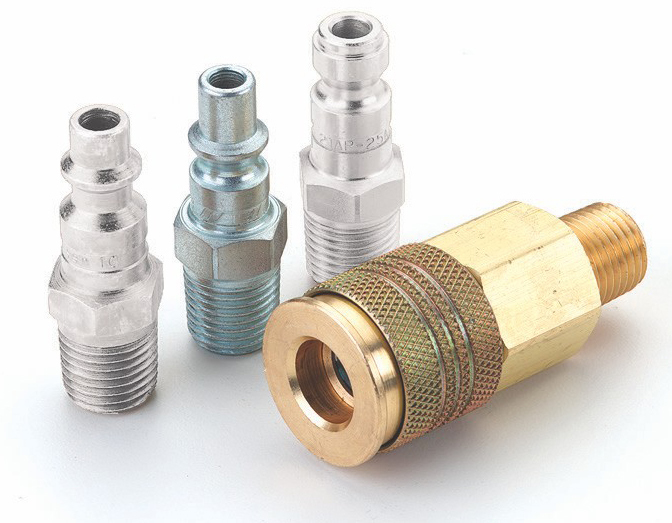

大流量,自动快速连接接头,设计用于处理压缩空气。AUO-FLO系列因其特殊设计的阀门,使其流量比标准的空气接头高40%.AUTO-FLO系列有一个带凸边的钢制套筒,以保护接头并易于夹紧.这个套筒带有镶边,易于辨别。AUTO-FLO系列用于各种空气连接,并利用AUTO-FLO的特殊设计来增加空气流量.



Hansen Auto-Flo light-weight air line couplings
Hansen Series AUTO-FLO 23 & 24压缩空气快速接头


特点和优势:

- Auto-Flo 23是第一款自动通用接头,可以与Industrial ARO 210和Tru-Flate连接标准公头配套使用。
- Auto-Flo 24与CEJN320和Rectus 25连接标准的公头配套使用
- 简便、自动,快插式连接的设计使得管道能够瞬间连接和断开,且管线内螺纹端可自动关闭
- 套筒保护装置可防止意外断开造成损失

标准材质:

母头
- 黄铜主体
- 黄铜单向阀
- 镀锌钢套筒
- 丁晴橡胶密封圈 NBR
- 不锈钢弹簧
- 不锈钢球型锁
公头
- Industrial 连接标准 3000 系列
- 镀锌钢 表面硬化
- 黄铜
- 不锈钢
- ARO 210, Tru-Flate 和CEJN / RECTUS
连接标准
- 镀锌钢 表面硬化



Body Size Part Number Material NPT Male BSP Male NPT Female BSP Female Hose Stem Coupling
1/4 B23AS-25M Brass 2001/4 - 18 - - - Socket
1/4 B23AS-25M-BST Brass - 2001/4/19 - - - Socket
1/4 B23AS-37M Brass 2003/8/18 - - - - Socket
1/4 B23AS-37M-BST Brass - 2003/8/19 - - - Socket
1/4 B23AS-50M-BST Brass - 2001/2/14 - - - Socket
1/4 10 Steel 2001/4/18 - - - - Plug
1/4 10C Steel 2001/4/18 - - - - Plug
1/4 10G Steel 2001/4/18 - - - - Plug
1/4 12E Steel 2001/8/27 - - - - Plug
1/4 12G Steel 2001/8/27 - - - - Plug
1/4 14 Steel 2003/8/18 - - - - Plug
1/4 14G Steel 2003/8/18 - - - - Plug
1/4 B10 Brass 2001/4/18 - - - - Plug
1/4 LL10 Stainless 2001/4/18 - - - - Plug
1/4 2607 Steel 2001/8/27 - - - - Plug
1/4 2608 Steel 2001/4/18 - - - - Plug
1/4 2608B Steel - 2001/4/19 - - - Plug
1/4 20AP-37M Steel 2003/8/18 - - - - Plug
1/4 21AP-25M Steel 2001/4/18 - - - - Plug
1/4 10NK Steel 2001/4/18 - - - - Plug
1/4 BS23AS-25F Brass - - 2001/4/18 - - Socket
1/4 B23AS-25F-BS Brass - - - 2001/4/19 - Socket
1/4 B23AS-37F Brass - - 2003/8/18 - - Socket
1/4 B23AS-37F-BS Brass - - - 2003/8/19 - Socket
1/4 11 Steel - - 2001/4/18 - - Plug
1/4 11G Steel - - 2001/4/18 - - Plug
1/4 13 Steel - - 2001/8/27 - - Plug
1/4 15E Steel - - 2003/8/18 - - Plug
1/4 11B Steel - - 2001/4/18 - - Plug
1/4 LL11 Stainless - - 2001/4/18 - - Plug
1/4 2609 Steel - - 2001/4/18 - - Plug
1/4 2609B Steel - - - 2001/4/19 - Plug
1/4 20AP-37F Steel - - 2003/8/18 - - Plug
1/4 21AP-25F Steel - - 2001/4/18 - - Plug
1/4 11NK Steel - - 2001/4/18 - - Plug
1/4 B23AS-25H Brass - - - - 1/4 Socket
1/4 B23AS-31H Brass - - - - 5/16 Socket
1/4 B23AS-37H Brass - - - - 3/8 Socket
1/4 B23AS-50F Brass - - - - 1/2 Socket
1/4 16 Steel - - - - 1/4 Plug
1/4 16G Steel - - - - 1/4 Plug
1/4 16P Steel - - - - 1/4 Plug
1/4 17 Steel - - - - 3/8 Plug
1/4 17G Steel - - - - 3/8 Plug
1/4 17P Steel - - - - 3/8 Plug
1/4 18E Steel - - - - 5/16 Plug
1/4 B17 Brass - - - - 3/8 Plug
1/4 3946 Steel - - - - 1/4 Plug
1/4 3947 Steel - - - - 5/16 Plug
1/4 22238E Steel - - - - 3/8 Plug
1/4 21AP-2H Steel - - - - 1/4 Plug
1/4 16NK Steel - - - - 1/4 Plug
1/4 17NK Steel - - - - 3/8 Plug

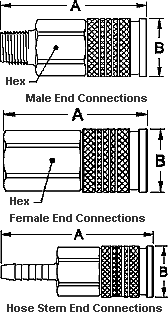

Series AUTO-FLO 23 & 24 - Sockets Hansen
Coupling Category
One-Way Couplings
Auto-Flo 23 - Sockets
Auto-Flo 24 - Sockets
Male End Connections
Part No.
Thread
Dimensions
Part No.
Thread
Dimensions
Size
A
B
HEX
Brass
Size
A
B
B23AS-25M
1/4-18 NPTF
2.23
0.94
0.81
B24AS-25M
1/4-18 NPTF
2.27
0.94
B23AS-25MBST
1/4-19 BSPT
2.23
0.94
0.81
B24AS-25MBST
1/4-19 BSPT
2.27
0.94
B23AS-37M
3/8-18 NPTF
2.23
0.94
0.81
B24AS-37MBST
3/8-19 BSPT
2.27
0.94
B23AS-37MBST
3/8-19 BSPT
2.23
0.94
0.81
B24AS-50MBST
1/2-14 BSPT
2.27
0.94
B23AS-50MBST
1/2-14 BSPT
2.23
0.94
0.88

Female End Connections
Part No.
Thread
Dimensions
Part No.
Thread
Dimensions
Size
A
B
HEX
Brass
Size
A
B
B23AS-25F
1/4-18 NPTF
2.02
0.94
0.81
B24AS-25F
1/4-18 NPTF
2.06
0.94
B23AS-25FBS
1/4-19 BSPP
2.02
0.94
0.81
B24AS-25FBS
1/4-19 BSPP
2.06
0.94
B23AS-37F
3/8-18 NPTF
2.02
0.94
0.81
B24AS-37FBS
3/8-19 BSPP
2.06
0.94
B23AS-37FBS
3/8-19 BSPP
2.02
0.94
0.81
B24AS-50FBS
1/2-14 BSPP
2.38
0.94
B23AS-50FBS
3/8-14 BSPP
2.34
0.94
1.06

Hose Stem End Connections
Part No.
Hose I.D.
Dimensions

Part No.
Hose I.D.
Dimensions
A
B

Brass
A
B
B23AS-25H
1/4"
2.76
0.94

B24AS-25H
1/4"
2.8
0.94
B23AS-31H
5/16"
2.73
0.94

B24AS-31H
5/16"
2.77
0.94
B23AS-37H
3/8"
2.73
0.94

B24AS-37H
3/8"
2.77
0.94
B23AS-50H
1/2"
2.7
0.94

B24AS-50H
1/2"
2.74
0.94
All dimensions in inches.



Series AUTO-FLO 23 & 24 - Plugs Hansen
Coupling Category
One-Way Couplings
Auto-Flo 23 - Plugs
Auto-Flo 24 - Plugs
Male End Connections
Part No.
Thread
Dimensions
Part No.
Thread
Dimensions
Steel
Size
C
D
HEX
Steel
Size
C
D
INDUSTRIAL INTERCHANGE (Series 3000) 24AP-25MG
1/4-18 NPTF
1.64
0.65
2608
1/4-18 NPTF
1.68
0.65
0.56
24AP-25MBST
1/4-19 BSPT
1.62
0.65
2608B
1/4-19 BSPT
1.68
0.65
0.56
24AP-37MBST
3/8-19 BSPT
1.62
0.79
20AP-37M
3/8-18 NPTF
1.68
0.79
0.69
24AP-50MBST
1/2-14 BSPT
1.88
1.01
ARO 210 INTERCHANGE
21AP-25M
1/4-18 NPTF
1.65
0.65
0.56

21AP-37M
3/8-18 NPTF
1.65
0.79
0.69

Tru-Flate INTERCHANGE
Female End Connections
Part No.
Thread
Dimensions
Part.No.
Thread
Dimensions
Steel
Size
C
D
HEX
Steel
Size
C
D
INDUSTRIAL INTERCHANGE (Series 3000)
24AP-25FG
1/4-18 NPTF
1.49
0.79
2609
1/4-18 NPTF
1.55
0.79
0.69
24AP-25FBS
1/4-19 BSPP
1.46
0.79
2609B
1/4-19 BSPP
1.55
0.79
0.69
24AP-37FBS
3/8-19 BSPP
1.52
0.94
20AP-37F
3/8-18 NPTF
1.61
0.94
0.81
24AP-50FBS
1/2-14 BSPP
1.65
1.23
ARO 210 INTERCHANGE
21AP-25F
1/4-18 NPTF
1.53
0.79
0.69

21AP-37F
3/8-18 NPTF
1.59
0.94
0.81

Tru-Flate INTERCHANGE
Hose Stem End Connections
Part No.
Hose I.D.
Dimensions

Part No.
Hose I.D.
Dimensions
Steel
C
D

Steel
C
D
INDUSTRIAL INTERCHANGE (Series 3000)
24AP-25H
1/4"
2.08
0.50
3946
1/4"
2.14
0.50

24AP-31H
5/16"
2.08
0.50
3947
5/16"
2.14
0.50

24AP-37H
3/8"
2.08
0.50
22238
3/8"
2.14
0.50

24AP-50H
1/2"
2.08
0.63
ARO 210 INTERCHANGE
21AP-25H
1/4"
2.12
0.50

21AP-37H
3/8"
2.12
0.50

Tru-Flate INTERCHANGE
All dimensions in inches.
