伊顿提供最简单的空调软管总成和最高的伊顿
EZ Clip 空调软管总成系统
执行当今市场上的 A/C 系统，EZ Clip 系统
用于空调软管总成的 EZ Clip 系统是您大量预制 A/C 软管库存的完美备份 - 实际上有数百种预制 A/C 软管配置，因此无法全部储存 - 但是，您可以储存合乎逻辑的选择，然后使用易于使用的伊顿 EZ Clip 系统备份您的 A/C 程序 - 如果您正在为重型卡车、建筑和农业市场提供服务，EZ Clip 系统是必不可少的.
- DIY空调软管总成
- 无需压接设备
- 最畅销的空调软管总成系统
- 超过 300 种末端配置
- OEM软管总成性能
- 软管接头上的双 O 型圈密封确保最佳密封
- 正在申请专利的 GH001 EverCool A/C 2 层低渗水软管
GH001胶管& EZ Clip 接头
- 热塑和弹性材料内胶层，合成弹性材料外层，以及棉线编织增强层
- 极低的渗透率性，（0.3kg每平方米每年），远优于行业标准
- 最大抗扭曲性能，耐吸空
- 兼容R134a, R1234yf, R407C, R404A, R12, 1234ze, 1233zd 等制冷剂
- 规格: -4/-6/-8/-10/-12/-16

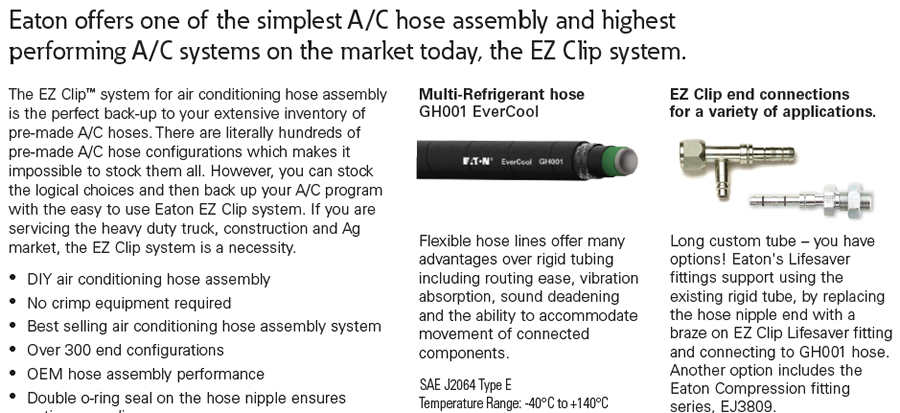

Eaton offers one of the simplest A/C hose assembly and highest Eaton
EZ Clip air conditioning hose assembly system
performing A/C systems on the market today, the EZ Clip system-
The EZ Clip- system for air conditioning hose assembly is the perfect back-up to your extensive inventory of pre-made A/C hoses- There are literally hundreds of pre-made A/C hose configurations which makes it impossible to stock them all- However, you can stock the logical choices and then back up your A/C program with the easy to use Eaton EZ Clip system- If you are servicing the heavy duty truck, construction and Ag market, the EZ Clip system is a necessity.
- DIY air conditioning hose assembly
- No crimp equipment required
- Best selling air conditioning hose assembly system
- Over 300 end configurations
- OEM hose assembly performance
- Double o-ring seal on the hose nipple ensures optimum sealing
- Patent pending GH001 EverCool A/C 2-layer, low effusion hose

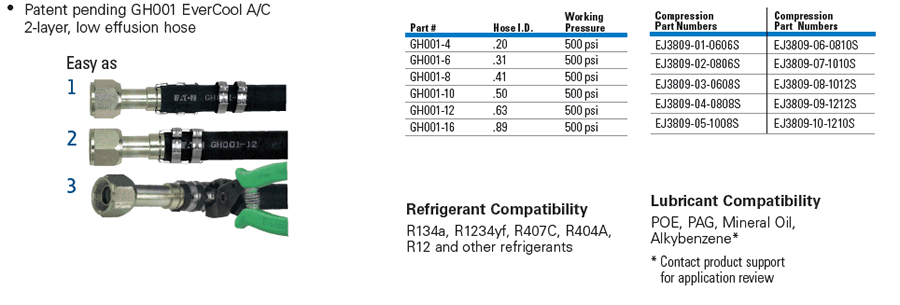

Easy as
1
2
3
Multi-Refrigerant hose
GH001 EverCool
Flexible hose lines offer many advantages over rigid tubing including routing ease, vibration absorption, sound deadening and the ability to accommodate movement of connected components-
SAE J2064 Type E Temperature Range: -40°C to +140°C (-40°F to + 284°F)
Part # Hose I.D- Working Pressure
GH001-4 .20 500 psi
GH001-6 .31 500 psi
GH001-8 .41 500 psi
GH001-10 .50 500 psi
GH001-12 .63 500 psi
GH001-16 .89 500 psi
Refrigerant Compatibility
R134a, R1234yf, R407C, R404A, R12 and other refrigerants

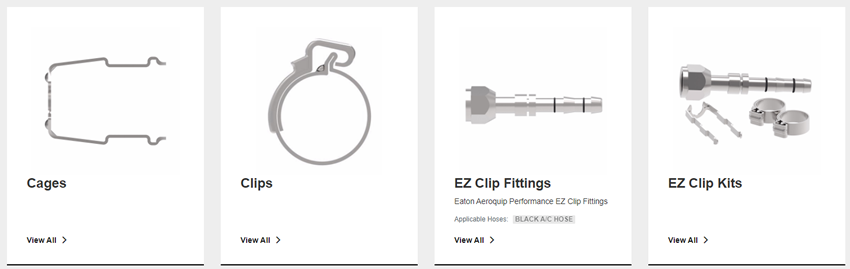

EZ Clip end connections for a variety of applications-
Long custom tube – you have options! Eaton's Lifesaver fittings support using the existing rigid tube, by replacing the hose nipple end with a braze on EZ Clip Lifesaver fitting and connecting to GH001 hose- Another option includes the Eaton Compression fitting series, EJ3809-
Compression Part Numbers Compression Part Numbers
EJ3809-01-0606S EJ3809-06-0810S
EJ3809-02-0806S EJ3809-07-1010S
EJ3809-03-0608S EJ3809-08-1012S
EJ3809-04-0808S EJ3809-09-1212S
EJ3809-05-1008S EJ3809-10-1210S
Lubricant Compatibility
POE, PAG, Mineral Oil, Alkybenzene*
* Contact product support for application review
|
