EATON FFCUP系列ISO 16028带压操作平面快速接头
FFCUP Series ISO 16028 Connect Under Pressure Flat Face Plug/Male Quick Disconnect Couplings
EATON Quick Disconnect Couplings

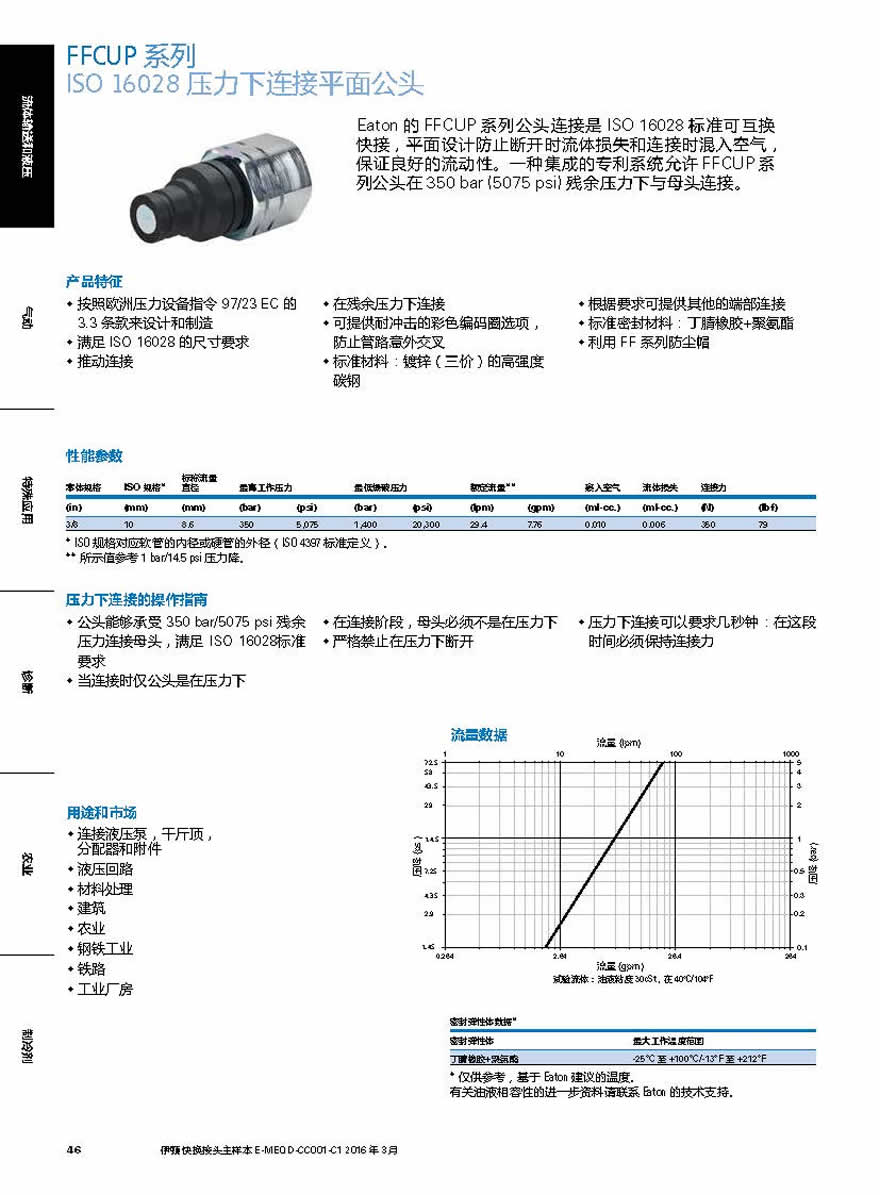

试验流体:40°C/104°F下的油粘度为30 Cst,伊顿的FFCUP系列插头/公接头为ISO 16028标准互换。冲洗面设计防止断开时液体损失和连接时空气夹杂,确保良好的流动性能。集成系统允许FFCUP系列插头在350巴(5075磅/平方英寸)的残余压力下连接到插座/内半快速接头。Test Fluid: Oil viscosity 30 Cst at 40°C/104°F Eaton’s FFCUP Series plug/male coupling is an ISO 16028 standard interchange. The flush face design prevents fluid loss on disconnection and air inclusion on connection guaranteeing excellent flow capability. An integrated patented system allows the FFCUP Series plug to be connected to a socket/female half coupling under 350 bar (5075 psi) residual pressure.


FFCUP Series ISO 16028 Connect Under Pressure Flat Face Plug/Male
产品技术选型资料下载



产品特点
Product Features

- 插头可以在350巴/5075磅/平方英寸的剩余压力下连接到符合ISO 16028标准要求的插座/母插座。
- 插头连接时仅承受压力
- 在连接阶段,插座不得承受压力
- 严禁带压断开
- 压力连接可能需要几秒钟:在此期间必须保持连接力压力连接操作指南
- The plug can be connected against 350 bar/5075 psi residual pressure to sockets/females meeting ISO 16028 standard requirements.
- Plug only is under pressure while connected
- During the connection phase, the socket must not be under pressure
- Disconnection under pressure is strictly forbidden
- Connection under pressure may require a few seconds: the force to connect must be maintained during this lapse of time Connect Under Pressure Operating Guidelines



市场应用领域
Applications & Markets

- 连接到液压泵、千斤顶、分配器和附件
Connection to Hydraulic pumps, jacks, distributors and accessories
- 液压回路 Hydraulic Circuits
- 物料搬运 Material Handling
- 建筑 Construction
- 农业 Agriculture
- 钢铁工业Iron and Steel Industry
- 铁路 Railway
- 工业厂房 Industrial Plants

FFCUP Series ISO 16028 Connect Under Pressure Flat Face Plug/Male
Plugs (Male)
Part Number

10FFPCUP37
3/8 10 8.6
-18 - 1 2.89 0.74 1.55 2.28 1.41 73.5 18.7 39.5 58.0 36 0.69 314
10FFPCUP37BS - -19 1 2.89 0.74 1.55 2.28 1.41 73.5 18.7 39.5 58.0 36 0.69 314
10FFPCUP50 ?-14 - 1 2.89 0.74 1.55 2.28 1.41 73.5 18.7 39.5 58.0 36 0.66 300
10FFPCUP50BS - ?-14 1 2.89 0.74 1.55 2.28 1.41 73.5 18.7 39.5 58.0 36 0.66 300
12FFPCUP50
1/2 12,5 11
?-14 1 3,03 0,96 1,55 2,36 1.41 77 24,52 39,5 60 36 0,77 350
12FFPCUP50BS ?-14 1 3,03 0,96 1,55 2,36 1.41 77 24,52 39,5 60 36 0,76 346
12FFPCUP56UN 9/16 18f UNF 1 2,87 0,96 1,55 2,2 1.41 73 24,52 39,5 56 36 0,74 336
12FFPCUP75UN 3/4 16f UNF 1 3,03 0,96 1,55 2,36 1.41 77 24,52 39,5 60 36 0,77 351
* Alternative end connections available upon request.





EATON Quick Disconnect Couplings EMEA E-MEQD-CC002-E4 December 2018
Color Coding Ring Option*

彩色编码环快速接头

Plug/Male Ring Part Number**
Blue Red Yellow Green Tool Part Number
10 8.6 CR12FFPLB CR12FFPRD CR12FFPYL CR12FFPDG CR12FFSP93
? 12,5 11 CR16FFPLB CR16FFPRD CR16FFPYL CR16FFPDG CR16FFSP93
For color coded rings TPE material is used that offers excellent flexibility which allows a very good shock resistance in demanding applications.
Good thermal, chemical and weather resistance provides a great fit on the coupling and a extended life time in toughest conditions.
The color coded rings are easy to install by using the referenced tools. Please refer to the user guide on “eaton.com”
* For requests on alternative colors or installation instructions, please contact your Eaton sales representative.
** Orders must be in multiples of 10 pcs.
*** The kit consists of a tool plus 10 socket rings and 10 plug rings of each color.
