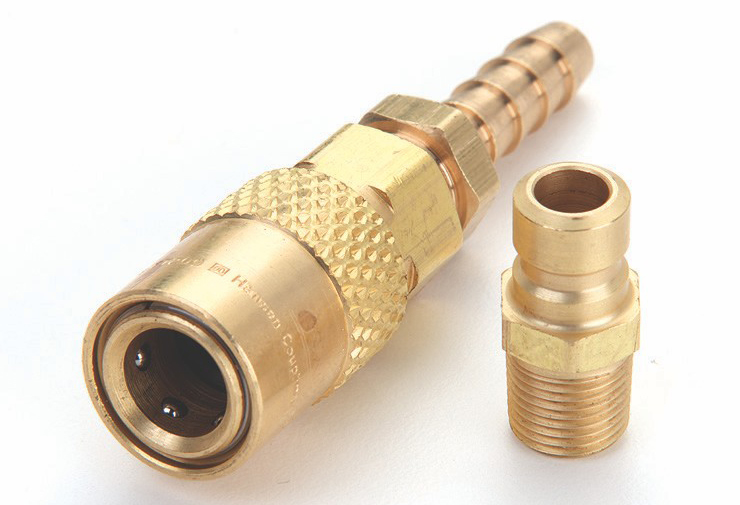

Hansen Flo-Temp冷却或加热模具和压铸模具快速接头
Hansen Flo-Temp quick disconnect couplings

Hansen Flo-Temp快速断开接头提供冷却或加热模具和压铸模具所需的流量。 插座可提供无阀门的最大流量和阀门以防止断开时流体损失。 Flo-Temp 接头可用于水-乙二醇、热水和热油。The Hansen Flo-Temp quick disconnect couplings provide the flow needed to cool or heat molds and die casting dies. Sockets are available non-valved for maximum flow and valved to prevent fluid loss when disconnected. Flo-Temp couplings can be used with water-glycol, hot water and hot oil.

Hansen Flo-Temp冷却或加热模具和压铸模具快速接头
Hansen Flo-Temp quick disconnect couplings

描述：

- 插座中的所有金属部件均为黄铜或不锈钢。密封件是氟橡胶。
- 带阀版本的插座可在断开连接时自动关闭冷却液软管。
- 插座和插头均提供各种端接尺寸。
- 可与 DME 型联轴器互换
- 现货供应

Flo-Temp应用包括：注塑模具水冷、一般水冷等。



Body Size Part Number Non-Valved Part Number Valved Material NPT Female Thread BSP Female Thread NPT Male Thread BSP Male Thread Straight Hose Stem 90° Hose Stem 45° Hose Stem Coupling Type
尺寸 零件编号 无阀 带阀的零件号 材料 NPT 内螺纹 BSP 内螺纹 NPT 外螺纹 BSP 外螺纹 Straight Hose Stem 90° 软管 45° 软管 类型
1/4 LNFT-200 - Brass 1/8-27 - - - - - - Socket
3/8 LNFT-300 - Brass 1/4-18 - - - - - - Socket
1/2 LNFT-500 - Brass 1/2-14 - - - - - - Socket
1/4 FTS-204 FTS-204V Brass - - - - 1/4 - - Socket
1/4 FTS-204HP FTS-204VHP Brass - - - - 1/4 - - Socket
1/4 FTS-205 FTS-205V Brass - - - - 5/16 - - Socket
1/4 FTS-206 FTS-206V Brass - - - - 3/8 - - Socket
1/4 FTS-206HP - Brass - - - - 3/8 - - Socket
3/8 FTS-306 FTS-306V Brass - - - - 3/8 - - Socket
3/8 FTS-306HP FTS-306VHP Brass - - - - 3/8 - - Socket
3/8 FTS-308 FTS-308V Brass - - - - 1/2 - - Socket
3/8 FTS-308HP FTS-308VHP Brass - - - - 1/2 - - Socket
1/2 FTS-504 FTS-504V Brass - - - - 1/2 - - Socket
1/2 FTS-504HP FTS-504VHP Brass - - - - 1/2 - - Socket
1/2 FTS-506 FTS-506V Brass - - - - 3/4 - - Socket
1/2 FTS-506HP FTS-506VHP Brass - - - - 3/4 - - Socket
1/4 FTS-214 FTS-214V Brass - - - - - 1/4 - Socket
1/4 FTS-214HP FTS-214VHP Brass - - - - - 1/4 - Socket
1/4 FTS-215 FTS-215V Brass - - - - - 5/16 - Socket
1/4 FTS-216 FTS-216V Brass - - - - - 3/8 - Socket
1/4 FTS-216HP FTS-216V Brass - - - - - 3/8 - Socket
3/8 FTS-316 FTS-316V Brass - - - - - 3/8 - Socket
3/8 FTS-316HP FTS-316VHP Brass - - - - - 3/8 - Socket
3/8 FTS-318 FTS-318V Brass - - - - - 1/2 - Socket
3/8 FTS-318HP FTS-318VP Brass - - - - - 1/2 - Socket
1/4 FTS-224 FTS-224V Brass - - - - - - 1/4 Socket
1/4 FTS-224HP FTS-224VHP Brass - - - - - - 1/4 Socket
1/4 FTS-225 FTS-225V Brass - - - - - - 5/16 Socket
1/4 FTS-226 FTS-226 Brass - - - - - - 3/8 Socket
1/4 FTS-226HP FTS-226VHP Brass - - - - - - 3/8 Socket
3/8 FTS-326 FTS-326V Brass - - - - - - 3/8 Socket
3/8 FTS-326HP FTS-326VHP Brass - - - - - - 3/8 Socket
3/8 FTS-328 FTS-328V Brass - - - - - - 1/2 Socket
3/8 FTS328HP FTS-328VHP Brass - - - - - - 1/2 Socket
1/4 FTP-251 - Brass - - 1/8-27 - - - - Plug
1/4 FTP-251BST - Brass - - - 1/8-28 - - - Plug
1/4 FTP-252 - Brass - - 1/4-18 - - - - Plug
1/4 FTP-252BST - Brass - - - 1/4-19 - - - Plug
1/4 FTP-253 - Brass - - 3/8-18 - - - - Plug
3/8 FTP-352 - Brass - - 1/4-18 - - - - Plug
3/8 FTP-352BST - Brass - - - 1/4-19 - - - Plug
3/8 FTP-353 - Brass - - 3/8-18 - - - - Plug
3/8 FTP-353BST - Brass - - - 3/8-19 - - - Plug
3/8 FTP-354 - Brass - - 1/2-14 - - - - Plug
1/2 FTP-554 - Brass - - 1/2-14 - - - - Plug
1/2 FTP-556 - Brass - - 3/4-14 - - - - Plug
1/4 FTP-251F - Brass 1/8-27 - - - - - - Plug
1/4 FTP-251FBS - Brass - 1/8-28 - - - - - Plug
1/4 FTP-252F - Brass 1/4-18 - - - - - - Plug
1/4 FTP-252FBS - Brass - 1/4-19 - - - - - Plug
1/4 FTP-253F - Brass 3/8-18 - - - - - - Plug
3/8 FTP-352F - Brass 1/4-18 - - - - - - Plug
3/8 FTP-352FBS - Brass - 1/4-19 - - - - - Plug
3/8 FTP-353F - Brass 3/8-18 - - - - - - Plug
3/8 FTP-354F - Brass 1/2-14 - - - - - - Plug
1/2 FTP-554F - Brass 1/2-14 - - - - - - Plug
1/2 FTP-556F - Brass 3/4-14 - - - - - - Plug
