Hansen 汉森 MLDB 系列干式平面流体输送锈钢快速接头
Hansen MLDB series dry-break couplings for fluid transfer (stainless steel)

Hansen MLDB 系列快速释放干式接头专为那些要求最小泄漏的关键应用而设计，特别是易燃、有毒或其他危险流体、精细化学品和药品，以及各种工业流体，如水、油、燃料、溶剂、酸等。Hansen MLDB series quick-release dry-break couplings are designed for those critical applications where minimum spillage is vital, especially with flammable, toxic or other dangerous fluids, fine chemicals and pharmaceuticals, as well as a wide range of industrial fluids such as water, oils, fuels, solvents, acids, etc.

Hansen 汉森 MLDB 系列干式平面流体输送锈钢快速接头

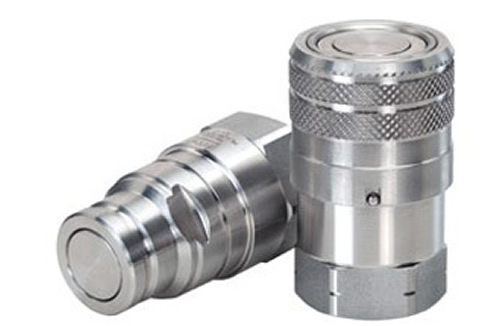

Hansen MLDB Series stainless steel Flat Face Dry Break coupling

性能特点：

- 断开连接时溢出最少
- 平面阀提供擦拭干净、流线型的外观
- 快速、万无一失、单手连接和断开
- 连接时自动流动，断开时自动关闭两半
- 体积小，流量大/压降低
- 整个 316/316L 不锈钢金属部件
- Viton 密封件作为标准配置，选项包括 EPDM 和 Kalrez 6375
- 提供可维修的密封套件和工具
- 1/2” 尺寸的彩色编码环
- 标准插座上的安全套筒锁定功能
- 最大工作压力 25 bar

应用包括：精细化学品、药品、溶剂、燃料、酸、工业流体、昂贵的流体等。

Minimal spillage on disconnection
Flat-face valves give wipe-clean, streamlined exterior
Fast, fool-proof, one-handed connection and disconnection
Automatic flow on connection, automatic shut-off of both halves on disconnection
High flow capacity / low pressure drop in a compact body
316/316L stainless steel metal parts throughout
Viton seals as standard, options include EPDM and Kalrez 6375
Serviceable-seal kits and tools available
Colour coded rings available on ?” size
Safety sleeve lock feature on sockets as standard
Maximum working pressure 25 bar
Applications include: fine chemicals, pharmaceuticals, solvents, fuels, acids, industrial fluids, expensive fluids etc.
