伊顿EATON WQB Series ISO 7241-1B快换接头
伊顿EATON WQB 系列快速接头广泛应用于所有行业中的液压气动系统。不同的材质可以满足医疗，化工、食品等行业的特殊要求。伊顿EATON WQB Series are used across the spectrum of hydraulic applications. Their general solidity permits the strenuous applications in aeronautics, electronic and automotive industry
伊顿EATON WQB Series ISO 7241-1B快换接头
PDF Catalog资料下载
Product Features
产品特征
- Materials: zinc-plated carbon steel body
材质：碳钢，表面镀环保锌
- Valve: Poppet Type
阀芯：针阀
- Back-up ring: in pure Teflon
挡圈：铁氟龙
- Seals: standard in nitrile NBR
密封件：以NBR为标准
- Working temperature: with standard seals -25°C + 125°C
工作温度：在标准NBR范围内，承受-25°C + 125°C的温度
Technical Data
技术参数
Nominal size
公称通径 |
Max.working pressure
最大工作压力 |
Rated flow
额定流量 |
Min burst pressure
最小爆破压力 |
Fluid spillage
泄漏量 |
Male
公接头 |
Female
母接头 |
Coupled
连接 |
6.3 |
250 |
12 |
1000 |
1000 |
1000 |
2 |
10 |
250 |
23 |
1000 |
1000 |
1000 |
2.5 |
12.5 |
250 |
45 |
1000 |
1000 |
1000 |
5 |
20 |
160 |
106 |
640 |
640 |
640 |
10 |
25 |
100 |
189 |
400 |
400 |
400 |
25 |

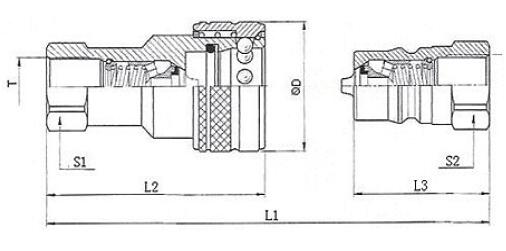

产品订货型号及规格尺寸
ISO |
L1 |
L2 |
L3 |
?D |
S1 |
S2 |
T |
COD.(F) |
COD.(M) |
6.3 |
72.5 |
57 |
36 |
27.5 |
19 |
19 |
1/4"NPT |
WQB-04F-N04F |
WQB-04M-N04F |
10 |
80 |
65 |
40 |
35 |
22 |
22 |
3/8"NPT |
WQB-06F-N06F |
WQB-06M-N06F |
12.5 |
94.5 |
74 |
46.5 |
44 |
27 |
27 |
1/2"NPT |
WQB-08F-N08F |
WQB-08M-N08F |
20 |
112.5 |
89 |
57.5 |
52 |
34 |
34 |
3/4"NPT |
WQB-12F-N12F |
WQB-12M-N12F |
25 |
132.5 |
106 |
65.5 |
60 |
41 |
41 |
1"NPT |
WQB-16F-N16F |
WQB-16M-N16F |
Accessories
附件
Nominal size
公称通径 |
Female dust plug
母接头保护塞 |
Male dust cap
公接头保护帽 |
Colour
颜色 |
Material
材质 |
6.3 |
WQB-04F-PVC |
WQB-04M-PVC |
Blue/兰 |
Plastic塑料 |
10 |
WQB-06F-PVC |
WQB-06M-PVC |
Blue/兰 |
Plastic塑料 |
12.5 |
WQB-08F-PVC |
WQB-08M-PVC |
Blue/兰 |
Plastic塑料 |
20 |
WQB-12F-PVC |
WQB-12M-PVC |
Blue/兰 |
Plastic塑料 |
25 |
WQB-16F-PVC |
WQB-16M-PVC |
Blue/兰 |
Plastic塑料 |
Nominal size
公称通径 |
Female dust plug
母接头保护塞 |
Male dust cap
公接头保护帽 |
Material
材质 |
6.3 |
WQB-04F-Al |
WQB-04M-Al |
Aluminium铝 |
10 |
WQB-06F-Al |
WQB-06M-Al |
Aluminium铝 |
12.5 |
WQB-08F-Al |
WQB-08M-Al |
Aluminium铝 |
20 |
WQB-12F-Al |
WQB-12M-Al |
Aluminium铝 |
25 |
WQB-16F-Al |
WQB-16M-Al |
Aluminium铝 |
|
