伊顿EATON WQF1 Series ISO 16028 Flat face Quick Coupling
平面快换接头代理



伊顿EATON WQF1快换接头:无滴漏,防沙尘污染,防碰撞变形,单手操作,连接力小,带安全自锁,连接时可防空气进入液压系统中。广泛应用在农业,工厂及工业等领域。EATON WQF1 Couplings represent the first genuine revolution in the field of applications for flat face quick release couplings. Where previous models performed well at low operating pressures and with limited fluctuations in pressure, these new couplings can be used in applications typified by high operating pressures, high flow rates and low pressure drops, offering the same guarantees as components of conventional design.


EATON WQF1 Series ISO 16028 Flat face Quick Coupling
平面快换接头pdf资料下载




Product Features
产品特征


- Materials: zinc-plated carbon steel body
材质:碳钢,表面镀环保锌
- Seals: standard in nitrile NBR. On request FKM,EPDM and VMQ seals
密封件:以NBR为标准

- Back-up ring: in pure Teflon
挡圈:铁氟龙
- Working temperature: with standard seals -25°C + 125°C
工作温度:在标准NBR范围内,承受-25°C + 125°C的温度



Technical Data
技术参数

Nominal size

Max.working pressure
最大工作

Rated flow
定流量

Min burst pressure
最小爆破

Fluid spillage
泄漏量

Male
公接

Female
母接

Coupled

ISO

(bar)

(l/m)

(bar)

(bar)

(bar)

(cc)

6.3

400

12

1900

1900

1900

0.008

10

350

23

1560

1780

1600

0.01

12.5

350

45

1700

1590

1770

0.012

16

350

74

1660

1420

1580

0.015

20

350

100

1600

1470

1840

0.02

25

350

189

1470

1400

1530

0.03

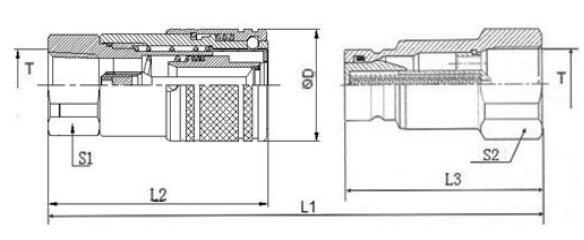

产品订货型号及规格尺寸

Nominal size

L1

L2

L3

?D

S1

S2

T

COD.(F)
母接头编号

COD.(M)
公接头编号

6.3

100

58.5

53.3

28

22

22

1/4"BSP

WQF1-04F-B04F

WQF1-04M-B04F

1/4"NPT

WQF1-04F-N04F

WQF1-04M-N04F

3/8"BSP

WQF1-04F-B06F

WQF1-04M-B06F

3/8"NPT

WQF1-04F-N06F

WQF1-04M-N06F

9/16 UNF

WQF1-04F-O06F

WQF1-04M-O06F

M16*1.5

WQF1-04F-M16F

WQF1-04M-M16F

10

121

73.5

61.2

32

30

30

3/8"BSP

WQF1-06F-B06F

WQF1-06M-B06F

3/8"NPT

WQF1-06F-N06F

WQF1-06M-N06F

1/2"BSP

WQF1-06F-B08F

WQF1-06M-B08F

1/2"NPT

WQF1-06F-N08F

WQF1-06M-N08F

9/16 UNF

WQF1-06F-O06F

WQF1-06M-O06F

M16*1.5

WQF1-06F-M16F

WQF1-06M-M16F

M18*1.5

WQF1-06F-M18F

WQF1-06M-M18F

3/4 UNF

WQF1-06F-O08F

WQF1-06M-O08F

M22*1.5

WQF1-06F-M22F

WQF1-06M-M22F

7/8 UNF

WQF1-06F-O10F

WQF1-06M-O10F

12.5

143.5

73.4

74

38

36

36

1/2"BSP

WQF1-08F-B08F

WQF1-08M-B08F

1/2"NPT

WQF1-08F-N08F

WQF1-08M-N08F

3/4"UNF

WQF1-08F-O08F

WQF1-08M-O08F

3/4"BSP

WQF1-08F-B12F

WQF1-08M-B12F

3/4"NPT

WQF1-08F-N12F

WQF1-08M-N12F

M22*1.5

WQF1-08F-M22F

WQF1-08M-M22F

7/8"UNF

WQF1-08F-O10F

WQF1-08M-O10F

M26*1.5

WQF1-08F-M26F

WQF1-08M-M26F

1-1/16"UNF

WQF1-08F-O12F

WQF1-08M-O12F

16

143

86

74

42

36

36

1/2"BSP

WQF1-10F-B08F

WQF1-10M-B08F

1/2"NPT

WQF1-10F-N08F

WQF1-10M-N08F

3/4"BSP

WQF1-10F-B12F

WQF1-10M-B12F

3/4"NPT

WQF1-10F-N12F

WQF1-10M-N12F

M22*1.5

WQF1-10F-M22F

WQF1-10M-M22F

7/8"UNF

WQF1-10F-O10F

WQF1-10M-O10F

M26*1.5

WQF1-10F-M26F

WQF1-10M-M26F

1-1/16"UNF

WQF1-10F-O12F

WQF1-10M-O12F

20

154

95

87

48

41

41

3/4"BSP

WQF1-12F-B12F

WQF1-12M-B12F

3/4"NPT

WQF1-12F-N12F

WQF1-12M-N12F

160

95

87

1"BSP

WQF1-12F-B16F

WQF1-12M-B16F

1"NPT

WQF1-12F-N16F

WQF1-12M-N16F

160

95

87

1-1/16"UNF

WQF1-12F-O12F

WQF1-12M-O12F

1-5/16"UNF

WQF1-12F-O16F

WQF1-12M-O16F

25

177

109.5

92

55

50

50

1"BSP

WQF1-16F-B16F

WQF1-16M-B16F

1"NPT

WQF1-16F-N16F

WQF1-16M-N16F

1-1/4"BSP

WQF1-16F-B20F

WQF1-16M-B20F

1-1/4"NPT

WQF1-16F-N20F

WQF1-16M-N20F



Accessories
附件

Nominal size

Female dust plug
母接

Male dust cap
公接

Colour

Material

6.3

WQF-04F-PVC

WQF-04M-PVC

Red/红

Plastic塑料

10

WQF-06F-PVC

WQF-06M-PVC

Red/红

Plastic塑料

12.5

WQF-08F-PVC

WQF-08M-PVC

Red/红

Plastic塑料

20

WQF-12F-PVC

WQF-12M-PVC

Red/红

Plastic塑料

25

WQF-16F-PVC

WQF-16M-PVC

Red/红

Plastic塑料
