EATON Aeroquip 5100 Series/ Low Spill - Connect Under Pressure

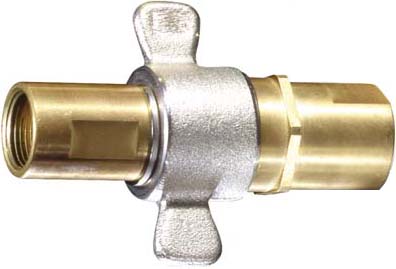

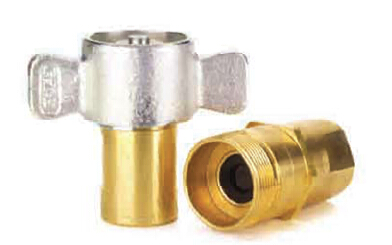

Aeroquip 5100 Series Quick Disconnect Couplings快速接头



Aeroquip 5100 Series Quick Disconnect Couplings

Aeroquip 5100系列铜和钢材质快速接头具有小的空气包裹体和流体损失。螺纹连接带压力操作提供压力能力和抗振动。Aeroquip 5100系列可以额定连续液压脉冲的应用。液压脉冲的应用，参阅fd86和fd96系列螺纹连接产品线。Aeroquip 5100 Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss.Thread together latch provides connect under pressure capability and vibration resistance. The 5100 Series is not rated for continuous hydraulic impulse applications. For hydraulic impulse applications, refer to the FD86 and FD96 Series thread to connect product lines


Aeroquip 5100 Series Quick Disconnect Couplings PDF



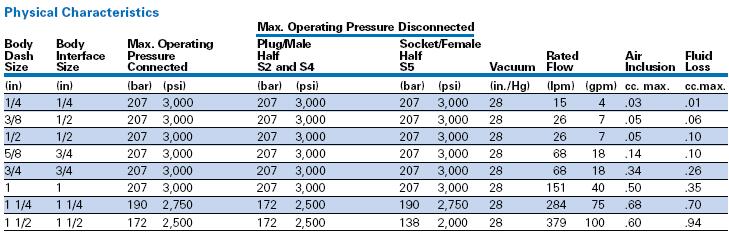

规格参数：
Available with wing or hex nut configurations.
Connect against pressure capability allows connecting of halves even when pressurized up to 500 psi.
Steel flange available for accessible bulkhead mounting.
Standard seal mterial - Buna-N.
Standard body material - Brass with steel valving components, hex and wing nuts.

Part NO
Coupling Size
Thread Size (P)
Seal Material
Type
5100-S2-4B
-4
1/8-27
BUNA-N
Male Half/Less Flange - Female Pipe
5100-S2-6B
-6
1/4-18
BUNA-N
Male Half/Less Flange - Female Pipe
5100-S2-8B
-8
3/8-18
BUNA-N
Male Half/Less Flange - Female Pipe
5100-S2-10B
-10
1/2-14
BUNA-N
Male Half/Less Flange - Female Pipe
5100-S2-12B
-12
3/4-14
BUNA-N
Male Half/Less Flange - Female Pipe
5100-S2-16B
-16
1-11-1/2
BUNA-N
Male Half/Less Flange - Female Pipe
5100-S2-20B
-20
1-1/4 to 11-1/2
BUNA-N
Male Half/Less Flange - Female Pipe
5100-S2-24B
-24
1-1/2 to 11-1/2
BUNA-N
Male Half/Less Flange - Female Pipe
5100-S4-4B
-4
1/8-27
BUNA-N
Male Half/With Flange - Female Pipe
5100-S4-6B
-6
1/4-18
BUNA-N
Male Half/With Flange - Female Pipe
5100-S4-8B
-8
3/8-18
BUNA-N
Male Half/With Flange - Female Pipe
5100-S4-10B
-10
1/2-14
BUNA-N
Male Half/With Flange - Female Pipe
5100-S4-12B
-12
3/4-14
BUNA-N
Male Half/With Flange - Female Pipe
5100-S4-16B
-16
1-11-1/2
BUNA-N
Male Half/With Flange - Female Pipe
5100-S4-20B
-20
1-1/4 to 11-1/2
BUNA-N
Male Half/With Flange - Female Pipe
5100-S4-24B
-24
1-1/2 to 11-1/2
BUNA-N
Male Half/With Flange - Female Pipe
5100-S5-4B
-4
1/8-27
BUNA-N
Female Half/Wing Nut - Female Pipe
5100-S5-6B
-6
1/4-18
BUNA-N
Female Half/Wing Nut - Female Pipe
5100-S5-8B
-8
3/8-18
BUNA-N
Female Half/Wing Nut - Female Pipe
5100-S5-10B
-10
1/2-14
BUNA-N
Female Half/Wing Nut - Female Pipe
5100-S5-12B
-12
3/4-14
BUNA-N
Female Half/Wing Nut - Female Pipe
5100-S5-16B
-16
1-11-1/2
BUNA-N
Female Half/Wing Nut - Female Pipe
5100-S5-20B
-20
1-1/4 to 11-1/2
BUNA-N
Female Half/Wing Nut - Female Pipe
5100-S5-24B
-24
1-1/2 to 11-1/2
BUNA-N
Female Half/Wing Nut - Female Pipe
5110-S5-4B
-4
1/8-27
BUNA-N
Female Half/Hex Nut - Female Pipe
5110-S5-6B -6 1/4-18 BUNA-N
Female Half/Hex Nut - Female Pipe
5110-S5-8B -8 3/8-18 BUNA-N
Female Half/Hex Nut - Female Pipe
5110-S5-10B -10 1/2-14 BUNA-N
Female Half/Hex Nut - Female Pipe
5110-S5-12B -12 3/4-14 BUNA-N
Female Half/Hex Nut - Female Pipe
5110-S5-16B -16 1-11-1/2 BUNA-N
Female Half/Hex Nut - Female Pipe
5110-S5-20B -20 1-1/4 to 11-1/2 BUNA-N
Female Half/Hex Nut - Female Pipe
5110-S5-24B -24 1-1/2 to 11-1/2 BUNA-N
Female Half/Hex Nut - Female Pipe
5101-4B -4 1/8-27 BUNA-N
Complete Coupling Less Flange/With Wing Nut/Female Pipe
5101-6B -6 1/4-18 BUNA-N
Complete Coupling Less Flange/With Wing Nut/Female Pipe



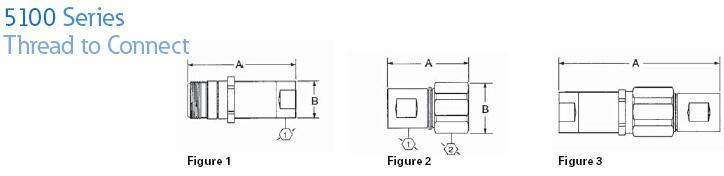

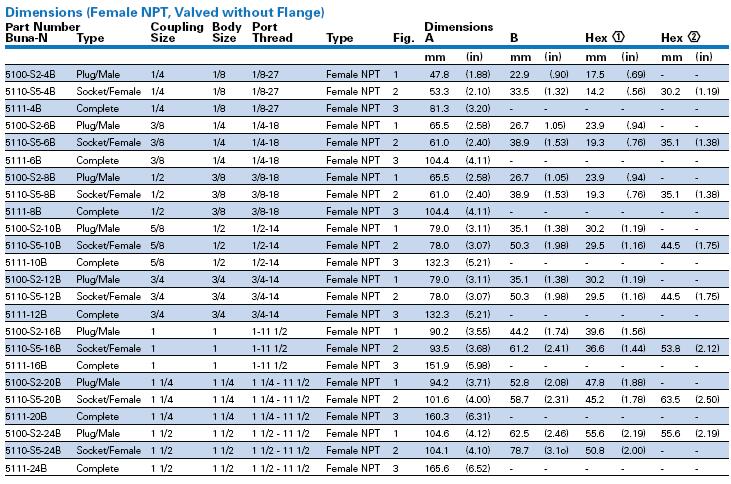

Part no
Coupling Size 　
Thread Size (P)　
 　
A
　
B
 　
Dim.- Hex(1)
　
Seal Material
　
Type
5100-S2-4B
-4
1/8-27
1.88
0.9
0.69 inches
N/ABUNA-N
 Male Half/Less Flange - Female Pipe
5100-S2-6B
-6
1/4-18
2.58
1.07
0.94 inches
N/ABUNA-N
 Male Half/Less Flange - Female Pipe
5100-S2-8B
-8
3/8-18
2.58
1.07
0.94 inches
N/ABUNA-N
 Male Half/Less Flange - Female Pipe
5100-S2-10B
-10
1/2-14
3.11
1.38
1.19 inches
N/ABUNA-N
 Male Half/Less Flange - Female Pipe
5100-S2-12B
-12
3/4-14
3.11
1.38
1.19 inches
N/ABUNA-N
 Male Half/Less Flange - Female Pipe
5100-S2-16B
-16
1-11-1/2
3.55
1.76
1.56 inches
N/ABUNA-N
 Male Half/Less Flange - Female Pipe
5100-S2-20B
-20
1-1/4 to 11-1/2
3.71
2.1
1.88 inches
N/ABUNA-N
 Male Half/Less Flange - Female Pipe
5100-S2-24B
-24
1-1/2 to 11-1/2
4.12
2.48
2.19 inches
N/ABUNA-N
 Male Half/Less Flange - Female Pipe

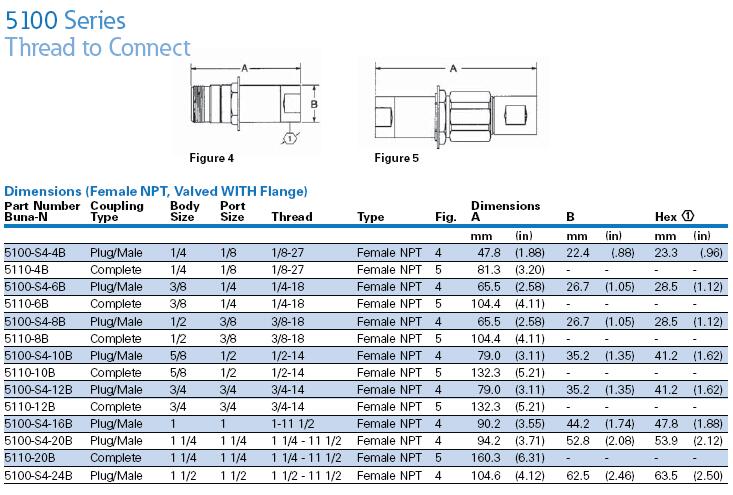

5100-S4-4B
-4
1/8-27
1.88
0.9
.94 inches
N/ABUNA-N
 Male Half/With Flange - Female Pipe
5100-S4-6B
-6
1/4-18
2.58
1.07
1.12 inches
N/ABUNA-N
 Male Half/With Flange - Female Pipe
5100-S4-8B
-8
3/8-18
2.58
1.07
1.12 inches
N/ABUNA-N
 Male Half/With Flange - Female Pipe
5100-S4-10B
-10
1/2-14
3.11
1.38
1.62 inches
N/ABUNA-N
 Male Half/With Flange - Female Pipe
5100-S4-12B
-12
3/4-14
3.11
1.38
1.62 inches
N/ABUNA-N
 Male Half/With Flange - Female Pipe
5100-S4-16B
-16
1-11-1/2
3.55
1.76
1.88 inches
N/ABUNA-N
 Male Half/With Flange - Female Pipe
5100-S4-20B
-20
1-1/4 to 11-1/2
3.71
2.1
2.12 inches
N/ABUNA-N
 Male Half/With Flange - Female Pipe
5100-S4-24B
-24
1-1/2 to 11-1/2
4.12
2.48
2.50 inches
N/ABUNA-N
 Male Half/With Flange - Female Pipe
5100-S5-4B
-4
1/8-27
1.97
3.03
.56 inches
N/ABUNA-N
 Female Half/Wing Nut - Female Pipe
5100-S5-6B
-6
1/4-18
2.37
3.44
.76 inches
N/ABUNA-N
 Female Half/Wing Nut - Female Pipe
5100-S5-8B
-8
3/8-18
2.37
3.44
.76 inches
N/ABUNA-N
 Female Half/Wing Nut - Female Pipe
5100-S5-10B
-10
1/2-14
3.09
4.06
1.16 inches
N/ABUNA-N
 Female Half/Wing Nut - Female Pipe
5100-S5-12B
-12
3/4-14
3.09
4.06
1.16 inches
N/ABUNA-N
 Female Half/Wing Nut - Female Pipe
5100-S5-16B
-16
1-11-1/2
3.67
4.38
1.44 inches
N/ABUNA-N
 Female Half/Wing Nut - Female Pipe
5100-S5-20B
-20
1-1/4 to 11-1/2
3.98
5.19
1.78 inches
N/ABUNA-N
 Female Half/Wing Nut - Female Pipe
5100-S5-24B
-24
1-1/2 to 11-1/2
4.02
5.31
2.00 inches
N/ABUNA-N
 Female Half/Wing Nut - Female Pipe
5110-S5-4B
-4
1/8-27
2.1
1.32
.56 inches
1.19 inches
 BUNA-N
5110-S5-6B
-6
1/4-18
2.4
1.53
.76 inches
1.38 inches
 BUNA-N
5110-S5-8B
-8
3/8-18
2.4
1.53
.76 inches
1.38 inches
 BUNA-N
5110-S5-10B
-10
1/2-14
3.07
1.98
1.16 inches
1.75 inches
 BUNA-N
5110-S5-12B
-12
3/4-14
3.07
1.98
1.16 inches
1.75 inches
 BUNA-N
5110-S5-16B
-16
1-11-1/2
3.68
2.41
1.44 inches
2.12 inches
 BUNA-N
5110-S5-20B
-20
1-1/4 to 11-1/2
4
2.81
1.78 inches
2.50 inches
 BUNA-N
5110-S5-24B
-24
1-1/2 to 11-1/2
4.1
3.1
2.00 inches
2.75 inches
 BUNA-N

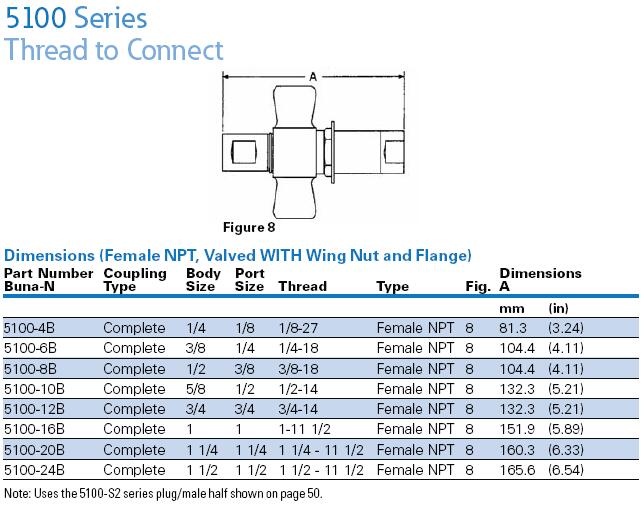

5101-4B
-4
1/8-27
3.2
N/AN/AN/ABUNA-N
Complete Coupling Less Flange/With Wing Nut/Female Pipe
　
5101-6B
-6
1/4-18
4.11
N/AN/AN/ABUNA-N
Complete Coupling Less Flange/With Wing Nut/Female Pipe
 　
　




FD89-1001-04-04 COUPLER - FLAT FACE - ISO 16028 2FFI-14-NPT-F
FD89-1002-04-04 NIPPLE - FLAT FACE - ISO 16028 2FFI-14-NPT-M
FD89-1001-06-06 COUPLER - FLAT FACE - ISO 16028 / HTMA 2FFN-38-NPT-F
FD89-1002-06-06 NIPPLE - FLAT FACE - ISO 16028 / HTMA FFN-38-NPT-M-U
FD89-1001-08-06 COUPLER - FLAT FACE - ISO 16028 / HTMA 2FFN38-12NPT-F
FD89-1002-08-06 NIPPLE - FLAT FACE - ISO 16028 / HTMA FFN38-12NPT-MU
FD89-1001-08-08 COUPLER - FLAT FACE - ISO 16028 2FFI-12-NPT-F
FD89-1002-08-08 NIPPLE - FLAT FACE - ISO 16028 FFI-12-NPT-M
FD89-1001-12-08 COUPLER - FLAT FACE - ISO 16028 2FFI12-34NPT-F
FD89-1002-12-08 NIPPLE - FLAT FACE - ISO 16028 FFI12-34NPT-M
FD89-1001-12-12 COUPLER - FLAT FACE - ISO 16028 2FFI-34-NPT-F
FD89-1002-12-12 NIPPLE - FLAT FACE - ISO 16028 FFI-34-NPT-M
FD89-1001-16-16 COUPLER - FLAT FACE - ISO 16028 2FFI-1-NPT-F
FD89-1002-16-16 NIPPLE - FLAT FACE - ISO 16028 FFI-1-NPT-M
5100-S5-12B COUPLER - WING NUT - BRASS FB-12/34-NPT-F5
5100-S2-12B NIPPLE - WING NUT - BRASS FB-12/34-NPT-M5
5100-S5-16B COUPLER - WING NUT - BRASS FB-16/1-NPT-F5
5100-S2-16B NIPPLE - WING NUT - BRASS FB-16/1-NPT-M5
5100-S5-20B COUPLER - WING NUT - BRASS FB-20/114-NPT-F5
5100-S2-20B NIPPLE - WING NUT - BRASS FB-20/114-NPT-M5

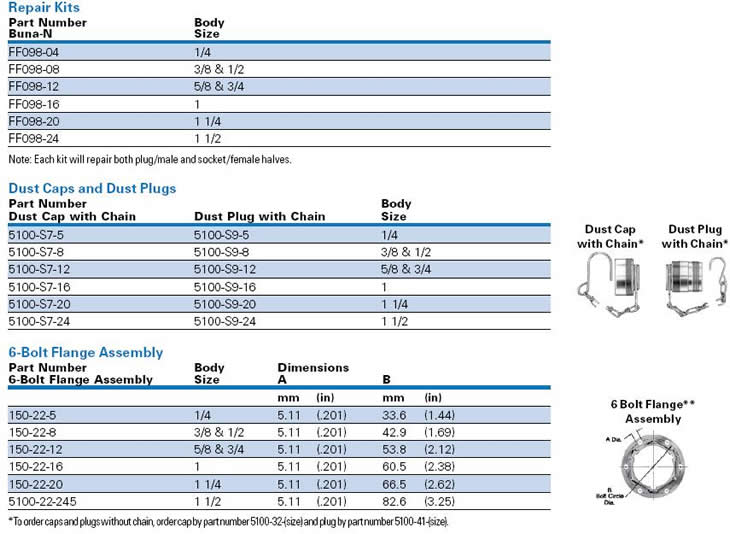

150-22-16 MONUTING FLANGE FB-16-FL
150-22-20 MOUNTING FLANGE FB-20-FL
FD42-1001-04-04 COUPLER - AG INTERCHANGE - STEEL NV-14-NPT-F
FD42-1002-04-04 NIPPLE - AG INTERCHANGE - STEEL NV-14-NPT-M
FD71-1001-08-10 COUPLER - PUSH PULL - STEEL PV-12-NPT-F
FD76-1002-08-10 NIPPLE - AG INTRCHANGE - STEEL 2NV-12-NPT-M
FD76-1010-08-10 NIPPLE - AG INTERCHANGE - STEEL 2NV12-12SAE-M
5601-4-4S COUPLER - ISO A - STEEL ANV-14-NPT-F
5602-4-4S NIPPLE - ISO A - STEEL ANV-14-NPT-M
5601-6-6S COUPLER - ISO A - STEEL ANV-38-NPT-F
5602-6-6S NIPPLE - ISO A - STEEL ANV-38-NPT-M
5601-8-10S COUPLER - ISO A - STEEL NV-12-NPT-F
5602-8-10S NIPPLE - ISO A - STEEL NV-12-NPT-M
5601-12-10S COUPLER - ISO A - STEEL MV-34-NPT-F
5602-12-10S NIPPLE - ISO A - STEEL 2MV-34-NPT-M
5601-12-12S COUPLER - ISO A - STEEL ANV-34-NPT-F
5602-12-12S NIPPLE - ISO A - STEEL ANV-34-NPT-M
5601-16-16S COUPLER - ISO A - STEEL ANV-1-NPT-F
5602-16-16S NIPPLE - ISO A - STEEL ANV-1-NPT-M
5608-6-6S COUPLER - ISO A - STEEL ANV38-38SAE-F
5610-6-6S NIPPLE - ISO A - STEEL ANV38-38SAE-M
5608-8-10S COUPLER - ISO A - STEEL NV12-12SAE-F
5610-8-10S NIPPLE - ISO A - STEEL NV12-12SAE-M
5608-10-10S COUPLER - ISO A - STEEL NV12-58SAE-F
5610-10-10S NIPPLE - ISO A - STEEL NV12-58SAE-M
5608-12-12S COUPLER - ISO A - STEEL ANV34-34SAE-F
5610-12-12S NIPPLE - ISO A - STEEL ANV34-34SAE-M
5608-16-16S COUPLER - ISO A - STEEL ANV1-1SAE-F
5610-16-16S NIPPLE - ISO A - STEEL ANV1-1SAE-M
FD49-1001-06-06 COUPLER - FLAT FACE - ISO 16028 / HTMA 2FFN-38-NPT-F
FD49-1002-06-06 NIPPLE - FLAT FACE - ISO 16028 / HTMA FFN-38-NPT-M-U
FD49-1001-08-06 COUPLER - FLAT FACE - ISO 16028 / HTMA 2FFN38-12NPT-F
FD49-1002-08-06 NIPPLE - FLAT FACE - ISO 16028 / HTMA FFN38-12NPT-MU
FD49-1005-08-06 COUPLER - FLAT FACE - ISO 16028 / HTMA 2FFN38-12SAE-F
FD49-1004-08-06 NIPPLE - FLAT FACE - ISO 16028 / HTMA 2FFN38-12SAE-M
FD90-1021-02-04 COUPLER DIAGNOSTIC DF-04-18NPT-F
FD90-1034-02-04 NIPPLE DIAGNOSTIC DF-04-18NPT-M
FD90-1021-04-04 COUPLER DIAGNOSTIC DF-04-14NPT-F
FD90-1034-04-04 NIPPLE DIAGNOSTIC DF-04-14NPT-M
FD90-1012-04-04 NIPPLE DIAGNOSTIC DF-04-1/14NPT-M
FD90-1044-04-04 NIPPLE DIAGNOSTIC DF-04-1/14SAE-M
FD90-1044-05-04 NIPPLE DIAGNOSTIC DF-04-1/516SAE-M
FD90-1044-06-04 NIPPLE DIAGNOSTIC DF-04-1/38SAE-M
FD90-1046-06-04 NIPPLE DIAGNOSTIC DF-04-1/1415-M
5400-S5-4 COUPLER - REFIGERATION RF-04-FN
5400-S2-4 NIPPLE - REFIGERATION RF-04-MN
5400-S5-8 COUPLER - REFIGERATION RF-08-FN
5400-S2-8 NIPPLE - REFIGERATION RF-08-MN
5400-S5-12 COUPLER - REFIGERATION RF-12-FN
5400-S2-12 NIPPLE - REFIGERATION RF-12-MN





信德迈科技（北京）有限公司 CNMEC Technology
美国DMK Engineering Solutions公司

地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 1096 2635
Http：//www.cnmec.biz
E-mail：sales@cnmec.biz
传真：010-8428 8762

京ICP备08000876号-1号
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
