CC系列安全气动快换接头

Eaton 的 CC 系列提供不受限制的空气流动，安全性好、效率高和极其耐用，所有这些都集中在这种气动快换接头中。

产品特征

- 为了安全，双套筒启动
- 外部聚合物结构，防止划伤精加
- 标准本体材料：内部本体为镀镍黄
- 员工的安全选择，由于有安全泄工表面 铜，外套为聚合物压，防止软管甩动
- 接受多种公头外形，灵活性极好

Hansen CC Series combines high flow, durability and safety Pneumatic Couplings pdf
CC系列安全气动快换接头

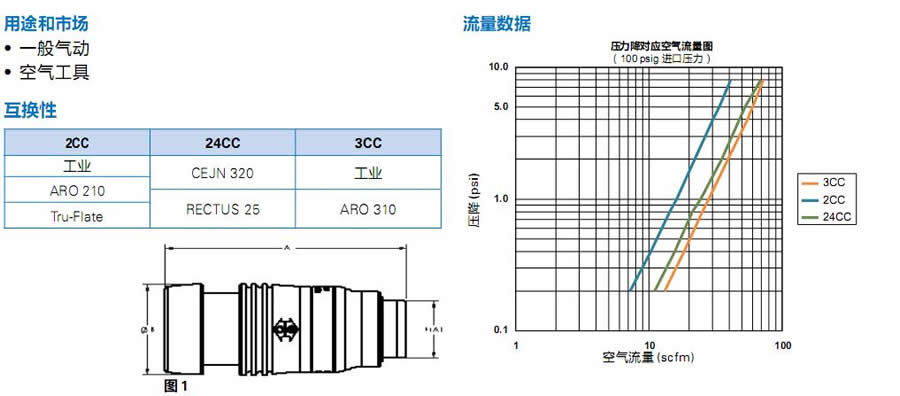

用途和市场
- 一般气动
- 空气工具

互换性

2CC 24CC 3CC
工业 CEJN 320 工业
ARO 210
RECTUS 25 ARO 310
Tru-Flate

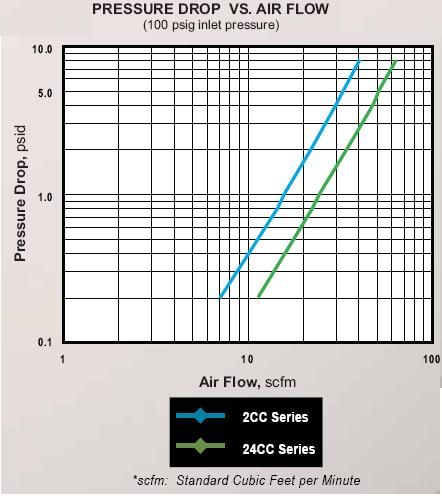

空气流量 (scfm)

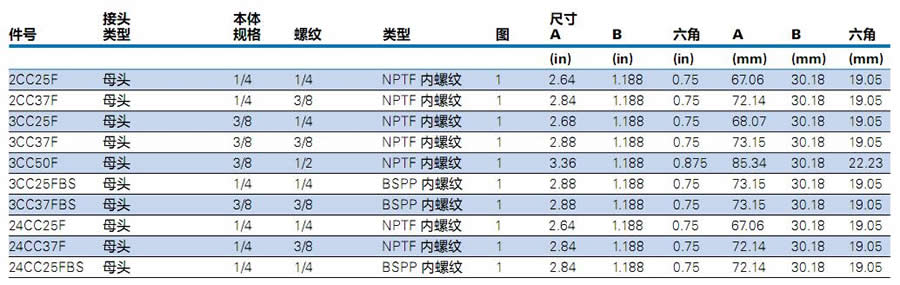

接头本体尺寸件号类型规格螺纹类型图 A B 六角 A B 六角
(in) (in) (in) (mm) (mm) (mm)
2CC25F 母头 1/4 1/4 NPTF 内螺纹 1 2.64 1.188 0.75 67.06 30.18 19.05
2CC37F 母头 1/4 3/8 NPTF 内螺纹 1 2.84 1.188 0.75 72.14 30.18 19.05
3CC25F 母头 3/8 1/4 NPTF 内螺纹 1 2.68 1.188 0.75 68.07 30.18 19.05
3CC37F 母头 3/8 3/8 NPTF 内螺纹 1 2.88 1.188 0.75 73.15 30.18 19.05
3CC50F 母头 3/8 1/2 NPTF 内螺纹 1 3.36 1.188 0.875 85.34 30.18 22.23
3CC25FBS 母头 1/4 1/4 BSPP 内螺纹 1 2.88 1.188 0.75 73.15 30.18 19.05
3CC37FBS 母头 3/8 3/8 BSPP 内螺纹 1 2.88 1.188 0.75 73.15 30.18 19.05
24CC25F 母头 1/4 1/4 NPTF 内螺纹 1 2.64 1.188 0.75 67.06 30.18 19.05
24CC37F 母头 1/4 3/8 NPTF 内螺纹 1 2.84 1.188 0.75 72.14 30.18 19.05
24CC25FBS 母头 1/4 1/4 BSPP 内螺纹 1 2.84 1.188 0.75 72.14 30.18 19.05

Hansen Safety Pneumatic Couplings by Hansen Couplings
Hansen_couplings-hansen_safety_pneumatic_couplings

Manufacturer: Hansen Couplings

The Hansen CC Series combines high flow, durability and safety features, making it the most innovative coupling on the market. The extremely high flow, lightweight design enhances workplace productivity. The ultra durable CC, constructed of nickel plated brass and crush resistant plastic, has exceeded stringent cycle testing of over 200,000 activations without leakage and can withstand over 4,500 pounds of pressure. Safety venting prevents hose whip and the two-step activation prevents accidental disconnect. The CC series accepts multiple US and European plug configurations and offers protection to finished surfaces with its non-marring feature.

Features:
- Two-sleeve activation for safety
- Non-marring polymer sleeves and rounded ends
- Nickel plated brass and crush resistant polymer
- Exceeds stringent cycle testing requirements, achieving over 200,000 activations without leakage
- Withstands 4,500 lbs of pressure without cracking

Applications:
- Any pneumatic application where productivity, maximum air flow, durability and safety are important.
