Aeroquip FD35 Series/ Arc Latch for 10,000 psi High Pressure Applications

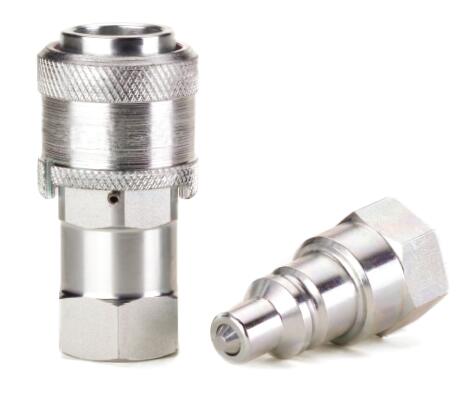

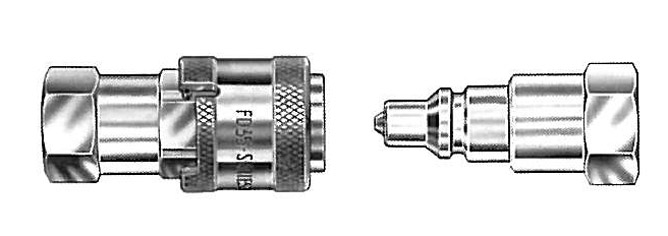

FD35 Series Arc Latch High Pressure Quick Disconnect

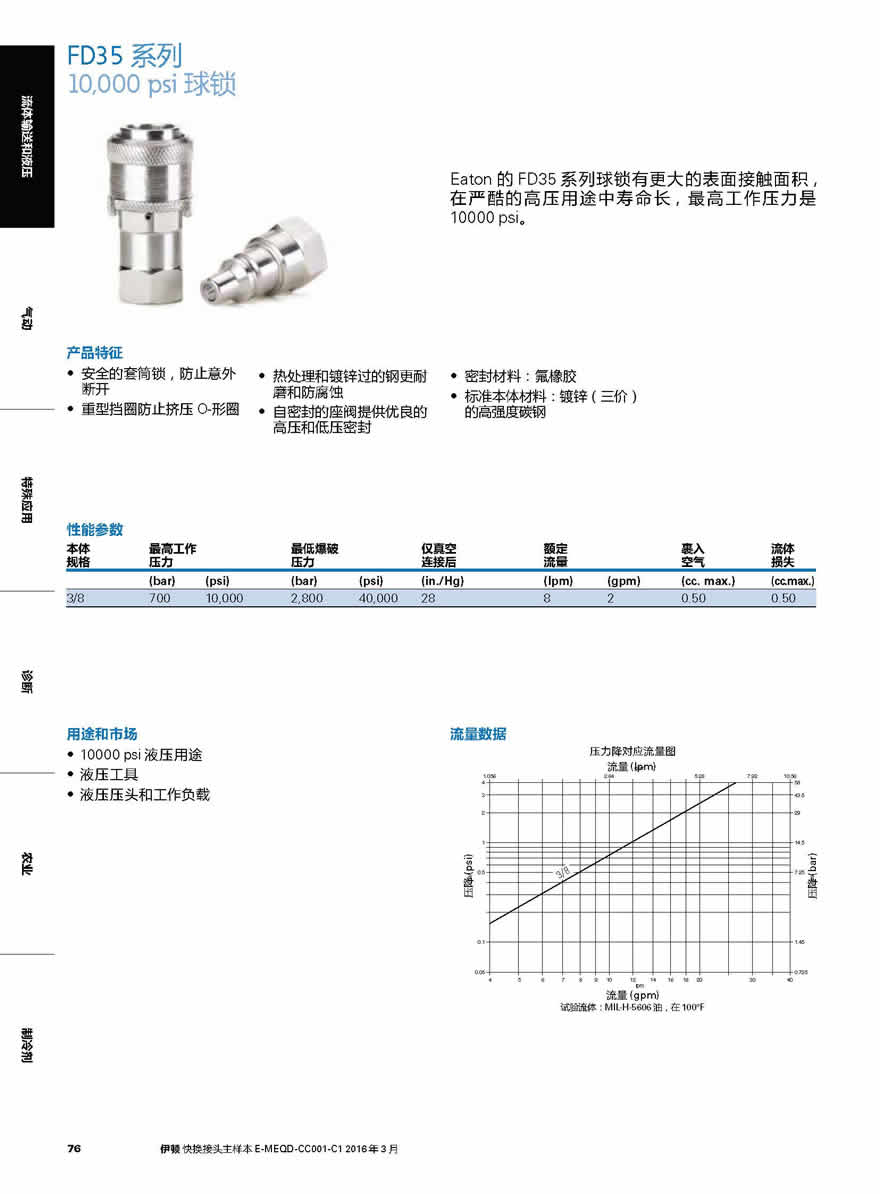

FD35系列 10,000 psi 球锁 FD35 Series 10,000 psi Ball Latch

Eaton的 FD35系列球锁有更大的表面接触面积，在严酷的高压用途中寿命长，最高工作压力是 10000 psi。FD35 Series Arc Latch design has a greater surface contact area for long surface life in rugged high pressure applications. The maximum operating pressure is 10,000 psi.- Safety sleeve lock prevents accidental disconnection.

产品特征
- 安全的套筒锁，防止意外断开
- 重型挡圈防止挤压 O-形圈
- 热处理和镀锌过的钢更耐磨和防腐蚀
- 自密封的座阀提供优良的高压和低压密封
- 密封材料：氟橡胶
- 标准本体材料：镀锌（三价）的高强度碳钢

- Heavy duty back-up ring prevents O-ring extrusion.
- Heat treated and plated steel for greater wear and corrosion resistance.
- Self-sealing poppet valves provide excellent high and low pressure sealing.
- Standard seal material - Viton.
- Standard body material - Zinc plated steel.

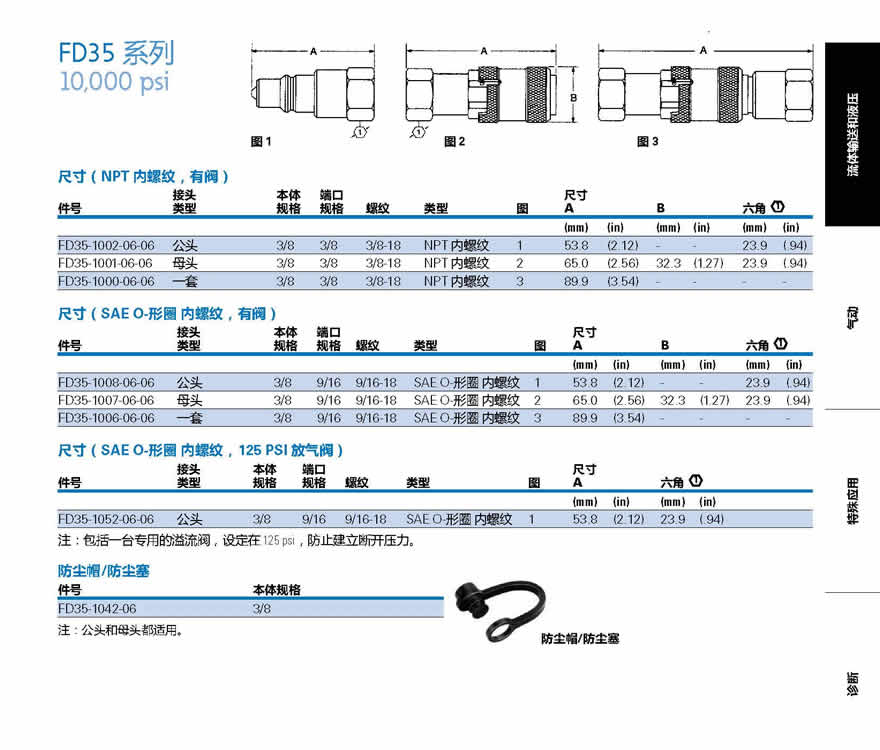

FD35系列
10,000 psi

尺寸（NPT 内螺纹，有阀）
接头本体端口尺寸件号类型规格规格螺纹类型图 A B 六角

(mm) (in) (mm) (in) (mm) (in)
FD35-1002-06-06 公头 3/8 3/8 3/8-18 NPT 内螺纹 1 53.8 (2.12) - - 23.9 (.94)
FD35-1001-06-06 母头 3/8 3/8 3/8-18 NPT 内螺纹 2 65.0 (2.56) 32.3 (1.27) 23.9 (.94)
FD35-1000-06-06 一套 3/8 3/8 3/8-18 NPT 内螺纹 3 89.9 (3.54) - - - -

尺寸（SAE O-形圈内螺纹，有阀）
接头本体 端口 尺寸
件号类型规格 规格 螺纹 类型 图 A B 六角

(mm) (in) (mm) (in) (mm) (in)

FD35-1008-06-06 公头 3/8 9/16 9/16-18 SAE O-形圈内螺纹 1 53.8 (2.12) - - 23.9 (.94)
FD35-1007-06-06 母头 3/8 9/16 9/16-18 SAE O-形圈内螺纹 2 65.0 (2.56) 32.3 (1.27) 23.9 (.94)
FD35-1006-06-06 一套 3/8 9/16 9/16-18 SAE O-形圈内螺纹 3 89.9 (3.54) - - - -

尺寸（SAE O-形圈内螺纹， 125 PSI 放气阀）
接头本体端口 尺寸
件号类型规格规格螺纹 类型 图 A 六角

(mm) (in) (mm) (in)

FD35-1052-06-06 公头 3/8 9/16 9/16-18 SAE O-形圈内螺纹 1 53.8 (2.12) 23.9 (.94)
注：包括一台专用的溢流阀，设定在 125 psi，防止建立断开压力。
防尘帽/防尘塞
件号本体规格
FD35-1042-06 3/8
注：公头和母头都适用。
防尘帽 /防尘塞

Item # Coupling Size Thread Size (P) Dim.- Hex(1) Seal Material Type

FD35-1002-06-06 -06 ;3/8-18 2.05 N/A0.94 inches BUNA-N Male Half - Female Pipe/Valved

FD35-1001-06-06 -06 ;3/8-18 2.56 1.27 0.94 inches BUNA-N Female Half - Female Pipe/Valved

FD35-1000-06-06 -06; 3/8-18 3.53 N/AN/ABUNA-N Complete Coupling - Female Pipe/Valved

FD35-1008-06-06 -06 ;9/16-18 2.05 N/A0.94 inches BUNA-N Male Half - Female SAE O-ring/Valved

FD35-1007-06-06 -06; 9/16-18 2.56 1.27 0.94 inches BUNA-N Female Half - Female SAE O-ring/Valved

FD35-1006-06-06 -06 ;9/16-18 3.53 N/AN/AViton? Complete Coupling - Female SAE O-ring/Valved

FD35-1043-06-06 -06 ;3/8-18 2.05 N/A0.94 inches Viton? Male Half - Female Pipe/45 psi Bleed Valve

FD35-1044-06-06 -06 ;9/16-18 2.12 N/A0.94 inches Viton? Male Half - Female SAE O-Ring/45 psi Bleed Valve

FD35-1042-06 -06 ;N/AN/AN/AN/AN/ADUST COVER
