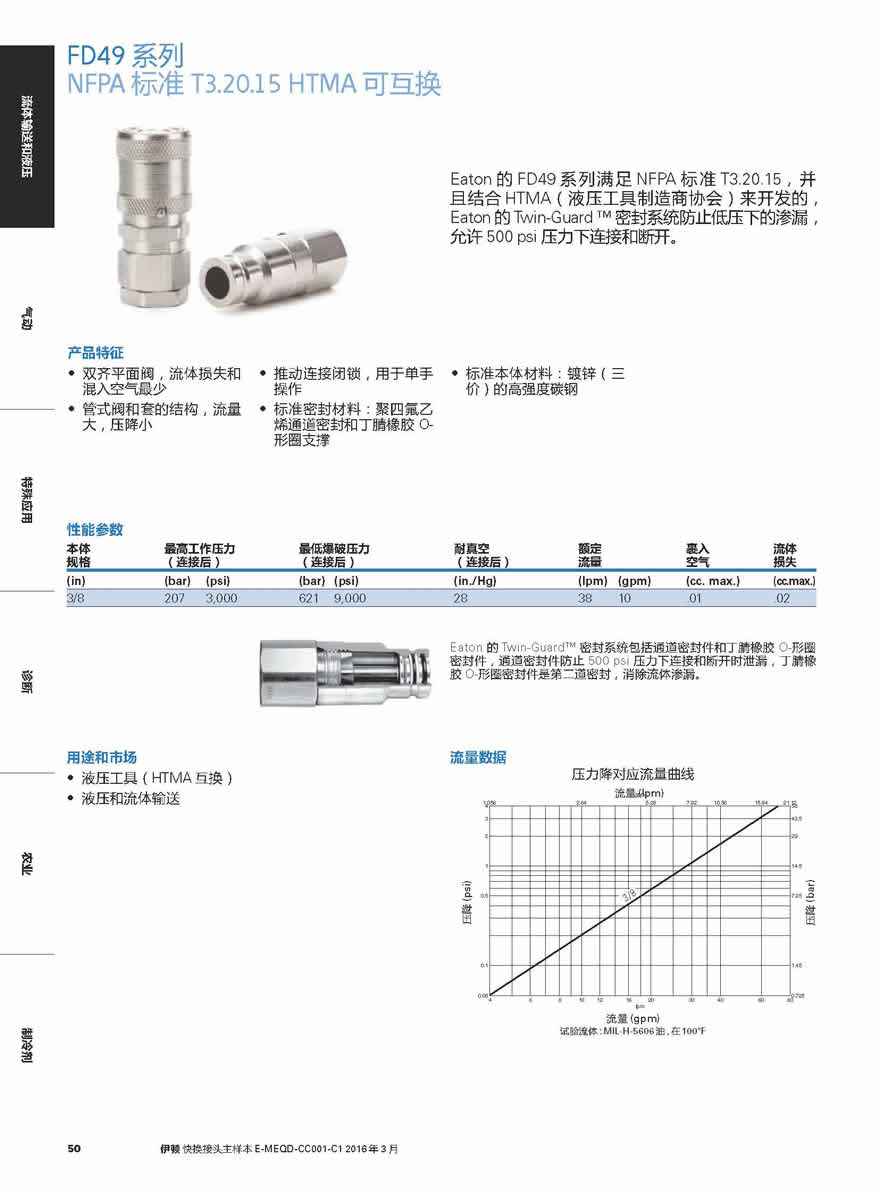

FD49系列 NFPA 标准 T3.20.15 HTMA 可互换
FD49 Series NFPA Standard T3.20.15 HTMA Interchange
Eaton的 FD49系列满足 NFPA标准 T3.20.15，并且结合 HTMA（液压工具制造商协会）来开发的， Eaton的 Twin-Guard . 密封系统防止低压下的渗漏，允许 500 psi压力下连接和断开。Eaton’s FD49 Series meets NFPA standard
T3.20.15 and was developed in conjunction with
HTMA (Hydraulic Tool Manufacturer’s ssociation).
Eaton’s Twin-Guard? sealing system prevents
seepage at low pressures and allows connection
and disconnection against pressure up to 500 psi.
FD49系列 NFPA 标准 T3.20.15 HTMA 可互换
FD49 Series NFPA Standard T3.20.15 HTMA Interchange
产品特征
- 双齐平面阀，流体损失和
- 推动连接闭锁，用于单手
- 标准本体材料：镀锌（三混入空气最少 操作 价）的高强度碳钢
- 管式阀和套的结构，流量
- 标准密封材料：聚四氟乙大，压降小 烯通道密封和丁腈橡胶 O-形圈支撑
用途和市场
- 液压工具（HTMA 互换）
- 液压和流体输送
Eaton的 Twin-Guard.密封系统包括通道密封件和丁腈橡胶 O-形圈密封件，通道密封件防止 500 psi 压力下连接和断开时泄漏，丁腈橡胶 O-形圈密封件是第二道密封，消除流体渗漏。

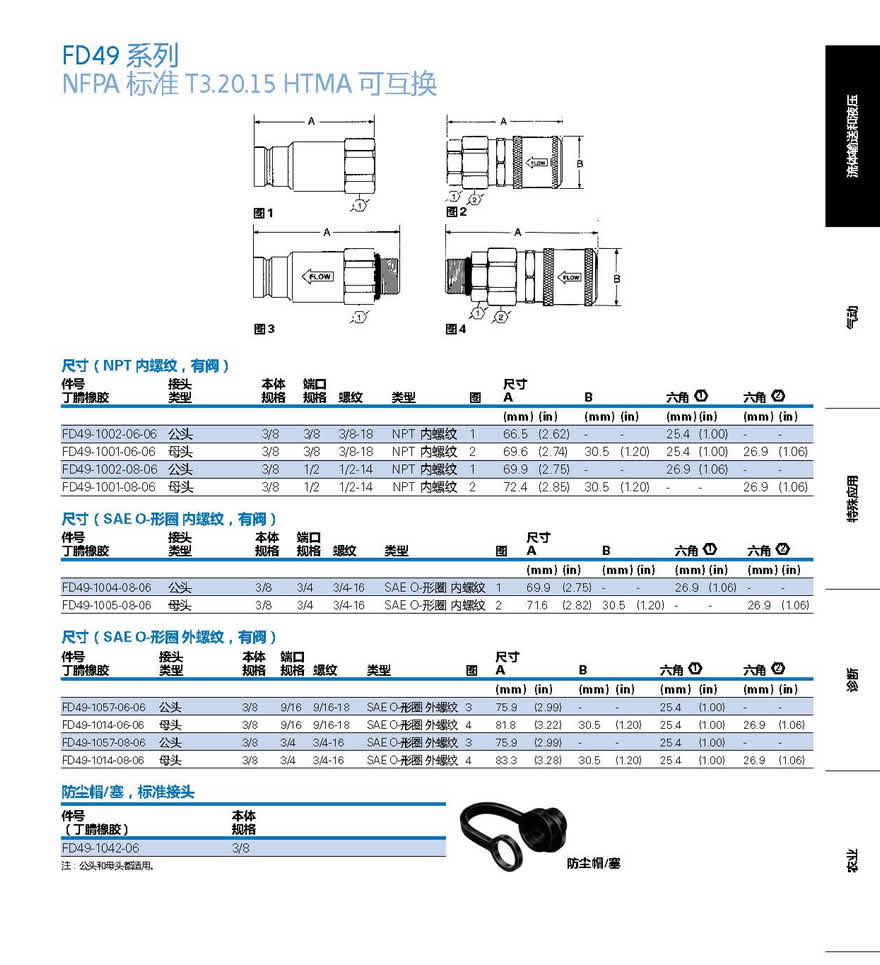

尺寸（NPT 内螺纹，有阀）
件号 接头 本体 端口 尺寸
丁腈橡胶 类型 规格 规格 螺纹 类型 图 A B 六角
六角
(mm) (in) (mm) (in) (mm) (in) (mm) (in)
FD49-1002-06-06 公头 3/8 3/8 3/8-18 NPT 内螺纹 1 66.5 (2.62) - - 25.4 (1.00) - -
FD49-1001-06-06 母头 3/8 3/8 3/8-18 NPT 内螺纹 2 69.6 (2.74) 30.5 (1.20) 25.4 (1.00) 26.9 (1.06)
FD49-1002-08-06 公头 3/8 1/2 1/2-14 NPT 内螺纹 1 69.9 (2.75) - - 26.9 (1.06) - -
FD49-1001-08-06 母头 3/8 1/2 1/2-14 NPT 内螺纹 2 72.4 (2.85) 30.5 (1.20) - - 26.9 (1.06)
尺寸（SAE O-形圈内螺纹，有阀）
件号接头本体 端口 尺寸
丁腈橡胶类型规格 规格 螺纹 类型 图 A B 六角
六角
(mm) (in) (mm) (in) (mm) (in) (mm) (in)
FD49-1004-08-06 公头 3/8 3/4 3/4-16 SAE O-形圈内螺纹 1 69.9 (2.75) --26.9 (1.06) --
FD49-1005-08-06 母头 3/8 3/4 3/4-16 SAE O-形圈内螺纹 2 71.6 (2.82) 30.5 (1.20) - - 26.9 (1.06)
尺寸（SAE O-形圈外螺纹，有阀）
件号接头本体端口 尺寸
丁腈橡胶类型规格规格螺纹类型图 A B 六角
六角
(mm) (in) (mm) (in) (mm) (in) (mm) (in)
FD49-1057-06-06 公头 3/8 9/16 9/16-18 SAE O-形圈外螺纹 3 75.9 (2.99) - - 25.4 (1.00) - -
FD49-1014-06-06 母头 3/8 9/16 9/16-18 SAE O-形圈外螺纹 4 81.8 (3.22) 30.5 (1.20) 25.4 (1.00) 26.9 (1.06)
FD49-1057-08-06 公头 3/8 3/4 3/4-16 SAE O-形圈外螺纹 3 75.9 (2.99) - - 25.4 (1.00) - -
FD49-1014-08-06 母头 3/8 3/4 3/4-16 SAE O-形圈外螺纹 4 83.3 (3.28) 30.5 (1.20) 25.4 (1.00) 26.9 (1.06)
防尘帽/塞，标准接头

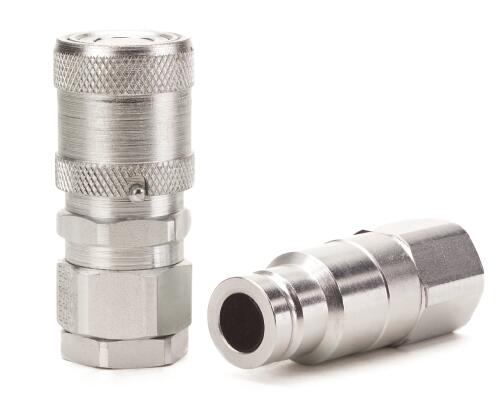

Aeroquip FD49 Series/ HTMA Flush Face, Hydraulic Tool

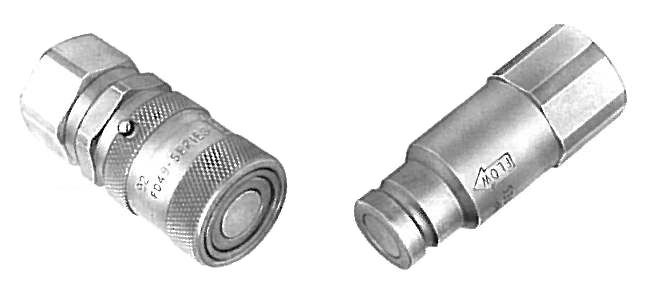

FD49 Series HTMA Flush Face Hydraulic Tool Quick Disconnect
FD49 Series meets NFPA standard T3.20.15, which was developed in conjunction with HTMA (Hydraulic Tool Manufacturer's Association).- Twin Guard sealing system prevents weepage and allows connection and disconnection against pressure up to 500 psi.
- Dual flush face valving for minimal fluid loss and air inclusion.
- Tubular valve and sleeve construction for high fluid flow with low pressure drop.
- Push-to-connect latching for one hand operation.
- Standard sealing material - Teflon channel seal and Buna-N O-ring backup.
- Standard body material - Zinc plated steel.
Item # |
Coupling Size |
Thread Size (P) |
Dim.- Hex(1) |
FD49-1002-06-06 |
-6 |
3/8-18 |
N/A Male Half - Female Pipe/Valved |
FD49-1002-08-06 |
-6 |
1/2-14 |
N/A Male Half - Female Pipe/Valved |
FD49-1004-06-06 |
-6 |
9/16-18 |
N/A Male Half - Female SAE O-ring/Valved |
FD49-1004-08-06 |
-6 |
3/4-16 |
N/A Male Half - Female SAE O-ring/Valved |
FD49-1057-06-06 |
-6 |
9/16-18 |
N/A Male Half - Male SAE O-Ring/Valved |
FD49-1057-08-06 |
-6 |
3/4-16 |
N/A Male Half - Male SAE O-Ring/Valved |
FD49-1001-06-06 |
-6 |
3/8-18 |
Female Half - Female Pipe/Valved |
FD49-1001-08-06 |
-6 |
1/2-14 |
Female Half - Female Pipe/Valved |
FD49-1005-08-06 |
-6 |
3/4-16 |
Female Half - Female SAE O-ring/Valved |
FD49-1014-06-06 |
-6 |
9/16-18 |
Female Half - Male SAE O-Ring/Valved |
FD49-1014-08-06 |
-6 |
3/4-16 |
Female Half - Male SAE O-Ring/Valved |
FD49-1200-06-06 |
-6 |
3/8-18 |
Female Half/Heavy Duty Sleeve - Female Pipe/Valved |
FD49-1200-08-06 |
-6 |
1/2-14 |
Female Half/Heavy Duty Sleeve - Female Pipe/Valved |
FD49-1042-06 |
-6 |
N/A N/A N/A N/A N/A Dust Cover For Standard Coupling |
|
FD49-1088-06 |
-6 |
N/A N/A N/A N/A N/A Dust Cover For Heavy Duty Coupling |
|
FD49-1002-06-06 Male 3/8 3/8 3/8-18 Female NPT 1 66.5 (2.62) - - 25.4 (1.00) - -
FD49-1001-06-06 Female 3/8 3/8 3/8-18 Female NPT 2 69.6 (2.74) 30.5 (1.20) 25.4 (1.00) 26.9 (1.06)
FD49-1002-08-06 Male 3/8 1/2 1/2-14 Female NPT 1 69.9 (2.75) - - 26.9 (1.06) - -
FD49-1001-08-06 Female 3/8 1/2 1/2-14 Female NPT 2 72.4 (2.85) 30.5 (1.20) - - 26.9 (1.06)
FD49-1004-08-06 Male 3/8 3/4 3/4-16 Female SAE O-ring 1 69.9 (2.75) - - 26.9 (1.06) - -
FD49-1005-08-06 Female 3/8 3/4 3/4-16 Female SAE O-ring 2 71.6 (2.82) 30.5 (1.20) - - 26.9 (1.06)
FD49-1057-06-06 Male 3/8 9/16 9/16-18 Male SAE O-ring 3 75.9 (2.99) - - 25.4 (1.00) - -
FD49-1014-06-06 Female 3/8 9/16 9/16-18 Male SAE O-ring 4 81.8 (3.22) 30.5 (1.20) 25.4 (1.00) 26.9 (1.06)
FD49-1057-08-06 Male 3/8 3/4 3/4-16 Male SAE O-ring 3 75.9 (2.99) - - 25.4 (1.00) - -
FD49-1014-08-06 Female 3/8 3/4 3/4-16 Male SAE O-ring 4 83.3 (3.28) 30.5 (1.20) 25.4 (1.00) 26.9 (1.06)
FD49-1042-06 3/8
|
