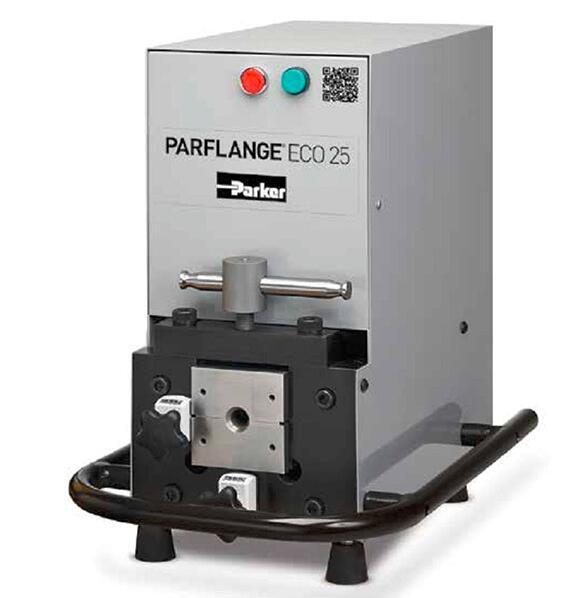

Parflange ECO 25 Flaring and Flanging System

Parker's Parflange ECO 25 provides fast, leak-free flange and flare tube connections for Seal-Lok O-ring Face Seal (ORFS) and Triple-Lok 37° Flare JIC fittings.





Parker's Parflange? ECO 25 provides fast, leak-free flange and flare tube connections for Seal-Lok O-ring Face Seal (ORFS) and Triple-Lok 37° Flare JIC fittings. Using an orbital spindle process, it produces high-quality, consistent flanges and flares with a smooth mating surface in less than 45 seconds. Parflange technology creates a competitive advantage for our customers through fast, consistent, and reliable leak-free connections which result in reduced costs and additional revenue.



Parflange ECO 25 Flaring and Flanging System



Features/Benefits:
- Produces a high-quality flange with smooth mating surface (up to 1 ?” OD), eliminating the need for expensive, time-consuming brazing of the sleeve to the tube end.
- Dies have the flanging (90°) surface on one side and the flaring (37°) surface on the other, allowing the die to both flange and flare the same size tubing.
- Adjustable tube wall stop allows one die to work for all wall thicknesses of that size tube in both steel and stainless steel.
- Portable bench or cart mounted machine.
- Flanges and flares steel and stainless steel tube from ?” up to 1 ?” OD.
- Also flanges stainless steel coiled tube sizes common in CNG applications.

Applications:
- Flanging and flaring steel and stainless steel tube for O-ring Face Seal (ORFS) and 37° flare connections in industrial and mobile applications.

Technical Characteristics:
- Available in 100-volt single-phase.
- Dimensions are 21” x 15” x 21” and weighs 202 lbs.
- Used with hand hydraulic pump, which is sold separately or part of the ECO 25 Kit.
- There is a kit option available which includes the basic unit, hand hydraulic pump, hose assembly, pressure gauge, hydraulic pump adapter, hydraulic pump tee, pressure gauge adapter, hose conversion adapters (6 G6L-S & 6-6 G6L-S), lubrication fluid and operation manual. Pins and dies are purchased separately.



Technical Specifications

Size: 1/4 to 1-1/2 inch, 6 - 38 mm
Product Type: Flaring Tool, Flanging Tool
Tube Material: Steel and Stainless Steel
Input Voltage: 110V/20A single-phase V
Flange Tube Size Range: Steel Tube: ?? x .028 through 1 ? x .134 and Stainless Steel Tube: ?? x .028 through 1 1/2? X .120 inch
Flare Tube Size Range: Steel and Stainless Steel Tube: ?? x .020 through 1 ? x .120 inch
Throughput: 50 per day
Power Supply Voltage: Requires an External Hand Pump (sold separately), or included in the kit
Includes: Basic unit, hand hydraulic pump, hose assembly, pressure gauge, hydraulic pump adapter, hydraulic pump tee, pressure gauge adapter, hose conversion adapters (6 G6L-S & 6-6 G6L-S), lubrication fluid and operation manual



Parflange ECO 25 Flaring and Flanging System 型号

Part Options
ECO 25 Basic Unit
ECO 25 Kit Kit
