Parker Fittings接头 - Pneumatic Fittings
Pneumatic Push-In Fittings - LF 3000系列快插式接头

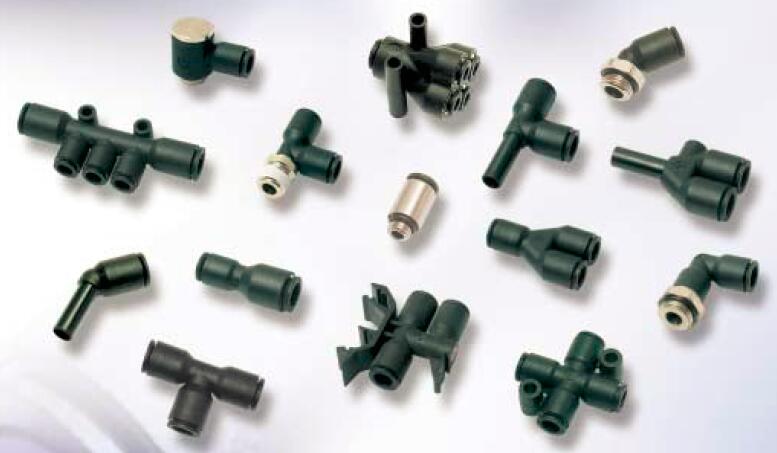

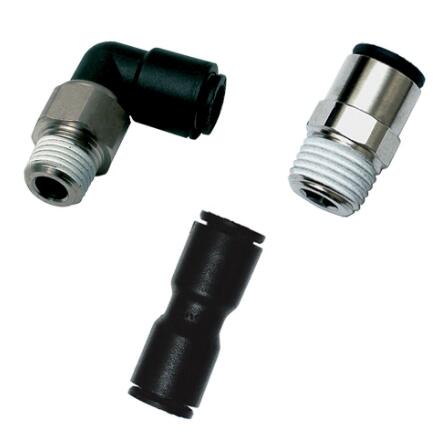

Parker派克LF 3000 系列快插式接头

Parker派克LF 3000 系列快插式接头系列有多种形状和尺寸,您可以找到符合您需求的优质产品,从而优化设备的使用。LF 3000 系列快插式接头系列有多种形状和尺寸,您可以找到符合您需求的理想产品,从而优化设备的使用。推动式连接是将接头连接到管子,创建管路连接系统的非常直观有效的方法。由于其快速安装,多功能性和长久的使用寿命,推入式接头连接方式有助于提高机器效率。此外,LF3000 的高级设计有助于降低总体使用成本。



PARKER LEGRIS Pneumatic Push-In Fittings - LF 3000


The LF 3000 pneumatic fitting range, with its wide variety of shapes and configurations, allows you to find the perfect connector to meet your needs and thus optimise the use of your equipment. The LF 3000 pneumatic fitting range, with its wide variety of shapes and configurations, allows you to find the perfect connector to meet your needs and thus optimise the use of your equipment. The push-in fitting is the most intuitive way of connecting tubes to a fitting in order to create a fluid distribution network. Thanks to its quick installation, versatility and exceptional lifespan, the push-in fitting contributes to improving machine efficiency. Moreover, the advanced patented design of the LF 3000 contributes to reducing total cost of use.

特点/优点:

- 卓越的品质

- 40年的理论知识
- 符合ISO 14743标准
- 真空或压力应用的理想选择
- 根据DI 2006/42 / CE要求进行试验和测试的寿命
- 具有高电阻材料
- 产品和设备的耐久性

- 显著提高机器效率

- 生产环节防泄漏全检
- 实现更好流量的全通径设计
- 在连接过程中固定管道,预防泄露
- 不同寻常的密封技术,卓越的真空性能

- 生产效率和保养改善

- 紧凑和美观的设计:减少尺寸,节省空间
- 质量轻:降低操作系统的能耗
- 带有不同寻常的沟槽O形密封圈的直螺纹接头
- 由于产品范围广泛,灵活性很高
- 实现质量追踪的可追溯性日期代码
- 在静态和动态应用中达到自动密封

市场:

- 工厂自动化
- 车辆装配设施
- 食品和饮料
- 半导体
- 服装
- 包装机械

应用:

- 气动机械设备
- 低压压缩空气输送
- 适用于真空应用

技术:

- 快插接头
- 推入式连接接头
- 气动接头
- 即时接头
- 快速接头
- 管路连接
- 旋转接头

技术特点:

- 流体:压缩空气,其他流体:请咨询我们
- 材料:工程材料,镀镍黄铜,NBR
- 压力:真空至20bar
- 温度:-20°C至+ 80°C
- ? 公制:4mm至16mm
- ? 英制:1/8 英寸 1/2英寸

法规:

- ISO 14743:气动流体动力,用于热塑管的快插接头
- DI:97/23/EC (PED)
- DI :2002/95/EC (RoHS), 2011/65/EC
- DI :1907/2006 (REACH)

产品类型:

- 油口接头
- 尾管油口接头
- 油口弯头
- 加长油口弯头
- 弯头
- 支路油口三通
- 直路油口三通
- Y形接头
- 双Y形接头
- 管对管接头
- 等径以及异径管对管接头
- 等径以及异径弯头
- 等径以及异径三通
- 等径以及异径Y形接头
- 等径以及异径十字接头
- 隔板连接接头
- 等径隔板连接接头
- 等径隔板混合连接接头
- 隔板接头
- 等径隔板弯头
- 多功能接头
- 等径以及异径多功能Y形接头
- 多功能三通
- 90°多功能弯头
- 管路阀块
- 快插接头及附加
- 等径以及异径快插弯头
- 等径快插弯头
- 等径以及异径快插弯头
- 45°等径快插弯头
- 等径以及异径直管三通
- 等径以及异径快插支管接头
- 等径以及异径快插Y形接头
- 多功能Y形快插接头
- 尾管连接接头
- 快插式减径以及膨胀接头
- 堵头
- 快插宝塔接头
- 管帽


Features/Benefits:

- Extreme Durability for Optimum Profitability

- 40 years of expertise
- Conforms to ISO 14743
- Ideal for vacuum or pressure applications
- Tried-and-tested longevity according to DI 2006/42/CE requirements
- Materials with high resistance
- Durability of product and equipment

- Maximum Machine Efficiency

- 100% leak-tested in production
- Full bore for optimum flow
- Tube fixed during connection, preventing leakage
- Excellent vacuum performance thanks to the patented sealing technology

- Productivity & Maintenance Improvement

- Compact and aesthetic design: reduced dimensions for space-saving
- Lightweight: reduced energy consumption of operating systems
- Parallel threaded fitting with a patented captive O-ring seal
- Maximum flexibility due to the wide product range
- Date coding to guarantee quality and traceability
- Automatic sealing guaranteed, in both static and dynamic applications

Markets:

- Factory Automation
- Vehicule Assembly Facilities
- Food and Beverage
- Semiconductor
- Wearing Apparel
- Packaging Machinery

Applications:

- Pneumatic Machinery Equipment
- Low Pressure Compressed Air Conveying
- Suitable for Vaccum Applications

Technologies:

- Push-In Fittings
- Push-to-Connect Fittings
- Pneumatic Fittings
- Instant Fittings
- Quick Fittings
- Connectors
- Swivel Fittings

Technical Characteristics:

- Fluids: Compressed Air, Other fluids: please consult us
- Materials: Technical polymer, nickel-plated brass, NBR
- Pressure: Vacuum to 20 bar
- Temperature: -20°C to +80°C
- ? Metric: 4mm to 16 mm
- ? Inch: 1/8" to 1/2"

Regulations:

- ISO 14743: Pneumatic fluid power, push-in connectors for thermoplastic tubes
- DI: 97/23/EC (PED)
- DI : 2002/95/EC (RoHS), 2011/65/EC
- DI : 1907/2006 (REACH)

Product Types:

- Stud Fittings
- Stud Standpipe
- Stud Elbow
- Extended Stud Elbow
- Elbow
- Stud Branch Tee
- Stud Run Tee
- Y Piece
- Double Y Piece
- Tube-to-Tube Fittings
- Equal & Unequal Tube-to-Tube Connector
- Equal & Unequal Elbow
- Equal & Unequal Tee
- Equal & Unequal Single Y Piece
- Equal & Unequal Cross
- Bulkhead Connector Fittings
- Equal Bulkhead Connector
- Equal Mixed Bulkhead Connector
- Bulkhead Connector
- Equal Bulkhead Elbow
- Multiple Fittings
- Equal & Unequal Multiple Y Piece
- Multiple Tee
- 90° Multiple Elbow
- In-Line Manifold
- Plug-In Fittings and Accessories
- Equal & Unequal Plug-In Elbow
- Equal Plug-In Elbow
- Extended Equal and Unequal Plug-In Elbow
- 45° Plug-In Equal Elbow
- Equal & Unequal Plug-In Run Tee
- Equal & Unequal Plug-In Branch Tee
- Equal & Unequal Plug-In Single Y Piece
- Multiple Plug-In Y Piece
- Stem Connector
- Plug-In Reducer & Increaser
- Blanking Plug
- Plug-In Barb Connector
- End Cap





Technical Specifications

Application: Compressed Air/Inert Gas, Automotive Process, Pneumatics, Semiconductors, Packaging, Manufacturing equipment, Vaccum, Various
Minimum Operating Temperature: -20 °C, -4 °F
Maximum Operating Pressure: 2 MPa, 20 bar, 290 psi, 20 barg
Maximum Operating Temperature: 176 °F, 80 °C
Tube Outside Diameter: 4 to 16 mm
Specifications Met: DI: 2006/42/EC test according to ISO 19973-5 - ISO 14743 - DI: 97/23/EC (PED) - DI: 2002/95/EC (RoHs), 2011/65/EC, ISO 14743, DI: 97/23/EC (PED), DI : 2002/95/EC (RoHS), 2011/65/EC, DI : 1907/2006 (REACH)
Connection Type: Push-to-Connect, Push-to-Connect/Plug-in, Push-to-Connect/Thread, Thread/Plug-in, Plug-in/Barb
Shape: Straight, 90°, 45°, Tee, Y, Multiple
Materials of Construction: Technical Polymer, Nickel Plated Brass, Rubber
O-Ring Material: NBR
Gripping Ring Material: STAINLESS STEEL
Thread Sealant Material: PTFE
Vacuum Pressure Rating: 755 mm-Hg
Quantity per Box: 1 to 50
Weight: 0,003 to 0,084 kg
Media: Compressed Air, Other fluids: please consult us



Pneumatic Push-In Fittings - LF 3000 型号



Part Product Type Shape Connection 1 Thread Style Connection 1 Thread Size (metric) Connection 1 Tube O.D. (inch) Connection 1 Tube O.D. (mm) Connection 2 Tube O.D. (inch) Connection 2 Tube O.D. (mm) Connection 3 Tube O.D. (inch) Connection 3 Tube O.D. (mm) Connection 4 Tube O.D. (inch) Connection 4 Tube O.D. (mm)
3101 03 09 Stud Fittings Male stud fitting thread Metric M3x0,5 na na na 3 na na na na
3101 03 19 Stud Fittings Male stud fitting thread Metric M5x0,8 na na na 3 na na na na
3101 04 09 Stud Fittings Male stud fitting thread Metric M3x0,5 na na 5/32 4 na na na na
3101 04 10 Stud Fittings Male stud fitting thread BSPP G1/8 na na 5/32 4 na na na na
3101 04 13 Stud Fittings Male stud fitting thread BSPP G1/4 na na 5/32 4 na na na na
3101 04 19 Stud Fittings Male stud fitting thread Metric M5x0,8 na na 5/32 4 na na na na
3101 04 55 Stud Fittings Male stud fitting thread Metric M7x1 na na 5/32 4 na na na na
3101 06 10 Stud Fittings Male stud fitting thread BSPP G1/8 na na na 6 na na na na
3101 06 13 Stud Fittings Male stud fitting thread BSPP G1/4 na na na 6 na na na na
3101 06 17 Stud Fittings Male stud fitting thread BSPP G3/8 na na na 6 na na na na
3101 06 19 Stud Fittings Male stud fitting thread Metric M5x0,8 na na na 6 na na na na
3101 06 21 Stud Fittings Male stud fitting thread BSPP G1/2 na na na 6 na na na na
3101 06 55 Stud Fittings Male stud fitting thread Metric M7x1 na na na 6 na na na na
3101 06 60 Stud Fittings Male stud fitting thread Metric M10x1 na na na 6 na na na na
3101 06 67 Stud Fittings Male stud fitting thread Metric M12x1,5 na na na 6 na na na na
3101 08 10 Stud Fittings Male stud fitting thread BSPP G1/8 na na 5/16 8 na na na na
3101 08 13 Stud Fittings Male stud fitting thread BSPP G1/4 na na 5/16 8 na na na na
3101 08 17 Stud Fittings Male stud fitting thread BSPP G3/8 na na 5/16 8 na na na na
3101 08 21 Stud Fittings Male stud fitting thread BSPP G1/2 na na 5/16 8 na na na na
3101 08 60 Stud Fittings Male stud fitting thread Metric M10x1 na na na 8 na na na na
3101 08 67 Stud Fittings Male stud fitting thread Metric M12x1,5 na na na 8 na na na na
3101 10 13 Stud Fittings Male stud fitting thread BSPP G1/4 na na na 10 na na na na
3101 10 17 Stud Fittings Male stud fitting thread BSPP G3/8 na na na 10 na na na na
3101 10 21 Stud Fittings Male stud fitting thread BSPP G1/2 na na na 10 na na na na
3101 12 13 Stud Fittings Male stud fitting thread BSPP G1/4 na na na 12 na na na na
3101 12 17 Stud Fittings Male stud fitting thread BSPP G3/8 na na na 12 na na na na
3101 12 21 Stud Fittings Male stud fitting thread BSPP G1/2 na na na 12 na na na na
3101 14 17 Stud Fittings Male stud fitting thread BSPP G3/8 na na na 14 na na na na
3101 14 21 Stud Fittings Male stud fitting thread BSPP G1/2 na na na 14 na na na na
3101 16 17 Stud Fittings Male stud fitting thread BSPP G3/8 na na na 16 na na na na
3101 16 21 Stud Fittings Male stud fitting thread BSPP G1/2 na na na 16 na na na na
3102 04 00 Tube-to-Tube Fittings Elbow 90° tube/tube na na 5/32 4 5/32 4 na na na na
3102 04 06 Tube-to-Tube Fittings Elbow 90° tube/tube na na na 4 na 6 na na na na
3102 06 00 Tube-to-Tube Fittings Elbow 90° tube/tube na na na 6 na 6 na na na na
3102 06 08 Tube-to-Tube Fittings Elbow 90° tube/tube na na na 6 na 8 na na na na
3102 08 00 Tube-to-Tube Fittings Elbow 90° tube/tube na na 5/16 8 5/16 8 na na na na
3102 08 10 Tube-to-Tube Fittings Elbow 90° tube/tube na na na 8 na 10 na na na na
3102 10 00 Tube-to-Tube Fittings Elbow 90° tube/tube na na na 10 na 10 na na na na
3102 10 12 Tube-to-Tube Fittings Elbow 90° tube/tube na na na 10 na 12 na na na na
3102 12 00 Tube-to-Tube Fittings Elbow 90° tube/tube na na na 12 na 12 na na na na
3102 14 00 Tube-to-Tube Fittings Elbow 90° tube/tube na na na 14 na 14 na na na na
3102 16 00 Tube-to-Tube Fittings Elbow 90° tube/tube na na na 16 na 16 na na na na
3102 56 00 Tube-to-Tube Fittings Elbow 90° tube/tube na na 1/4 na 1/4 na na na na na
3102 60 00 Tube-to-Tube Fittings Elbow 90° tube/tube na na 3/8 na 3/8 na na na na na
3102 62 00 Tube-to-Tube Fittings Elbow 90° tube/tube na na 1/2 na 1/2 na na na na na
3103 04 10 Stud Fittings Male stud run tee adjustable thread BSPT R1/8 na na 5/32 4 na na na na
3103 04 13 Stud Fittings Male stud run tee adjustable thread BSPT R1/4 na na 5/32 4 na na na na
3103 06 10 Stud Fittings Male stud run tee adjustable thread BSPT R1/8 na na na 6 na na na na
3103 06 13 Stud Fittings Male stud run tee adjustable thread BSPT R1/4 na na na 6 na na na na
3103 08 10 Stud Fittings Male stud run tee adjustable thread BSPT R1/8 na na 5/16 8 na na na na
3103 08 13 Stud Fittings Male stud run tee adjustable thread BSPT R1/4 na na 5/16 8 na na na na
3103 08 17 Stud Fittings Male stud run tee adjustable thread BSPT R3/8 na na 5/16 8 na na na na
3103 08 18 Stud Fittings Male stud run tee adjustable thread NPT NPT3/8 na na 5/16 na na na na na
3103 10 13 Stud Fittings Male stud run tee adjustable thread BSPT R1/4 na na na 10 na na na na
3103 10 17 Stud Fittings Male stud run tee adjustable thread BSPT R3/8 na na na 10 na na na na
3103 10 21 Stud Fittings Male stud run tee adjustable thread BSPT R1/2 na na na 10 na na na na
3103 12 13 Stud Fittings Male stud run tee adjustable thread BSPT R1/4 na na na 12 na na na na
3103 12 17 Stud Fittings Male stud run tee adjustable thread BSPT R3/8 na na na 12 na na na na
3103 12 21 Stud Fittings Male stud run tee adjustable thread BSPT R1/2 na na na 12 na na na na
3103 14 21 Stud Fittings Male stud run tee adjustable thread BSPT R1/2 na na na 14 na na na na
3103 16 17 Stud Fittings Male stud run tee adjustable thread BSPT R3/8 na na na 16 na na na na
3103 16 21 Stud Fittings Male stud run tee adjustable thread BSPT R1/2 na na na 16 na na na na
3103 53 20 Stud Fittings Male stud run tee adjustable thread UNF 10-32 na na 1/8 na na na na na
3103 56 10 Stud Fittings Male stud run tee adjustable thread BSPT R1/8 na na 1/4 na na na na na
3103 56 11 Stud Fittings Male stud run tee adjustable thread NPT NPT1/8 na na 1/4 na na na na na
3103 56 14 Stud Fittings Male stud run tee adjustable thread NPT NPT1/4 na na 1/4 na na na na na
3104 03 00 Tube-to-Tube Fittings Tee tube/tube na na na 3 na 3 na na na na
3104 04 00 Tube-to-Tube Fittings Tee tube/tube na na 5/32 4 5/32 4 na na na na
3104 04 06 Tube-to-Tube Fittings Tee tube/tube na na na 4 na 6 na na na na
3104 04 56 Tube-to-Tube Fittings Tee tube/tube na na 5/32 na 1/4 na na na na na
3104 06 00 Tube-to-Tube Fittings Tee tube/tube na na na 6 na 6 na na na na
3104 06 04 Tube-to-Tube Fittings Tee tube/tube na na na 6 na 4 na na na na
3104 06 08 Tube-to-Tube Fittings Tee tube/tube na na na 6 na 8 na na na na
3104 08 00 Tube-to-Tube Fittings Tee tube/tube na na 5/16 8 5/16 8 na na na na
3104 08 04 Tube-to-Tube Fittings Tee tube/tube na na na 8 na 4 na na na na
3104 08 06 Tube-to-Tube Fittings Tee tube/tube na na na 8 na 6 na na na na
3104 08 10 Tube-to-Tube Fittings Tee tube/tube na na na 8 na 10 na na na na
3104 10 00 Tube-to-Tube Fittings Tee tube/tube na na na 10 na 10 na na na na
3104 10 04 Tube-to-Tube Fittings Tee tube/tube na na na 10 na 4 na na na na
3104 10 08 Tube-to-Tube Fittings Tee tube/tube na na na 10 na 8 na na na na
3104 10 12 Tube-to-Tube Fittings Tee tube/tube na na na 10 na 12 na na na na
3104 12 00 Tube-to-Tube Fittings Tee tube/tube na na na 12 na 12 na na na na
3104 12 04 Tube-to-Tube Fittings Tee tube/tube na na na 12 na 4 na na na na
3104 12 10 Tube-to-Tube Fittings Tee tube/tube na na na 12 na 10 na na na na
3104 14 00 Tube-to-Tube Fittings Tee tube/tube na na na 14 na 14 na na na na
3104 14 08 Tube-to-Tube Fittings Tee tube/tube na na na 14 na 8 na na na na
3104 16 00 Tube-to-Tube Fittings Tee tube/tube na na na 16 na 16 na na na na
3104 16 12 Tube-to-Tube Fittings Tee tube/tube na na na 16 na 12 na na na na
3104 53 00 Tube-to-Tube Fittings Tee tube/tube na na 1/8 na 1/8 na na na na na
3104 53 56 Tube-to-Tube Fittings Tee tube/tube na na 1/8 na 1/4 na na na na na
3104 55 00 Tube-to-Tube Fittings Tee tube/tube na na 3/16 na 3/16 na na na na na
3104 56 00 Tube-to-Tube Fittings Tee tube/tube na na 1/4 na 1/4 na na na na na
3104 56 04 Tube-to-Tube Fittings Tee tube/tube na na 1/4 na 5/32 na na na na na
3104 56 53 Tube-to-Tube Fittings Tee tube/tube na na 1/4 na 1/8 na na na na na
3104 56 60 Tube-to-Tube Fittings Tee tube/tube na na 1/4 na 3/8 na na na na na
3104 60 00 Tube-to-Tube Fittings Tee tube/tube na na 3/8 na 3/8 na na na na na
3104 60 56 Tube-to-Tube Fittings Tee tube/tube na na 3/8 na 1/4 na na na na na
3104 60 62 Tube-to-Tube Fittings Tee tube/tube na na 3/8 na 1/2 na na na na na
3104 62 00 Tube-to-Tube Fittings Tee tube/tube na na 1/2 na 1/2 na na na na na
3104 62 56 Tube-to-Tube Fittings Tee tube/tube na na 1/2 na 1/4 na na na na na
3104 62 60 Tube-to-Tube Fittings Tee tube/tube na na 1/2 na 3/8 na na na na na
3106 03 00 Tube-to-Tube Fittings Tube/tube connector na na na 3 na 3 na na na na
3106 03 04 Tube-to-Tube Fittings Tube/tube connector na na na 3 na 4 na na na na
3106 04 00 Tube-to-Tube Fittings Tube/tube connector na na 5/32 4 5/32 4 na na na na
3106 04 06 Tube-to-Tube Fittings Tube/tube connector na na na 4 na 6 na na na na
3106 04 08 Tube-to-Tube Fittings Tube/tube connector na na na 4 na 8 na na na na
3106 04 56 Tube-to-Tube Fittings Tube/tube connector na na 5/32 4 1/4 na na na na na
3106 06 00 Tube-to-Tube Fittings Tube/tube connector na na na 6 na 6 na na na na
3106 06 08 Tube-to-Tube Fittings Tube/tube connector na na na 6 na 8 na na na na
3106 06 10 Tube-to-Tube Fittings Tube/tube connector na na na 6 na 10 na na na na
3106 06 56 Tube-to-Tube Fittings Tube/tube connector na na na 6 1/4 na na na na na
3106 08 00 Tube-to-Tube Fittings Tube/tube connector na na 5/16 8 5/16 8 na na na na
3106 08 10 Tube-to-Tube Fittings Tube/tube connector na na na 8 na 10 na na na na
3106 08 12 Tube-to-Tube Fittings Tube/tube connector na na na 8 na 12 na na na na
3106 10 00 Tube-to-Tube Fittings Tube/tube connector na na na 10 na 10 na na na na
3106 10 12 Tube-to-Tube Fittings Tube/tube connector na na na 10 na 12 na na na na
3106 12 00 Tube-to-Tube Fittings Tube/tube connector na na na 12 na 12 na na na na
3106 12 14 Tube-to-Tube Fittings Tube/tube connector na na na 12 na 14 na na na na
3106 12 16 Tube-to-Tube Fittings Tube/tube connector na na na 12 na 16 na na na na
3106 12 62 Tube-to-Tube Fittings Tube/tube connector na na na 12 1/2 na na na na na
3106 14 00 Tube-to-Tube Fittings Tube/tube connector na na na 14 na 14 na na na na
3106 16 00 Tube-to-Tube Fittings Tube/tube connector na na na 16 na 16 na na na na
3106 53 00 Tube-to-Tube Fittings Tube/tube connector na na 1/8 na 1/8 na na na na na
3106 53 56 Tube-to-Tube Fittings Tube/tube connector na na 1/8 na 1/4 na na na na na
3106 55 00 Tube-to-Tube Fittings Tube/tube connector na na 3/16 na 3/16 na na na na na
3106 56 00 Tube-to-Tube Fittings Tube/tube connector na na 1/4 na 1/4 na na na na na
3106 60 00 Tube-to-Tube Fittings Tube/tube connector na na 3/8 na 3/8 na na na na na
3106 60 10 Tube-to-Tube Fittings Tube/tube connector na na 3/8 na na 10 na na na na
3106 60 56 Tube-to-Tube Fittings Tube/tube connector na na 3/8 na 1/4 na na na na na
3106 62 00 Tube-to-Tube Fittings Tube/tube connector na na 1/2 na 1/2 na na na na na
3107 04 00 Tube-to-Tube Fittings Cross tube/tube na na 5/32 4 5/32 4 5/32 4 na na
3107 04 06 Tube-to-Tube Fittings Cross tube/tube na na na 6 5/32 4 na 6 na na
3107 06 00 Tube-to-Tube Fittings Cross tube/tube na na na 6 na 6 na 6 na na
3107 06 04 Tube-to-Tube Fittings Cross tube/tube na na 5/32 4 5/32 4 na 6 na na
3107 06 08 Tube-to-Tube Fittings Cross tube/tube na na 5/16 8 na 6 5/16 8 na na
3107 08 00 Tube-to-Tube Fittings Cross tube/tube na na 5/16 8 5/16 8 5/16 8 na na
3107 08 06 Tube-to-Tube Fittings Cross tube/tube na na na 6 na 6 5/16 8 na na
3107 56 00 Tube-to-Tube Fittings Cross tube/tube na na 1/4 na 1/4 na 1/4 na na na
3108 04 10 Stud Fittings Male stud branch tee adjustable thread BSPT R1/8 na na 5/32 4 na na na na
3108 04 11 Stud Fittings Male stud branch tee adjustable thread NPT NPT1/8 na na 5/32 na na na na na
3108 04 13 Stud Fittings Male stud branch tee adjustable thread BSPT R1/4 na na 5/32 4 na na na na
3108 06 10 Stud Fittings Male stud branch tee adjustable thread BSPT R1/8 na na na 6 na na na na
3108 06 13 Stud Fittings Male stud branch tee adjustable thread BSPT R1/4 na na na 6 na na na na
3108 08 10 Stud Fittings Male stud branch tee adjustable thread BSPT R1/8 na na 5/16 8 na na na na
3108 08 11 Stud Fittings Male stud branch tee adjustable thread NPT NPT1/8 na na 5/16 na na na na na
3108 08 13 Stud Fittings Male stud branch tee adjustable thread BSPT R1/4 na na 5/16 8 na na na na
3108 08 14 Stud Fittings Male stud branch tee adjustable thread NPT NPT1/4 na na 5/16 na na na na na
3108 08 17 Stud Fittings Male stud branch tee adjustable thread BSPT R3/8 na na 5/16 8 na na na na
3108 10 13 Stud Fittings Male stud branch tee adjustable thread BSPT R1/4 na na na 10 na na na na
3108 10 17 Stud Fittings Male stud branch tee adjustable thread BSPT R3/8 na na na 10 na na na na
3108 10 21 Stud Fittings Male stud branch tee adjustable thread BSPT R1/2 na na na 10 na na na na
3108 12 13 Stud Fittings Male stud branch tee adjustable thread BSPT R1/4 na na na 12 na na na na
3108 12 17 Stud Fittings Male stud branch tee adjustable thread BSPT R3/8 na na na 12 na na na na
3108 12 21 Stud Fittings Male stud branch tee adjustable thread BSPT R1/2 na na na 12 na na na na
3108 14 17 Stud Fittings Male stud branch tee adjustable thread BSPT R3/8 na na na 14 na na na na
3108 14 21 Stud Fittings Male stud branch tee adjustable thread BSPT R1/2 na na na 14 na na na na
3108 16 17 Stud Fittings Male stud branch tee adjustable thread BSPT R3/8 na na na 16 na na na na
3108 16 21 Stud Fittings Male stud branch tee adjustable thread BSPT R1/2 na na na 16 na na na na
3108 53 20 Stud Fittings Male stud branch tee adjustable thread UNF 10-32 na na 1/8 na na na na na
3108 55 13 Stud Fittings Male stud branch tee adjustable thread BSPT R1/4 na na 3/16 na na na na na
3108 56 10 Stud Fittings Male stud branch tee adjustable thread BSPT R1/8 na na 1/4 na na na na na
3108 56 11 Stud Fittings Male stud branch tee adjustable thread NPT NPT1/8 na na 1/4 na na na na na
3108 56 13 Stud Fittings Male stud branch tee adjustable thread BSPT R1/4 na na 1/4 na na na na na
3108 56 14 Stud Fittings Male stud branch tee adjustable thread NPT NPT1/4 na na 1/4 na na na na na
3108 60 13 Stud Fittings Male stud branch tee adjustable thread BSPT R1/4 na na 3/8 na na na na na
3108 60 14 Stud Fittings Male stud branch tee adjustable thread NPT NPT1/4 na na 3/8 na na na na na
3108 60 17 Stud Fittings Male stud branch tee adjustable thread BSPT R3/8 na na 3/8 na na na na na
3108 60 18 Stud Fittings Male stud branch tee adjustable thread NPT NPT3/8 na na 3/8 na na na na na
3108 62 17 Stud Fittings Male stud branch tee adjustable thread BSPT R3/8 na na 1/2 na na na na na
3108 62 18 Stud Fittings Male stud branch tee adjustable thread NPT NPT3/8 na na 1/2 na na na na na
3109 04 10 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/8 na na 5/32 4 na na na na
3109 04 11 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/8 na na 5/32 4 na na na na
3109 04 13 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/4 na na 5/32 4 na na na na
3109 04 14 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/4 na na 5/32 4 na na na na
3109 04 17 Stud Fittings Male stud elbow adjustable 90° thread BSPT R3/8 na na na 4 na na na na
3109 04 20 Stud Fittings Male stud elbow adjustable 90° thread UNF 10-32 na na 5/32 na na na na na
3109 06 10 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/8 na na na 6 na na na na
3109 06 11 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/8 na na na 6 na na na na
3109 06 13 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/4 na na na 6 na na na na
3109 06 14 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/4 na na na 6 na na na na
3109 06 17 Stud Fittings Male stud elbow adjustable 90° thread BSPT R3/8 na na na 6 na na na na
3109 06 21 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/2 na na na 6 na na na na
3109 08 10 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/8 na na 5/16 8 na na na na
3109 08 11 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/8 na na 5/16 8 na na na na
3109 08 13 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/4 na na 5/16 8 na na na na
3109 08 14 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/4 na na 5/16 8 na na na na
3109 08 17 Stud Fittings Male stud elbow adjustable 90° thread BSPT R3/8 na na 5/16 8 na na na na
3109 08 18 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT3/8 na na 5/16 na na na na na
3109 08 21 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/2 na na 5/16 8 na na na na
3109 10 10 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/8 na na na 10 na na na na
3109 10 13 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/4 na na na 10 na na na na
3109 10 14 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/4 na na na 10 na na na na
3109 10 17 Stud Fittings Male stud elbow adjustable 90° thread BSPT R3/8 na na na 10 na na na na
3109 10 18 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT3/8 na na na 10 na na na na
3109 10 21 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/2 na na na 10 na na na na
3109 10 22 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/2 na na na 10 na na na na
3109 12 13 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/4 na na na 12 na na na na
3109 12 17 Stud Fittings Male stud elbow adjustable 90° thread BSPT R3/8 na na na 12 na na na na
3109 12 21 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/2 na na na 12 na na na na
3109 12 22 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/2 na na na 12 na na na na
3109 14 17 Stud Fittings Male stud elbow adjustable 90° thread BSPT R3/8 na na na 14 na na na na
3109 14 21 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/2 na na na 14 na na na na
3109 16 17 Stud Fittings Male stud elbow adjustable 90° thread BSPT R3/8 na na na 16 na na na na
3109 16 21 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/2 na na na 16 na na na na
3109 53 10 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/8 na na 1/8 na na na na na
3109 53 11 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/8 na na 1/8 na na na na na
3109 53 14 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/4 na na 1/8 na na na na na
3109 53 20 Stud Fittings Male stud elbow adjustable 90° thread UNF 10-32 na na 1/8 na na na na na
3109 55 10 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/8 na na 3/16 na na na na na
3109 55 11 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/8 na na 3/16 na na na na na
3109 55 13 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/4 na na 3/16 na na na na na
3109 56 10 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/8 na na 1/4 na na na na na
3109 56 11 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/8 na na 1/4 na na na na na
3109 56 13 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/4 na na 1/4 na na na na na
3109 56 14 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/4 na na 1/4 na na na na na
3109 56 18 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT3/8 na na 1/4 na na na na na
3109 56 20 Stud Fittings Male stud elbow adjustable 90° thread UNF 10-32 na na 1/4 na na na na na
3109 60 11 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/8 na na 3/8 na na na na na
3109 60 13 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/4 na na 3/8 na na na na na
3109 60 14 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/4 na na 3/8 na na na na na
3109 60 17 Stud Fittings Male stud elbow adjustable 90° thread BSPT R3/8 na na 3/8 na na na na na
3109 60 18 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT3/8 na na 3/8 na na na na na
3109 60 22 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/2 na na 3/8 na na na na na
3109 62 13 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/4 na na 1/2 na na na na na
3109 62 14 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/4 na na 1/2 na na na na na
3109 62 17 Stud Fittings Male stud elbow adjustable 90° thread BSPT R3/8 na na 1/2 na na na na na
3109 62 18 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT3/8 na na 1/2 na na na na na
3109 62 21 Stud Fittings Male stud elbow adjustable 90° thread BSPT R1/2 na na 1/2 na na na na na
3109 62 22 Stud Fittings Male stud elbow adjustable 90° thread NPT NPT1/2 na na 1/2 na na na na na
3113 04 10 Stud Fittings Male stud elbow adjustable 45° thread BSPT R1/8 na na 5/32 4 na na na na
3113 06 10 Stud Fittings Male stud elbow adjustable 45° thread BSPT R1/8 na na na 6 na na na na
3113 06 13 Stud Fittings Male stud elbow adjustable 45° thread BSPT R1/4 na na na 6 na na na na
3113 08 10 Stud Fittings Male stud elbow adjustable 45° thread BSPT R1/8 na na 5/16 8 na na na na
3113 08 13 Stud Fittings Male stud elbow adjustable 45° thread BSPT R1/4 na na 5/16 8 na na na na
3113 08 17 Stud Fittings Male stud elbow adjustable 45° thread BSPT R3/8 na na 5/16 8 na na na na
3113 10 13 Stud Fittings Male stud elbow adjustable 45° thread BSPT R1/4 na na na 10 na na na na
3113 10 17 Stud Fittings Male stud elbow adjustable 45° thread BSPT R3/8 na na na 10 na na na na
3113 10 21 Stud Fittings Male stud elbow adjustable 45° thread BSPT R1/2 na na na 10 na na na na
3113 12 13 Stud Fittings Male stud elbow adjustable 45° thread BSPT R1/4 na na na 12 na na na na
3113 12 17 Stud Fittings Male stud elbow adjustable 45° thread BSPT R3/8 na na na 12 na na na na
3113 12 21 Stud Fittings Male stud elbow adjustable 45° thread BSPT R1/2 na na na 12 na na na na
3113 53 11 Stud Fittings Male stud elbow adjustable 45° thread NPT NPT1/8 na na 1/8 na na na na na
3114 04 10 Stud Fittings Female stud fitting thread BSPP G1/8 na na 5/32 4 na na na na
3114 04 13 Stud Fittings Female stud fitting thread BSPP G1/4 na na 5/32 4 na na na na
3114 04 19 Stud Fittings Female stud fitting thread Metric M5x0,8 na na 5/32 4 na na na na
3114 06 10 Stud Fittings Female stud fitting thread BSPP G1/8 na na na 6 na na na na
3114 06 13 Stud Fittings Female stud fitting thread BSPP G1/4 na na na 6 na na na na
3114 08 10 Stud Fittings Female stud fitting thread BSPP G1/8 na na 5/16 8 na na na na
3114 08 13 Stud Fittings Female stud fitting thread BSPP G1/4 na na 5/16 8 na na na na
3114 08 17 Stud Fittings Female stud fitting thread BSPP G3/8 na na 5/16 8 na na na na
3114 10 13 Stud Fittings Female stud fitting thread BSPP G1/4 na na na 10 na na na na
3114 10 17 Stud Fittings Female stud fitting thread BSPP G3/8 na na na 10 na na na na
3114 10 21 Stud Fittings Female stud fitting thread BSPP G1/2 na na na 10 na na na na
3114 12 17 Stud Fittings Female stud fitting thread BSPP G3/8 na na na 12 na na na na
3114 12 21 Stud Fittings Female stud fitting thread BSPP G1/2 na na na 12 na na na na
3114 14 17 Stud Fittings Female stud fitting thread BSPP G3/8 na na na 14 na na na na
3114 16 21 Stud Fittings Female stud fitting thread BSPP G1/2 na na na 16 na na na na
3116 04 00 Bulkhead Connector Fittings Bulkhead connector tube/tube na na 5/32 4 na na na na na na
3116 06 00 Bulkhead Connector Fittings Bulkhead connector tube/tube na na na 6 na na na na na na
3116 08 00 Bulkhead Connector Fittings Bulkhead connector tube/tube na na 5/16 8 na na na na na na
3116 10 00 Bulkhead Connector Fittings Bulkhead connector tube/tube na na na 10 na na na na na na
3116 12 00 Bulkhead Connector Fittings Bulkhead connector tube/tube na na na 12 na na na na na na
3116 14 00 Bulkhead Connector Fittings Bulkhead connector tube/tube na na na 14 na na na na na na
3116 53 00 Bulkhead Connector Fittings Bulkhead connector tube/tube na na 1/8 na na na na na na na
3116 56 00 Bulkhead Connector Fittings Bulkhead connector tube/tube na na 1/4 na na na na na na na
3116 60 00 Bulkhead Connector Fittings Bulkhead connector tube/tube na na 3/8 na na na na na na na
3116 62 00 Bulkhead Connector Fittings Bulkhead connector tube/tube na na 1/2 na na na na na na na
3120 04 00 Plug-In Fittings and Accessories Double male stem connector na na 5/32 4 na na na na na na
3120 06 00 Plug-In Fittings and Accessories Double male stem connector na na na 6 na na na na na na
3120 08 00 Plug-In Fittings and Accessories Double male stem connector na na 5/16 8 na na na na na na
3120 10 00 Plug-In Fittings and Accessories Double male stem connector na na na 10 na na na na na na
3120 12 00 Plug-In Fittings and Accessories Double male stem connector na na na 12 na na na na na na
3120 14 00 Plug-In Fittings and Accessories Double male stem connector na na na 14 na na na na na na
3120 62 00 85 Plug-In Fittings and Accessories Double male stem connector na na 1/2 na na na na na na na
3121 04 10 Stud Fittings Male standpipe stud fitting thread BSPT R1/8 na na 5/32 4 na na na na
3121 04 13 Stud Fittings Male standpipe stud fitting thread BSPT R1/4 na na 5/32 4 na na na na
3121 06 10 Stud Fittings Male standpipe stud fitting thread BSPT R1/8 na na na 6 na na na na
3121 06 13 Stud Fittings Male standpipe stud fitting thread BSPT R1/4 na na na 6 na na na na
3121 08 10 Stud Fittings Male standpipe stud fitting thread BSPT R1/8 na na 5/16 8 na na na na
3121 08 13 Stud Fittings Male standpipe stud fitting thread BSPT R1/4 na na 5/16 8 na na na na
3121 10 13 Stud Fittings Male standpipe stud fitting thread BSPT R1/4 na na na 10 na na na na
3121 10 17 Stud Fittings Male standpipe stud fitting thread BSPT R3/8 na na na 10 na na na na
3121 10 21 Stud Fittings Male standpipe stud fitting thread BSPT R1/2 na na na 10 na na na na
3121 12 17 Stud Fittings Male standpipe stud fitting thread BSPT R3/8 na na na 12 na na na na
3121 12 21 Stud Fittings Male standpipe stud fitting thread BSPT R1/2 na na na 12 na na na na
3122 04 05 Plug-In Fittings and Accessories Barbed connector with tailpiece na na na na na 4 na 5 na 7
3122 04 53 Plug-In Fittings and Accessories Barbed connector with tailpiece na na na na 5/32 4 1/8 3,2 25/127 5
3122 06 05 Plug-In Fittings and Accessories Barbed connector with tailpiece na na na na na 6 na 5 na 7
3122 08 08 Plug-In Fittings and Accessories Barbed connector with tailpiece na na na na 5/16 8 5/16 8 50/127 10
3122 08 56 Plug-In Fittings and Accessories Barbed connector with tailpiece na na na na 5/16 8 1/4 6,3 1/3 8,5
3122 10 08 Plug-In Fittings and Accessories Barbed connector with tailpiece na na na na na 10 na 8 na 10
3122 10 56 Plug-In Fittings and Accessories Barbed connector with tailpiece na na na na na 10 na 6,3 na 8
3122 12 08 Plug-In Fittings and Accessories Barbed connector with tailpiece na na na na na 12 na 8 na 10
3122 12 10 Plug-In Fittings and Accessories Barbed connector with tailpiece na na na na na 12 na 10 na 12
3122 12 62 Plug-In Fittings and Accessories Barbed connector with tailpiece na na na na na 12 na 12,5 na 14,5
3122 14 62 Plug-In Fittings and Accessories Barbed connector with tailpiece na na na na na 14 na 12,5 na 14,5
3122 60 08 Plug-In Fittings and Accessories Barbed connector with tailpiece na na na na 3/8 na 5/16 na 50/127 na
3126 03 00 Plug-In Fittings and Accessories Blanking plug with tailpiece na na na 3 na na na na na na
3126 04 00 Plug-In Fittings and Accessories Blanking plug with tailpiece na na 5/32 4 na na na na na na
3126 06 00 Plug-In Fittings and Accessories Blanking plug with tailpiece na na na 6 na na na na na na
3126 08 00 Plug-In Fittings and Accessories Blanking plug with tailpiece na na 5/16 8 na na na na na na
3126 10 00 Plug-In Fittings and Accessories Blanking plug with tailpiece na na na 10 na na na na na na
3126 12 00 Plug-In Fittings and Accessories Blanking plug with tailpiece na na na 12 na na na na na na
3126 14 00 Plug-In Fittings and Accessories Blanking plug with tailpiece na na na 14 na na na na na na
3126 16 00 Plug-In Fittings and Accessories Blanking plug with tailpiece na na na 16 na na na na na na
3126 53 00 Plug-In Fittings and Accessories Blanking plug with tailpiece na na 1/8 na na na na na na na
3126 55 00 Plug-In Fittings and Accessories Blanking plug with tailpiece na na 3/16 na na na na na na na
3126 56 00 Plug-In Fittings and Accessories Blanking plug with tailpiece na na 1/4 na na na na na na na
3126 60 00 Plug-In Fittings and Accessories Blanking plug with tailpiece na na 3/8 na na na na na na na
3126 62 00 Plug-In Fittings and Accessories Blanking plug with tailpiece na na 1/2 na na na na na na na
3129 04 10 Stud Fittings Male stud extented elbow adjustable 90° thread BSPT R1/8 na na na 4 na na na na
3129 04 13 Stud Fittings Male stud extented elbow adjustable 90° thread BSPT R1/4 na na na 4 na na na na
3129 06 10 Stud Fittings Male stud extented elbow adjustable 90° thread BSPT R1/8 na na na 6 na na na na
3129 06 13 Stud Fittings Male stud extented elbow adjustable 90° thread BSPT R1/4 na na na 6 na na na na
3129 08 10 Stud Fittings Male stud extented elbow adjustable 90° thread BSPT R1/8 na na na 8 na na na na
3129 08 11 Stud Fittings Male stud extented elbow adjustable 90° thread NPT NPT1/8 na na 5/16 na na na na na
3129 08 13 Stud Fittings Male stud extented elbow adjustable 90° thread BSPT R1/4 na na na 8 na na na na
3129 08 17 Stud Fittings Male stud extented elbow adjustable 90° thread BSPT R3/8 na na na 8 na na na na
3129 10 13 Stud Fittings Male stud extented elbow adjustable 90° thread BSPT R1/4 na na na 10 na na na na
3129 10 17 Stud Fittings Male stud extented elbow adjustable 90° thread BSPT R3/8 na na na 10 na na na na
3129 10 21 Stud Fittings Male stud extented elbow adjustable 90° thread BSPT R1/2 na na na 10 na na na na
3129 12 13 Stud Fittings Male stud extented elbow adjustable 90° thread BSPT R1/4 na na na 12 na na na na
3129 12 17 Stud Fittings Male stud extented elbow adjustable 90° thread BSPT R3/8 na na na 12 na na na na
3129 12 21 Stud Fittings Male stud extented elbow adjustable 90° thread BSPT R1/2 na na na 12 na na na na
3129 14 17 Stud Fittings Male stud extented elbow adjustable 90° thread BSPT R3/8 na na na 14 na na na na
3129 14 21 Stud Fittings Male stud extented elbow adjustable 90° thread BSPT R1/2 na na na 14 na na na na
3129 53 11 Stud Fittings Male stud extented elbow adjustable 90° thread NPT NPT1/8 na na 1/8 na na na na na
3129 53 14 Stud Fittings Male stud extented elbow adjustable 90° thread NPT NPT1/4 na na 1/8 na na na na na
3129 56 11 Stud Fittings Male stud extented elbow adjustable 90° thread NPT NPT1/8 na na 1/4 na na na na na
3129 56 14 Stud Fittings Male stud extented elbow adjustable 90° thread NPT NPT1/4 na na 1/4 na na na na na
3129 60 14 Stud Fittings Male stud extented elbow adjustable 90° thread NPT NPT1/4 na na 3/8 na na na na na
3129 60 18 Stud Fittings Male stud extented elbow adjustable 90° thread NPT NPT3/8 na na 3/8 na na na na na
3131 04 10 Stud Fittings Male standpipe stud fitting thread BSPP G1/8 na na 5/32 4 na na na na
3131 04 13 Stud Fittings Male standpipe stud fitting thread BSPP G1/4 na na 5/32 4 na na na na
3131 04 19 Stud Fittings Male standpipe stud fitting thread Metric M5x0,8 na na 5/32 4 na na na na
3131 06 10 Stud Fittings Male standpipe stud fitting thread BSPP G1/8 na na na 6 na na na na
3131 06 13 Stud Fittings Male standpipe stud fitting thread BSPP G1/4 na na na 6 na na na na
3131 08 10 Stud Fittings Male standpipe stud fitting thread BSPP G1/8 na na 5/16 8 na na na na
3131 08 13 Stud Fittings Male standpipe stud fitting thread BSPP G1/4 na na 5/16 8 na na na na
3131 08 17 Stud Fittings Male standpipe stud fitting thread BSPP G3/8 na na 5/16 8 na na na na
3131 10 13 Stud Fittings Male standpipe stud fitting thread BSPP G1/4 na na na 10 na na na na
3131 10 17 Stud Fittings Male standpipe stud fitting thread BSPP G3/8 na na na 10 na na na na
3131 10 21 Stud Fittings Male standpipe stud fitting thread BSPP G1/2 na na na 10 na na na na
3131 12 17 Stud Fittings Male standpipe stud fitting thread BSPP G3/8 na na na 12 na na na na
3131 12 21 Stud Fittings Male standpipe stud fitting thread BSPP G1/2 na na na 12 na na na na
3131 14 17 Stud Fittings Male standpipe stud fitting thread BSPP G3/8 na na na 14 na na na na
3131 14 21 Stud Fittings Male standpipe stud fitting thread BSPP G1/2 na na na 14 na na na na
3132 04 10 Stud Fittings Male stud double Y adjustable thread BSPP G1/8 na na 5/32 4 na na na na
3132 04 13 Stud Fittings Male stud double Y adjustable thread BSPP G1/4 na na 5/32 4 na na na na
3132 06 10 Stud Fittings Male stud double Y adjustable thread BSPP G1/8 na na na 6 na na na na
3132 06 13 Stud Fittings Male stud double Y adjustable thread BSPP G1/4 na na na 6 na na na na
3133 04 10 Stud Fittings Male stud elbow adjustable 45° thread BSPP G1/8 na na na 4 na na na na
3133 04 19 Stud Fittings Male stud elbow adjustable 45° thread Metric M5x0,8 na na na 4 na na na na
3133 06 10 Stud Fittings Male stud elbow adjustable 45° thread BSPP G1/8 na na na 6 na na na na
3133 06 13 Stud Fittings Male stud elbow adjustable 45° thread BSPP G1/4 na na na 6 na na na na
3133 06 19 Stud Fittings Male stud elbow adjustable 45° thread Metric M5x0,8 na na na 6 na na na na
3133 08 10 Stud Fittings Male stud elbow adjustable 45° thread BSPP G1/8 na na na 8 na na na na
3133 08 13 Stud Fittings Male stud elbow adjustable 45° thread BSPP G1/4 na na na 8 na na na na
3133 08 17 Stud Fittings Male stud elbow adjustable 45° thread BSPP G3/8 na na na 8 na na na na
3133 10 13 Stud Fittings Male stud elbow adjustable 45° thread BSPP G1/4 na na na 10 na na na na
3133 10 17 Stud Fittings Male stud elbow adjustable 45° thread BSPP G3/8 na na na 10 na na na na
3133 10 21 Stud Fittings Male stud elbow adjustable 45° thread BSPP G1/2 na na na 10 na na na na
3133 12 13 Stud Fittings Male stud elbow adjustable 45° thread BSPP G1/4 na na na 12 na na na na
3133 12 17 Stud Fittings Male stud elbow adjustable 45° thread BSPP G3/8 na na na 12 na na na na
3133 12 21 Stud Fittings Male stud elbow adjustable 45° thread BSPP G1/2 na na na 12 na na na na
3136 04 10 Bulkhead Connector Fittings Bulkhead connector female BSPP G1/8 na na na 4 na na na na
3136 04 13 Bulkhead Connector Fittings Bulkhead connector female BSPP G1/4 na na na 4 na na na na
3136 06 10 Bulkhead Connector Fittings Bulkhead connector female BSPP G1/8 na na na 6 na na na na
3136 06 13 Bulkhead Connector Fittings Bulkhead connector female BSPP G1/4 na na na 6 na na na na
3136 06 17 Bulkhead Connector Fittings Bulkhead connector female BSPP G3/8 na na na 6 na na na na
3136 08 10 Bulkhead Connector Fittings Bulkhead connector female BSPP G1/8 na na na 8 na na na na
3136 08 13 Bulkhead Connector Fittings Bulkhead connector female BSPP G1/4 na na na 8 na na na na
3136 10 17 Bulkhead Connector Fittings Bulkhead connector female BSPP G3/8 na na na 10 na na na na
3136 12 17 Bulkhead Connector Fittings Bulkhead connector female BSPP G3/8 na na na 12 na na na na
3136 12 21 Bulkhead Connector Fittings Bulkhead connector female BSPP G1/2 na na na 12 na na na na
3136 16 17 Bulkhead Connector Fittings Bulkhead connector female BSPP G3/8 na na na 16 na na na na
3136 16 21 Bulkhead Connector Fittings Bulkhead connector female BSPP G1/2 na na na 16 na na na na
3139 04 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube/tube na na 5/32 4 na na na na na na
3139 06 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube/tube na na na 6 na na na na na na
3139 08 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube/tube na na 5/16 8 na na na na na na
3139 10 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube/tube na na na 10 na na na na na na
3139 12 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube/tube na na na 12 na na na na na na
3139 14 00 Bulkhead Connector Fittings Bulkhead elbow 90° tube/tube na na na 14 na na na na na na
3140 04 00 Tube-to-Tube Fittings Single Y tube/tube na na 5/32 4 5/32 4 na na na na
3140 04 06 Tube-to-Tube Fittings Single Y tube/tube na na na 4 na 6 na na na na
3140 06 00 Tube-to-Tube Fittings Single Y tube/tube na na na 6 na 6 na na na na
3140 06 08 Tube-to-Tube Fittings Single Y tube/tube na na na 6 na 8 na na na na
3140 08 00 Tube-to-Tube Fittings Single Y tube/tube na na 5/16 8 5/16 8 na na na na
3140 08 10 Tube-to-Tube Fittings Single Y tube/tube na na na 8 na 10 na na na na
3140 10 00 Tube-to-Tube Fittings Single Y tube/tube na na na 10 na 10 na na na na
3140 10 12 Tube-to-Tube Fittings Single Y tube/tube na na na 10 na 12 na na na na
3140 12 00 Tube-to-Tube Fittings Single Y tube/tube na na na 12 na 12 na na na na
3142 04 00 Plug-In Fittings and Accessories Single Y with tailpiece na na na na 5/32 4 5/32 4 na na
3142 04 06 Plug-In Fittings and Accessories Single Y with tailpiece na na na na na 4 na 6 na na
3142 06 00 Plug-In Fittings and Accessories Single Y with tailpiece na na na na na 6 na 6 na na
3142 06 08 Plug-In Fittings and Accessories Single Y with tailpiece na na na na na 6 na 8 na na
3142 08 00 Plug-In Fittings and Accessories Single Y with tailpiece na na na na 5/16 8 5/16 8 na na
3142 08 10 Plug-In Fittings and Accessories Single Y with tailpiece na na na na na 8 na 10 na na
3142 10 00 Plug-In Fittings and Accessories Single Y with tailpiece na na na na na 10 na 10 na na
3142 10 12 Plug-In Fittings and Accessories Single Y with tailpiece na na na na na 10 na 12 na na
3142 12 00 Plug-In Fittings and Accessories Single Y with tailpiece na na na na na 12 na 12 na na
3143 04 06 Plug-In Fittings and Accessories Double Y with tailpiece na na na na na 4 na 6 na na
3143 04 08 Plug-In Fittings and Accessories Double Y with tailpiece na na na na 5/32 4 5/16 8 na na
3143 06 08 Plug-In Fittings and Accessories Double Y with tailpiece na na na na na 6 na 8 na na
3144 04 04 Multiple Fittings Double Y tube/tube na na 5/32 4 5/32 4 na na na na
3144 04 06 Multiple Fittings Double Y tube/tube na na na 4 na 6 na na na na
3144 06 06 Multiple Fittings Double Y tube/tube na na na 6 na 6 na na na na
3144 06 08 Multiple Fittings Double Y tube/tube na na na 6 na 8 na na na na
3146 04 00 Bulkhead Connector Fittings Mixed bulkhead connector tube/tube na na 5/32 4 na na na na na na
3146 06 00 Bulkhead Connector Fittings Mixed bulkhead connector tube/tube na na na 6 na na na na na na
3146 08 00 Bulkhead Connector Fittings Mixed bulkhead connector tube/tube na na 5/16 8 na na na na na na
3146 10 00 Bulkhead Connector Fittings Mixed bulkhead connector tube/tube na na na 10 na na na na na na
3146 12 00 Bulkhead Connector Fittings Mixed bulkhead connector tube/tube na na na 12 na na na na na na
3146 14 00 Bulkhead Connector Fittings Mixed bulkhead connector tube/tube na na na 14 na na na na na na
3148 04 10 Stud Fittings Male stud single Y adjustable thread BSPT R1/8 na na 5/32 4 na na na na
3148 04 13 Stud Fittings Male stud single Y adjustable thread BSPT R1/4 na na 5/32 4 na na na na
3148 06 10 Stud Fittings Male stud single Y adjustable thread BSPT R1/8 na na na 6 na na na na
3148 06 13 Stud Fittings Male stud single Y adjustable thread BSPT R1/4 na na na 6 na na na na
3148 08 10 Stud Fittings Male stud single Y adjustable thread BSPT R1/8 na na 5/16 8 na na na na
3148 08 13 Stud Fittings Male stud single Y adjustable thread BSPT R1/4 na na 5/16 8 na na na na
3148 08 17 Stud Fittings Male stud single Y adjustable thread BSPT R3/8 na na 5/16 8 na na na na
3148 10 13 Stud Fittings Male stud single Y adjustable thread BSPT R1/4 na na na 10 na na na na
3148 10 17 Stud Fittings Male stud single Y adjustable thread BSPT R3/8 na na na 10 na na na na
3148 10 21 Stud Fittings Male stud single Y adjustable thread BSPT R1/2 na na na 10 na na na na
3148 12 17 Stud Fittings Male stud single Y adjustable thread BSPT R3/8 na na na 12 na na na na
3148 12 21 Stud Fittings Male stud single Y adjustable thread BSPT R1/2 na na na 12 na na na na
3151 04 00 Plug-In Fittings and Accessories End cap na na 5/32 4 na na na na na na
3151 06 00 Plug-In Fittings and Accessories End cap na na na 6 na na na na na na
3151 56 00 Plug-In Fittings and Accessories End cap na na 1/4 na na na na na na na
3151 60 00 Plug-In Fittings and Accessories End cap na na 3/8 na na na na na na na
3158 04 10 Stud Fittings Male stud single Y adjustable thread BSPP G1/8 na na 5/32 4 na na na na
3158 04 13 Stud Fittings Male stud single Y adjustable thread BSPP G1/4 na na 5/32 4 na na na na
3158 04 19 Stud Fittings Male stud single Y adjustable thread Metric M5x0,8 na na 5/32 4 na na na na
3158 06 10 Stud Fittings Male stud single Y adjustable thread BSPP G1/8 na na na 6 na na na na
3158 06 13 Stud Fittings Male stud single Y adjustable thread BSPP G1/4 na na na 6 na na na na
3158 06 19 Stud Fittings Male stud single Y adjustable thread Metric M5x0,8 na na na 6 na na na na
3158 08 10 Stud Fittings Male stud single Y adjustable thread BSPP G1/8 na na 5/16 8 na na na na
3158 08 13 Stud Fittings Male stud single Y adjustable thread BSPP G1/4 na na 5/16 8 na na na na
3158 08 17 Stud Fittings Male stud single Y adjustable thread BSPP G3/8 na na 5/16 8 na na na na
3158 10 13 Stud Fittings Male stud single Y adjustable thread BSPP G1/4 na na na 10 na na na na
3158 10 17 Stud Fittings Male stud single Y adjustable thread BSPP G3/8 na na na 10 na na na na
3158 10 21 Stud Fittings Male stud single Y adjustable thread BSPP G1/2 na na na 10 na na na na
3158 12 17 Stud Fittings Male stud single Y adjustable thread BSPP G3/8 na na na 12 na na na na
3158 12 21 Stud Fittings Male stud single Y adjustable thread BSPP G1/2 na na na 12 na na na na
3166 03 04 Plug-In Fittings and Accessories Reducer with tailpiece na na na na na 3 5/32 4 na na
3166 04 06 Plug-In Fittings and Accessories Reducer with tailpiece na na na na na 4 na 6 na na
3166 04 08 Plug-In Fittings and Accessories Reducer with tailpiece na na na na 5/32 4 5/16 8 na na
3166 04 10 Plug-In Fittings and Accessories Reducer with tailpiece na na na na na 4 na 10 na na
3166 04 56 Plug-In Fittings and Accessories Reducer with tailpiece na na na na 5/32 na 1/4 na na na
3166 06 08 Plug-In Fittings and Accessories Reducer with tailpiece na na na na na 6 na 8 na na
3166 06 10 Plug-In Fittings and Accessories Reducer with tailpiece na na na na na 6 na 10 na na
3166 06 12 Plug-In Fittings and Accessories Reducer with tailpiece na na na na na 6 na 12 na na
3166 06 14 Plug-In Fittings and Accessories Reducer with tailpiece na na na na na 6 na 14 na na
3166 08 10 Plug-In Fittings and Accessories Reducer with tailpiece na na na na na 8 na 10 na na
3166 08 12 Plug-In Fittings and Accessories Reducer with tailpiece na na na na na 8 na 12 na na
3166 08 14 Plug-In Fittings and Accessories Reducer with tailpiece na na na na na 8 na 14 na na
3166 08 62 Plug-In Fittings and Accessories Reducer with tailpiece na na na na 5/16 na 1/2 na na na
3166 10 12 Plug-In Fittings and Accessories Reducer with tailpiece na na na na na 10 na 12 na na
3166 10 14 Plug-In Fittings and Accessories Reducer with tailpiece na na na na na 10 na 14 na na
3166 12 14 Plug-In Fittings and Accessories Reducer with tailpiece na na na na na 12 na 14 na na
3166 53 56 Plug-In Fittings and Accessories Reducer with tailpiece na na na na 1/8 na 1/4 na na na
3166 56 08 Plug-In Fittings and Accessories Reducer with tailpiece na na na na 1/4 na 5/16 na na na
3166 56 60 Plug-In Fittings and Accessories Reducer with tailpiece na na na na 1/4 na 3/8 na na na
3166 56 62 Plug-In Fittings and Accessories Reducer with tailpiece na na na na 1/4 na 1/2 na na na
3166 60 62 Plug-In Fittings and Accessories Reducer with tailpiece na na na na 3/8 na 1/2 na na na
3168 04 53 Plug-In Fittings and Accessories Increase with tailpiece na na na na 5/32 na 1/8 na na na
3168 06 04 Plug-In Fittings and Accessories Increase with tailpiece na na na na na 6 5/32 4 na na
3168 08 06 Plug-In Fittings and Accessories Increase with tailpiece na na na na na 8 na 6 na na
3168 08 56 Plug-In Fittings and Accessories Increase with tailpiece na na na na na 8 1/4 na na na
3168 10 08 Plug-In Fittings and Accessories Increase with tailpiece na na na na na 10 na 8 na na
3168 12 10 Plug-In Fittings and Accessories Increase with tailpiece na na na na na 12 na 10 na na
3168 56 04 Plug-In Fittings and Accessories Increase with tailpiece na na na na 1/4 na 5/32 na na na
3168 56 55 Plug-In Fittings and Accessories Increase with tailpiece na na na na 1/4 na 3/16 na na na
3169 04 10 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G1/8 na na 5/32 4 na na na na
3169 04 13 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G1/4 na na na 4 na na na na
3169 04 19 Stud Fittings Male stud extented elbow adjustable 90° thread Metric M5x0,8 na na na 4 na na na na
3169 04 55 Stud Fittings Male stud extented elbow adjustable 90° thread Metric M7x1 na na na 4 na na na na
3169 06 10 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G1/8 na na na 6 na na na na
3169 06 13 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G1/4 na na na 6 na na na na
3169 06 19 Stud Fittings Male stud extented elbow adjustable 90° thread Metric M5x0,8 na na na 6 na na na na
3169 06 55 Stud Fittings Male stud extented elbow adjustable 90° thread Metric M7x1 na na na 6 na na na na
3169 08 10 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G1/8 na na na 8 na na na na
3169 08 13 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G1/4 na na na 8 na na na na
3169 08 17 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G3/8 na na na 8 na na na na
3169 10 13 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G1/4 na na na 10 na na na na
3169 10 17 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G3/8 na na na 10 na na na na
3169 10 21 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G1/2 na na na 10 na na na na
3169 12 13 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G1/4 na na na 12 na na na na
3169 12 17 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G3/8 na na na 12 na na na na
3169 12 21 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G1/2 na na na 12 na na na na
3169 14 17 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G3/8 na na na 14 na na na na
3169 14 21 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G1/2 na na na 14 na na na na
3169 16 17 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G3/8 na na na 16 na na na na
3169 16 21 Stud Fittings Male stud extented elbow adjustable 90° thread BSPP G1/2 na na na 16 na na na na
3169 56 20 Stud Fittings Male stud extented elbow adjustable 90° thread UNF 10-32 na na 1/4 na na na na na
3169 56 55 Stud Fittings Male stud extented elbow adjustable 90° thread Metric M7x1 na na 1/4 na na na na na
3175 04 10 Stud Fittings Male stud fitting thread BSPT R1/8 na na 5/32 4 na na na na
3175 04 11 Stud Fittings Male stud fitting thread NPT NPT1/8 na na 5/32 na na na na na
3175 04 13 Stud Fittings Male stud fitting thread BSPT R1/4 na na 5/32 4 na na na na
3175 04 14 Stud Fittings Male stud fitting thread NPT NPT1/4 na na 5/32 na na na na na
3175 04 17 Stud Fittings Male stud fitting thread BSPT R3/8 na na na 4 na na na na
3175 06 10 Stud Fittings Male stud fitting thread BSPT R1/8 na na na 6 na na na na
3175 06 11 Stud Fittings Male stud fitting thread NPT NPT1/8 na na na 6 na na na na
3175 06 13 Stud Fittings Male stud fitting thread BSPT R1/4 na na na 6 na na na na
3175 06 14 Stud Fittings Male stud fitting thread NPT NPT1/4 na na na 6 na na na na
3175 06 17 Stud Fittings Male stud fitting thread BSPT R3/8 na na na 6 na na na na
3175 06 21 Stud Fittings Male stud fitting thread BSPT R1/2 na na na 6 na na na na
3175 08 10 Stud Fittings Male stud fitting thread BSPT R1/8 na na 5/16 8 na na na na
3175 08 11 Stud Fittings Male stud fitting thread NPT NPT1/8 na na 5/16 na na na na na
3175 08 13 Stud Fittings Male stud fitting thread BSPT R1/4 na na 5/16 8 na na na na
3175 08 14 Stud Fittings Male stud fitting thread NPT NPT1/4 na na 5/16 na na na na na
3175 08 17 Stud Fittings Male stud fitting thread BSPT R3/8 na na 5/16 8 na na na na
3175 08 18 Stud Fittings Male stud fitting thread NPT NPT3/8 na na 5/16 na na na na na
3175 08 21 Stud Fittings Male stud fitting thread BSPT R1/2 na na 5/16 8 na na na na
3175 10 10 Stud Fittings Male stud fitting thread BSPT R1/8 na na na 10 na na na na
3175 10 13 Stud Fittings Male stud fitting thread BSPT R1/4 na na na 10 na na na na
3175 10 14 Stud Fittings Male stud fitting thread NPT NPT1/4 na na na 10 na na na na
3175 10 17 Stud Fittings Male stud fitting thread BSPT R3/8 na na na 10 na na na na
3175 10 18 Stud Fittings Male stud fitting thread NPT NPT3/8 na na na 10 na na na na
3175 10 21 Stud Fittings Male stud fitting thread BSPT R1/2 na na na 10 na na na na
3175 10 22 Stud Fittings Male stud fitting thread NPT NPT1/2 na na na 10 na na na na
3175 12 13 Stud Fittings Male stud fitting thread BSPT R1/4 na na na 12 na na na na
3175 12 17 Stud Fittings Male stud fitting thread BSPT R3/8 na na na 12 na na na na
3175 12 18 Stud Fittings Male stud fitting thread NPT NPT3/8 na na na 12 na na na na
3175 12 21 Stud Fittings Male stud fitting thread BSPT R1/2 na na na 12 na na na na
3175 12 22 Stud Fittings Male stud fitting thread NPT NPT1/2 na na na 12 na na na na
3175 14 17 Stud Fittings Male stud fitting thread BSPT R3/8 na na na 14 na na na na
3175 14 21 Stud Fittings Male stud fitting thread BSPT R1/2 na na na 14 na na na na
3175 16 17 Stud Fittings Male stud fitting thread BSPT R3/8 na na na 16 na na na na
3175 16 21 Stud Fittings Male stud fitting thread BSPT R1/2 na na na 16 na na na na
3175 53 10 Stud Fittings Male stud fitting thread BSPT R1/8 na na 1/8 na na na na na
3175 53 11 Stud Fittings Male stud fitting thread NPT NPT1/8 na na 1/8 na na na na na
3175 53 14 Stud Fittings Male stud fitting thread NPT NPT1/4 na na 1/8 na na na na na
3175 55 10 Stud Fittings Male stud fitting thread BSPT R1/8 na na 3/16 na na na na na
3175 55 13 Stud Fittings Male stud fitting thread BSPT R1/4 na na 3/16 na na na na na
3175 56 10 Stud Fittings Male stud fitting thread BSPT R1/8 na na 1/4 na na na na na
3175 56 11 Stud Fittings Male stud fitting thread NPT NPT1/8 na na 1/4 na na na na na
3175 56 13 Stud Fittings Male stud fitting thread BSPT R1/4 na na 1/4 na na na na na
3175 56 14 Stud Fittings Male stud fitting thread NPT NPT1/4 na na 1/4 na na na na na
3175 56 18 Stud Fittings Male stud fitting thread NPT NPT3/8 na na 1/4 na na na na na
3175 60 11 Stud Fittings Male stud fitting thread NPT NPT1/8 na na 3/8 na na na na na
3175 60 13 Stud Fittings Male stud fitting thread BSPT R1/4 na na 3/8 na na na na na
3175 60 14 Stud Fittings Male stud fitting thread NPT NPT1/4 na na 3/8 na na na na na
3175 60 17 Stud Fittings Male stud fitting thread BSPT R3/8 na na 3/8 na na na na na
3175 60 18 Stud Fittings Male stud fitting thread NPT NPT3/8 na na 3/8 na na na na na
3175 60 21 Stud Fittings Male stud fitting thread BSPT R1/2 na na 3/8 na na na na na
3175 60 22 Stud Fittings Male stud fitting thread NPT NPT1/2 na na 3/8 na na na na na
3175 62 13 Stud Fittings Male stud fitting thread BSPT R1/4 na na 1/2 na na na na na
3175 62 14 Stud Fittings Male stud fitting thread NPT NPT1/4 na na 1/2 na na na na na
3175 62 17 Stud Fittings Male stud fitting thread BSPT R3/8 na na 1/2 na na na na na
3175 62 18 Stud Fittings Male stud fitting thread NPT NPT3/8 na na 1/2 na na na na na
3175 62 21 Stud Fittings Male stud fitting thread BSPT R1/2 na na 1/2 na na na na na
3175 62 22 Stud Fittings Male stud fitting thread NPT NPT1/2 na na 1/2 na na na na na
3180 04 00 Plug-In Fittings and Accessories Plug-in elbow 45° with tailpiece na na na na 5/32 4 5/32 4 na na
3180 06 00 Plug-In Fittings and Accessories Plug-in elbow 45° with tailpiece na na na na na 6 na 6 na na
3180 08 00 Plug-In Fittings and Accessories Plug-in elbow 45° with tailpiece na na na na 5/16 8 5/16 8 na na
3180 10 00 Plug-In Fittings and Accessories Plug-in elbow 45° with tailpiece na na na na na 10 na 10 na na
3180 12 00 Plug-In Fittings and Accessories Plug-in elbow 45° with tailpiece na na na na na 12 na 12 na na
3180 60 00 Plug-In Fittings and Accessories Plug-in elbow 45° with tailpiece na na na na 3/8 na 3/8 na na na
3181 04 19 Stud Fittings Male stud fitting thread without external hexagon Metric M5x0,8 na na na 4 na na na na
3181 04 55 Stud Fittings Male stud fitting thread without external hexagon Metric M7x1 na na 5/32 4 na na na na
3181 06 19 Stud Fittings Male stud fitting thread without external hexagon Metric M5x0,8 na na na 6 na na na na
3181 06 55 Stud Fittings Male stud fitting thread without external hexagon Metric M7x1 na na na 6 na na na na
3182 04 00 Plug-In Fittings and Accessories Plug-in elbow 90° with tailpiece na na na na 5/32 4 5/32 4 na na
3182 04 06 Plug-In Fittings and Accessories Plug-in elbow 90° with tailpiece na na na na na 4 na 6 na na
3182 06 00 Plug-In Fittings and Accessories Plug-in elbow 90° with tailpiece na na na na na 6 na 6 na na
3182 06 04 Plug-In Fittings and Accessories Plug-in elbow 90° with tailpiece na na na na na 6 na 4 na na
3182 06 08 Plug-In Fittings and Accessories Plug-in elbow 90° with tailpiece na na na na na 6 na 8 na na
3182 08 00 Plug-In Fittings and Accessories Plug-in elbow 90° with tailpiece na na na na 5/16 8 5/16 8 na na
3182 08 10 Plug-In Fittings and Accessories Plug-in elbow 90° with tailpiece na na na na na 8 na 10 na na
3182 10 00 Plug-In Fittings and Accessories Plug-in elbow 90° with tailpiece na na na na na 10 na 10 na na
3182 10 12 Plug-In Fittings and Accessories Plug-in elbow 90° with tailpiece na na na na na 10 na 12 na na
3182 12 00 Plug-In Fittings and Accessories Plug-in elbow 90° with tailpiece na na na na na 12 na 12 na na
3182 56 00 Plug-In Fittings and Accessories Plug-in elbow 90° with tailpiece na na na na 1/4 na 1/4 na na na
3182 60 00 Plug-In Fittings and Accessories Plug-in elbow 90° with tailpiece na na na na 3/8 na 3/8 na na na
3183 04 00 Plug-In Fittings and Accessories Plug-in run tee with tailpiece na na na na 5/32 4 5/32 4 na na
3183 04 06 Plug-In Fittings and Accessories Plug-in run tee with tailpiece na na na na na 4 na 6 na na
3183 06 00 Plug-In Fittings and Accessories Plug-in run tee with tailpiece na na na na na 6 na 6 na na
3183 06 08 Plug-In Fittings and Accessories Plug-in run tee with tailpiece na na na na na 6 na 8 na na
3183 08 00 Plug-In Fittings and Accessories Plug-in run tee with tailpiece na na na na 5/16 8 5/16 8 na na
3183 08 10 Plug-In Fittings and Accessories Plug-in run tee with tailpiece na na na na na 8 na 10 na na
3183 10 00 Plug-In Fittings and Accessories Plug-in run tee with tailpiece na na na na na 10 na 10 na na
3183 10 12 Plug-In Fittings and Accessories Plug-in run tee with tailpiece na na na na na 10 na 12 na na
3183 12 00 Plug-In Fittings and Accessories Plug-in run tee with tailpiece na na na na na 12 na 12 na na
3184 04 00 Plug-In Fittings and Accessories Extended plug-in elbow 90° with tailpiece na na na na 5/32 4 5/32 4 na na
3184 04 06 Plug-In Fittings and Accessories Extended plug-in elbow 90° with tailpiece na na na na na 4 na 6 na na
3184 06 00 Plug-In Fittings and Accessories Extended plug-in elbow 90° with tailpiece na na na na na 6 na 6 na na
3184 06 08 Plug-In Fittings and Accessories Extended plug-in elbow 90° with tailpiece na na na na na 6 na 8 na na
3184 08 00 Plug-In Fittings and Accessories Extended plug-in elbow 90° with tailpiece na na na na 5/16 8 5/16 8 na na
3184 08 10 Plug-In Fittings and Accessories Extended plug-in elbow 90° with tailpiece na na na na na 8 na 10 na na
3184 10 00 Plug-In Fittings and Accessories Extended plug-in elbow 90° with tailpiece na na na na na 10 na 10 na na
3184 10 12 Plug-In Fittings and Accessories Extended plug-in elbow 90° with tailpiece na na na na na 10 na 12 na na
3184 12 00 Plug-In Fittings and Accessories Extended plug-in elbow 90° with tailpiece na na na na na 12 na 12 na na
3184 56 00 Plug-In Fittings and Accessories Extended plug-in elbow 90° with tailpiece na na na na 1/4 na 1/4 na na na
3188 04 00 Plug-In Fittings and Accessories Plug-in branch tee with tailpiece na na na na 5/32 4 5/32 4 na na
3188 04 06 Plug-In Fittings and Accessories Plug-in branch tee with tailpiece na na na na na 4 na 6 na na
3188 06 00 Plug-In Fittings and Accessories Plug-in branch tee with tailpiece na na na na na 6 na 6 na na
3188 06 08 Plug-In Fittings and Accessories Plug-in branch tee with tailpiece na na na na na 6 na 8 na na
3188 08 00 Plug-In Fittings and Accessories Plug-in branch tee with tailpiece na na na na na 8 na 8 na na
3188 08 10 Plug-In Fittings and Accessories Plug-in branch tee with tailpiece na na na na na 8 na 10 na na
3188 10 00 Plug-In Fittings and Accessories Plug-in branch tee with tailpiece na na na na na 10 na 10 na na
3188 10 12 Plug-In Fittings and Accessories Plug-in branch tee with tailpiece na na na na na 10 na 12 na na
3188 12 00 Plug-In Fittings and Accessories Plug-in branch tee with tailpiece na na na na na 12 na 12 na na
3192 04 10 Stud Fittings Female stud elbow adjustable 90° thread BSPP G1/8 na na 5/32 4 na na na na
3192 04 13 Stud Fittings Female stud elbow adjustable 90° thread BSPP G1/4 na na 5/32 4 na na na na
3192 06 10 Stud Fittings Female stud elbow adjustable 90° thread BSPP G1/8 na na na 6 na na na na
3192 06 13 Stud Fittings Female stud elbow adjustable 90° thread BSPP G1/4 na na na 6 na na na na
3192 08 10 Stud Fittings Female stud elbow adjustable 90° thread BSPP G1/8 na na 5/16 8 na na na na
3192 08 13 Stud Fittings Female stud elbow adjustable 90° thread BSPP G1/4 na na 5/16 8 na na na na
3192 08 17 Stud Fittings Female stud elbow adjustable 90° thread BSPP G3/8 na na 5/16 8 na na na na
3192 10 13 Stud Fittings Female stud elbow adjustable 90° thread BSPP G1/4 na na na 10 na na na na
3192 10 17 Stud Fittings Female stud elbow adjustable 90° thread BSPP G3/8 na na na 10 na na na na
3192 10 21 Stud Fittings Female stud elbow adjustable 90° thread BSPP G1/2 na na na 10 na na na na
3192 12 13 Stud Fittings Female stud elbow adjustable 90° thread BSPP G1/4 na na na 12 na na na na
3192 12 17 Stud Fittings Female stud elbow adjustable 90° thread BSPP G3/8 na na na 12 na na na na
3192 12 21 Stud Fittings Female stud elbow adjustable 90° thread BSPP G1/2 na na na 12 na na na na
3193 04 10 Stud Fittings Male stud run tee adjustable thread BSPP G1/8 na na 5/32 4 na na na na
3193 04 13 Stud Fittings Male stud run tee adjustable thread BSPP G1/4 na na 5/32 4 na na na na
3193 04 19 Stud Fittings Male stud run tee adjustable thread Metric M5x0,8 na na 5/32 4 na na na na
3193 06 10 Stud Fittings Male stud run tee adjustable thread BSPP G1/8 na na na 6 na na na na
3193 06 13 Stud Fittings Male stud run tee adjustable thread BSPP G1/4 na na na 6 na na na na
3193 06 19 Stud Fittings Male stud run tee adjustable thread Metric M5x0,8 na na na 6 na na na na
3193 08 10 Stud Fittings Male stud run tee adjustable thread BSPP G1/8 na na 5/16 8 na na na na
3193 08 13 Stud Fittings Male stud run tee adjustable thread BSPP G1/4 na na 5/16 8 na na na na
3193 08 17 Stud Fittings Male stud run tee adjustable thread BSPP G3/8 na na 5/16 8 na na na na
3193 10 13 Stud Fittings Male stud run tee adjustable thread BSPP G1/4 na na na 10 na na na na
3193 10 17 Stud Fittings Male stud run tee adjustable thread BSPP G3/8 na na na 10 na na na na
3193 10 21 Stud Fittings Male stud run tee adjustable thread BSPP G1/2 na na na 10 na na na na
3193 12 13 Stud Fittings Male stud run tee adjustable thread BSPP G1/4 na na na 12 na na na na
3193 12 17 Stud Fittings Male stud run tee adjustable thread BSPP G3/8 na na na 12 na na na na
3193 12 21 Stud Fittings Male stud run tee adjustable thread BSPP G1/2 na na na 12 na na na na
3193 14 17 Stud Fittings Male stud run tee adjustable thread BSPP G3/8 na na na 14 na na na na
3193 14 21 Stud Fittings Male stud run tee adjustable thread BSPP G1/2 na na na 14 na na na na
3193 16 17 Stud Fittings Male stud run tee adjustable thread BSPP G3/8 na na na 16 na na na na
3193 16 21 Stud Fittings Male stud run tee adjustable thread BSPP G1/2 na na na 16 na na na na
3198 04 10 Stud Fittings Male stud branch tee adjustable thread BSPP G1/8 na na 5/32 4 na na na na
3198 04 13 Stud Fittings Male stud branch tee adjustable thread BSPP G1/4 na na 5/32 4 na na na na
3198 04 19 Stud Fittings Male stud branch tee adjustable thread Metric M5x0,8 na na 5/32 4 na na na na
3198 06 10 Stud Fittings Male stud branch tee adjustable thread BSPP G1/8 na na na 6 na na na na
3198 06 13 Stud Fittings Male stud branch tee adjustable thread BSPP G1/4 na na na 6 na na na na
3198 06 19 Stud Fittings Male stud branch tee adjustable thread Metric M5x0,8 na na na 6 na na na na
3198 08 10 Stud Fittings Male stud branch tee adjustable thread BSPP G1/8 na na 5/16 8 na na na na
3198 08 13 Stud Fittings Male stud branch tee adjustable thread BSPP G1/4 na na 5/16 8 na na na na
3198 08 17 Stud Fittings Male stud branch tee adjustable thread BSPP G3/8 na na 5/16 8 na na na na
3198 10 13 Stud Fittings Male stud branch tee adjustable thread BSPP G1/4 na na na 10 na na na na
3198 10 17 Stud Fittings Male stud branch tee adjustable thread BSPP G3/8 na na na 10 na na na na
3198 10 21 Stud Fittings Male stud branch tee adjustable thread BSPP G1/2 na na na 10 na na na na
3198 12 13 Stud Fittings Male stud branch tee adjustable thread BSPP G1/4 na na na 12 na na na na
3198 12 17 Stud Fittings Male stud branch tee adjustable thread BSPP G3/8 na na na 12 na na na na
3198 12 21 Stud Fittings Male stud branch tee adjustable thread BSPP G1/2 na na na 12 na na na na
3198 14 17 Stud Fittings Male stud branch tee adjustable thread BSPP G3/8 na na na 14 na na na na
3198 14 21 Stud Fittings Male stud branch tee adjustable thread BSPP G1/2 na na na 14 na na na na
3198 16 17 Stud Fittings Male stud branch tee adjustable thread BSPP G3/8 na na na 16 na na na na
3198 16 21 Stud Fittings Male stud branch tee adjustable thread BSPP G1/2 na na na 16 na na na na
3199 03 09 Stud Fittings Male stud elbow adjustable 90° thread Metric M3x0,5 na na na 3 na na na na
3199 03 19 Stud Fittings Male stud elbow adjustable 90° thread Metric M5x0,8 na na na 3 na na na na
3199 04 09 Stud Fittings Male stud elbow adjustable 90° thread Metric M3x0,5 na na 5/32 4 na na na na
3199 04 10 Stud Fittings Male stud elbow adjustable 90° thread BSPP G1/8 na na 5/32 4 na na na na
3199 04 13 Stud Fittings Male stud elbow adjustable 90° thread BSPP G1/4 na na 5/32 4 na na na na
3199 04 19 Stud Fittings Male stud elbow adjustable 90° thread Metric M5x0,8 na na 5/32 4 na na na na
3199 04 55 Stud Fittings Male stud elbow adjustable 90° thread Metric M7x1 na na 5/32 4 na na na na
3199 06 10 Stud Fittings Male stud elbow adjustable 90° thread BSPP G1/8 na na na 6 na na na na
3199 06 13 Stud Fittings Male stud elbow adjustable 90° thread BSPP G1/4 na na na 6 na na na na
3199 06 17 Stud Fittings Male stud elbow adjustable 90° thread BSPP G3/8 na na na 6 na na na na
3199 06 19 Stud Fittings Male stud elbow adjustable 90° thread Metric M5x0,8 na na na 6 na na na na
3199 06 21 Stud Fittings Male stud elbow adjustable 90° thread BSPP G1/2 na na na 6 na na na na
3199 06 55 Stud Fittings Male stud elbow adjustable 90° thread Metric M7x1 na na na 6 na na na na
3199 06 60 Stud Fittings Male stud elbow adjustable 90° thread Metric M10x1 na na na 6 na na na na
3199 06 67 Stud Fittings Male stud elbow adjustable 90° thread Metric M12x1,5 na na na 6 na na na na
3199 08 10 Stud Fittings Male stud elbow adjustable 90° thread BSPP G1/8 na na 5/16 8 na na na na
3199 08 13 Stud Fittings Male stud elbow adjustable 90° thread BSPP G1/4 na na 5/16 8 na na na na
3199 08 17 Stud Fittings Male stud elbow adjustable 90° thread BSPP G3/8 na na 5/16 8 na na na na
3199 08 21 Stud Fittings Male stud elbow adjustable 90° thread BSPP G1/2 na na 5/16 8 na na na na
3199 08 60 Stud Fittings Male stud elbow adjustable 90° thread Metric M10x1 na na na 8 na na na na
3199 08 67 Stud Fittings Male stud elbow adjustable 90° thread Metric M12x1,5 na na na 8 na na na na
3199 10 13 Stud Fittings Male stud elbow adjustable 90° thread BSPP G1/4 na na na 10 na na na na
3199 10 17 Stud Fittings Male stud elbow adjustable 90° thread BSPP G3/8 na na na 10 na na na na
3199 10 21 Stud Fittings Male stud elbow adjustable 90° thread BSPP G1/2 na na na 10 na na na na
3199 12 13 Stud Fittings Male stud elbow adjustable 90° thread BSPP G1/4 na na na 12 na na na na
3199 12 17 Stud Fittings Male stud elbow adjustable 90° thread BSPP G3/8 na na na 12 na na na na
3199 12 21 Stud Fittings Male stud elbow adjustable 90° thread BSPP G1/2 na na na 12 na na na na
3199 14 17 Stud Fittings Male stud elbow adjustable 90° thread BSPP G3/8 na na na 14 na na na na
3199 14 21 Stud Fittings Male stud elbow adjustable 90° thread BSPP G1/2 na na na 14 na na na na
3199 16 17 Stud Fittings Male stud elbow adjustable 90° thread BSPP G3/8 na na na 16 na na na na
3199 16 21 Stud Fittings Male stud elbow adjustable 90° thread BSPP G1/2 na na na 16 na na na na
3304 06 04 Multiple Fittings Multiple tee tube/tube na na na na na 6 na 4 na na
3304 08 04 Multiple Fittings Multiple tee tube/tube na na na na 5/16 8 5/32 4 na na
3304 08 06 Multiple Fittings Multiple tee tube/tube na na na na na 8 na 6 na na
3304 10 06 Multiple Fittings Multiple tee tube/tube na na na na na 10 na 6 na na
3304 10 08 Multiple Fittings Multiple tee tube/tube na na na na na 10 na 8 na na
3304 60 56 Multiple Fittings Multiple tee tube/tube na na na na 3/8 na 1/4 na na na
3306 06 04 Multiple Fittings Multiple tee 90° tube/tube na na na na na 6 na 4 na na
3306 08 04 Multiple Fittings Multiple tee 90° tube/tube na na na na 5/16 8 5/32 4 na na
3306 08 06 Multiple Fittings Multiple tee 90° tube/tube na na na na na 8 na 6 na na
3306 10 06 Multiple Fittings Multiple tee 90° tube/tube na na na na na 10 na 6 na na
3306 10 08 Multiple Fittings Multiple tee 90° tube/tube na na na na na 10 na 8 na na
3306 60 56 Multiple Fittings Multiple tee 90° tube/tube na na na na 3/8 na 1/4 na na na




- Thermal Management Fluid Handling Solutions for Tempering & Cooling

- pneumatic push-in fittings system LF3000 Push-In Fittings

- LF3000 Push-In Fittings

- Push-In Fittings
LF3000 and LF3200
LIQUIfit
LF6270, Optic Fibre
Prestomatic
LF3600 and LF6100
LF3800/LF3900






美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology


E-mail:sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址:北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编:100102
电话:010-8428 2935, 8428 9077, 8428 3983
手机:139 101 22694
Http://www.cnmec.biz
传真:010-8428 8762


京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
