Parflange F37接头

【产品简介】

Parflange F37主要为高压大尺寸液压管路而开发,不必再为传统焊接工艺中的探伤、变形、管道清洗、打压试验等问题所困扰,是舰船及大型机械的理想选择。

【详细说明】

Parflange F37接头

Parflange F37主要为高压大尺寸液压管路而开发,不必再为传统焊接工艺中的探伤、变形、管道清洗、打压试验等问题所困扰,是舰船及大型机械的理想选择。
遵循标准:ISO 6162–1; SAE J518; ISO 6162-2; ISO 6164

尺寸范围:38mm-140mm
最高工作压力:420 bar
材质:碳钢、不锈钢

Robust technology is the foundation of Parker CPS. Parflange F37 non-welded piping systems utilize standard SAE Code 61/62, ISO 6162 and ISO 6164 flange interfaces.Parflange F37 is fully complemented with Parker’s fabrication equipment and a broad range of interconnect components,valves, clamps and seamless tubes.

Parker’s Parflange F37 product range includes certified components capable of providing non-welded piping systems up to 273 mm with wall thicknesses to 25 mm (10" x 1").

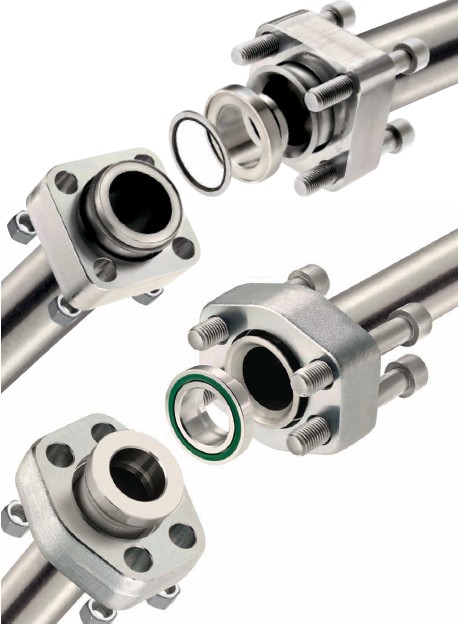

The Parflange F37 system utilizes two core connection technologies to achieve leakfree non-welded connections: F37 Flare and F37 Retaining Ring. The Flare Flange produces a smooth, clean, high-strength flared tube end that is fitted with a soft sealed tube insert. For higher-pressure systems, Parker’s F37 Retaining Ring Flange system utilizes a retaining ring for flange retention along with a highly engineered seal carrier for leak-free performance. For
low-pressure applications, Parker offers an F37 RR Light Duty series retaining ring flange system specifically designed for weight and space savings, while providing comparable non-welded piping system advantages.
