Parker CPI Series single ferrule compression fittings

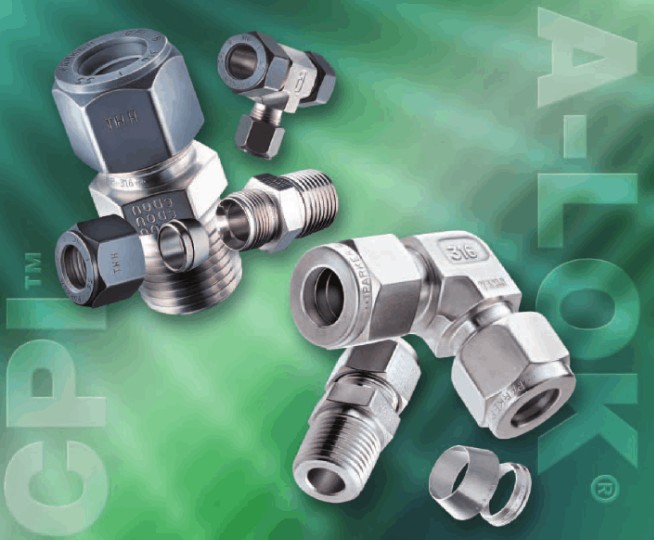

Parker CPI™ / A-LOK® Instrumentation Tube Fittings
Parker CPI系列单卡套接头



Parker CPI单卡套接头采用了精密加工部件的单卡套管接头专门用于为车辆提供安全和防泄漏连接。Suparcase卡套可以在阀体与阀座间进行独特的弓形连接,因此非常适合振动工况的应用。Parker CPI系列单卡套接头,派克的 CPI系列单卡套接头在过程仪表控制系统中能够提供有效的密封,良好的抗震、抗热循环性能。多种材质可选。派克精密仪表接头广泛用于过程控制、电力、石化和天然气 等行业,为液体、气体和化学品系统连接提供解决方案。 派克始终坚持为客户设计和制造稳定、可靠、高品质的仪表 接头,所有产品的工作压力都符合ANSI B31.3.标准。

Parker's CPI Series single ferrule compression fittings pdf catalog
Parker CPI系列单卡套接头技术资料下载



CPI 单卡套接头 (Catalog 4230/4233)

由三个零件构成,适用于所有
仪表级钢管的连接
- 螺母经二硫化钼涂层处理,可提供良好的润滑并有效防止螺纹咬死。
- 卡套经Suparcase专利硬化技术处理,提高硬度的同时保证了卡套的耐腐蚀性能,确保密封
- 精密加工的接头体密封面可提供良好密封
- 单卡套设计可提供良好的抗振性能
- 在高/低温热循环应用中表现优异

A-LOK 双卡套接头 (Catalog 4230/4233)


- 符合行业设计标准,适用于所
- 有仪表级钢管连接
- 螺母内壁经镀银处理,减少咬死现象的发生。
- 后卡套采用Suparcase专利硬化技术处理,可有效嵌入钢管,形成可靠的机械密封。
- 双卡套设计符合系统使用规范



【CPI单卡套接头特点】

- 尺寸:1/16"-2"或2mm-25mm
- - 高工作压力:6000 psig
- CPI与A-Lok可互换
- Suparcase硬化工艺
- 316、哈C、Monel、6Mo、钛等多种材料可选
- 通过数千次以上极端振动和压力应用测试,其中包括天然气行业的应用
- 镀二硫钼螺母细牙螺纹,确保不会发生咬死现象
- 采用单卡套连接形式,自大限度减小装配错误的机会

Catalog 4230/4233-CH CPI / A-LOK卡套接头


【详细说明】

- CPI单卡套和A-Lok双卡套接头
- 尺寸:1/16"-2"或2mm-25mm
- - 高工作压力:6000 psig
- CPI与A-Lok可互换
- Suparcase硬化工艺
- 316、哈C、Monel、6Mo、钛等多种材料可选

Parker派克CPI单卡套接头 三个零件构成,特殊涂层及专利硬化技术,确保防止螺纹咬死、高密封性、耐用耐高温抗振动。Parker派克A-LOK 双卡套接头 双卡套符合行业标准,适用性广,特殊涂层及专利硬化技术,确保防止螺纹咬死、高密封性、耐用。卡套式管接头具有连接牢靠、耐压力高、密封性和反复性好、安装和检修方便、工作安全可靠等特点。她与钢管连接时不需焊接,有利于防火、防爆和高空作业,并能消除因在焊接时不慎而带来的渗漏和堵塞现象,被炼油、化工、轻工、纺织、国防、冶金、航空、造船、医药、机械等领域优先采用,亦适用于各种工程机械、机床设备等方面的液压传动管路。

Parker Hannifin Corporation
Instrumentation Products Division
Huntsville, AL USA



Tube Fitting,Single Ferrule Compression Fitting - CPI Series。Parker’s single ferrule compression fittings, CPI Tube Fittings are designed to effectively seal and also resist vibration and thermo-cycling conditions in process, and instrumentation system connections. Available in a wide range of material。



Parker CPI single ferrule compression tube fittings are designed as leak free connections for process, power, and instrumentation applications. These tube fittings utilize a single ferrule for easy make-up and excellent performance in vibration applications. The “spring loaded” effect of the single ferrule creates a constant tension between the fitting body and fitting nut.
CPI tube fitting are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276. Straight fittings are machined from cold finished bar stock, while shaped bodies are machined from close grain forgings.

The fittings are available for imperial pipe sizes from 1/16” through to 2” O.D., and for metric sizes from 2 mm through to 25 mm O.D. These gaugeable tube fittings are manufactured to the highest industry quality standards.

Markets:

- Chemical
- Petro-Chemical
- Power
- Nuclear
- Oil and Gas
- Pulp and Paper

Features/Benefits:

- Single Ferrule for easy makeup
- Molybdenium Disulfide coated nuts for low torque make-up
- Parker Suparcase ferrule for superior corrosion resistant
- Hardened ferrules provide optimum performance

Applications:

- Instrument Air Lines
- Heat Trace systems
- Process Lines

Performance Characteristics
Fitting Type Compression
Tube Size 1/2", 5/8", 1/16", 3/4", 7/8", 1", 1/8", 3/16", 1/4", 1/4", 5/16", 3/8", 1/2", 10 mm, 12 mm, 15 mm, 16 mm, 18 mm, 20 mm, 25 mm, 3 mm, 4 mm, 6 mm, 8 mm, 3/4", 3/8", 1/8", 1/16", 3/16", 1-1/4", 1-1/2", 2", 22 mm, 5/8", 14 mm, 2 mm
Shape 37 Flare to Tube Connector, Bulkhead Union, Cap, Column End Fitting ? (without Frit), Column End Fitting ? Low Internal Volume, Column End Fitting ? Low Internal Volume (without Frit), Column End Fitting ? Low Internal Volume with Frit, Column End Fitting
Connection 1 Size 1/2", 5/8", 1/16", 3/4", 7/8", 1", 1/8", 1/8", 3/16", 1/4", 1/4", 5/16", 3/8", 1/2", 10 mm, 12 mm, 15 mm, 16 mm, 18 mm, 20 mm, 25 mm, 3 mm, 4 mm, 6 mm, 8 mm, 3/4", 3/8", 1/16", 3/16", 1-1/4", 1-1/2", 2", 22 mm, 5/8", 14 mm, 2 mm
Connection 2 Size 3/8", 5/8", 1/16", 3/4", 7/8", 1", 1/8", 1/4", 3/16", 1/8", 1/4", 5/16", 3/8", 1/2", 10 mm, 12 mm, 15 mm, 16 mm, 18 mm, 20 mm, 25 mm, 3 mm, 4 mm, 6 mm, 8 mm, N/A, 3/4", 1/2", 1-1/4", 1-1/2", 2", 2 mm, 14 mm, 22 mm, 3/16"
Connection 3 Thread Size (inch) N/A, 3/4", 1/8", 1/4", 3/8", 1/2", 5/8", 1/16", 3/4", 7/8", 1", 1-1/4", 1/8", 1-1/2", 2", 3/16", 3/16", 1/4", 5/16", 3/8", 1/2", 10 mm, 12 mm, 14 mm, 15 mm, 16 mm, 18 mm, 20 mm, 22 mm, 2 mm, 25 mm, 3 mm, 4 mm, 6 mm, 8 mm
Material 316 Stainless Steel, Steel, Brass
Style 37 Flare to CPI, Tube to Tube, Components, Analytical Fittings, Tube to Female Pipe, Tube to Male Pipe, Port Connectors, Tube to Tube Union





Compliance, Certifications, & Safety

ANSI/ASME B31.1 & B31.3
ASTM F1387
CPI & A-LOK Tube Fittings ANSI/ASTM B31.1 & B31.3 Report Summary
CPI & A-LOK Tube Fittings ASTM F1387 Test Summary - EPR 4230/4233
ISO 9001
Literature and Reference Materials

A Solid Performer
CPI Tube Fitting Bulletin
Catalog 4200-PC/USA
Features and Benefits
Fitting Installation Manual
Molybdenum Disulfide - The Ideal Solid Lubricant and Anti-Galling Material
Parker Instrument Tubing
Parker SuparCase Technology
Single Ferrule Compression Fitting - CPI Series
