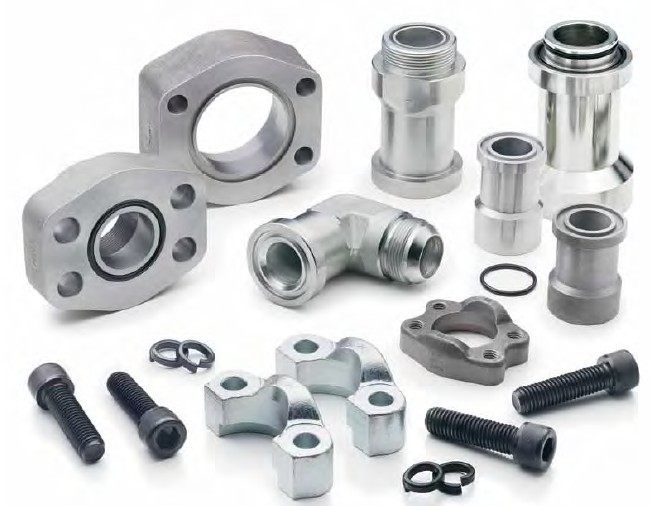

Parker 液压法兰及组件 Hydraulic Flange Coupling

【产品简介】

液压法兰及组件

遵循标准：SAE J518，ISO 6162-1和6162-2
尺寸范围：1/2“-4“
最高工作压力：6000 PSI
材质：碳钢、不锈钢

【详细说明】

液压法兰及组件

遵循标准：SAE J518，ISO 6162-1和6162-2
尺寸范围：1/2"-4"
最高工作压力：6000 PSI
材质：碳钢、不锈钢

Parflange F37

The Parflange F37 flanged connector system is utilizing this orbital tube forming technology for tubing assemblies from 16 to 165 mm (1/2“ to 6“ flanges) outside diameter. It is intended for tube wall thickness up to 9 mm and pressure ratings up to 420 bar.

For those connections, where there is no possibility to assemble a pre-flared tube or where manufacturing is limited, Parker provides the F37 Retaining Ring System. This system utilizes a Retaining Ring for flange retention along with a highly-engineered seal carrier for leak free performance. It is available as a high pressure version from 1 ?” to 10” and as a newly developed SAE 1000 (50-70 bar) version.

The Parflange® F37 system corresponds to hole patterns according to ISO 6162-1; SAE J518; bore pattern 3000 (code 61), ISO 6162-2; bore pattern 6000 (code 62) and also ISO 6164 bore pattern.
