Parker氢气仪表解决方案
Instrumentation Solutions for Hydrogen Applications
Components and systems for use with gaseous and liquid hydrogen



Parker通过各种应用的广泛解决方案支持全球脱碳工作。我们的氢兼容部件和系统能够在真空至1380 bar(20000 psi)和-253摄氏度至+538摄氏度(-423华氏度至+1000华氏度)的温度范围内安全高效地运行。Parker is supporting the global decarbonisation efforts through a broad range of solutions for a variety of applications. Our hydrogen-compatible components and systems enable safe and efficient operation from vacuum to 1,380 bar (20,000 psi) and temperatures from -253OC to +538OC (-423OF to +1000OF).



- 产品目录

On-Board Vehicles - EC-79 Certified Components
Applications from 30 to 350 bar (435 - 5,076 psi)
Two Ferrule Tube Fittings - A-LOK Series
Applications up to 700 bar (10,152 psi)
Medium Pressure Fittings - Cone and Thread - Autoclave Engineers
Medium Pressure Needle Valves SM Series - Autoclave Engineers
Medium Pressure Tubing - Autoclave Engineers

ISO 19880-3 Certified Products for Hydrogen Refueling Stations
Medium Pressure Needle Valves 20SM Series - Autoclave Engineers
Medium Pressure O-Ring Check Valves CXO Series - Autoclave Engineers

General Hydrogen Applications

- Applications up to 414 bar (6,000 psi)
Two Ferrule Tube Fittings - A-LOK Series
Ball Valves - B Series - Isolation and Directional Control Valves
Inline Filters - F Series
Check Valves - CO Series - Directional Control Valves
Stream Switching Systems - R-MaxTM Gen II Series.
Modular Sample Conditioning Systems - IntraFlowTM Series
Pressure Regulators - IR4000 and IR6000 Series
Excess Flow Shutoff Valves - FS190 Series

- Applications up to 1,380 bar (20,000 psi)
Medium Pressure Two Ferrule Inverted Tube Fittings - MPITM Series
Medium Pressure Fittings - Cone and Thread - Parker Autoclave Engineers
Permanent Ferrule-less Connectors - Phastite Series
Ball Valves - Hi-Pro Series - Isolation Valves .
Ball Valves - HB Series - Isolation Valves
Needle Valves MAN - MPITM Series
Medium Pressure Needle Valves 15SM and 20SM Series - Autoclave Engineers
Medium Pressure O-Ring Check Valves CXO Series - Autoclave Engineers
Medium Pressure O-Ring Check Valves MAC - MPITM Series
Double Block & Bleed Needle Type Manifold - 20DBNV Series - Autoclave Engineers
Relief Valves - Soft Seat RVS Series - Autoclave Engineers
Medium Pressure Tubing - MPITM Series
Medium Pressure Actuators - Autoclave Engineers
Medium Pressure Adapters - Autoclave Engineers
Medium Pressure Accessories - Autoclave Engineers


Cryogenic/LH2 Applications - 液氢应用
Globe Valves - Stainless Steel with Bronze Internals - Bestobell Industrial
Globe Valves - Stainless Steel - Bestobell Marine
Pneumatically Actuated Globe Valves - Stainless Steel with Bronze Internals - Bestobell Industrial
Pneumatically Actuated Globe Valves - Stainless Steel - Bestobell Marine
Lift Check Valves - Stainless Steel with Bronze Internals - Bestobell Industrial
Lift Check Valves - Stainless Steel - Bestobell Marine
Swing Check Valves - Stainless Steel - Bestobell Marine
Manual Gate Valves - Bestobell Industrial
Actuated Gate Valves - Pneumatic Tyre Design - Bestobell Industrial





EC-79 Certified

ON-BOARD VEHICLES车载车辆
Two Ferrule Tube Fittings - A-LOK Series EC-79 Certified
Parker Autoclave Engineers:
Medium Pressure Fittings Tests Passed - Pending EC-79 Certification
Needle Valves - SM Series Tests Passed - Pending EC-79 Certification
Medium Pressure Tubing Tests Passed

GENERAL HYDROGEN APPLICATIONS
Two Ferrule Tube Fittings - A-LOK Series
Permanent Ferrule-less Connectors - Phastite Series
Ball Valves - B Series
Ball Valves - Hi-Pro Series
Ball Valves - HB Series
Inline Filters - F Series
Check Valves - CO Series
Stream Switching Systems - R-Max II
Modular Sample Conditioning Systems - IntraFlowTM Series
Pressure Regulators - IR4000 and IR6000 Series
Excess Flow Shutoff Valves - FS190 Series


CRYOGENIC/LH2 APPLICATIONS
Bestobell Cryogenic Valves:
Globe Valves
Pneumatically Actuated Globe Valves
Lift Check Valves
Swing Check Valves
Manual Gate Valves
Actuated Gate Valves



ISO 19880-3 TESTED

ISO-CERTIFIED PRODUCTS - FOR REFUELING STATIONS
TESTED Parker Autoclave Engineers:

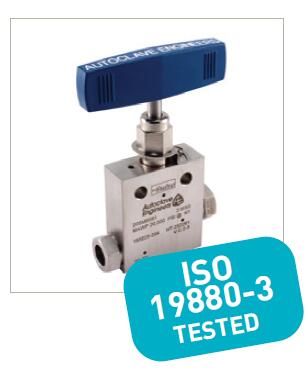

Needle Valves - 20SM Series Tests Passed - Pending Certification
Check Valves - CXO Series Tests Passed - Pending Certification

GENERAL HYDROGEN APPLICATIONS

Parker Autoclave Engineers:
Medium Pressure Fittings - Cone and Thread
Needle Valves - 15SM and 20SM Series
Check Valves - CXO Series
Double Block & Bleed Needle Type Manifold - 20DBNV Series
Relief Valves - RVS Series
Medium Pressure Accessories and Adapters
Medium Pressure Actuators

Medium Pressure MPI Series:
Fittings
Tubing
Needle Valves - MAN Series
Check Valves - MAC Series





根据欧洲议会和欧洲理事会2009年1月14日第79/2009号法规(EC),Parker的管接头、针阀和压力高达700 bar的管道符合氢动力机动车所用氢部件和系统的一般要求。Parker’s range of tube fittings, needle valves and tubing for pressures up to 700 bar meet the general requirements of hydrogen components and systems used on hydrogen-powered motor vehicles as per regulation (EC) No 79/2009 of The European Parliament and of The Council of 14 Jan 2009.

派克的20SM系列针阀和CXO系列止回阀已成功通过了气态氢站所用高压气阀的所有要求试验,达到ISO 198803认证中规定的H70规格。Parker’s needle valves 20SM series and check valves CXO series have successfully passed all the required tests for high pressure gas valves used in gaseous hydrogen stations of up to the H70 designation specified in ISO 198803 certification.



车载车辆On-Board Vehicles

30至700bar(435至10152 psi)压力的车载氢动力车辆部件。Components for on-board hydrogen-powered vehicles for pressures from 30 to 700 bar (435 to 10,152 psi).





EC-79认证EC-79 Certified

Parker批准用于30至700bar氢动力车辆的产品范围包括管件、针阀和管道。根据欧洲议会和理事会2009年1月14日第79/2009号法规(EC),这些产品满足氢动力机动车上使用的氢组件和系统的一般要求。
Parker’s range of products approved for use on-board hydrogen-powered vehicles from 30 to 700 bar includes tube fittings, needle valves and tubing. These products meet the general requirements of hydrogen components and systems used on hydrogen-powered motor vehicles as per regulation (EC) No 79/2009 of The European Parliament and of The Council of 14 Jan 2009.

应用范围为30至350bar(435-5076 psi)
EC-79认证

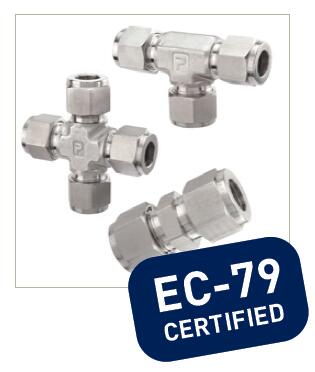

双卡套管接头 - A-LOK系列

EC-79认证

Parker A-LOK双卡套管接头设计用于在压力高达350巴、温度低至-40℃的氢动力车辆上实现高质量的无泄漏连接。这些配件在低温、压力和热循环以及振动应用中提供可靠的运行。在IATF 16949认证工厂制造,EC-79批准用于氢气服务,316不锈钢材料有多种尺寸和配置。要订购EC-79认证组件,只需在零件号末尾添加后缀EC79即可。有关更多详情,请参阅参考目录4190-FMTG。

Available Sizes :1/4” to 1” (6mm to 25mm)*
MWP :350 bar (5,076 psi)
Temperature :-40 度 to +120 度
Hydrogen Form :Gas, Liquid
Catalogue : 4190-FMTG

*A-LOK T形三通和四通的批准尺寸不超过1/2英寸(12mm)。请联系我们了解更多信息。
*A-LOK tees and crosses approved in sizes up to 1/2” (12mm). Please contact Parker for further information.

Applications from 30 to 350 bar (435 - 5,076 psi)
EC-79 CERTIFIED
Two Ferrule Tube Fittings - A-LOK Series
EC-79 Certified

Parker A-LOK two ferrule tube fittings are designed to achieve quality leak-free connections on-board hydrogen-powered vehicles up to 350 bar pressures and temperatures down to -40OC. These fittings provide reliable operation in cryogenic, pressure & thermal cycling and vibration applications. Manufactured at an IATF 16949 certified plant and EC-79 approved for hydrogen service, they come in a range of sizes and configurations in 316 Stainless Steel material.
To order EC-79 certified components, simply add the suffix EC79 at the end of your part number. For more details please see catalogue ref. 4190-FMTG.

高达700 bar( 10152 psi )的应用
EC-79认证

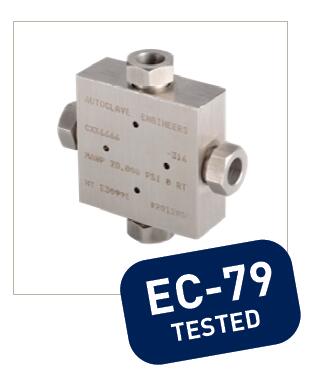

中压管件 锥形和螺纹 Autoclave Engineers

测试通过-待EC-79认证

Parker Autoclave Engineers中压锥形和螺纹连接是为要求更高流量能力的应用而设计的。该中压范围采用高抗拉强度冷加工316/316L不锈钢材料制造,作为700巴(10152磅/平方英寸)最大允许工作压力(MAWP)的标准材料,具有高压版本的所有优点,全金属密封,可在-40OC至+120OC(-40OF至+248OF)的温度下工作。根据ASME B31,这些配件设计用于派克高压灭菌器工程师的20SM系列阀门和中压管道。3第九章标准。要订购EC-79认证组件,只需在零件号末尾添加后缀EC79即可。有关更多详细信息,请参阅目录编号02-0124SE



Applications up to 700 bar (10,152 psi)
EC-79 TESTED
Medium Pressure Fittings - Cone and Thread - Autoclave Engineers
Tests Passed - Pending EC-79 Certification
Parker Autoclave Engineers medium pressure cone and thread connections are designed for applications that require higher flow rate capability. Manufactured from high tensile strength cold worked 316/316L Stainless Steel material as standard for 700 bar (10,152 psi) MAWP, this Medium Pressure range has all the benefits of the High Pressure version with all metal sealing for operations at temperatures from -40OC to +120OC (-40OF to +248OF). These fittings are designed for use with Parker Autoclave Engineers’ 20SM Series valves and medium pressure tubing according to ASME B31.3 Chapter IX standards. To order EC-79 certified components, simply add the suffix EC79 at the end of your part number. For more details please see catalogue ref. 02-0124SE.

Available Sizes :1/4” to 1”
MWP :700 bar
Temperature :-40度 to +120度
Hydrogen Form :Gas, Liquid
Catalogue:02-0124SE

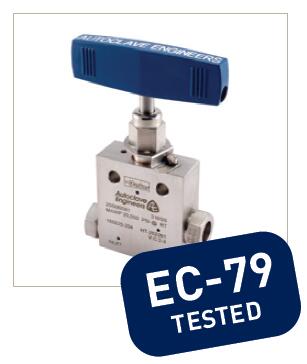

SM系列中压针阀 - Autoclave Engineers
测试通过-待EC-79认证

派克Autoclave EngineersSM系列阀门专为配合孔板中压锥螺纹管件和管道而设计,使用锥螺纹式连接可实现最有效的流道。它们采用高抗拉强度UNS S31600/S31603冷加工316/316L不锈钢材料制造,作为700巴(10152磅/平方英寸)最大允许工作压力的标准。要订购EC-79认证组件,只需在零件号末尾添加后缀HYGEC79即可。有关更多详细信息,请参阅目录编号02-0112SE

Medium Pressure Needle Valves SM Series - Autoclave Engineers
Tests Passed - Pending EC-79 Certification

Parker Autoclave Engineers SM Series valves are designed specifically for use with matching orifice medium pressure cone & thread fittings and tubing for the most efficient flow path possible using cone & thread style connections. They are manufactured using high tensile strength UNS S31600/S31603 cold worked 316/316L Stainless Steel material as standard for 700 bar (10,152 psi) MAWP. To order EC-79 certified components, simply add the suffix HYGEC79 at the end of your part number. For more details please see catalogue ref. 02-0112SE.



压力:700 bar
温度:-40 度 to +120度
尺寸:1/4” to 1”
介质:Gas
Catalogue: 02-0112SE

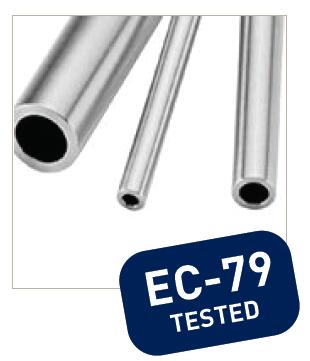

中压管道 Autoclave Engineers
通过测试

派克Autoclave Engineers师提供全套austenetic冷拔不锈钢管,其设计符合派克高压灭菌器阀门和配件的性能标准。帕克高压灭菌器工程师中压管道是专为要求强度和耐腐蚀性的高压应用而制造的。有关更多详细信息,请参阅目录编号02-0124SE



Medium Pressure Tubing - Autoclave Engineers
Tests Passed


Parker Autoclave Engineers offers a complete selection of austenetic, cold drawn stainless steel tubing designed to match the performance standards of Parker Autoclave valves and fittings. Parker Autoclave Engineers medium pressure tubing is manufactured specifically for high pressure applications requiring both strength and corrosion resistance. For more details please see catalogue ref. 02-0124SE.

压力:700 bar
温度:-40 度 to +120度
尺寸:1/4” to 1”
介质:Gas
Catalogue: 02-0124SE





可用尺寸MWP温度氢气形式Available Sizes MWP Temperature Hydrogen Form
氢气加油站的ISO产品ISO Products For H2 Refueling Stations
压力高达700巴(10152磅/平方英寸)的加氢站部件。Components for hydrogen refueling stations for pressures up to 700 bar (10,152 psi).
通过测试,等待ISO 19880-3认证Tests Passed, Pending ISO 19880-3 Certification


派克的针阀和止回阀已成功通过ISO 19880-3认证中规定的气态氢站用高压阀所需的测试。这些机构目前正在等待完成实现认证的最后步骤。Parker's needle and check valves have successfully passed the required tests for high pressure valves used in gaseous hydrogen stations as specified in ISO 19880-3 certification. These are now awaiting the completion of the final steps towards achieving the certification.

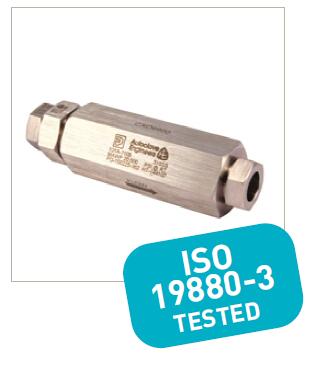

中压O形圈止回阀CXO系列-Autoclave Engineers
已测试,等待ISO 19880-3认证

这些Parke Autoclave Engineers的O形圈止回阀CXO系列(HYG选件)可承受-73°C和316°C之间的温度和高达1380 bar(20000 psi)的压力。

阀门有两种不同类型的连接选项,包括锥螺纹和MPI。
要订购ISO 19880-3认证组件,只需在零件号末尾添加后缀HYG。
有关更多详细信息,请参阅目录编号02-0124SE

压力:700 bar (10,152 psi)
温度:-73 度 to +316 度
尺寸:1/4” to 1”
氢气介质:Gas
Catalogue:02-0112SE

Medium Pressure O-Ring Check Valves CXO Series - Autoclave Engineers
Tested, Pending ISO 19880-3 Certification

These Parker Autoclave Engineers O-Ring Check Valves CXO Series (HYG option) can withstand temperatures ranging between -73°C and 316°C and pressures of up to 1,380 bar (20,000 psi).

The valves are available with two different styles of connection options including cone & thread and MPITM.
To order ISO 19880-3 certified components, simply add the suffix HYG at the end of your part number.
For more details please see catalogue ref. 02-0124SE.

中压O形圈止回阀CXO系列 - Parker Autoclave Engineers
已测试,等待ISO 19880-3认证



这些Parker Autoclave Engineers的O形圈止回阀CXO系列(HYG选件)可承受-73°C和316°C之间的温度和高达1380 bar( 20000 psi )的压力。
阀门有两种不同类型的连接选项,包括锥螺纹和MPI。
要订购ISO 19880-3认证组件,只需在零件号末尾添加后缀HYG。
有关更多详细信息,请参阅目录编号02-0124SE

压力:700 bar (10,152 psi)
温度:-73 度 to +316 度
尺寸:1/4” to 1”
氢气介质:Gas



Medium Pressure O-Ring Check Valves CXO Series - Autoclave Engineers
Tested, Pending ISO 19880-3 Certification

These Parker Autoclave Engineers O-Ring Check Valves CXO Series (HYG option) can withstand temperatures ranging between -73°C and 316°C and pressures of up to 1,380 bar (20,000 psi).
The valves are available with two different styles of connection options including cone & thread and MPI.
To order ISO 19880-3 certified components, simply add the suffix HYG at the end of your part number.
For more details please see catalogue ref. 02-0124SE.



一般氢应用: 在真空至1380 bar( 20000 psi )压力下用于一般氢气应用的部件

派克提供广泛的高质量组件和系统解决方案,适用于发电、石化、农业和研发等多种行业的一般氢气使用。
高达414 bar( 6000 psi )的应用

General Hydrogen Applications
Components for general hydrogen applications at pressures from vacuum to 1,380 bar (20,000 psi).

Parker offers an extensive range of high-quality components and system solutions suitable for general hydrogen use in a wide variety of industries including power generation, petrochemical, agricultural and research & development.



Applications up to 414 bar ( 6000 psi)
高达414 bar( 6000 psi )的应用

Two Ferrule Tube Fittings - A-LOK Series
A-LOK双卡套接头

尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/16” to 2”
(2mm to 50mm)
414 bar
(6,000 psi)*
-253℃ to +538℃
(-423℉ to +1000℉)**
Gas, Liquid





*关于高达689巴的高压管/管件组合,请参考派克管表(10000 psi)。
**需要考虑材料降级和介质兼容性因素高温应用。

Ball Valves - B Series - Isolation and Directional Control Valves
B系列隔离和方向控制阀球阀

尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/8” to 3/4”
(3mm to 18mm)
414 bar
(6,000 psi)*
-54℃C to +232℃
(-65℉ to +450℉)
Gas



Needle Valves - V Series - Isolation and Flow Control Valves
V系列针阀 隔离阀和流量控制阀

尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/8” to 3/4”
(3mm to 18mm)
345 bar
(5,000 psi)
-54℃C to +232℃
(-65℉ to +450℉)
Gas



F系列管式过滤器
F Series Inline Filters

尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/8” to 1”
(3mm to 25mm)
414 bar
(6,000 psi)
-51℃ to +204℃
(-60℉ to +399℉)
Gas

Check Valves - CO Series - Directional Control Valves
CO系列止回阀单向阀 - 方向控制阀



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/4” to 1/2”
(6mm to 12mm)
414 bar
(6,000 psi)
-57℃ to +204℃
(-71℉ to +399℉)
Gas



Stream Switching Systems - R-MaxTM Gen II Series
R-MaxTM Gen II系列 流交换系统



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/8”
34 bar
(500 psi)
-57℃ to +204℃
(-71℉ to +399℉)
Gas



Modular Sample Conditioning Systems - IntraFlowTM Series
IntraFlowTM系列 模块化样品调节系统



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/8”
34 bar
(500 psi)
-57℃ to +204℃
(-71℉ to +399℉)
Gas



Pressure Regulators - IR4000 and IR6000 Series
压力调节器 - IR4000和IR6000系列减压阀



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/4”
276 bar
(4,000 psi)
-40℃ to +260℃
(-40℉ to +500℉)
Gas



Excess Flow Shutoff Valves - FS190 Series
FS190系列溢流切断阀



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/4”
241 bar
(3,500 psi)
-23℃ to +66℃
(-9℉ to +151℉)
Gas





Applications up to 1,380 bar (20,000 psi)
高达1380 bar 氢气应用




Medium Pressure Two Ferrule Inverted Tube Fittings - MPI Series
MPI 系列中压双卡套接头



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/4” to 1”
1,034 bar
(15,000 psi)
-253℃ to +538℃
(-423℉ to +1000℉)*
Gas, Liquid

* Material de-rating and media compatibility factors need to be taken into consideration for higher temperature applications.

Medium Pressure Fittings - Cone and Thread - Parker Autoclave Engineers
中压管件 锥形和螺纹接头



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/4” to 1 1/2”
1,380 bar
(20,000 psi)*
-253℃to +538℃
(-423℉ to +1000℉)*
Gas, Liquid

* Material de-rating and media compatibility factors need to be taken into consideration for higher temperature and higher pressure applications. Refer to technical catalogue 02-0142SE.

Permanent Ferrule-less Connectors - Phastite Series
Phastite 系列永久性无卡套连接器



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/4” to 1”
(6mm to 25mm)
1,380 bar
(20,000 psi)*
-45℃ to +93℃
(-49℉ to +199℉F)
Gas



Ball Valves - Hi-Pro Series - Isolation Valves
Hi Pro系列球阀 - 隔离阀



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/4” to 1”
(6mm to 25mm)
689 bar
(10,000 psi)
-54℃ to +232℃
(-65℉ to +450℉)
Gas



Ball Valves - HB Series - Isolation Valves
HB系列球阀 隔离阀



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/8” to 1/2”
(6mm to 12mm)
489 bar
(10,000 psi)
-54℃to +232℃
(-65℉ to +450℉)
Gas



Needle Valves MAN - MPI Series

尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/4” to 1”
1,034 bar
(15,000 psi)
-73℃ to +316℃
(-99℉ to +601℉)
Gas



Medium Pressure Needle Valves 15SM and 20SM Series - Autoclave Engineers
15SM和20SM系列中压针阀



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/4” to 1 1/2”
1,380 bar
(20,000 psi)*
-73℃ to +316℃
(-99℉ to +601℉)*
Gas

This valve has been modified for use with Hydrogen. To order, add the suffix HYG at the end of your part number.

Medium Pressure O-Ring Check Valves CXO Series - Autoclave Engineers
CXO系列中压O形圈止回阀-单向阀



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/4” to 1”
1,380 bar
(20,000 psi)*
-73℃ to +316℃
(-99℉to +601℉)*
Gas

This valve has been modified for use with Hydrogen. To order, add the suffix HYG at the end of your part number.

Medium Pressure O-Ring Check Valves MAC - MPI Series
中压O形圈止回阀MAC-MPI系列



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/4” to 1”
1,034 bar
(15,000 psi)
-73℃ to +316℃
(-99℉ to +601℉)*
Gas



Double Block & Bleed Needle Type Manifold - 20DBNV Series - Autoclave Engineers
20DBNV系列双堵塞和排气针式歧管阀



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/4” to 9/16”
1,380 bar
(20,000 psi)*
-73℃ to +316℃
(-99℉ to +601℉)*
Gas

This valve has been modified for use with Hydrogen. To order, add the suffix HYG at the end of your part number.

* Material de-rating and media compatibility factors need to be taken into consideration for higher temperature and higher pressure applications. Refer to technical catalogue 02-0142SE.

Relief Valves - Soft Seat RVS Series - Autoclave Engineers
RVS系列软座安全阀



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
9/16”
1,380 bar
(20,000 psi)*
0℃ to +204℃
(32℉ to +399℉)
Gas



This valve has been modified for use with Hydrogen. To order, add the suffix HYG at the end of your part number.

Medium Pressure Tubing - MPI Series
中压不锈钢管件



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/4” to 1”
1,034 bar
(15,000 psi)
-253℃ to +538℃
(-423℉ to +1000℉)
Gas, Liquid





Medium Pressure Actuators - Autoclave Engineers
中压气控阀



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/4” to 1 1/2”
1,380 bar
(20,000 psi)
-73℃ to +316℃
(-99℉ to +601℉)
Gas, Liquid



Medium Pressure Adapters - Autoclave Engineers
中压接头

尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/4” to 1 1/2”
1,379 bar
(20,000 psi)
-253℃ to +538℃
(-423℉ to +1000℉)*
Gas, Liquid







Medium Pressure Accessories - Autoclave Engineers
中压附件



尺寸
压力
温度
Hydrogen Form
氢形态
Catalogue
1/4” to 1 1/2”
1,380 bar
(20,000 psi)
-253℃ to +538℃
(-423℉ to +1000℉)*
Gas, Liquid





* Material de-rating and media compatibility factors need to be taken into consideration for higher temperature and higher pressure applications. Refer to technical catalogue 02-0142SE.





低温/液氢 H2应用 Cryogenic/LH2 Applications


低温/液氢应用部件,温度低至-253OC(-423OF),压力高达50巴(725磅/平方英寸)。Parker Bestobell的阀门设计和制造适用于1组气体,适用于温度低至-253OC的液氢应用。所有阀门在发货前都经过压力测试。Components for cryogenic/LH2 applications at temperatures down to -253OC (-423OF) and pressures up to 50 bar (725 psi). Designed and engineered for use with Group 1 gases, Parker Bestobell's valves are suitable for liquid hydrogen applications requiring temperatures as low as -253OC. All valves are pressure-tested prior to dispatch.

若要订购,请在零件号末尾添加后缀-H。To order, add the suffix -H at the end of your part number.

Globe Valves - Stainless Steel with Bronze Internals - Bestobell Industrial
Bestobell Industrial 带青铜内件的不锈钢截止阀



连接方式
阀座类型
尺寸
压力
Butt Weld
Socket Weld
Flange Class
150 and 300
Soft
DN15 to DN100
(1/2” to 4”)
Up to 50 bar
(725 psi)
温度
氢形态
Catalogue

-253℃ to +65℃
(-423℉to +149℉)
Gas, Liquid





Globe Valves - Stainless Steel - Bestobell Marine
不锈钢截止阀



连接方式
阀座类型
尺寸
压力
Butt Weld
Socket Weld
Flange Class
150 and 300
Metal
to
Metal
DN15 to DN100
(1/2” to 4”)
Up to 50 bar
(725 psi)
温度
氢形态
Catalogue

-253℃ to +65℃
(-423℉to +149℉)
Gas, Liquid



Pneumatically Actuated Globe Valves - Stainless Steel with Bronze Internals - Bestobell Industrial
Bestobell Industrial带青铜内件的不锈钢气动截止阀



连接方式
阀座类型
尺寸
压力
Butt Weld
Socket Weld
Flange Class
150 and 300
Soft
DN15 to DN100
(1/2” to 4”)
Dependent
on end
connections/
actuator
温度
氢形态
Catalogue

-253℃ to +65℃
(-423℉ to +149℉)
Gas, Liquid





Pneumatically Actuated Globe Valves - Stainless Steel -
Bestobell Marine不锈钢气动截止阀

连接方式
阀座类型
尺寸
压力
Butt Weld
Socket Weld
Flange Class
150 and 300
Metal
to
Metal
DN15 to DN100
(1/2” to 4”)
Dependent
on end
connections/
actuator
温度
氢形态
Catalogue

-253℃ to +65℃
(-423℉ to +149℉)
Gas, Liquid



Lift Check Valves - Stainless Steel with Bronze Internals - Bestobell Industrial
Bestobell Industrial不锈钢带青铜内件提升止回阀



连接方式
阀座类型
尺寸
压力
Butt Weld
Socket Weld
Flange Class
150 and 300
Metal
to
Metal
DN15 to DN100
(1/2” to 4”)
Up to 50 bar
(725 psi)
温度
氢形态
Catalogue

-253℃ to +65℃
(-423℉ to +149℉)
Gas, Liquid



Lift Check Valves - Stainless Steel - Bestobell Marine
不锈钢提升止回阀



连接方式
阀座类型
尺寸
压力
Butt Weld
Socket Weld
Flange Class
150 and 300
Metal
to
Metal
DN15 to DN100
(1/2” to 4”)
Up to 50 bar
(725 psi)
温度
氢形态
Catalogue

-253℃ to +65℃
(-423℉ to +149℉)
Gas, Liquid



Swing Check Valves - Stainless Steel - Bestobell Marine
不锈钢旋启式止回阀



连接方式
阀座类型
尺寸
压力
Various
Contact Parker
soft
DN25 to DN80
(1” to 3”)
Up to 50 bar
(725 psi)
温度
氢形态
Catalogue

-253℃ to +65℃
(-423℉ to +149℉)
Gas, Liquid



Manual Gate Valves - Stainless Steel - Bestobell Industrial
不锈钢手动闸阀



连接方式
阀座类型
尺寸
压力
Butt Weld
Socket Weld
soft
DN40 to DN100
(1 1/2” to 4”)
Up to 40 bar
(580 psi)
温度
氢形态
Catalogue

-253℃ to +65℃
(-423℉ to +149℉)
Gas, Liquid



Actuated Gate Valves - Stainless Steel - Pneumatic Tyre Design - Bestobell Industrial
不锈钢驱动闸阀 充气轮胎设计



连接方式
阀座类型
尺寸
压力
Butt Weld
Socket Weld
soft
DN40 to DN100
(1 1/2” to 4”)
Up to 40 bar
(580 psi)
温度
氢形态
Catalogue

-253℃ to +65℃
(-423℉ to +149℉)
Gas, Liquid









HYG Option 氢用选项

HYG氢用选项 更换了阀杆、填料和材料。包装材料为聚四氟乙烯玻璃PTFE-Glass。阀秆经过增强,特殊硬化。HYG使阀门适用于低至零下73度。气阀门在装运前经过100%氦气测试。阀门寿命45000循环。该HYG选项选件设计用于驱动阀,但也适用于手动阀。单向阀和安全阀。HYG Change the stem, packing and material. The packing material is PTFE-Glass. The stems are upgrated, special hardening. HYG make the valve suitable for use down to zero 73. 100% helium seat tested prior to shipment. Go beyone 45000 cycles befor first leakage. This option was designed for actuated valves, but also good for manual valves. check and relief valve.



型号
产品描述
CXF6-5-HYG Line filter hydrogen service
CXO4400-HYG Check valave o-ring hydrogen
CXO9900-HYG Check valave o-ring hydrogen
RSM607-O1SHYG Vave R/Kit 20SM6071727374-O1S
RSM907-O2SHYG Valve repair kit
10RVP9072-HYG Relief valve assy helium tested
101B-6322-HYG Plug 10RVP - Insp for HYG service
102B-6324-HYG Seat 10RVP - INSP for HYG service
20SM4071-HYG Valve assembly hygrogen service
20SM6071-C1SHYG air valve assy
20SM6071-O1SHYG air valve assy
20SM6072-O1SODBHYG Obsoleter use 20SM6072-O1SODHYG
20SM6072-O1SODHYG Valve assy - OD-Hydrogen service
20SM6072-O1SWOA-HYG air valve assy
20SM9071-HYG Valve assembly hygrogen service
20SM9071-O1SODHYG Air valve - o1s outdoor / HYG service
20SM9071-O2SODHYG Air valve - o2s outdoor / HYG service
20SM9072-O2SODHYG Air valve - o2s outdoor / HYG service
30VM4081-FRC1LTHYG valve assembly
30VM4081-FRC1XHYG valve assembly
30VM4081-O1SLTHYG air valve low temp hyg service
6MP7-MACL-20-TO-SS-HYG check valve o-ring 3/8in hydrogen
6MP7-MANAB-TGSS-C1SOD-HYG air valve 3/8 in MPI Hydrogen
6MP7-NANAB-TGSS-O1SOD-HYG Two way angle w/O1S Hydrogen
6MP7-MANLR-TG-SS-HYG Medium pressure needle valve
60VM6081-FRC1XHYG valve assembly









美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology


E-mail:sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址:北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编:100102
电话:010-8428 2935, 8428 9077, 8428 3983
手机:139 101 22694
Http://www.cnmec.biz
传真:010-8428 8762


京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
