Parker PTFE Hose 聚四氟乙烯管




Parker派克聚四氟乙烯管能耐高温,其工作温度可达500°F / 260°C。PTFE聚四氟乙烯管是一种耐化学介质性能特别优异的塑料管,相比其它任何塑料产品,PTFE聚四氟乙烯管具有很低的摩擦系数,介质能无限制的地自由流动从而不产生沉积物。

Fluoropolymer Tubing

Parker fluoropolymer tubing are available in different material - PFA, FEP or PTFE - that are ideal for flow control monitoring applications. Our range includes products that offer greater durability than everyday tubing that are suitable for use under severe chemical and mechanical conditions. Our range includes one of the largest selections of highly flexible single tubing or convoluted tubing, with the capability to resist corrosive liquids and gases. Our fluoropolymer tubing are widely used in high temperature and chemical applications across many industrial markets.



超柔性管回旋管是非常灵活的,是理想的应用,在较紧的弯曲半径,增加压力处理或抗压性是必要的。Convoluted tubing is very flexible and is ideal for applications where a tighter bend radius, increased pressure handling or crush resistance is needed.

101/201 系列 - PTFE 管子 – 工业和重壁
PTFE Tubing – Industrial and Heavy Wall – Series 101/201


派克PTFE 管子,在所有可提供的含氟聚合物管子产品中,具有最好的耐高温、最优异的化学兼容性和最强的抗腐蚀能力。Parker manufactures PTFE tubing, the highest temperature, chemical and corrosion resistance of all the fluoropolymer tubing available, in standard industrial wall and heavy wall designs along with many custom sizes to application requirements. PTFE tubing is the best in temperature and chemical resistance Parker offers and is used in extreme environments.

适合于电气绝缘应用的PTFE 管子产品 - AWG 和毛细型管子
PTFE Tubing for Electrical Insulation Applications - AWG & Fractional


PTFE AWG (美国线径标准) & 毛细管子,专为电气绝缘应用而设计,使得该产品能耐高温(可适用于焊接)、耐化学品和耐磨。根据设计该系列产品满足UL和CSA的标准要求。PTFE AWG (American Wire Gauge) Tubing is designed for electrical insulation applications and some designs meet UL and CSA certifications. Tubing is available in Standard Wall, Light Wall, Thin Wall and Heavy Wall designs.

PTFE 螺旋型电缆包裹护套
PTFE SPIRAL CUT CABLE WRAP


PTFE 螺旋型包裹护套,为各种不同位置点需要引线时而提供电线和电缆的保护。PTFE Spiral Wrap is a flexible, chemical resistant covering that can be used to bundle wires, hoses, cords and cables and still allow individual routing out of the bundle.




101/201 系列 - PTFE 管子 – 工业和重壁
101/201 系列 - PTFE 管子 – 工业和重壁
派克PTFE 管子,在所有可提供的含氟聚合物管子产品中,具有最好的耐高温、最优异的化学兼容性和最强的抗腐蚀能力。

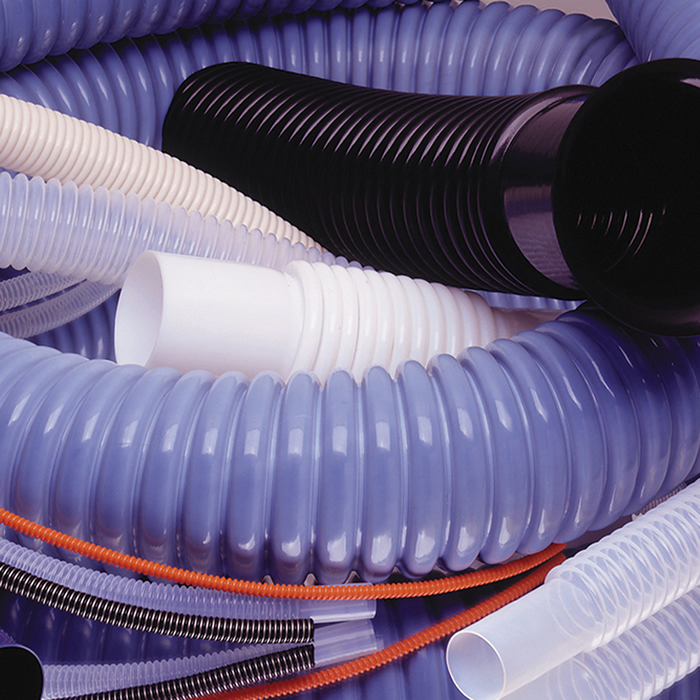

Convoluted Tubing – Extra Flexible Tubing
Convoluted Tubing – Extra Flexible Tubing
Convoluted tubing is very flexible and is ideal for applications where a tighter bend radius, increased pressure handling or crush resistance is needed.



Fluoropolymer (FEP) Tubing
FEP (fluorinated ethylene propylene) tubing is a robust engineering fluoropolymer which provides excellent fluid visibility and is perfect for flow control monitoring.

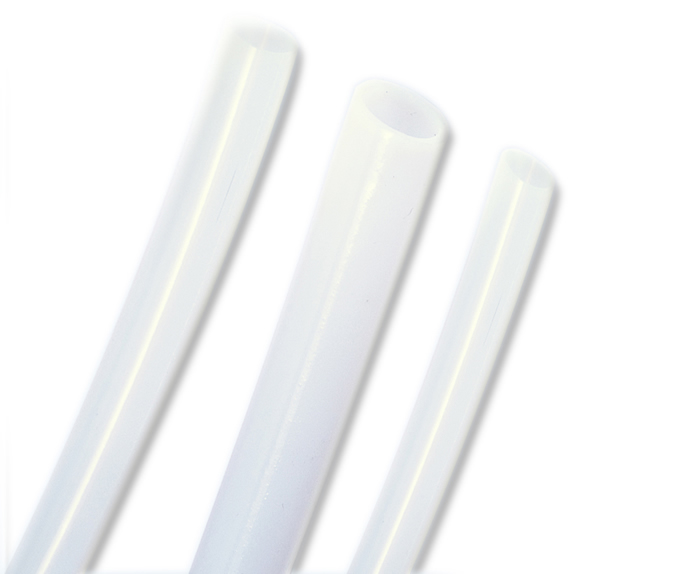

PTFE Tubing – Industrial and Heavy Wall Tubing – Series 101/201
Extruded PTFE tubing is a high temperature, chemical resistant tubing operating up to 500°F/260°C. Fluoroplastic tubing offers the best chemical and corrosion resistance of all Parflex tubing and meets AMS 3653 requirements.



FEP Industrial, Heavy Wall & Metric Tubing - Series 103/203
FEP tubing is used when you need chemical resistant tubing and long continuous lengths or very clear fluoropolymer tubing. FEP tubing can be supplied in extrusion lengths exceeding 1,000 foot continuous when necessary.



PFA Tubing – Industrial and Heavy Wall – Series 104/204
When temperature and clarity are both factors, Parker's PFA tubing is the product of choice. PFA offers the high-temperature attributes of PTFE, long continuous lengths and almost as much clarity as FEP tubing.



Convoluted Tubing – Extra Flexible Tubing
Convoluted tubing is very flexible and is ideal for applications where a tighter bend radius, increased pressure handling or crush resistance is needed.



Fluoropolymer (PFA) Tubing
Parker Legris PFA tubing offers 10 times greater durability than other fluoropolymer tubings under severe chemical and mechanical conditions. This tubing range is available in three material grades, offering perfect compatibility with all applications.

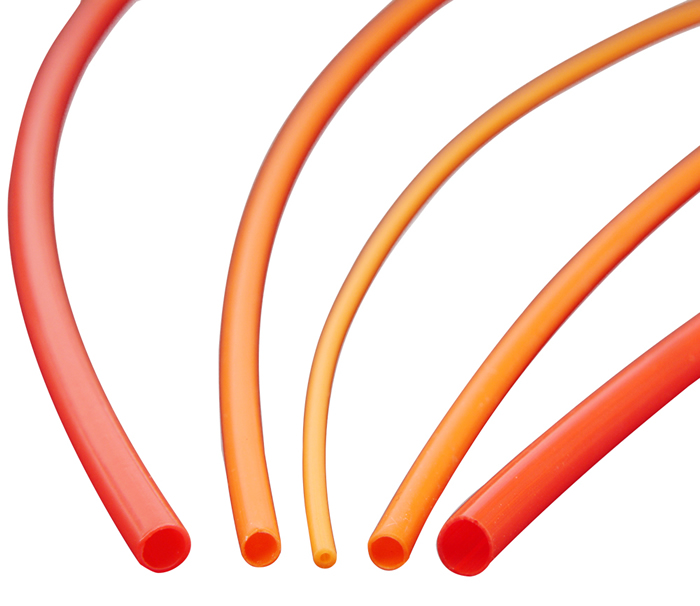

PTFE Tubing for Electrical Insulation Applications - AWG & Fractional
PTFE AWG (American Wire Gauge) & Fractional Tubing is designed for electrical insulation applications that require high-temperature resistance (withstands soldering), chemical and abrasion resistance. Designs meet UL and CSA certifications.



PFA High Purity Tubing – Industrial and Heavy Wall – Series 105/205
High Purity PFA Tubing is manufactured for use in hostile environments where purity is critical. Testing has proven that a high purity PFA tube is able to withstand corrosive surfactants for longer periods of time than standard fluoropolymer tubing.



Corrugated Tubing -Tex-Flex? Series
Corrugated Tubing aids customers in tighter routing of tubing in applications with small bend radius requirements without kinking or reducing the inside diameter of the tube. The bend radius is almost 4x smaller than a smoothbore tube of the same size.

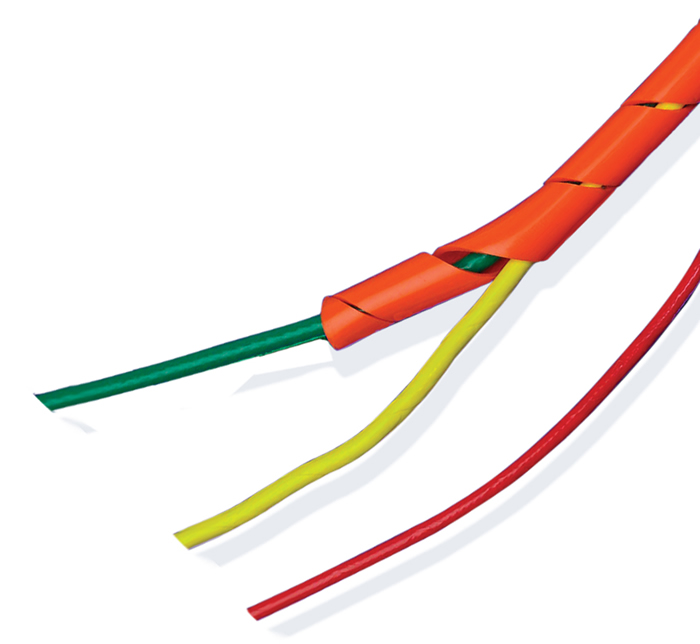

PTFE Spiral Cut Cable Wrap
PTFE Spiral wrap provides harnessing for wires and cable while allowing leads at various points.


适合于电气绝缘应用的PTFE 管子产品 - AWG 和毛细型
适合于电气绝缘应用的PTFE 管子产品 - AWG 和毛细型
PTFE AWG (美国线径标准) &毛细管子,专为电气绝缘应用而设计,使得该产品能耐高温(可适用于焊接)、耐化学品和耐磨。根据设计该系列产品满足UL和CSA的标准要求。




PTFE 螺旋型电缆包裹护套
PTFE 螺旋型电缆包裹护套
PTFE 螺旋型包裹护套,为各种不同位置点需要引线时而提供电线和电缆的保护。
