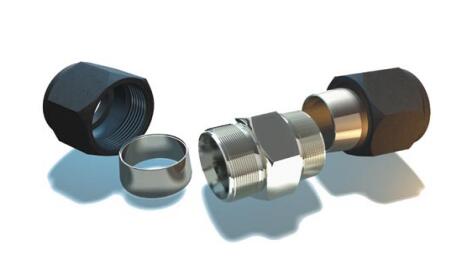

Parker CPI系列单卡套接头
Parker CPI Series Single Ferrule Compression Fitting, Tube Fitting

派克的 CPI系列单卡套接头在过程仪表控制系统中能够提供有效的密封,良好的抗震、抗热循环性能。多种材质可选。Parker’s single ferrule compression fittings, CPI Tube Fittings are designed to effectively seal and also resist vibration and thermo-cycling conditions in process, and instrumentation system connections. Available in a wide range of material.

派克的CPI单卡套接头为加工过程、电力和仪器仪表应用等行业提供无泄漏密封连接。单卡套结构使管接头组装十分方便,并且具有卓越的抗震性能。搒单卡套弹性变形为接头本体和紧固螺帽之间提供一个恒定张力。CPI管接头由316 不锈钢制备而成,其他材料还包括:6Mo合金,825合金,625合金 以及 C-276合金。直通接头用冷加工工艺制造,而其他形状接头通过细晶粒锻造工艺制得。该管接头适用于不同规格的管道,英制管外径从1/16” 到 2”,公制管外径从2mm 到 25mm。尺寸均按照行业最高质量标准来控制。Parker CPI single ferrule compression tube fittings are designed as leak free connections for process, power, and instrumentation applications. These tube fittings utilize a single ferrule for easy make-up and excellent performance in vibration applications. The “spring loaded” effect of the single ferrule creates a constant tension between the fitting body and fitting nut.CPI tube fitting are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276. Straight fittings are machined from cold finished bar stock, while shaped bodies are machined from close grain forgings.The fittings are available for imperial pipe sizes from 1/16” through to 2” O.D., and for metric sizes from 2 mm through to 25 mm O.D. These gaugeable tube fittings are manufactured to the highest industry quality standards.

Parker CPI single ferrule compression tube fittings data sheet

市场:

- 化工
- 石化
- 电力
- 核能
- 油气
- 制浆造纸

特征和优势:

- 单卡套提供简易安装
- 紧固螺母经二硫化钼涂层处理,提供低安装扭矩
- 派克的Suparcase表面处理硬化工艺使卡套具有卓越的抗腐蚀性能
- 硬化处理的卡套具有优异的性能



应用:
- 仪表风管线
- 伴热管线
- 过程控制管线

性能特点

管件类型 卡套
管件尺寸 1/2", 5/8", 1/16", 3/4", 7/8", 1", 1/8", 3/16", 1/4", 1/4", 5/16", 3/8", 1/2", 10 mm, 12 mm, 15 mm, 16 mm, 18 mm, 20 mm, 25 mm, 3 mm, 4 mm, 6 mm, 8 mm, 3/4", 3/8", 1/8", 1/16", 3/16", 1-1/4", 1-1/2", 2", 22 mm, 5/8", 14 mm, 2 mm
形状 联合接头,转换接头,变径接头,穿板接头,弯头,变径弯头,三通管接头,四通管接头,柱端接头 - 低容腔(带烧结网),柱端接头 - 低容腔,柱端接头 - 低容腔(带烧结网)
连接1尺寸 1/2", 5/8", 1/16", 3/4", 7/8", 1", 1/8", 1/8", 3/16", 1/4", 1/4", 5/16", 3/8", 1/2", 10 mm, 12 mm, 15 mm, 16 mm, 18 mm, 20 mm, 25 mm, 3 mm, 4 mm, 6 mm, 8 mm, 3/4", 3/8", 1/16", 3/16", 1-1/4", 1-1/2", 2", 22 mm, 5/8", 14 mm, 2 mm
连接2尺寸 3/8", 5/8", 1/16", 3/4", 7/8", 1", 1/8", 1/4", 3/16", 1/8", 1/4", 5/16", 3/8", 1/2", 10 mm, 12 mm, 15 mm, 16 mm, 18 mm, 20 mm, 25 mm, 3 mm, 4 mm, 6 mm, 8 mm, N/A, 3/4", 1/2", 1-1/4", 1-1/2", 2", 2 mm, 14 mm, 22 mm, 3/16"
连接3螺纹尺寸(英寸) N/A, 3/4", 1/8", 1/4", 3/8", 1/2", 5/8", 1/16", 3/4", 7/8", 1", 1-1/4", 1/8", 1-1/2", 2", 3/16", 3/16", 1/4", 5/16", 3/8", 1/2", 10 mm, 12 mm, 14 mm, 15 mm, 16 mm, 18 mm, 20 mm, 22 mm, 2 mm, 25 mm, 3 mm, 4 mm, 6 mm, 8 mm
材料 316不锈钢,钢,铜
形式 联合接头,色谱分析用接头,卡套管-外螺纹接头,卡套管-内螺纹接头

资料与样本
CPI / A-LOK 卡套接头(内容主要包括:A-LOK、CPI、卡套接头)--14-05-A ING-CH-88P-0273

COMPLIANCE, CERTIFICATIONS, & SAFETY
ASTM F1387
CPI & A-LOK Tube Fittings ASTM F1387 Test Summary - EPR 4230/4233
ISO 9001

LITERATURE AND REFERENCE MATERIALS
A Solid Performer
Alternative Fuel: CNG Vehicle and Fueling System Solutions --4660-CNG Alternative Fuel
CPI Tube Fitting Bulletin
Cat/4190-FMTG Fittings Materials & Tubing Guide
Catalog 4200-PC/USA

Features and Benefits
Fitting Installation Manual
Molybdenum Disulfide - The Ideal Solid Lubricant and Anti-Galling Material
Parker Instrument Tubing
Parker SuparCase Technology
Single Ferrule Compression Fitting - CPI Series
The use of 316 Stainless Steel Instrument Tube Fittings on 6Mo Tube--WP-316/6MO
