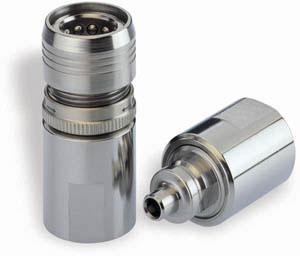

Snap-tite 73系列超高压高压水射流快速接头

Snap-tite 73系列

应用：用于高压水射流、水切割、油田加注、超高压爆破测试系统 73 Series : High Pressure Coupling Ultra High Pressure Water Jet/Blast Coupling

工作压力：10000psi、20000psi、43500psi（3000bar）；
尺寸规格：1/4″
材质：高强度不锈钢；
安全套锁防止意外松脱；
- Operating Pressure - to 43,500 psi (3000 bar)
- Available in 1/4" Size
- Construction - manufactured from stainless steel
- Positive Locking Collar prevents accidental disconnection
- Rugged, Heavy Duty Design
- Superior Flow Characteristics
- Autoclave Engineers Cone & Threaded Fittings Available

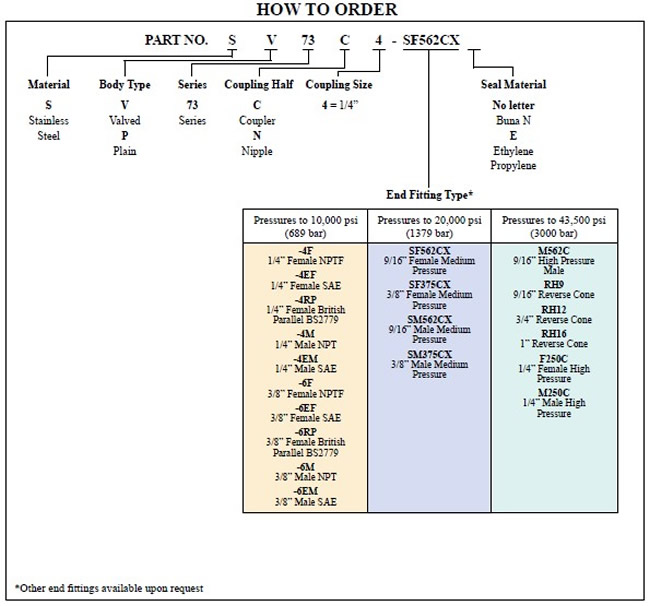

SP73C4-SM562CX Stainless Steel Non-Valved Coupler, 1/4" x 9/16" Male Medium Pressure, Up To 20000 psi Buna N

SP73N4-SM562CX Stainless Steel Non-Valved Nipple, 1/4" x 9/16" Male Medium Pressure, Up To 20000 psi Buna N

SV73C4-M250CE Stainless Steel Valved Coupler, 1/4" x 1/4" Male High Pressure, Up To 43500 psi Ethylene Propylene

SV73N4-M250CE Stainless Steel Valved Nipple, 1/4" x 1/4" Male High Pressure, Up To 43500 psi Ethylene Propylene

Snap-tite 73 Series - The 73 Series Quick Disconnect is designed specifically for water jet, water blast, oilfield injection and test systems where ultra-high pressures are common place. This unit is available as a straight-through or a valved unit and incorporates a positive locking collar which prevents accidental disconnection when unit is connected and the locking ring is tightened up against the coupler sleeve.

Snap-tite 73 Series : High Pressure Coupling
Ultra High Pressure Water Jet/Blast Coupling

FEATURES

Operating Pressure - to 43,500 psi (3000 bar)
Available in 1/4" Size
Construction - manufactured from stainless steel
Positive Locking Collar prevents accidental disconnection
Rugged, Heavy Duty Design
Superior Flow Characteristics
Autoclave Engineers Cone & Threaded Fittings Available

规格参数

This product is multi-functional due to the wide range of end fitting configurations available. This unit can be supplied as a 10,000 psi (690 bar) unit, a 20,000 psi (1379 bar) unit or a 40,000 psi (2759 bar) unit based on the end fitting selection which is made by the customer. Special seals may also be supplied based on the application requirements.
