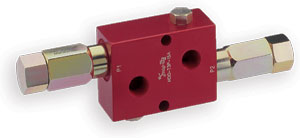

Snap-Tite MDD Series Dual Differential Relief Valves

MDD RELIEF VALVE - Snap-tite's dual relief valve, the MDD valve, features two RDC cartridges in a single housing with standard ports to 1-inch in either female SAE O-ring sealed ports or NPSF ports. This cross over design provides shock relief protection for the actuator by allowing high pressure to relieve to the low pressure side internally in one valve body.

Item # Connection Size Seal Material
MDD-T12S-15 Screw Adjustable 3/4" SAE, 500-1500 psi @ 3 gpm Viton
MDD-T12S-15A Screw Adjustable 3/4" SAE, 500-1500 psi @ 3 gpm Buna N
MDD-T12S-25 Screw Adjustable 3/4" SAE, 500-2500 psi @ 3 gpm Viton
MDD-T12S-25A Screw Adjustable 3/4" SAE, 500-2500 psi @ 3 gpm Buna N
MDD-T12S-40 Screw Adjustable 3/4" SAE, 1000-4000 psi @ 3 gpm Viton
MDD-T12S-40A Screw Adjustable 3/4" SAE, 1000-4000 psi @ 3 gpm Buna N
MDD-T16S-25 Screw Adjustable 1" SAE, 500-2500 psi @ 3 gpm Viton
MDD-T16S-25A Screw Adjustable 1" SAE, 500-2500 psi @ 3 gpm Buna N
MDD-T16S-40 Screw Adjustable 1" SAE, 1000-4000 psi @ 3 gpm Viton
MDD-T16S-40A Screw Adjustable 1" SAE, 1000-4000 psi @ 3 gpm Buna N
MDD-T3P-15 Screw Adjustable 3/8" NPTF, 500-1500 psi @ 3 gpm Viton
MDD-T3P-15A Screw Adjustable 3/8" NPTF, 500-1500 psi @ 3 gpm Buna N
MDD-T3P-25 Screw Adjustable 3/8" NPTF, 500-2500 psi @ 3 gpm Viton
MDD-T3P-25A Screw Adjustable 3/8" NPTF, 500-2500 psi @ 3 gpm Buna N
MDD-T3P-40 Screw Adjustable 3/8" NPTF, 1000-4000 psi @ 3 gpm Viton
MDD-T3P-40A Screw Adjustable 3/8" NPTF, 1000-4000 psi @ 3 gpm Buna N
MDD-T4P-15A Screw Adjustable 1/2" NPTF, 500-1500 psi @ 3 gpm Buna N
MDD-T4P-25 Screw Adjustable 1/2" NPTF, 500-2500 psi @ 3 gpm Viton
MDD-T4P-25A Screw Adjustable 1/2" NPTF, 500-2500 psi @ 3 gpm Buna N
MDD-T4P-40 Screw Adjustable 1/2" NPTF, 1000-4000 psi @ 3 gpm Viton
MDD-T4P-40A Screw Adjustable 1/2" NPTF, 1000-4000 psi @ 3 gpm Buna N
MDD-T6P-15A Screw Adjustable 3/4" NPTF, 500-1500 psi @ 3 gpm Buna N
MDD-T6P-25 Screw Adjustable 3/4" NPTF, 500-2500 psi @ 3 gpm Viton
MDD-T6P-25A Screw Adjustable 3/4" NPTF, 500-2500 psi @ 3 gpm Buna N
MDD-T6P-40 Screw Adjustable 3/4" NPTF, 1000-4000 psi @ 3 gpm Viton
MDD-T6P-40A Screw Adjustable 3/4" NPTF, 1000-4000 psi @ 3 gpm Buna N
MDD-T6S-40A Screw Adjustable 3/8" SAE, 1000-4000 psi @ 3 gpm Buna N
MDD-T8P-15A Screw Adjustable 1" NPTF, 500-1500 psi @ 3 gpm Buna N
MDD-T8P-25 Screw Adjustable 1" NPTF, 500-2500 psi @ 3 gpm Viton
MDD-T8P-25A Screw Adjustable 1" NPTF, 500-2500 psi @ 3 gpm Buna N
MDD-T8P-40 Screw Adjustable 1" NPTF, 1000-4000 psi @ 3 gpm Viton
MDD-T8P-40A Screw Adjustable 1" NPTF, 1000-4000 psi @ 3 gpm Buna N
MDD-T8S-15 Screw Adjustable 1/2" SAE, 500-1500 psi @ 3 gpm Viton
MDD-T8S-15A Screw Adjustable 1/2" SAE, 500-1500 psi @ 3 gpm Buna N
MDD-T8S-25 Screw Adjustable 1/2" SAE, 500-2500 psi @ 3 gpm Viton
MDD-T8S-25A Screw Adjustable 1/2" SAE, 500-2500 psi @ 3 gpm Buna N
MDD-T8S-40 Screw Adjustable 1/2" SAE, 1000-4000 psi @ 3 gpm Viton
MDD-T8S-40A Screw Adjustable 1/2" SAE, 1000-4000 psi @ 3 gpm Buna N
