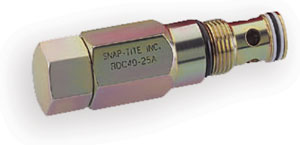

Snap-tite's RDC differential relief cartridge is designed to work in systems where the flows can reach 40 gpm (155 l/min) and it is rated for working pressures to 4,000 psi (276 bar). This highly reliable relief cartridge is the workhorse in a hydraulic system. It handles the high flow requirements of a system relief valve with ease.
| Item # |
Connection Size |
Seal Material |
| RDC40-15 |
40 gpm, 500-1500 psi |
Viton |
| RDC40-15A |
40 gpm, 500-1500 psi |
Buna N |
| RDC40-25 |
40 gpm, 500-2500 psi |
Viton |
| RDC40-25A |
40 gpm, 500-2500 psi |
Buna N |
| RDC40-40 |
40 gpm, 1000-4000 psi |
Viton |
| RDC40-40A |
40 gpm, 1000-4000 psi |
Buna N |
| RDC40-S40A |
40 gpm, 1000-4000 psi |
Buna N |
|
