Snap-Tite RDV Series Single Differential Relief Valves

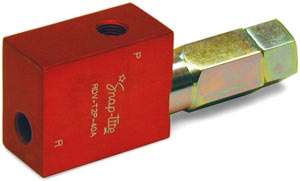

Snap-tite's RDV valve is a single differential relief cartridge in a red anodized aluminum block. The blocks can be female pipe thread or female SAE O-ring boss ported in sizes from 3/8" thru 1". The valve provides system pressure protection on fixed and variable pump systems. This valve is designed to reliably handle high flows in systems operating at pressures up to 4,000 psi (276 bar).

Item # Connection Size Seal Material
RDV-T12S-15 Screw Adjustable, 500-1500 psi, 3/4" SAE Viton
RDV-T12S-25A Screw Adjustable, 500-2500 psi, 3/4" SAE Buna N
RDV-T12S-40 Screw Adjustable, 1000-4000 psi, 3/4" SAE Viton
RDV-T12S-40A Screw Adjustable, 1000-4000 psi, 3/4" SAE Buna N
RDV-T16S-15 Screw Adjustable, 500-1500 psi, 1" SAE Viton
RDV-T16S-25 Screw Adjustable, 500-2500 psi, 1" SAE Viton
RDV-T16S-25A Screw Adjustable, 500-2500 psi, 1" SAE Buna N
RDV-T16S-40 Screw Adjustable, 1000-4000 psi, 1" SAE Viton
RDV-T16S-40A Screw Adjustable, 1000-4000 psi, 1" SAE Buna N
RDV-T2P-15 Screw Adjustable, 500-1500 psi, 1/4" NPTF Viton
RDV-T2P-15A Screw Adjustable, 500-1500 psi, 1/4" NPTF Buna N
RDV-T2P-25 Screw Adjustable, 500-2500 psi, 1/4" NPTF Viton
RDV-T2P-25A Screw Adjustable, 500-2500 psi, 1/4" NPTF Buna N
RDV-T2P-40A Screw Adjustable, 1000-4000 psi, 1/4" NPTF Buna N
RDV-T3P-15 Screw Adjustable, 500-1500 psi, 3/8" NPTF Viton
RDV-T3P-15A Screw Adjustable, 500-1500 psi, 3/8" NPTF Buna N
RDV-T3P-25 Screw Adjustable, 500-2500 psi, 3/8" NPTF Viton
RDV-T3P-25A Screw Adjustable, 500-2500 psi, 3/8" NPTF Buna N
RDV-T3P-40 Screw Adjustable, 1000-4000 psi, 3/8" NPTF Viton
RDV-T3P-40A Screw Adjustable, 1000-4000 psi, 3/8" NPTF Buna N
RDV-T3P-S40A Screw Adjustable, 1000-4000 psi, 3/8" NPTF Buna N
RDV-T4P-15 Screw Adjustable, 500-1500 psi, 1/2" NPTF Viton
RDV-T4P-15A Screw Adjustable, 500-1500 psi, 1/2" NPTF Buna N
RDV-T4P-25 Screw Adjustable, 500-2500 psi, 1/2" NPTF Viton
RDV-T4P-25A Screw Adjustable, 500-2500 psi, 1/2" NPTF Buna N
RDV-T4P-40 Screw Adjustable, 1000-4000 psi, 1/2" NPTF Viton
RDV-T4P-40A Screw Adjustable, 1000-4000 psi, 1/2" NPTF Buna N
RDV-T4S-15 Screw Adjustable, 500-1500 psi, 1/4" SAE Viton
RDV-T4S-25A Screw Adjustable, 500-2500 psi, 1/4" SAE Buna N
RDV-T6P-15 Screw Adjustable, 500-1500 psi, 3/4" NPTF Viton
RDV-T6P-15A Screw Adjustable, 500-1500 psi, 3/4" NPTF Buna N
RDV-T6P-25 Screw Adjustable, 500-2500 psi, 3/4" NPTF Viton
RDV-T6P-25A Screw Adjustable, 500-2500 psi, 3/4" NPTF Buna N
RDV-T6P-40 Screw Adjustable, 1000-4000 psi, 3/4" NPTF Viton
RDV-T6P-40A Screw Adjustable, 1000-4000 psi, 3/4" NPTF Buna N
RDV-T6S-15 Screw Adjustable, 500-1500 psi, 3/8" SAE Viton
RDV-T6S-25A Screw Adjustable, 500-2500 psi, 3/8" SAE Buna N
RDV-T6S-40 Screw Adjustable, 1000-4000 psi, 3/8" SAE Viton
RDV-T6S-40A Screw Adjustable, 1000-4000 psi, 3/8" SAE Buna N
RDV-T8P-15 Screw Adjustable, 500-1500 psi, 1" NPTF Viton
RDV-T8P-15A Screw Adjustable, 500-1500 psi, 1" NPTF Buna N
RDV-T8P-25 Screw Adjustable, 500-2500 psi, 1" NPTF Viton
RDV-T8P-25A Screw Adjustable, 500-2500 psi, 1" NPTF Buna N
RDV-T8P-40 Screw Adjustable, 1000-4000 psi, 1" NPTF Viton
RDV-T8P-40A Screw Adjustable, 1000-4000 psi, 1" NPTF Buna N
RDV-T8S-15A Screw Adjustable, 500-1500 psi, 1/2" SAE Buna N
RDV-T8S-25 Screw Adjustable, 500-2500 psi, 1/2" SAE Viton
RDV-T8S-25A Screw Adjustable, 500-2500 psi, 1/2" SAE Buna N
RDV-T8S-40 Screw Adjustable, 1000-4000 psi, 1/2" SAE Viton
RDV-T8S-40A Screw Adjustable, 1000-4000 psi, 1/2" SAE Buna N
