TEMA天马T系列 2300快速接头
Rectus TEMA Hydraulic couplings T2300
PARKER RECTUS TEMA Hydraulic Couplings T2300 Series

TEMA Series T2300 PARKER RECTUS TEMA Hydraulic Couplings T2300 Series
Parker Rectus TEMA Quick Release Couplings

T2300 PDF资料下载
Rectus TEMA Hydraulic couplings T2300

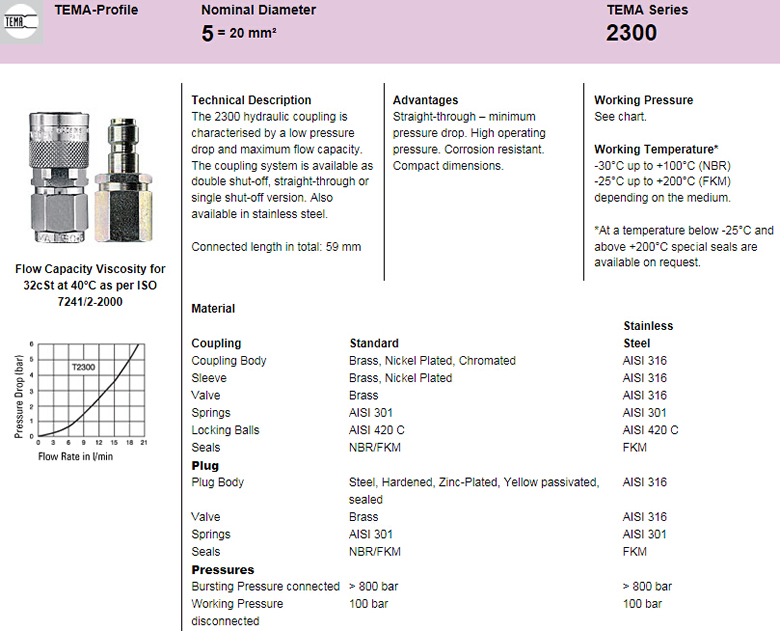

产品描述：

T2300系列液压接头的特点是低压降和大流量。此系列接头有双截止、直通和单截 止可以选择。
另有不锈钢制可选。
总连接长度：59毫米
优点：直通型-确保最小降压。高工作压力。抗腐蚀。结构紧凑。
工作压力：见表.
工作温度：
-30°C ~ +100°C (NBR)
-25°C ~ to +200°C (FKM)
密封圈选择取决于输送介质
*当工作温度低于-40°C 或高于+200°C时，可选用特殊的密封圈。

RECTUS SERIE T 2300 - HYDRAULIC QUICK COUPLINGS产品参数:

Couplings

	Connection A	Hex SW	L mm	D mm	Valve	Working press. in bar	Version	Seal	Part Number
Female Thread	G 1/8	15	38	18	with	200	Standard	NBR	2310-QC
	G 1/8	15	38	18	with	200	Standard	FKM	2310V
	G 1/8	15	38	18	with	200	Stainless Steel	FKM	2310RV 2)
	G 1/8	15	38	18	with	200	Stainless Steel	FKM	2310RFV 1) 2)
	G 1/8	15	38	18	without	200	Standard	NBR	2310UV
	G 1/8	15	38	18	without	200	Standard	FKM	2310VUV
	G 1/8	15	38	18	without	200	Stainless Steel	FKM	2310RVUV 2)

Plugs

	Connection A	Hex SW	L mm	Valve	Working press. in bar	Version	Seal	Part Number
Female Thread	G 1/8	15	36	with	200	Standard	NBR	2320
	G 1/8	15	36	with	200	Standard	FKM	2320V
	G 1/8	15	36	with	200	Stainless Steel	FKM	2320RV 2)
	G 1/8	15	36	with	200	Stainless Steel	FKM	2320RFV 1) 2)
	G 1/8	15	36	without	200	Standard		2320UV
	G 1/8	15	36	without	200	Stainless Steel		2320RUV 2)

Seal-Kit

Dust Protection

	Description	L mm	D mm	Material	Color	Part Number
	Coupling	55	15	PVC	Red	2315-QC
	Plug	55	15	PVC	Red	125-QC

注：
1) 阀材质：黄铜 Valve made of brass
2) 对于脉动压力，压力不能超过给定值的50% （For pulsating pressure ,the pressure must not exceed 50% of the given value.）
