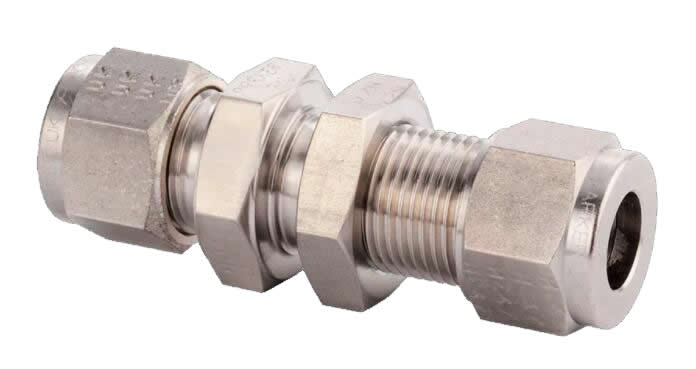

派克仪表管接头 A-LOK系列双卡套接头穿板联合接头
Parker Tube Fitting, Bulkhead Union - A-LOK Series



派克双卡套接头， A-LOK 穿板联合接头是使用双卡套连接，为仪器仪表，过程控制和分析应用场合设计的，提供可靠无泄漏连接的产品. 这些接头依据高标准生产，有多种尺寸、耐腐蚀材料和形式。派克 A-LOK 穿板联合接头标准材料为316不锈钢，且材料炉号具有可追溯性. 其他材料有 6Mo， 825合金， 625合金和C-276合金。接头尺寸英制从外径 1/16”到1”， 公制尺寸从外径 3 mm到25 mm。

市场:

- 半导体/微电子
- 化学
- 石化
- 运输
- 电力
- 核能
- 石油和天然气
- 研究所



特点/优势:

- 多种耐腐蚀合金材料可选
- EC79 用于氢气设备
-派克Suparcase表面处理工艺使材料具有更好的硬化性能
- 硬化处理的卡套使连接无泄漏
-螺母内层镀银，防止防止装配过程中螺纹咬死

应用:

- 仪表直接连接系统
- 分析装置
- CNG / LNG 压缩天然气/液化天然气管线
- 氢气设备
- 海上控制盘
- 感测线



Parker's two ferrule compression fittings, A-LOK Bulkhead Union Tube Fittings are designed to provide reliable leak-free connections for instrumentation, process and control, and analyzer applications that specify a two ferrule tube fitting connection. Manufactured to the highest quality standards these tube fittings are available in a broad range of sizes, corrosion resistant materials and configurations.As standard, Parker’s A-LOK Bulkhead Union Tube Fittings are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276.The fittings are available for fractional pipe sizes from 1/16” through to 1” O.D., and for metric sizes from 3 mm through to 25 mm O.D.



技术规格：

  • 结构材料： 316 Stainless Steel
  • 管件外径： 5/8"
  • 认证： N/A
  • 选件： N/A
  • 品牌： A-LOK
  • 产品类型： Tube to Tube Union
  • 产品风格： Bulkhead Union
  • 形状： Straight
  • 工作压力： 3,000 to 6,100 psi
  • 最低运行温度： -255 °C
  • 最高运行温度： 649 °C
  • 与流体类型共同使用： Gas, Liquid, Fuel, Oil, Corrosive, Gas, Compressed Natural Gas, Hydrogen, Steam, Petroleum Oil
  • 长度： 2.86 inch
  • 技术： Process Control
  • 应用： Instrumentation, Analytical Installations, CNG / LNG Lines, Hydrogen Service, Offshore Control Panels, Sensing Lines
  • 行业： Semiconductor/Microelectronics, Chemical, Petro-Chemical, Transportation, Power, Nuclear, Oil and Gas, Research Labs
  • 分部： Instrumentation Products Division

部件 结构材料 管件外径 选件 认证
10BC10-316 316 Stainless Steel 5/8" N/A N/A
10BC10-316-NC 316 Stainless Steel 5/8" N/A NACE
10BC10-625 Alloy 625 5/8" N/A N/A
10BC10-625-NC Alloy 625 5/8" N/A NACE
10BC10-6MO 6Mo 5/8" N/A N/A
10BC10-6MO-NC 6Mo 5/8" N/A NACE
10BC10-6MO-NC-NSK 6Mo 5/8" N/A NACE
10BC10-6MO-NSK 6Mo 5/8" N/A NORSOK M650
10BC10-825 Alloy 825 5/8" N/A N/A
10BC10-825-NC Alloy 825 5/8" N/A NACE
10BC10-B Brass 5/8" N/A N/A
10BC10-M Monel 400 5/8" N/A N/A
10BC10-M-NC Monel 400 5/8" N/A NACE
10BC10-NNR Alloy C-276 5/8" N/A N/A
10BC10-NNR-NC Alloy C-276 5/8" N/A NACE
10BC10-S Steel 5/8" N/A N/A
10BC10-S-NC Steel 5/8" N/A NACE
10BC10-T Titanium 5/8" N/A N/A
10BC10-T-NC Titanium 5/8" N/A NACE
12BC12-316 316 Stainless Steel 3/4" N/A N/A
12BC12-316-NC 316 Stainless Steel 3/4" N/A NACE
12BC12-625 Alloy 625 3/4" N/A N/A
12BC12-6MO 6Mo 3/4" N/A N/A
12BC12-6MO-NC 6Mo 3/4" N/A NACE
12BC12-6MO-NC-NSK 6Mo 3/4" N/A NACE
12BC12-6MO-NSK 6Mo 3/4" N/A NORSOK M650
12BC12-825 Alloy 825 3/4" N/A N/A
12BC12-825-NC Alloy 825 3/4" N/A NACE
12BC12-B Brass 3/4" N/A N/A
12BC12-IIY-NC Alloy 625 3/4" N/A NACE
12BC12-M Monel 400 3/4" N/A N/A
12BC12-M-NC Monel 400 3/4" N/A NACE
12BC12-NNR Alloy C-276 3/4" N/A N/A
12BC12-NNR-NC Alloy C-276 3/4" N/A NACE
12BC12-S Steel 3/4" N/A N/A
12BC12-S-NC Steel 3/4" N/A NACE
12BC12-T Titanium 3/4" N/A N/A
12BC12-T-NC Titanium 3/4" N/A NACE
14BC14-316 316 Stainless Steel 7/8" N/A N/A
14BC14-316-NC 316 Stainless Steel 7/8" N/A NACE
14BC14-625 Alloy 625 7/8" N/A N/A
14BC14-625-NC Alloy 625 7/8" N/A NACE
14BC14-6MO 6Mo 7/8" N/A N/A
14BC14-6MO-NC 6Mo 7/8" N/A NACE
14BC14-6MO-NC-NSK 6Mo 7/8" N/A NACE
14BC14-6MO-NSK 6Mo 7/8" N/A NORSOK M650
14BC14-825 Alloy 825 7/8" N/A N/A
14BC14-825-NC Alloy 825 7/8" N/A NACE
14BC14-B Brass 7/8" N/A N/A
14BC14-M Monel 400 7/8" N/A N/A
14BC14-M-NC Monel 400 7/8" N/A NACE
14BC14-NNR Alloy C-276 7/8" N/A N/A
14BC14-NNR-NC Alloy C-276 7/8" N/A NACE
14BC14-S Steel 7/8" N/A N/A
14BC14-S-NC Steel 7/8" N/A NACE
14BC14-T Titanium 7/8" N/A N/A
14BC14-T-NC Titanium 7/8" N/A NACE
16BC16-316 316 Stainless Steel 1" N/A N/A
16BC16-316-NC 316 Stainless Steel 1" N/A NACE
16BC16-625 Alloy 625 1" N/A N/A
16BC16-625-NC Alloy 625 1" N/A NACE
16BC16-6MO 6Mo 1" N/A N/A
16BC16-6MO-NC 6Mo 1" N/A NACE
16BC16-6MO-NC-NSK 6Mo 1" N/A NACE
16BC16-6MO-NSK 6Mo 1" N/A NORSOK M650
16BC16-825 Alloy 825 1" N/A N/A
16BC16-825-NC Alloy 825 1" N/A NACE
16BC16-B Brass 1" N/A N/A
16BC16-M Monel 400 1" N/A N/A
16BC16-M-NC Monel 400 1" N/A NACE
16BC16-NNR Alloy C-276 1" N/A N/A
16BC16-NNR-NC Alloy C-276 1" N/A NACE
16BC16-S Steel 1" N/A N/A
16BC16-S-NC Steel 1" N/A NACE
16BC16-T Titanium 1" N/A N/A
16BC16-T-NC Titanium 1" N/A NACE
1BC1-316 316 Stainless Steel 1/16" N/A N/A
1BC1-316-NC 316 Stainless Steel 1/16" N/A NACE
1BC1-625 Alloy 625 1/16" N/A N/A
1BC1-625-NC Alloy 625 1/16" N/A NACE
1BC1-6MO 6Mo 1/16" N/A N/A
1BC1-6MO-NC 6Mo 1/16" N/A NACE
1BC1-6MO-NC-NSK 6Mo 1/16" N/A NACE
1BC1-6MO-NSK 6Mo 1/16" N/A NORSOK M650
1BC1-825 Alloy 825 1/16" N/A N/A
1BC1-825-NC Alloy 825 1/16" N/A NACE
1BC1-B Brass 1/16" N/A N/A
1BC1-M Monel 400 1/16" N/A N/A
1BC1-M-NC Monel 400 1/16" N/A NACE
1BC1-NNR Alloy C-276 1/16" N/A N/A
1BC1-NNR-NC Alloy C-276 1/16" N/A NACE
1BC1-S Steel 1/16" N/A N/A
1BC1-S-NC Steel 1/16" N/A NACE
1BC1-T Titanium 1/16" N/A N/A
1BC1-T-NC Titanium 1/16" N/A NACE
2BC2-0.5MMOR-316L 316L Stainless Steel 1/8" 0.5mm Orifice N/A
2BC2-316 316 Stainless Steel 1/8" N/A N/A
2BC2-316-NC 316 Stainless Steel 1/8" N/A NACE
2BC2-316-OXY 316 Stainless Steel 1/8" Oxygen Cleaning N/A
2BC2-625 Alloy 625 1/8" N/A N/A





部件 结构材料 管件外径 选件 认证
2BC2-625-NC Alloy 625 1/8" N/A NACE
2BC2-6MO 6Mo 1/8" N/A N/A
2BC2-6MO-NC 6Mo 1/8" N/A NACE
2BC2-6MO-NC-NSK 6Mo 1/8" N/A NACE
2BC2-6MO-NSK 6Mo 1/8" N/A NORSOK M650
2BC2-825 Alloy 825 1/8" N/A N/A
2BC2-825-NC Alloy 825 1/8" N/A NACE
2BC2-B Brass 1/8" N/A N/A
2BC2-M Monel 400 1/8" N/A N/A
2BC2-M-NC Monel 400 1/8" N/A NACE
2BC2-NNR Alloy C-276 1/8" N/A N/A
2BC2-NNR-NC Alloy C-276 1/8" N/A NACE
2BC2-S Steel 1/8" N/A N/A
2BC2-S-NC Steel 1/8" N/A NACE
2BC2-T Titanium 1/8" N/A N/A
2BC2-T-NC Titanium 1/8" N/A NACE
2BC4-316 316 Stainless Steel 1/8" - 1/4" N/A N/A
2BC4-316-NC 316 Stainless Steel 1/8" - 1/4" N/A NACE
2BC4-625 Alloy 625 1/8" - 1/4" N/A N/A
2BC4-625-NC Alloy 625 1/8" - 1/4" N/A NACE
2BC4-6MO 6Mo 1/8" - 1/4" N/A N/A
2BC4-6MO-NC 6Mo 1/8" - 1/4" N/A NACE
2BC4-6MO-NC-NSK 6Mo 1/8" - 1/4" N/A NACE
2BC4-6MO-NSK 6Mo 1/8" - 1/4" N/A NORSOK M650
2BC4-825 Alloy 825 1/8" - 1/4" N/A N/A
2BC4-825-NC Alloy 825 1/8" - 1/4" N/A NACE
2BC4-B Brass 1/8" - 1/4" N/A N/A
2BC4-M Monel 400 1/8" - 1/4" N/A N/A
2BC4-M-NC Monel 400 1/8" - 1/4" N/A NACE
2BC4-NNR Alloy C-276 1/8" - 1/4" N/A N/A
2BC4-NNR-NC Alloy C-276 1/8" - 1/4" N/A NACE
2BC4-S Steel 1/8" - 1/4" N/A N/A
2BC4-S-NC Steel 1/8" - 1/4" N/A NACE
2BC4-T Titanium 1/8" - 1/4" N/A N/A
2BC4-T-NC Titanium 1/8" - 1/4" N/A NACE
3BC3-316 316 Stainless Steel 3/16" N/A N/A
3BC3-316-NC 316 Stainless Steel 3/16" N/A NACE
3BC3-625 Alloy 625 3/16" N/A N/A
3BC3-625-NC Alloy 625 3/16" N/A NACE
3BC3-6MO 6Mo 3/16" N/A N/A
3BC3-6MO-NC 6Mo 3/16" N/A NACE
3BC3-6MO-NC-NSK 6Mo 3/16" N/A NACE
3BC3-6MO-NSK 6Mo 3/16" N/A NORSOK M650
3BC3-825 Alloy 825 3/16" N/A N/A
3BC3-825-NC Alloy 825 3/16" N/A NACE
3BC3-B Brass 3/16" N/A N/A
3BC3-M Monel 400 3/16" N/A N/A
3BC3-M-NC Monel 400 3/16" N/A NACE
3BC3-NNR Alloy C-276 3/16" N/A N/A
3BC3-NNR-NC Alloy C-276 3/16" N/A NACE
3BC3-S Steel 3/16" N/A N/A
3BC3-S-NC Steel 3/16" N/A NACE
3BC3-T Titanium 3/16" N/A N/A
3BC3-T-NC Titanium 3/16" N/A NACE
4BC2-316 316 Stainless Steel 1/4" - 1/8" N/A N/A
4BC2-316-NC 316 Stainless Steel 1/4" - 1/8" N/A NACE
4BC2-625 Alloy 625 1/4" - 1/8" N/A N/A
4BC2-625-NC Alloy 625 1/4" - 1/8" N/A NACE
4BC2-6MO 6Mo 1/4" - 1/8" N/A N/A
4BC2-6MO-NC 6Mo 1/4" - 1/8" N/A NACE
4BC2-6MO-NC-NSK 6Mo 1/4" - 1/8" N/A NACE
4BC2-6MO-NSK 6Mo 1/4" - 1/8" N/A NORSOK M650
4BC2-825 Alloy 825 1/4" - 1/8" N/A N/A
4BC2-825-NC Alloy 825 1/4" - 1/8" N/A NACE
4BC2-B Brass 1/4" - 1/8" N/A N/A
4BC2-M Monel 400 1/4" - 1/8" N/A N/A
4BC2-M-NC Monel 400 1/4" - 1/8" N/A NACE
4BC2-NNR Alloy C-276 1/4" - 1/8" N/A N/A
4BC2-NNR-NC Alloy C-276 1/4" - 1/8" N/A NACE
4BC2-S Steel 1/4" - 1/8" N/A N/A
4BC2-S-NC Steel 1/4" - 1/8" N/A NACE
4BC2-T Titanium 1/4" - 1/8" N/A N/A
4BC2-T-NC Titanium 1/4" - 1/8" N/A NACE
4BC3-316 316 Stainless Steel 1/4" - 3/16" N/A N/A
4BC4-0.5MMOR-316L 316L Stainless Steel 1/4" 0.5mm Orifice N/A
4BC4-316 316 Stainless Steel 1/4" N/A N/A
4BC4-316-NC 316 Stainless Steel 1/4" N/A NACE
4BC4-6MO 6Mo 1/4" N/A N/A
4BC4-6MO-NC 6Mo 1/4" N/A NACE
4BC4-6MO-NC-NSK 6Mo 1/4" N/A NACE
4BC4-6MO-NSK 6Mo 1/4" N/A NORSOK M650
4BC4-825 Alloy 825 1/4" N/A N/A
4BC4-825-NC Alloy 825 1/4" N/A NACE
4BC4-B Brass 1/4" N/A N/A
4BC4-IIY Alloy 625 1/4" N/A N/A
4BC4-IIY-NC Alloy 625 1/4" N/A NACE
4BC4-M Monel 400 1/4" N/A N/A
4BC4-M-NC Monel 400 1/4" N/A NACE
4BC4-NNR Alloy C-276 1/4" N/A N/A
4BC4-NNR-NC Alloy C-276 1/4" N/A NACE
4BC4-S Steel 1/4" N/A N/A
4BC4-S-NC Steel 1/4" N/A NACE
4BC4-T Titanium 1/4" N/A N/A
4BC4-T-NC Titanium 1/4" N/A NACE
4BCM6-316 316 Stainless Steel 1/4" - 3/8" N/A N/A
5BC5-316 316 Stainless Steel 5/16" N/A N/A
5BC5-316-NC 316 Stainless Steel 5/16" N/A NACE
5BC5-625 Alloy 625 5/16" N/A N/A
5BC5-625-NC Alloy 625 5/16" N/A NACE
5BC5-6MO 6Mo 5/16" N/A N/A



部件 结构材料 管件外径 选件 认证
5BC5-6MO-NC 6Mo 5/16" N/A NACE
5BC5-6MO-NC-NSK 6Mo 5/16" N/A NACE
5BC5-6MO-NSK 6Mo 5/16" N/A NORSOK M650
5BC5-825 Alloy 825 5/16" N/A N/A
5BC5-825-NC Alloy 825 5/16" N/A NACE
5BC5-B Brass 5/16" N/A N/A
5BC5-M Monel 400 5/16" N/A N/A
5BC5-M-NC Monel 400 5/16" N/A NACE
5BC5-NNR Alloy C-276 5/16" N/A N/A
5BC5-NNR-NC Alloy C-276 5/16" N/A NACE
5BC5-S Steel 5/16" N/A N/A
5BC5-S-NC Steel 5/16" N/A NACE
5BC5-T Titanium 5/16" N/A N/A
5BC5-T-NC Titanium 5/16" N/A NACE
6BC6-316 316 Stainless Steel 3/8" N/A N/A
6BC6-316-NC 316 Stainless Steel 3/8" N/A NACE
6BC6-316L 316L Stainless Steel 3/8" N/A N/A
6BC6-6MO 6Mo 3/8" N/A N/A
6BC6-6MO-NC 6Mo 3/8" N/A NACE
6BC6-6MO-NC-NSK 6Mo 3/8" N/A NACE
6BC6-6MO-NSK 6Mo 3/8" N/A NORSOK M650
6BC6-825 Alloy 825 3/8" N/A N/A
6BC6-825-NC Alloy 825 3/8" N/A NACE
6BC6-B Brass 3/8" N/A N/A
6BC6-IIY Alloy 625 3/8" N/A N/A
6BC6-IIY-NC Alloy 625 3/8" N/A NACE
6BC6-M Monel 400 3/8" N/A N/A
6BC6-M-NC Monel 400 3/8" N/A NACE
6BC6-NNR Alloy C-276 3/8" N/A N/A
6BC6-NNR-NC Alloy C-276 3/8" N/A NACE
6BC6-S Steel 3/8" N/A N/A
6BC6-S-NC Steel 3/8" N/A NACE
6BC6-T Titanium 3/8" N/A N/A
6BC6-T-NC Titanium 3/8" N/A NACE
6BC6-TTZ Titanium 3/8" Supercased 825 back ferrule N/A
6BCM8-316 316 Stainless Steel 3/8" - 8 mm N/A N/A
8BC8-316 316 Stainless Steel 1/2" N/A N/A
8BC8-316-NC 316 Stainless Steel 1/2" N/A NACE
8BC8-316L 316L Stainless Steel 1/2" N/A N/A
8BC8-316L-2.5MO 316L Stainless Steel 1/2" 2.5% Molybdenum Content N/A
8BC8-6MO 6Mo 1/2" N/A N/A
8BC8-6MO-NC 6Mo 1/2" N/A NACE
8BC8-6MO-NC-NSK 6Mo 1/2" N/A NACE
8BC8-6MO-NSK 6Mo 1/2" N/A NORSOK M650
8BC8-825 Alloy 825 1/2" N/A N/A
8BC8-825-NC Alloy 825 1/2" N/A NACE
8BC8-B Brass 1/2" N/A N/A
8BC8-IIY Alloy 625 1/2" N/A N/A
8BC8-IIYNC Alloy 625 1/2" N/A NACE
8BC8-M Monel 400 1/2" N/A N/A
8BC8-M-NC Monel 400 1/2" N/A NACE
8BC8-NNR Alloy C-276 1/2" N/A N/A
8BC8-NNR-NC Alloy C-276 1/2" N/A NACE
8BC8-S Steel 1/2" N/A N/A
8BC8-S-NC Steel 1/2" N/A NACE
8BC8-T Titanium 1/2" N/A N/A
8BC8-T-NC Titanium 1/2" N/A NACE
8BC8-TTZ Titanium 1/2" Supercased 825 back ferrule N/A
BCM10-316 316 Stainless Steel 10 mm N/A N/A
BCM10-316-NC 316 Stainless Steel 10 mm N/A NACE
BCM10-316-OXY 316 Stainless Steel 10 mm Oxygen Cleaning N/A
BCM10-316L 316L Stainless Steel 10 mm N/A N/A
BCM10-625 Alloy 625 10 mm N/A N/A
BCM10-625-NC Alloy 625 10 mm N/A NACE
BCM10-6MO 6Mo 10 mm N/A N/A
BCM10-6MO-NC 6Mo 10 mm N/A NACE
BCM10-6MO-NC-NSK 6Mo 10 mm N/A NACE
BCM10-6MO-NSK 6Mo 10 mm N/A NORSOK M650
BCM10-825 Alloy 825 10 mm N/A N/A
BCM10-825-NC Alloy 825 10 mm N/A NACE
BCM10-B Brass 10 mm N/A N/A
BCM10-M Monel 400 10 mm N/A N/A
BCM10-M-NC Monel 400 10 mm N/A NACE
BCM10-NNR Alloy C-276 10 mm N/A N/A
BCM10-NNR-NC Alloy C-276 10 mm N/A NACE
BCM10-S Steel 10 mm N/A N/A
BCM10-S-NC Steel 10 mm N/A NACE
BCM10-T Titanium 10 mm N/A N/A
BCM10-T-NC Titanium 10 mm N/A NACE
BCM12-316 316 Stainless Steel 12 mm N/A N/A
BCM12-316-NC 316 Stainless Steel 12 mm N/A NACE
BCM12-625 Alloy 625 12 mm N/A N/A
BCM12-625-NC Alloy 625 12 mm N/A NACE
BCM12-6MO 6Mo 12 mm N/A N/A
BCM12-6MO-NC 6Mo 12 mm N/A NACE
BCM12-6MO-NC-NSK 6Mo 12 mm N/A NACE
BCM12-6MO-NSK 6Mo 12 mm N/A NORSOK M650
BCM12-825 Alloy 825 12 mm N/A N/A
BCM12-825-NC Alloy 825 12 mm N/A NACE
BCM12-B Brass 12 mm N/A N/A
BCM12-M Monel 400 12 mm N/A N/A
BCM12-M-NC Monel 400 12 mm N/A NACE
BCM12-NNR Alloy C-276 12 mm N/A N/A
BCM12-NNR-NC Alloy C-276 12 mm N/A NACE
BCM12-S Steel 12 mm N/A N/A
BCM12-S-NC Steel 12 mm N/A NACE
BCM12-T Titanium 12 mm N/A N/A
BCM12-T-NC Titanium 12 mm N/A NACE
BCM14-316 316 Stainless Steel 14 mm N/A N/A
BCM15-316 316 Stainless Steel 15 mm N/A N/A







部件 结构材料 管件外径 选件 认证
BCM15-316-NC 316 Stainless Steel 15 mm N/A NACE
BCM15-625 Alloy 625 15 mm N/A N/A
BCM15-625-NC Alloy 625 15 mm N/A NACE
BCM15-6MO 6Mo 15 mm N/A N/A
BCM15-6MO-NC 6Mo 15 mm N/A NACE
BCM15-6MO-NC-NSK 6Mo 15 mm N/A NACE
BCM15-6MO-NSK 6Mo 15 mm N/A NORSOK M650
BCM15-825 Alloy 825 15 mm N/A N/A
BCM15-825-NC Alloy 825 15 mm N/A NACE
BCM15-B Brass 15 mm N/A N/A
BCM15-M Monel 400 15 mm N/A N/A
BCM15-M-NC Monel 400 15 mm N/A NACE
BCM15-NNR Alloy C-276 15 mm N/A N/A
BCM15-NNR-NC Alloy C-276 15 mm N/A NACE
BCM15-S Steel 15 mm N/A N/A
BCM15-S-NC Steel 15 mm N/A NACE
BCM15-T Titanium 15 mm N/A N/A
BCM15-T-NC Titanium 15 mm N/A NACE
BCM16-316 316 Stainless Steel 16 mm N/A N/A
BCM16-316-NC 316 Stainless Steel 16 mm N/A NACE
BCM16-316-OXY 316 Stainless Steel 16 mm Oxygen Cleaning N/A
BCM16-625 Alloy 625 16 mm N/A N/A
BCM16-625-NC Alloy 625 16 mm N/A NACE
BCM16-6MO 6Mo 16 mm N/A N/A
BCM16-6MO-NC 6Mo 16 mm N/A NACE
BCM16-6MO-NC-NSK 6Mo 16 mm N/A NACE
BCM16-6MO-NSK 6Mo 16 mm N/A NORSOK M650
BCM16-825 Alloy 825 16 mm N/A N/A
BCM16-825-NC Alloy 825 16 mm N/A NACE
BCM16-B Brass 16 mm N/A N/A
BCM16-M Monel 400 16 mm N/A N/A
BCM16-M-NC Monel 400 16 mm N/A NACE
BCM16-NNR Alloy C-276 16 mm N/A N/A
BCM16-NNR-NC Alloy C-276 16 mm N/A NACE
BCM16-S Steel 16 mm N/A N/A
BCM16-S-NC Steel 16 mm N/A NACE
BCM16-T Titanium 16 mm N/A N/A
BCM16-T-NC Titanium 16 mm N/A NACE
BCM18-316 316 Stainless Steel 18 mm N/A N/A
BCM18-316-NC 316 Stainless Steel 18 mm N/A NACE
BCM18-625 Alloy 625 18 mm N/A N/A
BCM18-625-NC Alloy 625 18 mm N/A NACE
BCM18-6MO 6Mo 18 mm N/A N/A
BCM18-6MO-NC 6Mo 18 mm N/A NACE
BCM18-6MO-NC-NSK 6Mo 18 mm N/A NACE
BCM18-6MO-NSK 6Mo 18 mm N/A NORSOK M650
BCM18-825 Alloy 825 18 mm N/A N/A
BCM18-825-NC Alloy 825 18 mm N/A NACE
BCM18-B Brass 18 mm N/A N/A
BCM18-M Monel 400 18 mm N/A N/A
BCM18-M-NC Monel 400 18 mm N/A NACE
BCM18-NNR Alloy C-276 18 mm N/A N/A
BCM18-NNR-NC Alloy C-276 18 mm N/A NACE
BCM18-S Steel 18 mm N/A N/A
BCM18-S-NC Steel 18 mm N/A NACE
BCM18-T Titanium 18 mm N/A N/A
BCM18-T-NC Titanium 18 mm N/A NACE
BCM20-316 316 Stainless Steel 20 mm N/A N/A
BCM20-316-NC 316 Stainless Steel 20 mm N/A NACE
BCM20-625 Alloy 625 20 mm N/A N/A
BCM20-625-NC Alloy 625 20 mm N/A NACE
BCM20-6MO 6Mo 20 mm N/A N/A
BCM20-6MO-NC 6Mo 20 mm N/A NACE
BCM20-6MO-NC-NSK 6Mo 20 mm N/A NACE
BCM20-6MO-NSK 6Mo 20 mm N/A NORSOK M650
BCM20-825 Alloy 825 20 mm N/A N/A
BCM20-825-NC Alloy 825 20 mm N/A NACE
BCM20-B Brass 20 mm N/A N/A
BCM20-M Monel 400 20 mm N/A N/A
BCM20-M-NC Monel 400 20 mm N/A NACE
BCM20-NNR Alloy C-276 20 mm N/A N/A
BCM20-NNR-NC Alloy C-276 20 mm N/A NACE
BCM20-S Steel 20 mm N/A N/A
BCM20-S-NC Steel 20 mm N/A NACE
BCM20-T Titanium 20 mm N/A N/A
BCM20-T-NC Titanium 20 mm N/A NACE
BCM22-316 316 Stainless Steel 22 mm N/A N/A
BCM25-316 316 Stainless Steel 25 mm N/A N/A
BCM25-316-NC 316 Stainless Steel 25 mm N/A NACE
BCM25-625 Alloy 625 25 mm N/A N/A
BCM25-625-NC Alloy 625 25 mm N/A NACE
BCM25-6MO 6Mo 25 mm N/A N/A
BCM25-6MO-NC 6Mo 25 mm N/A NACE
BCM25-6MO-NC-NSK 6Mo 25 mm N/A NACE
BCM25-6MO-NSK 6Mo 25 mm N/A NORSOK M650
BCM25-825 Alloy 825 25 mm N/A N/A
BCM25-825-NC Alloy 825 25 mm N/A NACE
BCM25-B Brass 25 mm N/A N/A
BCM25-M Monel 400 25 mm N/A N/A
BCM25-M-NC Monel 400 25 mm N/A NACE
BCM25-MMX Monel 400 25 mm Supercased 825 back ferrule N/A
BCM25-NNR Alloy C-276 25 mm N/A N/A
BCM25-NNR-NC Alloy C-276 25 mm N/A NACE
BCM25-S Steel 25 mm N/A N/A
BCM25-S-NC Steel 25 mm N/A NACE
BCM25-T Titanium 25 mm N/A N/A
BCM25-T-NC Titanium 25 mm N/A NACE
BCM3-316 316 Stainless Steel 3 mm N/A N/A
BCM3-316-NC 316 Stainless Steel 3 mm N/A NACE
BCM3-625 Alloy 625 3 mm N/A N/A



部件 结构材料 管件外径 选件 认证
BCM3-625-NC Alloy 625 3 mm N/A NACE
BCM3-6MO 6Mo 3 mm N/A N/A
BCM3-6MO-NC 6Mo 3 mm N/A NACE
BCM3-6MO-NC-NSK 6Mo 3 mm N/A NACE
BCM3-6MO-NSK 6Mo 3 mm N/A NORSOK M650
BCM3-825 Alloy 825 3 mm N/A N/A
BCM3-825-NC Alloy 825 3 mm N/A NACE
BCM3-B Brass 3 mm N/A N/A
BCM3-M Monel 400 3 mm N/A N/A
BCM3-M-NC Monel 400 3 mm N/A NACE
BCM3-NNR Alloy C-276 3 mm N/A N/A
BCM3-NNR-NC Alloy C-276 3 mm N/A NACE
BCM3-S Steel 3 mm N/A N/A
BCM3-S-NC Steel 3 mm N/A NACE
BCM3-T Titanium 3 mm N/A N/A
BCM3-T-NC Titanium 3 mm N/A NACE
BCM4-316 316 Stainless Steel 4 mm N/A N/A
BCM4-316-NC 316 Stainless Steel 4 mm N/A NACE
BCM4-625 Alloy 625 4 mm N/A N/A
BCM4-625-NC Alloy 625 4 mm N/A NACE
BCM4-6MO 6Mo 4 mm N/A N/A
BCM4-6MO-NC 6Mo 4 mm N/A NACE
BCM4-6MO-NC-NSK 6Mo 4 mm N/A NACE
BCM4-6MO-NSK 6Mo 4 mm N/A NORSOK M650
BCM4-825 Alloy 825 4 mm N/A N/A
BCM4-825-NC Alloy 825 4 mm N/A NACE
BCM4-B Brass 4 mm N/A N/A
BCM4-M Monel 400 4 mm N/A N/A
BCM4-M-NC Monel 400 4 mm N/A NACE
BCM4-NNR Alloy C-276 4 mm N/A N/A
BCM4-NNR-NC Alloy C-276 4 mm N/A NACE
BCM4-S Steel 4 mm N/A N/A
BCM4-S-NC Steel 4 mm N/A NACE
BCM4-T Titanium 4 mm N/A N/A
BCM4-T-NC Titanium 4 mm N/A NACE
BCM6-316 316 Stainless Steel 6 mm N/A N/A
BCM6-316-NC 316 Stainless Steel 6 mm N/A NACE
BCM6-316L 316L Stainless Steel 6 mm N/A N/A
BCM6-625 Alloy 625 6 mm N/A N/A
BCM6-6MO 6Mo 6 mm N/A N/A
BCM6-6MO-NC 6Mo 6 mm N/A NACE
BCM6-6MO-NC-NSK 6Mo 6 mm N/A NACE
BCM6-6MO-NSK 6Mo 6 mm N/A NORSOK M650
BCM6-825 Alloy 825 6 mm N/A N/A
BCM6-825-NC Alloy 825 6 mm N/A NACE
BCM6-B Brass 6 mm N/A N/A
BCM6-IIYNC Alloy 625 6 mm N/A NACE
BCM6-M Monel 400 6 mm N/A N/A
BCM6-M-NC Monel 400 6 mm N/A NACE
BCM6-NNR Alloy C-276 6 mm N/A N/A
BCM6-NNR-NC Alloy C-276 6 mm N/A NACE
BCM6-S Steel 6 mm N/A N/A
BCM6-S-NC Steel 6 mm N/A NACE
BCM6-T Titanium 6 mm N/A N/A
BCM6-T-NC Titanium 6 mm N/A NACE
BCM8-316 316 Stainless Steel 8 mm N/A N/A
BCM8-316-NC 316 Stainless Steel 8 mm N/A NACE
BCM8-625 Alloy 625 8 mm N/A N/A
BCM8-625-NC Alloy 625 8 mm N/A NACE
BCM8-6MO 6Mo 8 mm N/A N/A
BCM8-6MO-NC 6Mo 8 mm N/A NACE
BCM8-6MO-NC-NSK 6Mo 8 mm N/A NACE
BCM8-6MO-NSK 6Mo 8 mm N/A NORSOK M650
BCM8-825 Alloy 825 8 mm N/A N/A
BCM8-825-NC Alloy 825 8 mm N/A NACE
BCM8-B Brass 8 mm N/A N/A
BCM8-M Monel 400 8 mm N/A N/A
BCM8-M-NC Monel 400 8 mm N/A NACE
BCM8-NNR Alloy C-276 8 mm N/A N/A
BCM8-NNR-NC Alloy C-276 8 mm N/A NACE
BCM8-S Steel 8 mm N/A N/A
BCM8-S-NC Steel 8 mm N/A NACE
BCM8-T Titanium 8 mm N/A N/A
BCM8-T-NC Titanium 8 mm N/A NACE
M12BCM10-316 316 Stainless Steel 12 mm - 10 mm N/A N/A
M12BCM6-316 316 Stainless Steel 12 mm - 6 mm N/A N/A






美国DMK Engineering Solutions公司
信德迈科技(北京)有限公司 CNMEC Technology

E-mail：sales@cnmec.biz fcg.cnmec@parkerdistribution.com.cn
地址：北京市朝阳区望京街10号望京SOHO塔1C座2115室
邮编：100102
电话：010-8428 2935, 8428 9077, 8428 3983
手机：139 101 22694
Http：//www.cnmec.biz
传真：010-8428 8762


京ICP备08000876号-1
京公网安备 11010502019740
Since 2007 Strong Distribution & Powerful Partnerships
