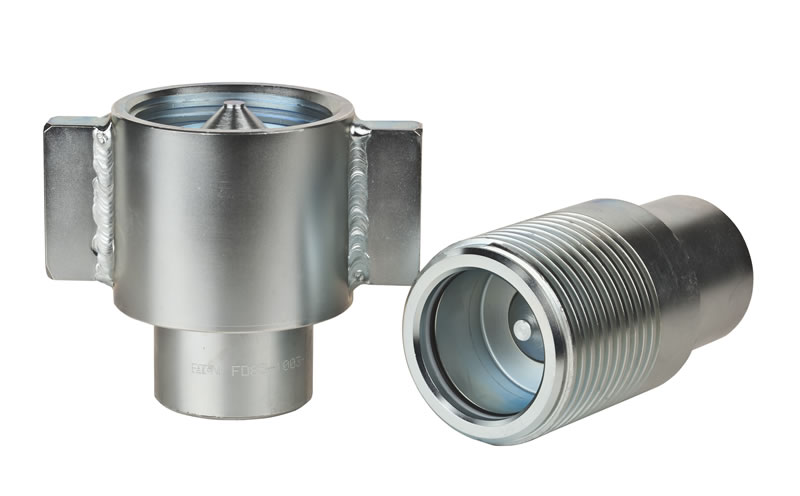

Eaton Aeroquip FD85系列螺纹连接快速接头 Eaton’s FD85 Series Thread-to-Connect Coupling
Eaton FD85 Series Male Plug Thread to Connect 3/4-14 Female NPTF Quick Disconnect Coupling Steel
Eaton FD85 Series - Thread to Connect - Plugs (Male) - Steel
FD85系列螺纹连接快速接头石油和天然气开采设备配套
伊顿 FD85 系列是一种螺纹连接接头，最常用于石油和天然气应用，但也可以在工作压力为 5,000 psi 的移动和固定设备的苛刻应用中找到。Eaton FD85 Series is a thread to connect coupling most commonly used in Oil and Gas applications, but can also be found on demanding applications on both mobile and stationary equipment where operating pressures of 5,000 psi are present.
Eaton FD85 Series Male Plug Thread to Connect 3/4-14 Female NPTF Quick Disconnect Coupling Steel
Eaton FD85 Series - Thread to Connect - Plugs (Male) - Steel
Eaton Aeroquip FD85系列螺纹连接快速接头
产品特点：
- 螺纹连接功能允许在高振动和脉冲应用中使用。
- 残压连接能力
- 翼形螺母和扳手扁平设计便于连接和断开
- 3/4" 设计采用六角螺母设计。标准主体材料： 镀锌三价碳钢。可根据要求提供不锈钢结构。
标准印章 布纳-N。可根据要求提供 FKM 密封件。
FD85 系列组件： 5100 系列插头（公） 5100 系列插座（母） 5100 系列成套连接器
应用与市场：
- 油田
- 近海钻探
- 建设
- 石油和天然气
劳埃德船级社认证
FD85系列的规格 3/4”和 1”就 API 16D和 EUB指令 36中所述的火灾条件进行了劳氏船级社认证，这些零件满足所述的要求，即：接头暴露在 700°C (1300°F)温度下，将能够保持压力 5分钟。
认证仅适用于组合套件：即公头和母头都是 FD85系列螺纹连接接头。
Physical Characteristics
|
Maximum Operating Pressure |
Minimum Burst Pressure |
| Body Size |
Connected |
Plug/Male Half |
Socket/Female Half |
Connected |
Plug/Male Half |
Socket/Female Half |
| in |
bar |
psi |
bar |
psi |
bar |
psi |
bar |
psi |
bar |
psi |
bar |
psi |
| 3/4" |
345 |
5,000 |
345 |
5,000 |
345 |
5,000 |
1,380 |
20,000 |
1,380 |
20,000 |
1,380 |
20,000 |
| 1" |
345 |
5,000 |
345 |
5,000 |
345 |
5,000 |
1,380 |
20,000 |
1,380 |
20,000 |
1,380 |
20,000 |
| 1 1/4" |
345 |
5,000 |
345 |
5,000 |
345 |
5,000 |
1,035 |
15,000 |
1,035 |
15,000 |
1,035 |
15,000 |
| 1 1/2" |
345 |
5,000 |
345 |
5,000 |
345 |
5,000 |
1,035 |
15,000 |
1,035 |
15,000 |
1,035 |
15,000 |
| 2" |
345 |
5,000 |
345 |
5,000 |
345 |
5,000 |
1,035 |
15,000 |
1,035 |
15,000 |
1,035 |
15,000 |
| Body Size |
Part Number |
NPT Female Thread |
BSPP Female Thread |
Coupling Type |
| 3/4 |
FD85-1001-12-12 |
2003/4/14 |
- |
Plug |
| 3/4 |
FD85-1017-12-12 |
- |
2003/4/14 |
Plug |
| 1 |
FD85-1001-16-16 |
1-11.1/2 |
- |
Plug |
| 1 |
FD85-1017-16-16 |
- |
1/11 |
Plug |
| 1.1/4 |
FD85-1001-20-20 |
1.1/4-11 |
- |
Plug |
| 1.1/4 |
FD85-1017-20-20 |
- |
1.1/4-11 |
Plug |
| 1.1/2 |
FD85-1001-24-24 |
1.1/2-11.1/2 |
- |
Plug |
| 1.1/2 |
FD85-1017-24-24 |
- |
1.1/2-11 |
Plug |
| 2 |
FD85-1001-32-32 |
2-11.1/2 |
- |
Plug |
| 2 |
FD85-1017-32-32 |
- |
2/11 |
Plug |
| 3/4 |
FD85-1003-12-12 |
2003/4/14 |
- |
Socket |
| 3/4 |
FD85-1019-12-12 |
- |
2003/4/14 |
Socket |
| 1 |
FD85-1003-16-16 |
1-11.1/2 |
- |
Socket |
| 1 |
FD85-1019-16-16 |
- |
1/11 |
Socket |
| 1.1/4 |
FD85-1003-20-20 |
1.1/4-11 |
- |
Socket |
| 1.1/4 |
FD85-1019-20-20 |
- |
1.1/4-11 |
Socket |
| 1.1/2 |
FD85-1003-24-24 |
1.1/2-11.1/2 |
- |
Socket |
| 1.1/2 |
FD85-1019-24-24 |
- |
1.1/2-11 |
Socket |
| 2 |
FD85-1003-32-32 |
2-11.1/2 |
- |
Socket |
| 2 |
FD85-1019-32-32 |
- |
2/11 |
Socket |
| 3/4 |
FD85-1000-12-12 |
2003/4/14 |
- |
Complete |
| 3/4 |
FD85-1016-12-12 |
- |
2003/4/14 |
Complete |
| 1 |
FD85-1000-16-16 |
1-11.1/2 |
- |
Complete |
| 1 |
FD85-1016-16-16 |
- |
1.11 |
Complete |
| 1.1/4 |
FD85-1000-20-20 |
1.1/4-11 |
- |
Complete |
| 1.1/4 |
FD85-1016-20-20 |
- |
1.1/4-11 |
Complete |
| 1.1/2 |
FD85-1000-24-24 |
1.1/2-11.1/2 |
- |
Complete |
| 1.1/2 |
FD85-1016-24-24 |
- |
1.1/2-11 |
Complete |
| 2 |
FD85-1000-32-32 |
2-11.1/2 |
- |
Complete |
| 2 |
FD85-1016-32-32 |
- |
2/11 |
Complete |
-

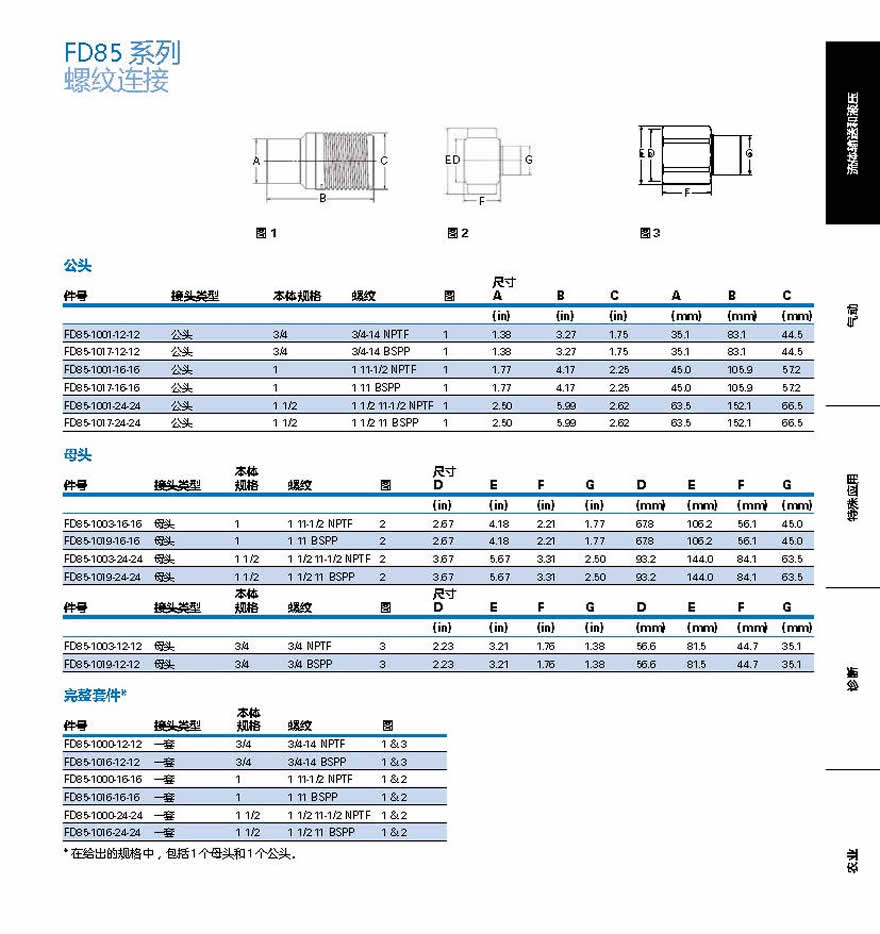

| Part Number |
Body Size |
Thread Size (Female) |
Dimensions |
Weight |
| NBR |
in |
NPT |
BSPP |
A(in) |
B(in) |
C(in) |
A(mm) |
B(mm) |
C(mm) |
A/F(in) |
A/F(mm) |
Lbs |
grams |
| FD85-1001-12-12 |
3/4 |
2003/4/14 |
- |
1.39 |
3.27 |
1.74 |
35.2 |
83.1 |
44.3 |
1 1/3 |
33 |
1.162 |
480 |
| FD85-1017-12-12 |
3/4 |
- |
G 3/4-14 |
1.39 |
3.27 |
1.74 |
35.2 |
83.1 |
44.3 |
1 1/3 |
33 |
1.162 |
480 |
|
| FD85-1001-16-16 |
1 |
1-11 1/2 |
- |
1.77 |
4.17 |
2.24 |
45 |
106 |
57.1 |
1 5/8 |
41 |
2.921 |
1120 |
| FD85-1017-16-16 |
1 |
- |
G 1-11 |
1.77 |
4.17 |
2.25 |
45 |
106 |
57.1 |
1 5/8 |
41 |
2.974 |
1120 |
|
| FD85-1001-20-20 |
1 1/4 |
1 1/4-11 |
- |
2.15 |
5.37 |
2.62 |
54.5 |
136.4 |
66.6 |
2 |
50 |
5.633 |
1875 |
| FD85-1017-20-20 |
1 1/4 |
- |
G 1 1/4-11 |
2.15 |
5.37 |
2.62 |
54.5 |
136.4 |
66.6 |
2 |
50 |
5.633 |
1875 |
|
| FD85-1001-24-24 |
1 1/2 |
1 1/2-11 1/2 |
- |
2.5 |
5.99 |
3.25 |
63.5 |
152.2 |
82.55 |
2 3/8 |
60 |
7.721 |
3150 |
| FD85-1017-24-24 |
1 1/2 |
- |
G 1 1/2-11 |
2.5 |
5.99 |
3.25 |
63.5 |
152.2 |
82.55 |
2 3/8 |
60 |
7.721 |
3150 |
|
| FD85-1001-32-32 |
2 |
2-11 1/2 |
- |
3.25 |
7 |
4 |
82.5 |
179.2 |
101.6 |
3 |
76 |
15.046 |
5635 |
| FD85-1017-32-32 |
2 |
- |
G 2-11 |
3.25 |
7 |
4 |
82.5 |
179.2 |
101.6 |
3 |
76 |
15.046 |
5635 |
Eaton FD85 系列螺纹连接接头经过劳氏船级社认证，确保在石油和天然气应用中的可靠性
日期： 2014 年 11 月 6 日
明尼苏达州伊甸草原。… 动力管理公司伊顿今天宣布，3/4 英寸和 1 英寸尺寸的 FD85 系列螺纹连接快速接头现在作为标准产品带有劳埃德注册证书，适用于石油和天然气应用。独立认证确保快速接头的性能符合行业标准，这有助于减少因设备故障或故障而造成的代价高昂的停机时间。
根据第三方完成的测试和劳氏船级社审核员的见证，伊顿的 FD85 系列螺纹连接接头经认证能够在 700 摄氏度的温度下保持 5 分钟的压力。该认证适用于两个配合部件均为伊顿 FD85 系列螺纹连接快速接头的组件。
“劳氏船级社提供行业认可的认可印章，让最终用户放心，伊顿的 FD85 系列快速接头将有助于最大限度地减少设备故障，”伊顿金属产品经理 Canan Myers 说。“伊顿致力于开发能够延长正常运行时间并提高机械安全性和可靠性的产品，这有助于客户应对当今不断变化的石油和天然气行业中更具挑战性的恢复环境和增加的风险。”
FD85 系列是一种螺纹连接的快速断开快速接头，通常用于各种陆上和海上石油和天然气应用，包括动力装置和钻井设备。快速接头采用碳钢制成，提供标准的 National Pipe Taper Fuel (NPTF) 螺纹端，可根据要求提供英国标准平行管 (BSPP) 螺纹端。在要求苛刻的应用要求工作压力为 5,000 磅/平方英寸 (psi) 的设备上发现，该认证确保接头符合美国石油协会 (API) 标准 16D 防喷器 (BOP) 和能源和公用事业委员会 (EUB) 指令 36附录 3。
伊顿的 Hansen HKFR 系列防喷器快速断开接头还通过了劳氏船级社认证，符合标准 API 16D BOP 和 EUB 指令 36。
Eaton’s FD85 Series Thread-to-Connect Coupling Lloyd’s Registry Certified, Ensuring Reliability in Oil and Gas Applications
Date: November 6, 2014
EDEN PRAIRIE, MINN. … Power management company Eaton today announced that the FD85 Series thread-to-connect couplings in ?-inch and 1-inch sizes now carry a Lloyd’s Registry Certificate for oil and gas applications as a standard offering. The independent certification provides assurance that the couplings will perform to industry standards, which helps to reduce costly downtime due to equipment malfunction or failure.
Based on testing completed by a third party and witnessed by a Lloyd’s Registry auditor, Eaton’s FD85 Series thread-to-connect couplings are certified as capable of maintaining pressures when exposed to a temperature of 700 degrees Celsius for a five-minute period. The certification applies to those assemblies where both mating parts are Eaton FD85 Series thread-to-connect couplings.
“Lloyd’s Registry provides an industry-recognized stamp of approval that gives end users peace of mind that Eaton’s FD85 Series couplings will help minimize equipment failure,” said Canan Myers, product manager, Metals, Eaton. “Eaton is dedicated to developing products that improve uptime and enhance the safety and reliability of machinery, which helps customers address the more challenging recovery environments and increased risk in today’s changing oil and gas industry.”
The FD85 Series is a screw together, quick disconnect coupling commonly used in a variety of on- and off-shore oil and gas applications, including power units and drilling equipment. Offered in carbon steel, the couplings offer standard National Pipe Taper Fuel (NPTF) thread ends, with British Standard Parallel Pipe (BSPP) thread ends available on request. Found on equipment where demanding applications require operating pressures of 5,000 pounds per square inch (psi), the certification ensures that the couplings meet American Petroleum Institute (API) standard 16D Blow Out Preventer (BOP) and Energy and Utilities Board (EUB) directive 36 Appendix 3.
Eaton’s Hansen HKFR Series Blow Out Preventer Quick Disconnect Couplings are also Lloyd’s Registry certified to standard API 16D BOP and EUB directive 36.
