EATON Hansen ST系列大流量模具冷却直通式快速接头
Hansen Straight Through Hydraulic Couplings by Hansen Couplings

Manufacturer: Hansen Couplings

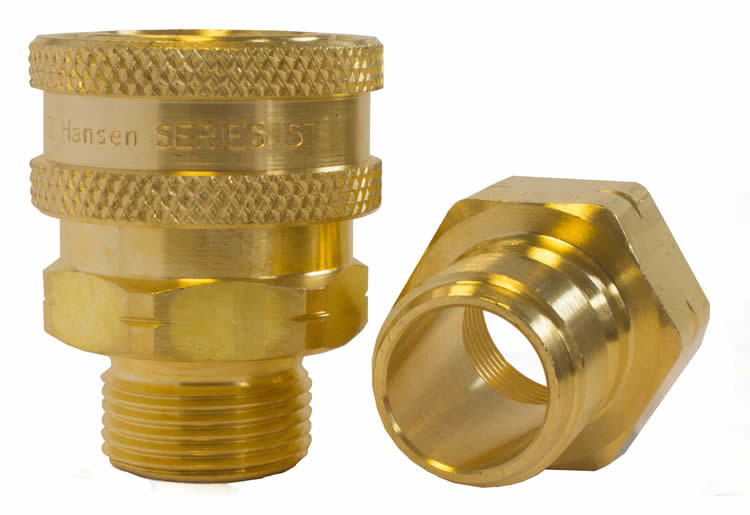

EATON Hansen ST系列直通式快速接头

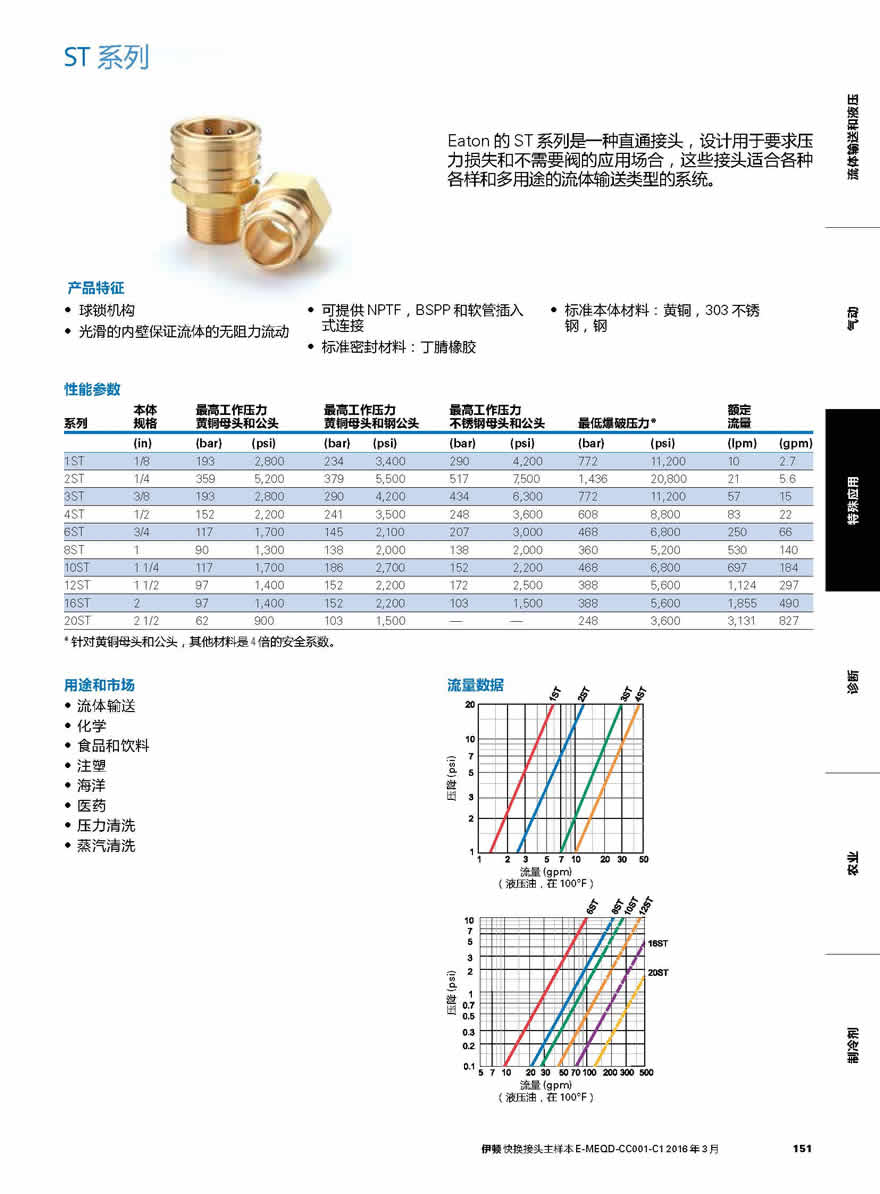

EATON Hansen ST系列是一种无阀门快速接头，用于需要最大流量及最少压降的领域。EATON Hansen ST系列直通式快速接头应用：ST系列提供的大流量被用于压力清洗装置、蒸汽清洗、液体运输、模具冷却线路及化工。Eaton ST系列是一种直通接头，设计用于要求压力损失和不需要阀的应用场合，这些接头适合各种各样和多用途的流体输送类型的系统。


EATON HANSEN ST Series Straight Through Hydraulic Quick-Connect Couplings
Hansen ST系列大流量模具冷却直通式快速接头



特点和优势：

- 主体尺寸：1/8”、1/4”、3/8”、1/2”、3/4”、1”、1-1/4”、1-1/2”、2”和2-1/2”
- 材质：钢、黄铜、不锈钢、塑料
- 螺纹连接形式：NPT、BSP、坡口连接
- 工作压力：
钢质接头最大可承受：5,500psi (380bar)
黄铜接头最大可承受：5,200psi (360bar)
不锈钢接头最大可承受：7,500psi (520bar)
塑料接头最大可承受：100psi (8bar)
- 球形锁 手动操作
- 平滑的通道使液体和气体能够更自由流动
- 内螺纹和外螺纹的NPTF和BSPP连接标准，软管坡口连接



标准材质：

- 母头为黄铜或303不锈钢
- 不锈钢弹簧、钢球和扣环
- 公头为黄铜、镀锌钢和303不锈钢
- 主体尺寸1/4''和3/8''的接头可选高强度热处理416不锈钢公头
- 丁晴橡胶密封圈 NBR
- 套筒锁
- 密封件：特氟龙（1ST 到 8ST)、氯丁橡胶、氟橡胶、丁晴橡胶NBR和三元乙丙橡胶密封圈
- 备件：部分尺寸可选防尘帽和防尘塞



Eaton HANSEN ST Series - Quick Disconnect Couplings - Male End Sockets & Plugs
Eaton HANSEN ST Series is a straight through coupling

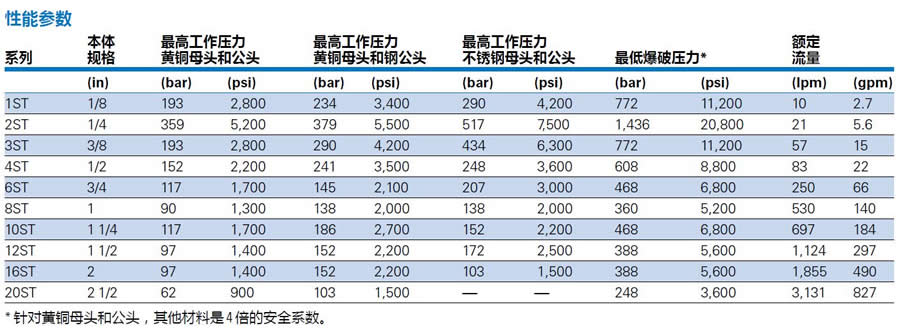

Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
Brass Socket & Plug Brass Socket & Steel Plug Stainless Socket & Plug
(in) (bar) (psi) (bar) (psi) (bar) (psi) (bar) (psi) (lpm) (gpm)
1ST 1/8 193 2,800 234 3,400 290 4,200 772 11,200 10 2.7
2ST 1/4 359 5,200 379 5,500 517 7,500 1,436 20,800 21 5.6
3ST 3/8 193 2,800 290 4,200 434 6,300 772 11,200 57 15
4ST 1/2 152 2,200 241 3,500 248 3,600 608 8,800 83 22
6ST 3/4 117 1,700 145 2,100 207 3,000 468 6,800 250 66
8ST 1 90 1,300 138 2,000 138 2,000 360 5,200 530 140
10ST 1 1/4 117 1,700 186 2,700 152 2,200 468 6,800 697 184
12ST 1 1/2 97 1,400 152 2,200 172 2,500 388 5,600 1,124 297
16ST 2 97 1,400 152 2,200 103 1,500 388 5,600 1,855 490
20ST 2 1/2 62 900 103 1,500 - - 248 3,600 3,131 827

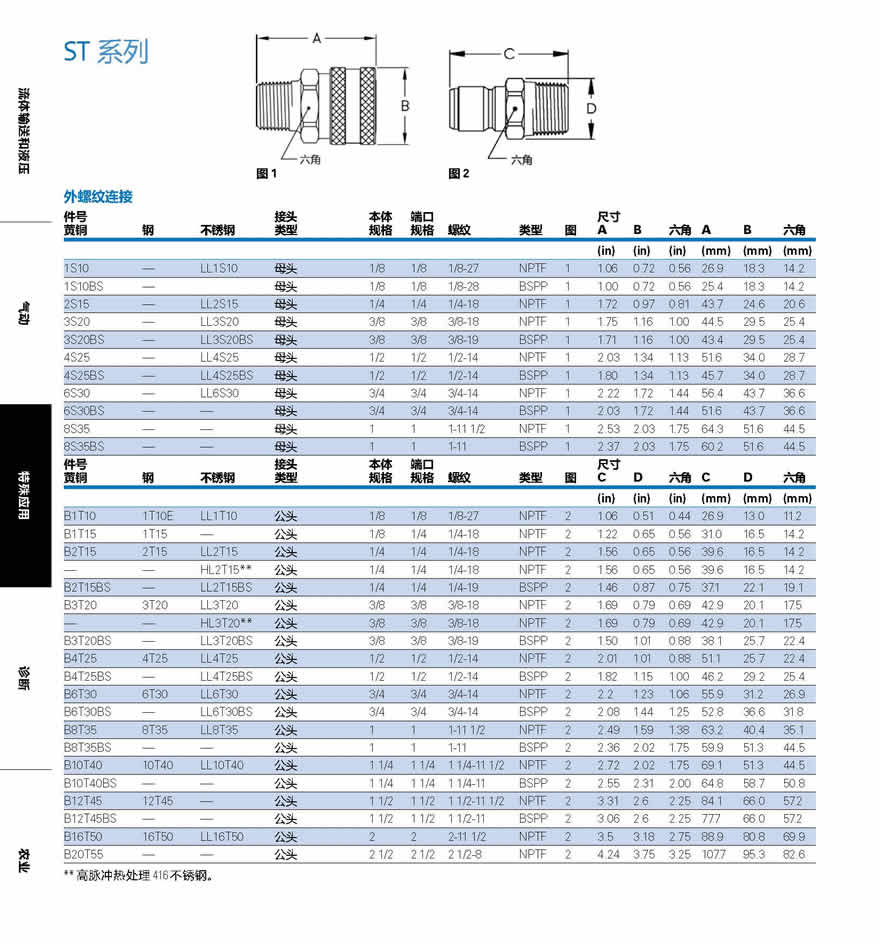

Dimensions ST Series - Female Socket (Male End Connections)



- Dimensions ST Series - Female Socket (Male End Connections)

Part NumberBrass Part NumberSteel Part Number303 Stainless Steel Coupling Type Body Size Port Size Thread Type Figure
A B Hex
in(mm) in(mm) in(mm)
1S10 - LL1S10 Socket/Female
1/8
1/8
1/8 - 27
Male NPTF
1
1S10BS - - Socket/Female
1/8
1/8
1/8 - 28
Male BSPP
1
2S15 - LL2S15 Socket/Female
1/4
1/4
1/4 - 18
Male NPTF
1
3S20 - LL3S20 Socket/Female
3/8
3/8
3/8 - 18
Male NPTF
1
3S20BS - LL3S20BS Socket/Female
3/8
3/8
3/8 - 19
Male BSPP
1
4S25 - LL4S25 Socket/Female
1/2
1/2
1/2 - 14
Male NPTF
1
4S25BS - LL4S25BS Socket/Female
1/2
1/2
1/2 - 14
Male BSPP
1
6S30 - LL6S30 Socket/Female
3/4
3/4
3/4 - 14
Male NPTF
1
6S30BS - - Socket/Female
3/4
3/4
3/4 - 14
Male BSPP
1
8S35 - - Socket/Female
1
1
1-11 1/2
Male NPTF
1
8S35BS - - Socket/Female
1
1
1/11
Male BSPP
1

- Dimensions ST Series - Male Plug (Male End Connections)

Part NumberBrass Part NumberSteel Part Number303 Stainless Steel Coupling Type Body Size Port Size Thread Type Figure
C D Hex
in(mm) in(mm) in(mm)
B1T10 1T10E LL1T10 Plug/Male
1/8
1/8
1/8 - 27
Male NPTF 2
B1T15 1T15 - Plug/Male
1/8
1/4
1/4 - 18
Male NPTF 2
B2T15 2T15 LL2T15 Plug/Male
1/4
1/4
1/4 - 18
Male NPTF 2
- - HL2T15* Plug/Male
1/4
1/4
1/4 - 18
Male NPTF 2
B2T15BS - LL2T15BS Plug/Male
1/4
1/4
1/4 - 19
Male BSPP 2
B3T20 3T20 LL3T20 Plug/Male
3/8
3/8
3/8 - 18
Male NPTF 2
- - HL3T20* Plug/Male
3/8
3/8
3/8 - 18
Male NPTF 2
B3T20BS - LL3T20BS Plug/Male
3/8
3/8
3/8 - 19
Male BSPP 2
B4T25 4T25 LL4T25 Plug/Male
1/2
1/2
1/2 - 14
Male NPTF 2
B4T25BS - LL4T25BS Plug/Male
1/2
1/2
1/2 - 14
Male BSPP 2
B6T30 6T30 LL6T30 Plug/Male
3/4
3/4
3/4 - 14
Male NPTF 2
B6T30BS - LL6T30BS Plug/Male
3/4
3/4
3/4 - 14
Male BSPP 2
B8T35 8T35 LL8T35 Plug/Male
1
1
1-11 1/2
Male NPTF 2
B8T35BS - - Plug/Male
1
1
1/11
Male BSPP 2
B10T40 10T40 LL10T40 Plug/Male
1 1/4
1 1/4
1 1/4-11 1/2
Male NPTF 2
B10T40BS - - Plug/Male
1 1/4
1 1/4
1 1/4-11
Male BSPP 2
B12T45 12T45 - Plug/Male
1 1/2
1 1/2
1 1/2-11 1/2
Male NPTF 2
B12T45BS - - Plug/Male
1 1/2
1 1/2
1 1/2-11
Male BSPP 2
B16T50 16T50 LL16T50 Plug/Male
2
2
2-11 1/2
Male NPTF 2
B20T55 - - Plug/Male
2 1/2
2 1/2
2 1/2-8
Male NPTF 2

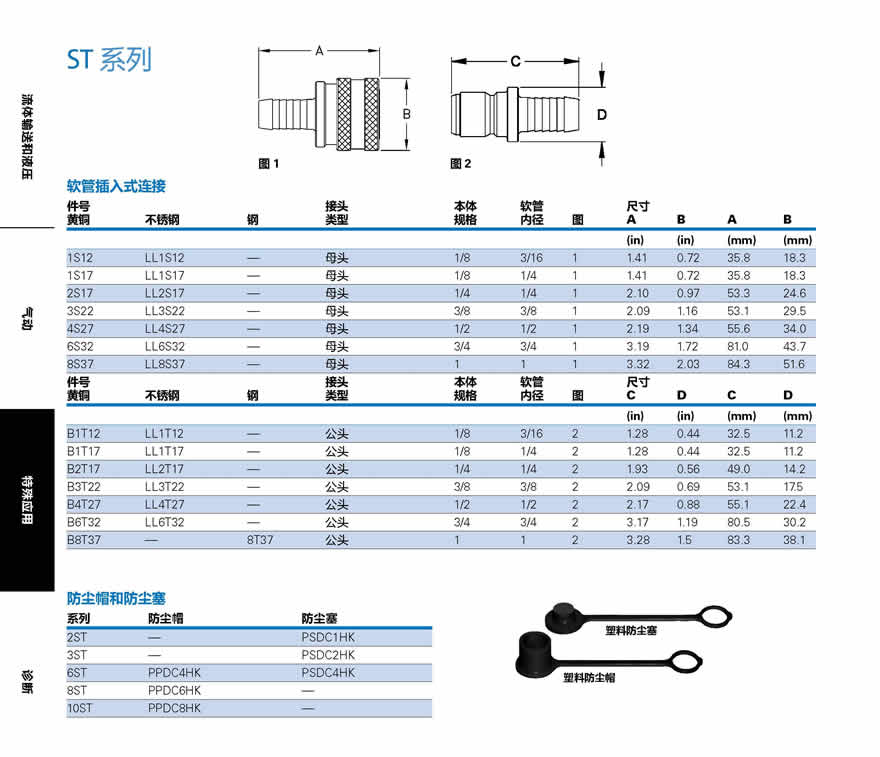

Series Dust Cap Dust Plug
2ST - PSDC1HK
3ST - PSDC2HK
6ST PPDC4HK PSDC4HK
8ST PPDC6HK -
10ST PPDC8HK

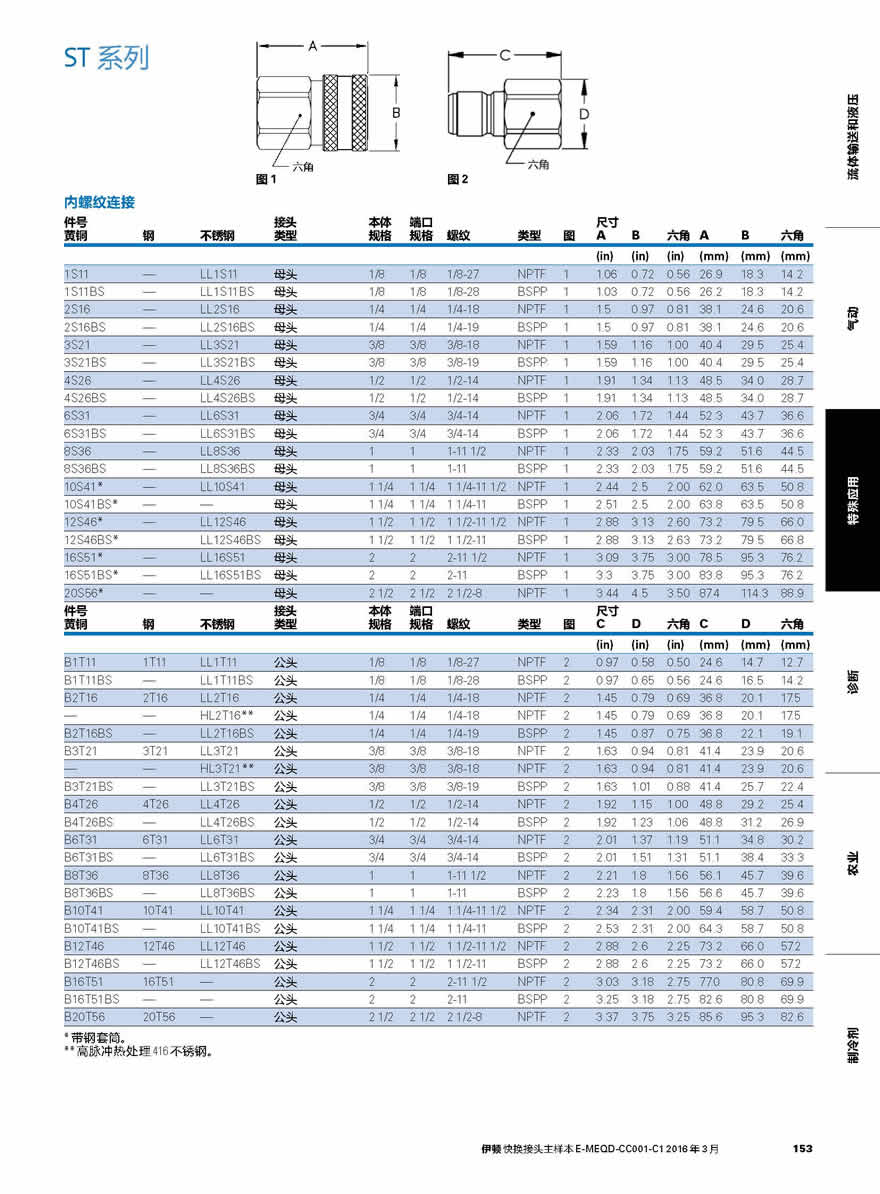

Body Size Steel Part Number (nitrile seals) Brass Part Number (nitrile seals) 303 Stainless Steel Part Number (nitrile seals) Viton seals suffix EPDM seals suffix NPTF BSPP Hosetail I/D Connection Type Coupling Type
1/8 - 1S10 LL1S10 -143 -192 2001/8 - 27 - - Male thread Socket
1/8 - 1S10-BS - -143 -192 - 2001/8/28 - Male thread Socket
1/8 1T10E B1T10 LL1T10 - - 2001/8 - 27 - - Male thread Plug
1/8 1T15 B1T15 - - - 2001/4 -18 - - Male thread Plug
1/8 - 1S11 LL1S11 -143 -192 2001/8/27 - - Female thread Socket
1/8 - 1S11-BS LL1S11-BS -143 -192 - 2001/8/27 - Female thread Socket
1/8 1T11 B1T11 LL1T11 - - 2001/8/27 - - Female thread Plug
1/8 - B1T11-BS LL1T11-BS - - - 2001/8/27 - Female thread Plug
1/8 - 1S12 LL1S12 -143 -192 - - ##### Hosetail Socket
1/8 - 1S17 LL1S17 -143 -192 - - 1/4 Hosetail Socket
1/8 - B1T12 LL1T12 - - - - ##### Hosetail Plug
1/8 - B1T17 LL1T17 - - - - 1/4 Hosetail Plug
1/4 - 2S15 LL2S15 -143 -192 2001/4/18 - - Male thread Socket
1/4 2T15 B2T15 LL2T15 - - 2001/4/18 - - Male thread Plug
1/4 - B2T15-BS LL2T15-BS - - - 2001/4/19 - Male thread Plug
1/4 - 2S16 LL2S16 -143 -192 2001/4/18 - - Female thread Socket
1/4 - 2S16-BS LL2S16-BS -143 -192 - 2001/4/19 - Female thread Socket
1/4 2T16 B2T16 LL2T16 - - 2001/4/18 - - Female thread Plug
1/4 - B2T16-BS LL2T16-BS - - - 2001/4/19 - Female thread Plug
1/4 - 2S17 LL2S17 -143 -192 - - 1/4 Hosetail Socket
1/4 - B2T17 LL2T17 - - - - 1/4 Hosetail Plug
3/8 - 3S20 LL3S20 -143 -192 2003/8/18 - - Male thread Socket
3/8 - 3S20-BS LL3S20-BS -143 -192 - 2003/8/19 - Male thread Socket
3/8 3T20 B3T20 LL3T20 - - 2003/8/18 - - Male thread Plug
3/8 - B3T20-BS LL3T20-BS - - - 2003/8/19 - Male thread Plug
3/8 - 3S21 LL3S21 -143 -192 2003/8/18 - - Female thread Socket
3/8 - 3S21-BS LL3S21-BS -143 -192 - 2003/8/19 - Female thread Socket
3/8 3T21 B3T21 LL3T21 - - 2003/8/19 - - Female thread Plug
3/8 - B3T21-BS LLT21-BS - - - 2003/8/19 - Female thread Plug
3/8 - 3S22 LL3S21 -143 -192 - - 3/8 Hosetail Socket
3/8 - B3T22 LL3T22 - - - - 3/8 Hosetail Plug
1/2 - 4S25 LL4S25 -143 -192 2001/2/14 - - Male thread Socket
1/2 - 4S25-BS LL4S25-BS -143 -192 - 2001/2/14 - Male thread Socket
1/2 4T25 B4T25 LL4T25 - - 2001/2/14 - - Male thread Plug
1/2 - B4T25-BS LL4T25-BS - - - 2001/2/14 - Male thread Plug
1/2 - 4S26 LL4S26 -143 -192 2001/2/14 - - Female thread Socket
1/2 - 4S26-BS LL4S26-BS -143 -192 - 2001/2/14 - Female thread Socket
1/2 4T26 B4T26 LL4T26 - - 2001/2/14 - - Female thread Plug
1/2 - B4T26-BS LL4T26-BS - - - 2001/2/14 - Female thread Plug
1/2 - 4S27 LL4S27 -143 -192 - - 1/2 Hosetail Socket
1/2 - B4T27 LL4T27 - - - - 1/2 Hosetail Plug
3/4 - 6S30 LL6S30 -143 -192 2003/4/14 - - Male thread Socket
3/4 - 6S30-BS LL6S30-BS -143 -192 - 2003/4/14 - Male thread Socket
3/4 6T30 B6T30 LL6T30 - - 2003/4/14 - - Male thead Plug
3/4 - B6T30-BS LL6T30-BS - - - 2003/4/14 - Male thread Plug
3/4 - 6S31 LL6S31 -143 -192 2003/4/14 - - Female thread Socket
3/4 - 6S31-BS LL6S31-BS -143 -192 - 2003/4/14 - Female thread Socket
3/4 6T31 B6T31 LL6T31 - - 2003/4/14 - - Female thread Plug
3/4 - B6T31-BS LL6T31-BS - - - 2003/4/14 - Female thread Plug
3/4 - 6S32 LL6S32 -143 -192 - - 3/4 Hosetail Socket
3/4 - B6T32 LL6T32 - - - - 3/4 Hosetail Plug
1 - 8S35 - -143 -192 1-11.1/2 - - Male thread Socket
1 - 8S35-BS - -143 -192 - 1/11 - Male thread Socket
1 8T35 B8T35 LL8T35 - - 1-11.1/2 - - Male thread Plug
1 - B8T35-BS - - - - 1/11 - Male thread Plug
1 - 8S36 LL8S36 -143 -192 1-11.1/2 - - Female thread Socket
1 - 8S36-BS LL8S36-BS -143 -192 - 1/11 - Female thread Socket
1 8T36 B8T36 LL8T36 - - 1-11.1/2 - - Female thread Plug
1 - B8T36-BS LL8T36-BS - - - 1/11 - Female thread Plug
1 - 8S37 LL8S37 -143 -192 - - 1 Hosetail Socket
1 8T37 - LL8T37 - - - - 1 Hosetail Plug
1.1/4 10T40 B10T40 LL10T40 - - 1.1/4-11.1/2 - - Male thread Plug
1.1/4 - B10T40-BS - - - - 1.1/4-11 - Male thread Plug
1.1/4 - 10S41 LL10S41 -143 -192 1.1/4-11 - - Female thread Socket
1.1/4 - 10S41-BS - -143 -192 - 1.1/4-11 - Female thread Socket
1.1/4 10T41 B10T41 LL10T41 - - 1.1/4-11 - - Female thread Plug
1.1/4 - B10T41-BS LL10T41-BS - - - 1.1/4-11 - Female thread Plug
1.1/2 12T45 B12T45 - - - 1.1/2-11.1/2 - - Male thread Plug
1.1/2 - B12T45-BS - - - - 1.1/2-11 - Male thead Plug
1.1/2 - 12S46 LL12S46 -143 -192 1.1/2-11.1/2 - - Male thread Socket
1.1/2 - 12S46-BS LL12S46-BS -143 -192 - 1.1/2-11 - Female thread Socket
1.1/2 12T46 B12T46 LL12T46 - - 1.1/2-11.1/2 - - Female thread Plug
1.1/2 - B12T46-BS LL12T46-BS - - - 1.1/2-11 - Female thread Plug
2 16T50 B16T50 LL16T50 - - 2-11.1/2 - - Male thread Plug
2 - 16S51 LL16S51 -143 -192 2-11.1/2 - - Female thread Socket
2 - 16S51-BS LL16S51-BS -143 -192 - 2/11 - Female thread Socket
2 16T51 B16T51 LL16T51 - - 2-11.1/2 - - Female thread Plug
2 - B16T51-BS - - - - 2/11 - Female thread Plug
2.1/2 - B20T55 - - - 2.1/2-8 - - Male thread Plug
2.1/2 - 20S56 - -143 -192 2.1/2-8 - - Female thread Socket
2.1/2 20T56 B20T56 - - - - 2.1/2-8 - Female thread Plug
